Mar Drugs
2019 Mar 01;173:. doi: 10.3390/md17030144.
Show Gene links
Show Anatomy links
Molecular and Morphological Toxicity of Diatom-Derived Hydroxyacid Mixtures to Sea Urchin Paracentrotus lividus Embryos.
Albarano L
,
Ruocco N
,
Ianora A
,
Libralato G
,
Manfra L
,
Costantini M
.
???displayArticle.abstract???
Oxylipins such as polyunsaturated aldehydes (PUAs) and hydroxyacids (HEPEs) are signaling molecules derived from the oxidation of polyunsaturated fatty acids. They are common in diatoms that constitute a major group of microalgae in freshwater and oceanic ecosystems. Although HEPEs represent the most common oxylipins produced by diatoms, little information is available on their effects on marine invertebrates, and most of the information has been obtained by testing individual HEPEs. Our previous studies reported that four hydroxyacids, i.e., 5-, 9-, 11-, and 15-HEPE, were able to induce malformations and a marked developmental delay in sea urchin Paracentrotus lividus embryos, which had not been reported for other oxylipins. Here, we tested a mixture of 5-, 9-, 11-, and 15-HEPE at different concentrations for the first time. The results showed that mixtures of HEPEs have synergistic effects that are much more severe compared to those of individual HEPEs: The HEPE mixtures induced malformations in sea urchin embryos at lower concentrations. Increasing HEPE mixture concentrations induced a marked increase in the number of delayed embryos, until all embryos were delayed at the highest concentration tested. At the molecular level, the HEPE mixtures induced variations in the expression of 50 genes involved in different functional processes, mainly down-regulating these genes at the earliest stages of embryonic development. These findings are ecologically significant, considering that during diatom blooms, sea urchins could accumulate HEPEs in concentrations comparable to those tested in the present study.
Figure 2. Photos (taken with Zeiss Axiovert 135TV microscope, 10× magnification, 0.30 numerical aperture) of (A) controls at the pluteus stage (at 48 h post fertilization (hpf); embryos in sea water without HEPE mixtures), (B) malformed gastrula, (C) early plutei, (D–G) malformed plutei after incubation with 5-, 9-, 11-, and 15-HEPE mixtures. Scale bar: 50 µm.
Figure 3. Photos (taken with Zeiss Axiovert 135TV microscope, 10× magnification, 0.30 numerical aperture) of (A) control (embryos in sea water without HEPE mixtures) at one week after fertilization, (B–H) abnormal embryos after incubation with 5-, 9-, 11-, and 15-HEPE mixtures at the concentration of 6.0 and 7.0 μM. Scale bar: 50 µm.

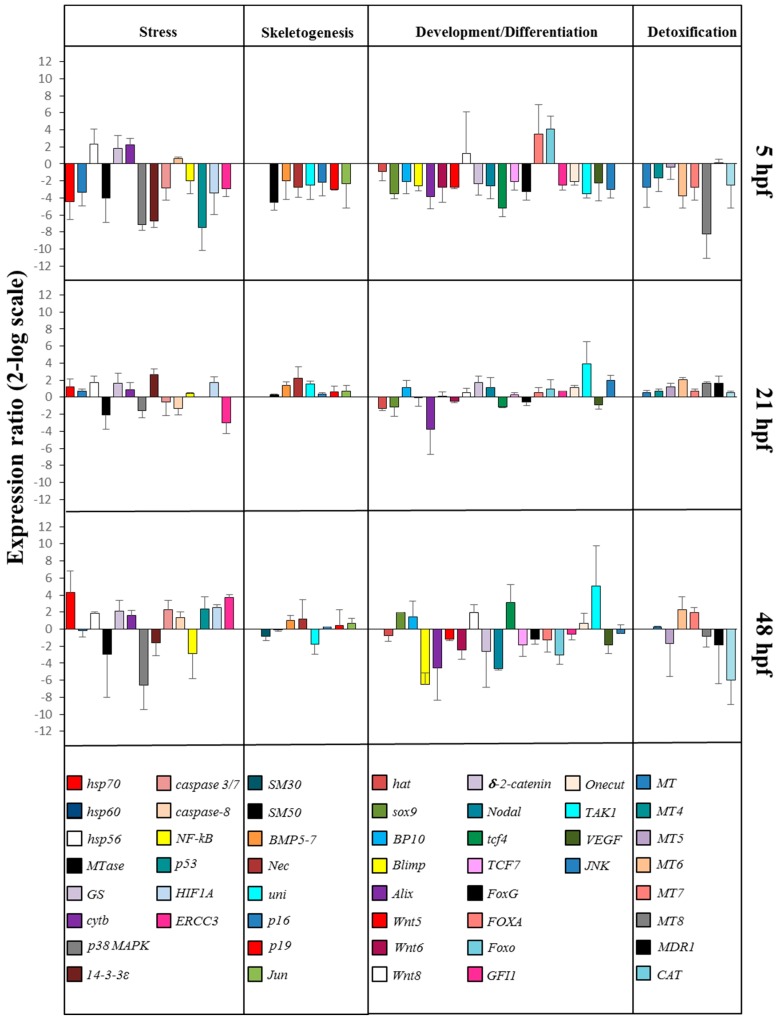

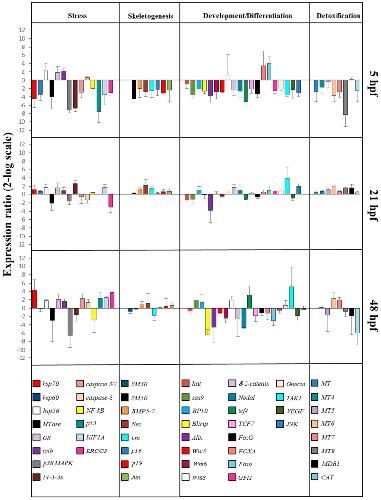

Figure 4. Real-time qPCR at blastula (5 hpf), gastrula (21 hpf), and pluteus (48 hpf) stages. Histograms show the differences in the expression levels of 50 genes involved in different functional processes: stress, skeletogenesis, development/differentiation, and detoxification. Paracentrotus lividus embryos were grown in the presence of 5-, 9-, 11-, and 15-HEPE mixtures at the concentration of 2.8 μM. Fold differences greater than ±2 (see red dotted horizontal guidelines at values of +2 and −2) were considered significant (see Supplementary Table S1 for the values).

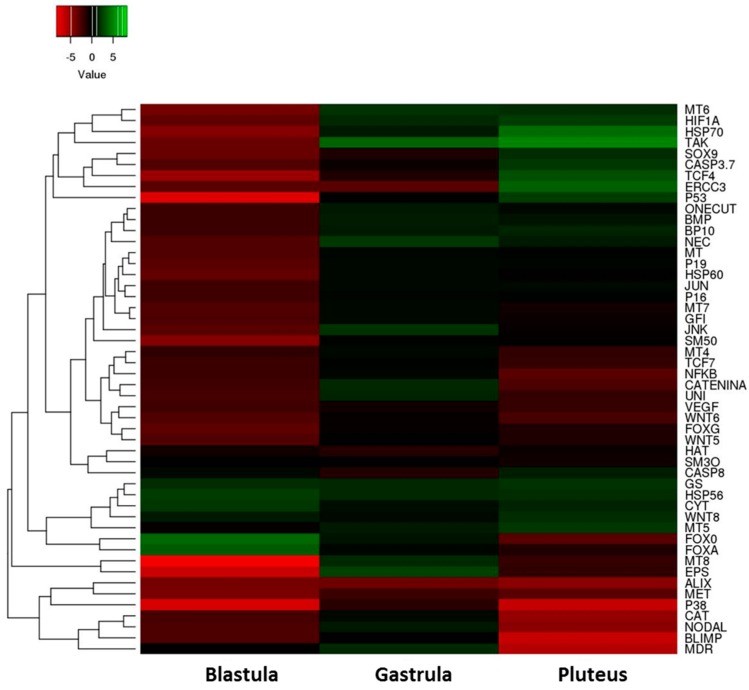

Figure 5. Heatmap (Heatmapper, available at the site www.heatmappear.ca) of differentially expressed genes in the three developmental stages (blastula, gastrula, and pluteus) after treatment with a 5-, 9-, 11-, and 15-HEPE mixture at the concentration of 2.8 μM. Color codes: red, negative values of gene expression (down-regulated genes with respect to the control, embryos developed in sea water without HEPE mixture); green, positive values of gene expression (up-regulated genes with respect to the control); black, genes for which there was no variation of expression with respect to the control.
Blée,
Impact of phyto-oxylipins in plant defense.
2002, Pubmed
Blée,
Impact of phyto-oxylipins in plant defense.
2002,
Pubmed
Costa,
Phylogenetic analysis and expression patterns of p16 and p19 in Paracentrotus lividus embryos.
2012,
Pubmed
,
Echinobase
Cutignano,
LIPOXYGENASE PRODUCTS IN MARINE DIATOMS: A CONCISE ANALYTICAL METHOD TO EXPLORE THE FUNCTIONAL POTENTIAL OF OXYLIPINS(1).
2011,
Pubmed
d'Ippolito,
New C16 fatty-acid-based oxylipin pathway in the marine diatom Thalassiosira rotula.
2005,
Pubmed
D'Ippolito,
15S-lipoxygenase metabolism in the marine diatom Pseudo-nitzschia delicatissima.
2009,
Pubmed
Fontana,
LOX-induced lipid peroxidation mechanism responsible for the detrimental effect of marine diatoms on zooplankton grazers.
2007,
Pubmed
Goldstone,
The chemical defensome: environmental sensing and response genes in the Strongylocentrotus purpuratus genome.
2006,
Pubmed
,
Echinobase
Howe,
Oxylipin metabolism in response to stress.
2002,
Pubmed
Ianora,
Toxigenic effects of diatoms on grazers, phytoplankton and other microbes: a review.
2010,
Pubmed
Marrone,
Defensome against toxic diatom aldehydes in the sea urchin Paracentrotus lividus.
2012,
Pubmed
,
Echinobase
Nanjappa,
Oxylipin diversity in the diatom family Leptocylindraceae reveals DHA derivatives in marine diatoms.
2014,
Pubmed
Pfaffl,
A new mathematical model for relative quantification in real-time RT-PCR.
2001,
Pubmed
Pfaffl,
Relative expression software tool (REST) for group-wise comparison and statistical analysis of relative expression results in real-time PCR.
2002,
Pubmed
Pinsino,
Sea urchin immune cells as sentinels of environmental stress.
2015,
Pubmed
,
Echinobase
Pohnert,
The oxylipin chemistry of attraction and defense in brown algae and diatoms.
2002,
Pubmed
Pohnert,
Phospholipase A2 activity triggers the wound-activated chemical defense in the diatom Thalassiosira rotula.
2002,
Pubmed
Roepke,
Estradiol and endocrine disrupting compounds adversely affect development of sea urchin embryos at environmentally relevant concentrations.
2005,
Pubmed
,
Echinobase
Romano,
Teratogenic effects of diatom metabolites on sea urchin Paracentrotus lividus embryos.
2010,
Pubmed
,
Echinobase
Ruocco,
High-quality RNA extraction from the sea urchin Paracentrotus lividus embryos.
2017,
Pubmed
,
Echinobase
Ruocco,
Diatom-derived oxylipins induce cell death in sea urchin embryos activating caspase-8 and caspase 3/7.
2016,
Pubmed
,
Echinobase
Ruocco,
New inter-correlated genes targeted by diatom-derived polyunsaturated aldehydes in the sea urchin Paracentrotus lividus.
2017,
Pubmed
,
Echinobase
Ruocco,
Toxigenic effects of two benthic diatoms upon grazing activity of the sea urchin: morphological, metabolomic and de novo transcriptomic analysis.
2018,
Pubmed
,
Echinobase
Ruocco,
Toxicity of diatom-derived polyunsaturated aldehyde mixtures on sea urchin Paracentrotus lividus development.
2019,
Pubmed
,
Echinobase
Todgham,
Transcriptomic response of sea urchin larvae Strongylocentrotus purpuratus to CO2-driven seawater acidification.
2009,
Pubmed
,
Echinobase
Varrella,
First Morphological and Molecular Evidence of the Negative Impact of Diatom-Derived Hydroxyacids on the Sea Urchin Paracentrotus lividus.
2016,
Pubmed
,
Echinobase
Varrella,
Toxic Diatom Aldehydes Affect Defence Gene Networks in Sea Urchins.
2016,
Pubmed
,
Echinobase
Varrella,
Molecular response to toxic diatom-derived aldehydes in the sea urchin Paracentrotus lividus.
2014,
Pubmed
,
Echinobase
