Front Genet
2016 Jan 01;7:16. doi: 10.3389/fgene.2016.00016.
Show Gene links
Show Anatomy links
Robustness and Accuracy in Sea Urchin Developmental Gene Regulatory Networks.
Ben-Tabou de-Leon S
.
???displayArticle.abstract???
Developmental gene regulatory networks robustly control the timely activation of regulatory and differentiation genes. The structure of these networks underlies their capacity to buffer intrinsic and extrinsic noise and maintain embryonic morphology. Here I illustrate how the use of specific architectures by the sea urchin developmental regulatory networks enables the robust control of cell fate decisions. The Wnt-βcatenin signaling pathway patterns the primary embryonic axis while the BMP signaling pathway patterns the secondary embryonic axis in the sea urchin embryo and across bilateria. Interestingly, in the sea urchin in both cases, the signaling pathway that defines the axis controls directly the expression of a set of downstream regulatory genes. I propose that this direct activation of a set of regulatory genes enables a uniform regulatory response and a clear cut cell fate decision in the endoderm and in the dorsal ectoderm. The specification of the mesodermal pigment cell lineage is activated by Delta signaling that initiates a triple positive feedback loop that locks down the pigment specification state. I propose that the use of compound positive feedback circuitry provides the endodermal cells enough time to turn off mesodermal genes and ensures correct mesoderm vs. endoderm fate decision. Thus, I argue that understanding the control properties of repeatedly used regulatory architectures illuminates their role in embryogenesis and provides possible explanations to their resistance to evolutionary change.

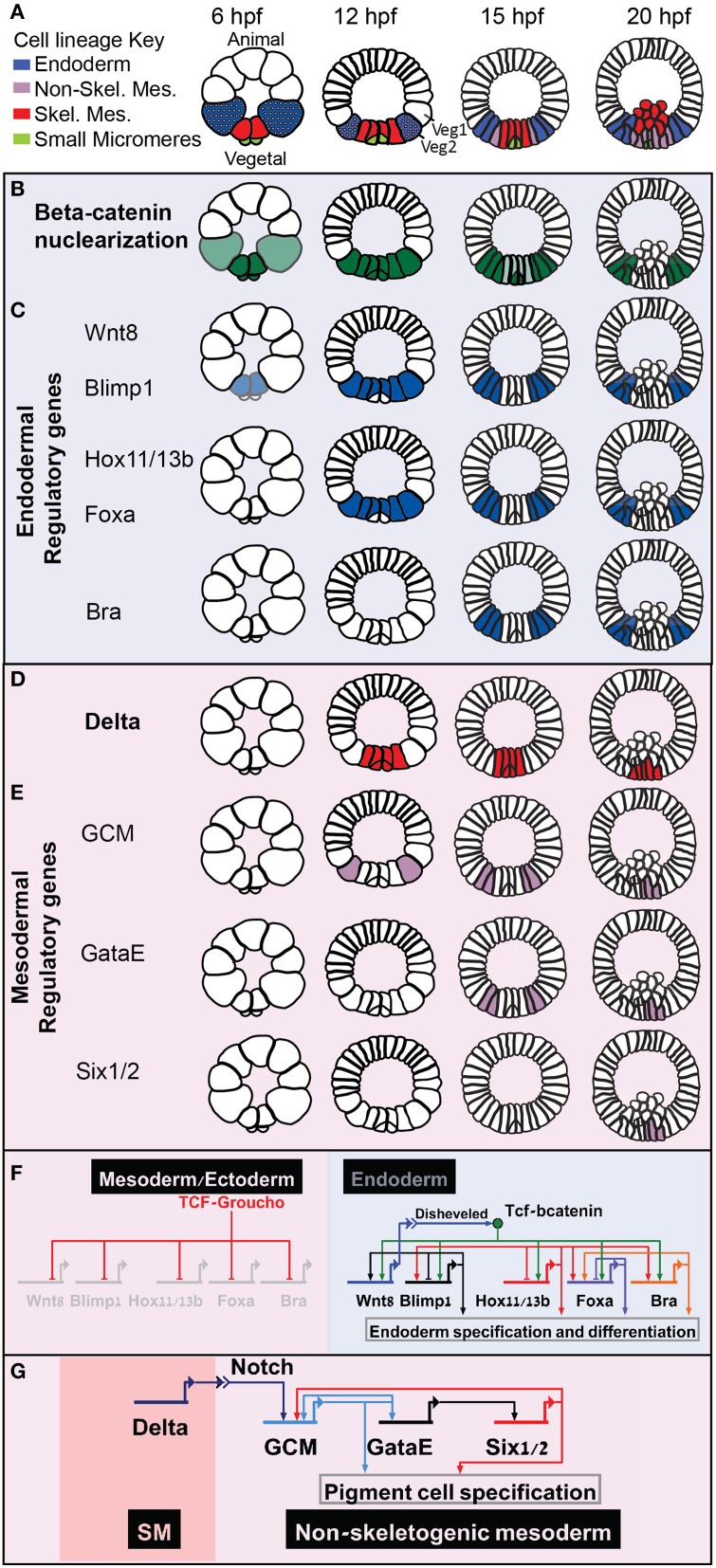

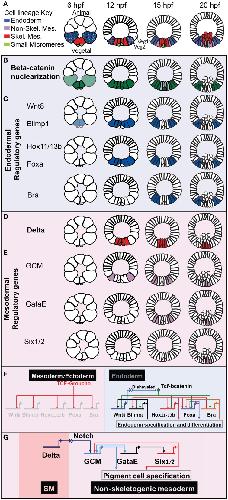

Figure 1. Sea urchin embryonic development and endoderm specification. Developmental time is described in hours post fertilization according the developmental rate of the purple sea urchin, S. purpuratus. (A) Sea urchin endomesoderm cell lineage diagram. Color key is described in the figure. (B) βcatenin nuclearization pattern, dark green indicates high concentration, light green low. (C) Spatio-temporal expression profiles of endodermal control genes. (D) Partial endodermal GRN model depicting Tcf/βcatenin-Tcf/Groucho switch and regulatory interactions within the endodermal genes. (E) Spatio-temporal expression of the Delta ligand. (F) spatio-temporal expression of non-skeletogenic mesodermal genes. (G) GRN model of the triple positive feedback loop that Delta reception activates in the non-skeletogenic cells.

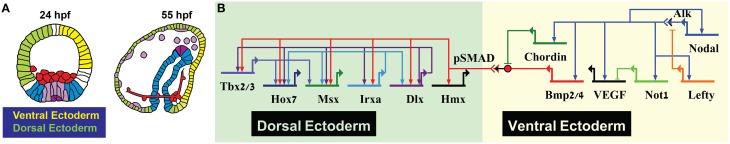

Figure 2. Sea urchin dorsal-ventral patterning. (A) Sea urchin lineage diagram showing ventral (yellow) and dorsal (light green) ectoderm. (B) Partial model on Dosrsal-Ventral patterning in the sea urchin depicting key regulatory processes in the ectoderm.
Ben-Tabou de-Leon,
Gene regulatory control in the sea urchin aboral ectoderm: spatial initiation, signaling inputs, and cell fate lockdown.
2013, Pubmed,
Echinobase
Ben-Tabou de-Leon,
Gene regulatory control in the sea urchin aboral ectoderm: spatial initiation, signaling inputs, and cell fate lockdown.
2013,
Pubmed
,
Echinobase
Ben-Tabou de-Leon,
Perturbation analysis analyzed--athematical modeling of intact and perturbed gene regulatory circuits for animal development.
2010,
Pubmed
Ben-Tabou de-Leon,
Deciphering the underlying mechanism of specification and differentiation: the sea urchin gene regulatory network.
2006,
Pubmed
,
Echinobase
Croce,
Dynamics of Delta/Notch signaling on endomesoderm segregation in the sea urchin embryo.
2010,
Pubmed
,
Echinobase
Cui,
Specific functions of the Wnt signaling system in gene regulatory networks throughout the early sea urchin embryo.
2014,
Pubmed
,
Echinobase
Gaiano,
The role of notch in promoting glial and neural stem cell fates.
2002,
Pubmed
Garfield,
The impact of gene expression variation on the robustness and evolvability of a developmental gene regulatory network.
2013,
Pubmed
,
Echinobase
Gildor,
Comparative Study of Regulatory Circuits in Two Sea Urchin Species Reveals Tight Control of Timing and High Conservation of Expression Dynamics.
2015,
Pubmed
,
Echinobase
Hinman,
Developmental gene regulatory network architecture across 500 million years of echinoderm evolution.
2003,
Pubmed
,
Echinobase
Hornung,
Noise propagation and signaling sensitivity in biological networks: a role for positive feedback.
2008,
Pubmed
Kitano,
Towards a theory of biological robustness.
2007,
Pubmed
Kuntz,
Drosophila embryogenesis scales uniformly across temperature in developmentally diverse species.
2014,
Pubmed
Li,
Encoding regulatory state boundaries in the pregastrular oral ectoderm of the sea urchin embryo.
2014,
Pubmed
,
Echinobase
Livi,
Expression and function of blimp1/krox, an alternatively transcribed regulatory gene of the sea urchin endomesoderm network.
2006,
Pubmed
,
Echinobase
Logan,
Nuclear beta-catenin is required to specify vegetal cell fates in the sea urchin embryo.
1999,
Pubmed
,
Echinobase
Materna,
A comprehensive analysis of Delta signaling in pre-gastrular sea urchin embryos.
2012,
Pubmed
,
Echinobase
Minokawa,
cis-Regulatory inputs of the wnt8 gene in the sea urchin endomesoderm network.
2005,
Pubmed
,
Echinobase
Nam,
Cis-regulatory control of the nodal gene, initiator of the sea urchin oral ectoderm gene network.
2007,
Pubmed
,
Echinobase
Oliveri,
Global regulatory logic for specification of an embryonic cell lineage.
2008,
Pubmed
,
Echinobase
Olson,
Gene regulatory networks in the evolution and development of the heart.
2006,
Pubmed
Payne,
Mechanisms of mutational robustness in transcriptional regulation.
2015,
Pubmed
Pespeni,
Signs of adaptation to local pH conditions across an environmental mosaic in the California Current Ecosystem.
2013,
Pubmed
,
Echinobase
Peter,
Modularity and design principles in the sea urchin embryo gene regulatory network.
2009,
Pubmed
,
Echinobase
Peter,
A gene regulatory network controlling the embryonic specification of endoderm.
2011,
Pubmed
,
Echinobase
Peter,
The endoderm gene regulatory network in sea urchin embryos up to mid-blastula stage.
2010,
Pubmed
,
Echinobase
Petersen,
Wnt signaling and the polarity of the primary body axis.
2009,
Pubmed
Ransick,
Cis-regulatory logic driving glial cells missing: self-sustaining circuitry in later embryogenesis.
2012,
Pubmed
,
Echinobase
Ransick,
cis-regulatory processing of Notch signaling input to the sea urchin glial cells missing gene during mesoderm specification.
2006,
Pubmed
,
Echinobase
Runcie,
Genetics of gene expression responses to temperature stress in a sea urchin gene network.
2012,
Pubmed
,
Echinobase
Saudemont,
Ancestral regulatory circuits governing ectoderm patterning downstream of Nodal and BMP2/4 revealed by gene regulatory network analysis in an echinoderm.
2010,
Pubmed
,
Echinobase
Shen-Orr,
Network motifs in the transcriptional regulation network of Escherichia coli.
2002,
Pubmed
Shoval,
SnapShot: network motifs.
2010,
Pubmed
Smith,
A gene regulatory network subcircuit drives a dynamic pattern of gene expression.
2007,
Pubmed
,
Echinobase
Smith,
A spatially dynamic cohort of regulatory genes in the endomesodermal gene network of the sea urchin embryo.
2008,
Pubmed
,
Echinobase
de Visser,
Perspective: Evolution and detection of genetic robustness.
2003,
Pubmed
de-Leon,
Information processing at the foxa node of the sea urchin endomesoderm specification network.
2010,
Pubmed
,
Echinobase
