Front Vet Sci
2023 Jan 01;10:1207831. doi: 10.3389/fvets.2023.1207831.
Show Gene links
Show Anatomy links
Vibrio splendidus Fur regulates virulence gene expression, swarming motility, and biofilm formation, affecting its pathogenicity in Apostichopus japonicus.
Shi Y
,
Liao C
,
Dai F
,
Zhang Y
,
Li C
,
Liang W
.
???displayArticle.abstract???
Vibrio splendidus is an opportunistic pathogen that causes skin ulcer syndrome and results in huge losses to the Apostichopus japonicus breeding industry. Ferric uptake regulator (Fur) is a global transcription factor that affects varieties of virulence-related functions in pathogenic bacteria. However, the role of the V. splendidus fur (Vsfur) gene in the pathogenesis of V. splendidus remains unclear. Hence, we constructed a Vsfur knock-down mutant of the V. splendidus strain (MTVs) to investigate the role of the gene in the effect of biofilm, swarming motility, and virulence on A. japonicus. The result showed that the growth curves of the wild-type V. splendidus strain (WTVs) and MTVs were almost consistent. Compared with WTVs, the significant increases in the transcription of the virulence-related gene Vshppd mRNA were 3.54- and 7.33-fold in MTVs at the OD600 of 1.0 and 1.5, respectively. Similarly, compared with WTVs, the significant increases in the transcription of Vsm mRNA were 2.10- and 15.92-fold in MTVs at the OD600 of 1.0 and 1.5, respectively. On the contrary, the mRNA level of the flagellum assembly gene Vsflic was downregulated 0.56-fold in MTVs at the OD600 of 1.0 compared with the WTVs. MTVs caused delayed disease onset time and reduced A. japonicus mortality. The median lethal doses of WTVs and MTVs were 9.116 × 106 and 1.658 × 1011 CFU·ml-1, respectively. Compared with WTVs, the colonization abilities of MTVs to the muscle, intestine, tentacle, and coelomic fluid of A. japonicus were significantly reduced. Correspondingly, the swarming motility and biofilm formation in normal and iron-replete conditions were remarkably decreased compared with those of WTVs. Overall, these results demonstrate that Vsfur contributes to the pathogenesis of V. splendidus by regulating virulence-related gene expression and affecting its swarming and biofilm formation abilities.

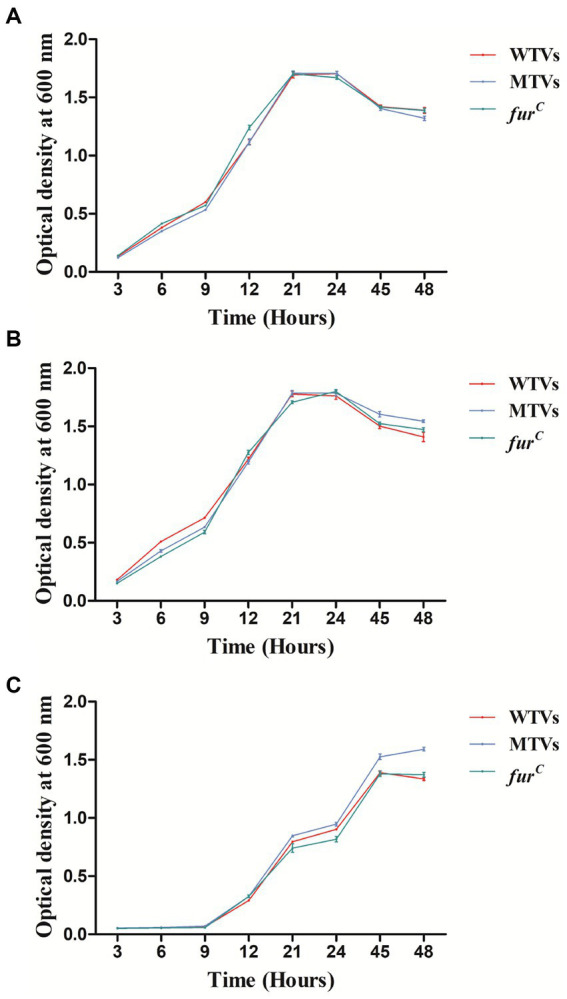

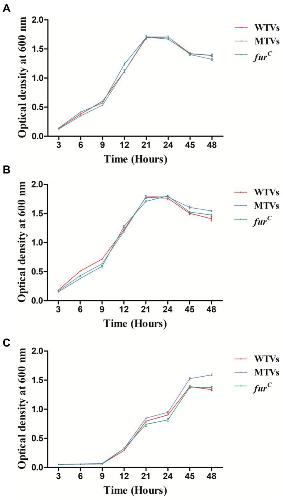

Figure 1. Growth curves of WTVs, MTVs, and furC. WTVs, MTVs, and furC were spread onto 2216E solid plates at 28°C overnight. Three single colonies were inoculated into flasks with 100 ml of fresh 2216E medium and incubated at 28°C with shaking at 180 rpm. Overnight cultures were diluted to the same concentration, and 200 μl aliquots of WTVs, MTVs, and furC were transferred into flasks with 100 ml of fresh 2216E broth (A), 2216E broth supplemented with 50 μM FeCl3
(B), and 2216E broth supplemented with 100 μM iron chelator DP (C). OD600 values were measured at different time points.

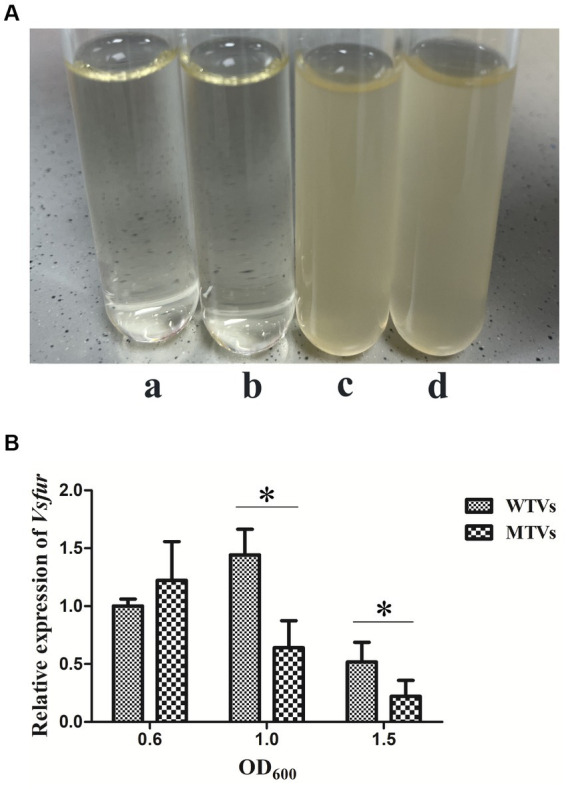

Figure 2. (A) Antibiotic resistance test of WTVs, MTVs, and furC. WTVs and MTVs were spread onto 2216E solid plates at 28°C overnight. Single colonies were inoculated into tubes with 5 ml of fresh 2216E medium supplemented with Ap and Kn and incubated at 28°C with shaking at 180 rpm. (a) Negative control group, (b) WTVs group, and (c) MTVs group. furC was spread onto 2216E solid plates at 28°C overnight. Single colonies were inoculated into tubes with 5 ml of fresh 2216E medium supplemented with Ap, Kn and Gm and incubated at 28°C with shaking at 180 rpm. (d)
furC group. (B) Temporal expression analyses of Vsfur in WTVs or MTVs at the OD600 of 0.6, 1.0, and 1.5. Values are presented as mean ± SD (n = 5). Asterisks indicate significant differences: *p < 0.05 and **p < 0.01.

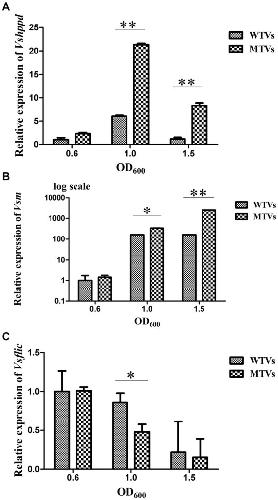

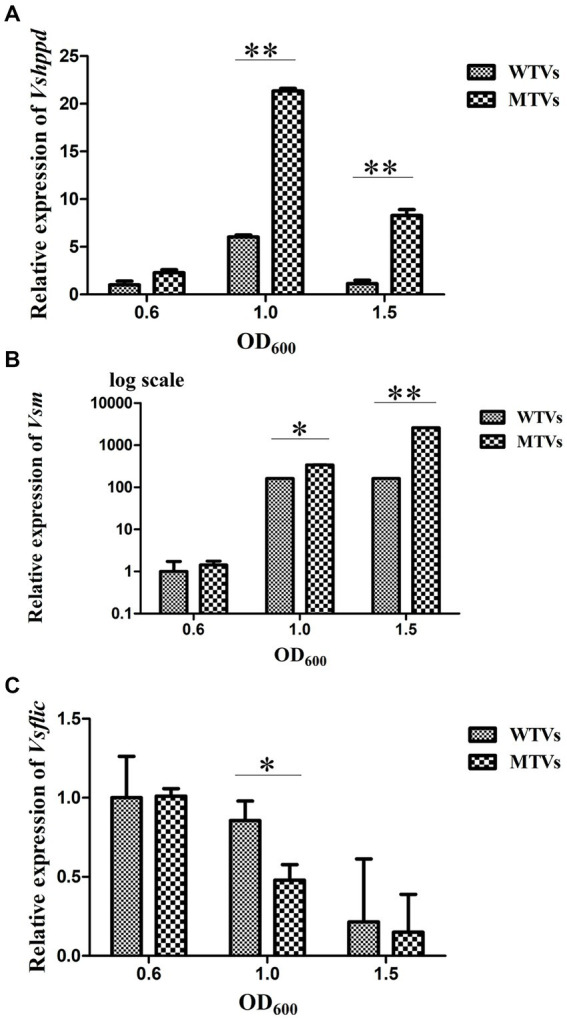

Figure 3. Temporal expression analyses of (A)
Vshppd, (B)
Vsm (The Y-axes were shown as a log scale), and (C)
Vsflic in WTVs or MTVs at the OD600 of 0.6, 1.0, and 1.5. Values are presented as mean ± SD (n = 5). Asterisks indicate significant differences: *p < 0.05 and **p < 0.01.

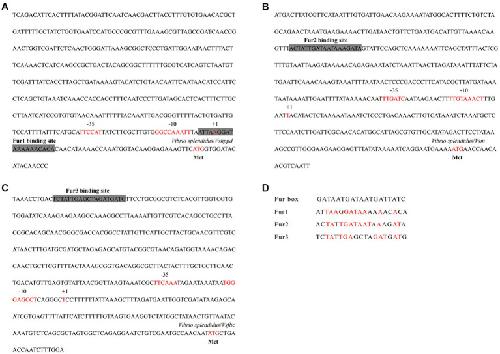

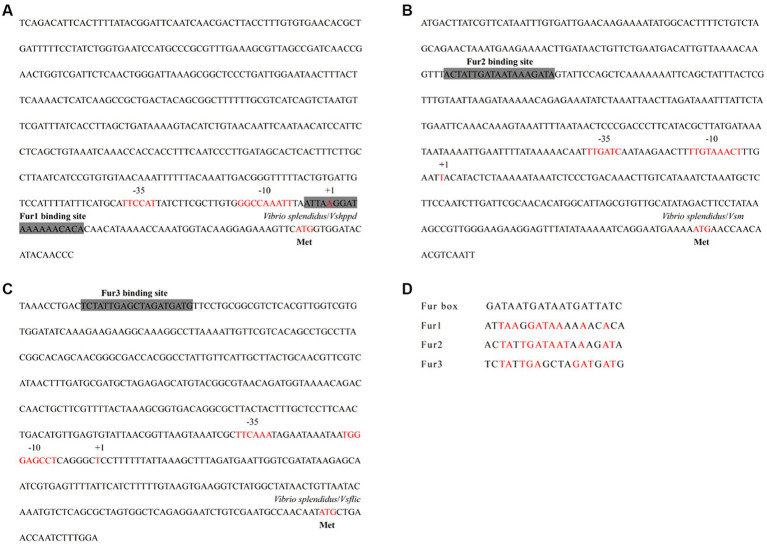

Figure 4. The analysis for Fur binding box prediction in the (A)
Vshppd, (B)
Vsm, and (C)
Vsflic promoter region. The putative Fur binding boxes are indicated as gray boxes. The transcriptional initiation site, the corresponding −10 and −35 boxes, and the translational start site are indicated in red letters. (D) Sequence alignment of these putative Fur binding boxes with the Fur box consensus sequence. Bases identical to the consensus are shown in red.

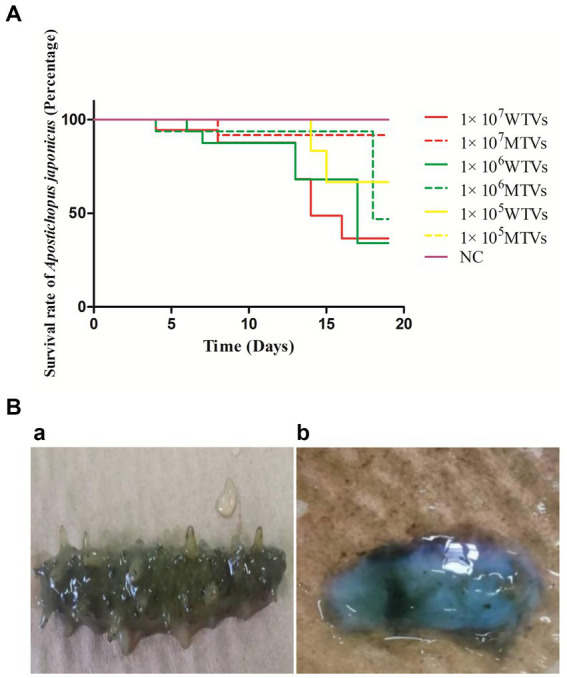

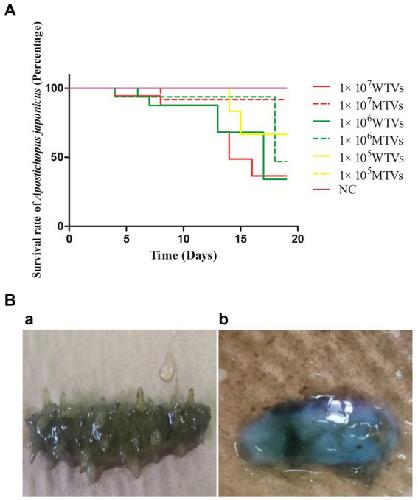

Figure 5. (A) The lethality of WTVs and MTVs. Apostichopus japonicus was randomly divided into seven tanks with 15 individuals each. The WTVs and MTVs strains used for infection were cultured in 2216E medium (24 h, 28°C) until OD600 was approximately 1.0. The strains were then washed and re-suspended in PBS (28°C). For survival assays, weight-matched A. japonicus individuals were infected with 1 × 107, 1 × 106, and 1 × 105 CFU·ml−1
V. splendidus (WTVs or MTVs). Apostichopus japonicus infected with PBS was used as the negative control. The water temperature during infection was 16°C. The daily mortality of infected A. japonicus was recorded. (B) The observed symptoms of (a) MTVs and (b) WTVs. Dead A. japonicus were removed in a timely manner and photographed to observe symptoms.

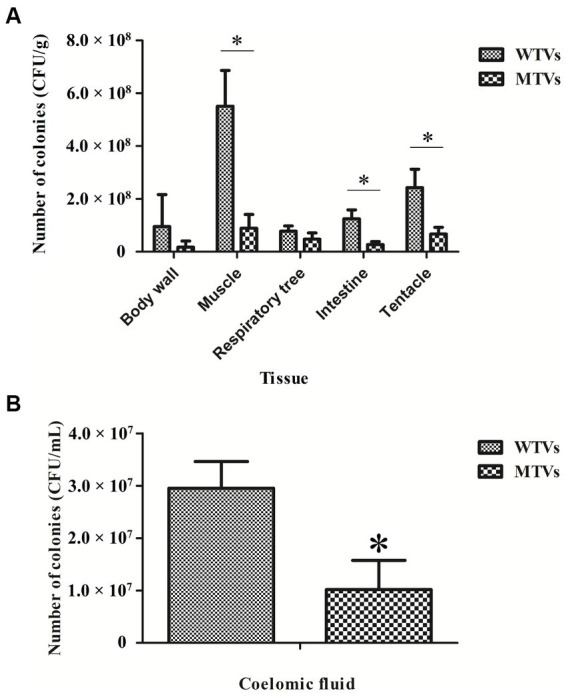

Figure 6. The colonization abilities of WTVs and MTVs to different A. japonicus tissues (A) and coelomic fluids (B) were demonstrated by colony counting. A. japonicus was soaked in WTVs and MTVs (1.0 × 107 CFU·ml−1) for 48 h infection. The A. japonicus tissues were weighed and homogenized. The coelomic fluids were filtered through a 200-mesh. The homogenized solution was diluted in gradients and then coated on 2216E plates.
Figure 7. (A) Swarming motility of WTVs, MTVs, and furC in normal conditions. (B) Bar graph of the swimming motility of WTVs, MTVs, and furC. (C) The same concentration of WTVs (a) and MTVs (b) (2 μl) were dropped on low-agar 2216E plates supplemented with 100 μM FeCl3 and cultured for 48 h at 28°C. (D) The same concentration of WTVs (c) and MTVs (d) (2 μl) was dropped on low-agar 2216E plates supplemented with 200 μM DP and cultured for 48 h at 28°C. The error line represents the SD (n = 5). Asterisks represent the significant difference (*p<0.05, **p<0.01).

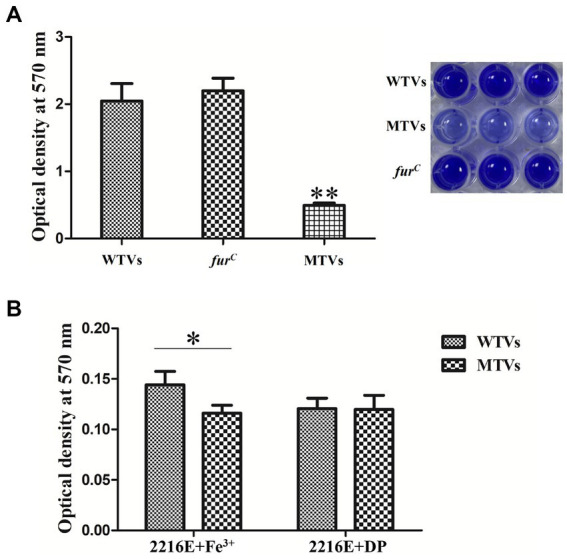

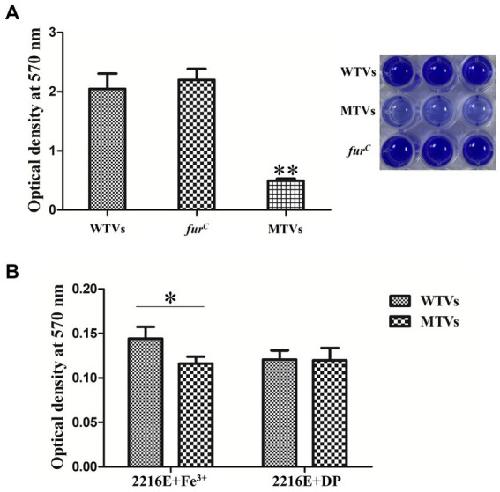

Figure 8. (A) Biofilm formation of WTVs, MTVs, and furC in normal conditions. (B) Biofilm formation of WTVs and MTVs in iron-replete conditions and iron-starved conditions. The error line represents the SD (n = 5). Asterisks represent the significant difference (*p < 0.05, **p < 0.01).
