Int J Mol Sci
2021 Jun 22;2213:. doi: 10.3390/ijms22136674.
Show Gene links
Show Anatomy links
Sub-Chronic Effects of Slight PAH- and PCB-Contaminated Mesocosms in Paracentrotus lividus Lmk: A Multi-Endpoint Approach and De Novo Transcriptomic.
Albarano L
,
Zupo V
,
Caramiello D
,
Toscanesi M
,
Trifuoggi M
,
Guida M
,
Libralato G
,
Costantini M
.
???displayArticle.abstract???
Sediment pollution is a major issue in coastal areas, potentially endangering human health and the marine environments. We investigated the short-term sublethal effects of sediments contaminated with polycyclic aromatic hydrocarbons (PAHs) and polychlorinated biphenyls (PCBs) on the sea urchin Paracentrotus lividus for two months. Spiking occurred at concentrations below threshold limit values permitted by the law (TLVPAHs = 900 µg/L, TLVPCBs = 8 µg/L, Legislative Italian Decree 173/2016). A multi-endpoint approach was adopted, considering both adults (mortality, bioaccumulation and gonadal index) and embryos (embryotoxicity, genotoxicity and de novo transcriptome assembly). The slight concentrations of PAHs and PCBs added to the mesocosms were observed to readily compartmentalize in adults, resulting below the detection limits just one week after their addition. Reconstructed sediment and seawater, as negative controls, did not affect sea urchins. PAH- and PCB-spiked mesocosms were observed to impair P. lividus at various endpoints, including bioaccumulation and embryo development (mainly PAHs) and genotoxicity (PAHs and PCBs). In particular, genotoxicity tests revealed that PAHs and PCBs affected the development of P. lividus embryos deriving from exposed adults. Negative effects were also detected by generating a de novo transcriptome assembly and its annotation, as well as by real-time qPCR performed to identify genes differentially expressed in adults exposed to the two contaminants. The effects on sea urchins (both adults and embryos) at background concentrations of PAHs and PCBs below TLV suggest a need for further investigations on the impact of slight concentrations of such contaminants on marine biota.
Figure 1. Examples of malformations observed in (BâE) p. lividus plutei deriving from adults exposed to PAHs and PCBs and in (F,G) embryos still at the gastrula stage deriving from adults exposed to PCBs in comparison with (A) control embryos deriving from adults reared in a tank with sediment without contaminants. (B) poorly-formed apex; (C) crossed at the apex with wider aperture of the arms; (D) degraded arms; (E) delayed and abnormal body; (F,G) malformed gastrulae.

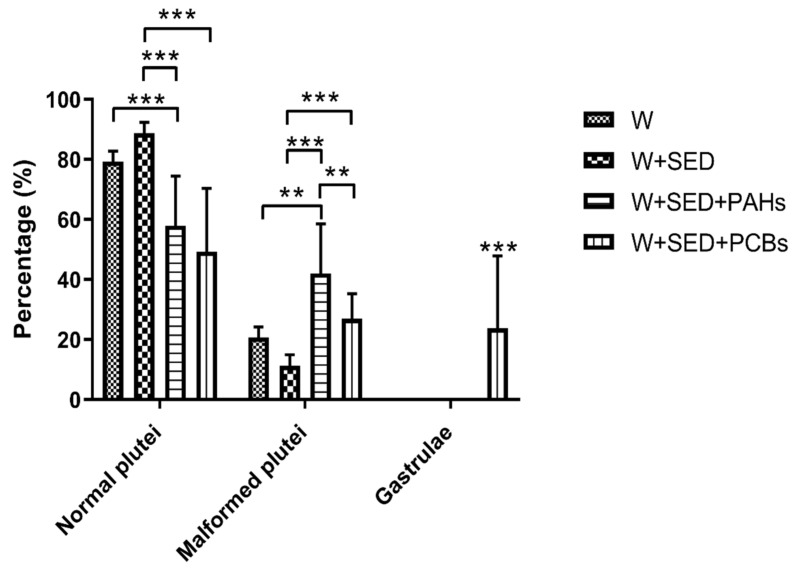

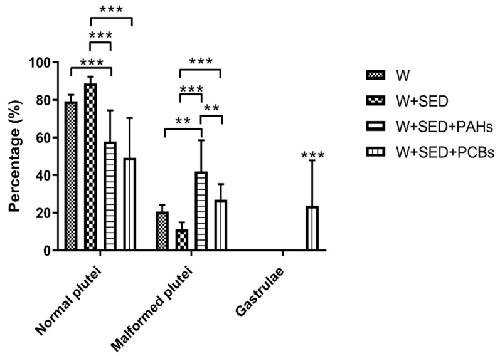

Figure 2. Percentage of normal plutei and malformed embryos at the pluteus and gastrula stages from sea urchins, deriving from adult sea urchins exposed to sediment contaminated with PAHs (water + sediment + PAHs) and PCBs (water + sediment + PCBs) and in control conditions represented by adults reared in control tanks (water and water + sediment). Data are reported as mean ± standard deviation one-way ANOVA by HolmâSidak test (** p < 0.01, *** p < 0.001).

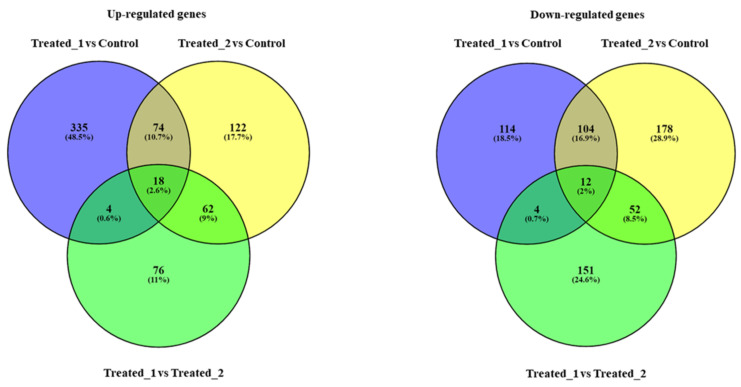

Figure 3. Venn diagrams considering up-regulated genes and down-regulated genes, comparing the groups âTreated_1 (plutei deriving from adults exposed for two months to sediment contaminated with PAHs) versus Control (plutei from adults sea urchin P. lividus reared for two months in tanks with sediment without contaminants)â, âTreated_2 (plutei deriving from adults exposed for two months to sediment contaminated with PCBSs) versus Controlâ and âTreated_1 versus Treated_2â. PAHs (Treated_1) and PCBs (Treated_2) induced an increase in the expression of 335 (48.5%) and 122 (17.7%) genes, respectively, compared to the Control; they also induced the down-regulation of 114 (18.5%) and 178 (28.9%) genes, respectively. The two contaminants had several common targets (see also Supplementary Tables S12 and S13 for the names of the common genes): (i) for up-regulated genes, 74 common genes (10.7%) comparing the groups âTreated_1 versus Controlâ and âTreated_2 versus Controlâ; 18 common genes (2.6%) comparing the groups âTreated_1 versus Controlâ, âTreated_2 versus Controlâ and âTreated_1 versus Treated_2â; 4 common genes (0.6%) comparing âTreated_1 versus Controlâ and âTreated_1 versus Treated_2â; 62 common genes (9.0%) comparing âTreated_2 versus Controlâ and âTreated_1 versus Treated_2â. (ii) for down-regulated genes, 104 common genes (16.9%) comparing the groups âTreated_1 versus Controlâ and âTreated_2 versus Controlâ; 12 common genes (2.0%) comparing the groups âTreated_1 versus Controlâ, âTreated_2 versus Controlâ and âTreated_1 versus Treated_2â; 4 common genes (0.7%) comparing âTreated_1 versus Controlâ and âTreated_1 versus Treated_2â; 52 common genes (8.5%) comparing âTreated_2 versus Controlâ and âTreated_1 versus Treated_2â.

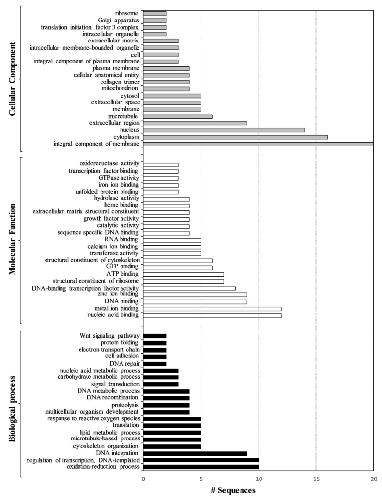

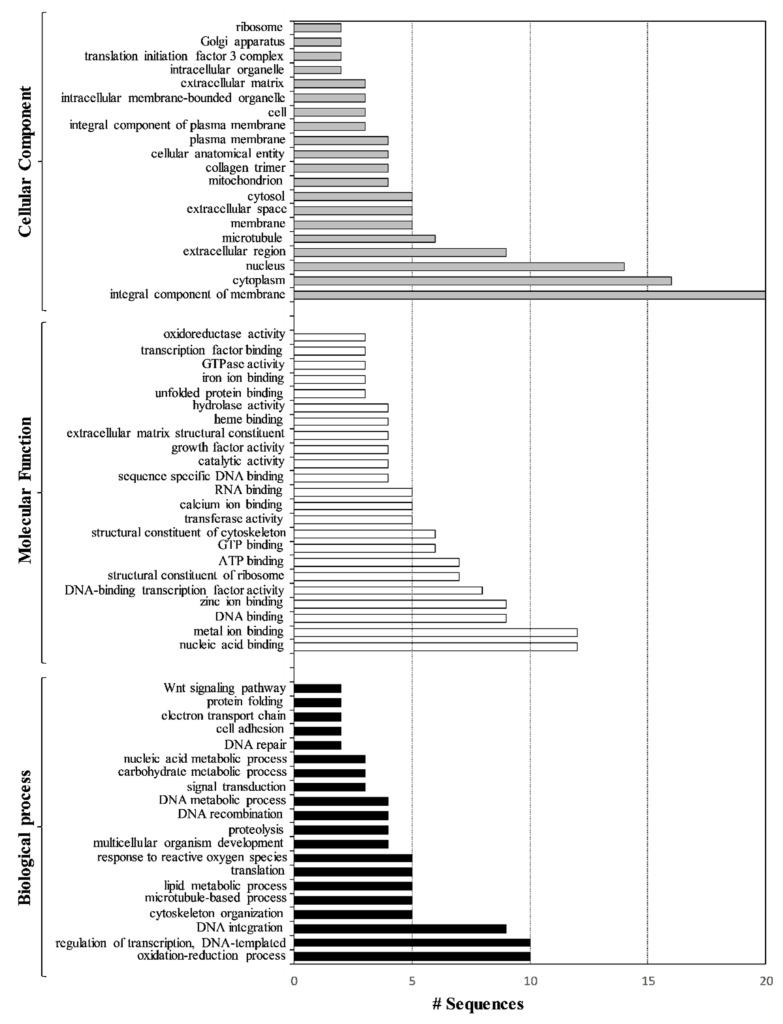

Figure 4. Overrepresented GO terms of sea urchin plutei after artificial contaminated experiments with PAHs and PCBs in the three major functional categories: Biological Process (black bars), Molecular Function (white bars) and Cellular Component (grey bars), which include all the differentially expressed genes (both up- and down-regulated).

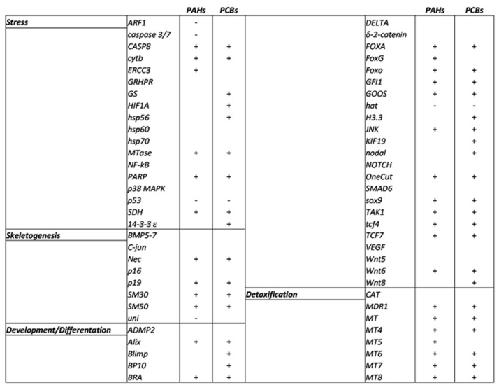

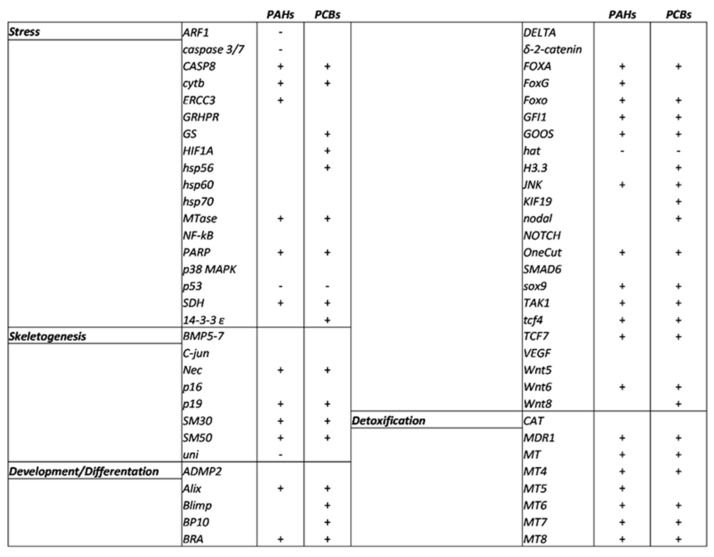

Figure 5. Schematic overview of P. lividus genes affected by artificial contaminated sediment with PAHs and PCBs under analysis. + = up-regulated gene; - = down-regulated gene.
