Mar Drugs
2021 Apr 17;194:. doi: 10.3390/md19040230.
Show Gene links
Show Anatomy links
Two Benthic Diatoms, Nanofrustulum shiloi and Striatella unipunctata, Encapsulated in Alginate Beads, Influence the Reproductive Efficiency of Paracentrotus lividus by Modulating the Gene Expression.
Glaviano F
,
Ruocco N
,
Somma E
,
De Rosa G
,
Campani V
,
Ametrano P
,
Caramiello D
,
Costantini M
,
Zupo V
.
???displayArticle.abstract???
Physiological effects of algal metabolites is a key step for the isolation of interesting bioactive compounds. Invertebrate grazers may be fed on live diatoms or dried, pelletized, and added to compound feeds. Any method may reveal some shortcomings, due to the leaking of wound-activated compounds in the water prior to ingestion. For this reason, encapsulation may represent an important step of bioassay-guided fractionation, because it may assure timely preservation of the active compounds. Here we test the effects of the inclusion in alginate (biocompatible and non-toxic delivery system) matrices to produce beads containing two benthic diatoms for sea urchin Paracentrotus lividus feeding. In particular, we compared the effects of a diatom whose influence on P. lividus was known (Nanofrustulum shiloi) and those of a diatom suspected to be harmful to marine invertebrates, because it is often present in blooms (Striatella unipunctata). Dried N. shiloi and S. unipunctata were offered for one month after encapsulation in alginate hydrogel beads and the larvae produced by sea urchins were checked for viability and malformations. The results indicated that N. shiloi, already known for its toxigenic effects on sea urchin larvae, fully conserved its activity after inclusion in alginate beads. On the whole, benthic diatoms affected the embryogenesis of P. lividus, altering the expression of several genes involved in stress response, development, skeletogenesis and detoxification processes. Interactomic analysis suggested that both diatoms activated a similar stress response pathway, through the up-regulation of hsp60, hsp70, NF-κB, 14-3-3 ε and MDR1 genes. This research also demonstrates that the inclusion in alginate beads may represent a feasible technique to isolate diatom-derived bioactive compounds.

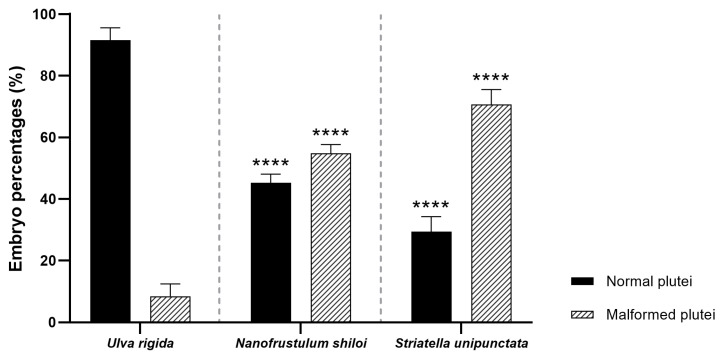

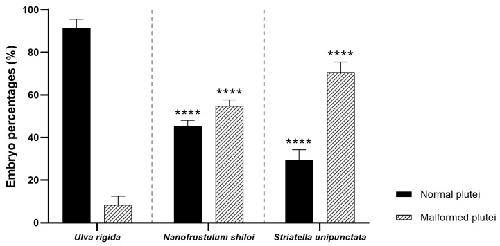

Figure 1. Percentages of normal and malformed plutei derived from sea urchins fed with the control diet (U. rigida), N. shiloi and S. unipunctata encapsulated in alginate beads. One-way ANOVA followed by Tukey post hoc for multiple comparisons: **** p < 0.0001. Pairwise comparison was reported between control (U. rigida diets) vs. samples treated with N. shiloi and S. unipunctata.

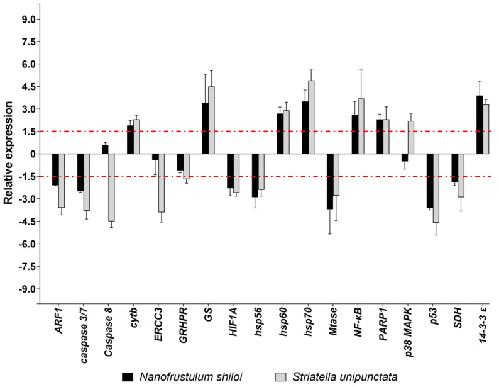

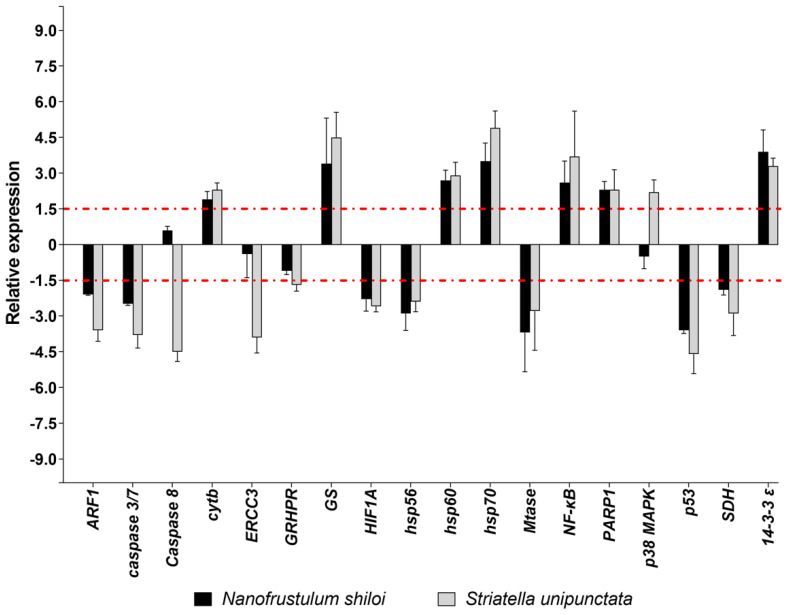

Figure 2. Fold changes of stress response genes in plutei from sea urchin adults fed with N. shiloi (black bar) and S. unipunctata (gray bar) encapsulated in alginate beads. The dotted red line represents the cut-off (1.5). Values are reported as the average fold changes ± SD (n = 3). Statistical differences were evaluated by nonparametric Mann–Whitney test. p-values < 0.05 were considered significant.

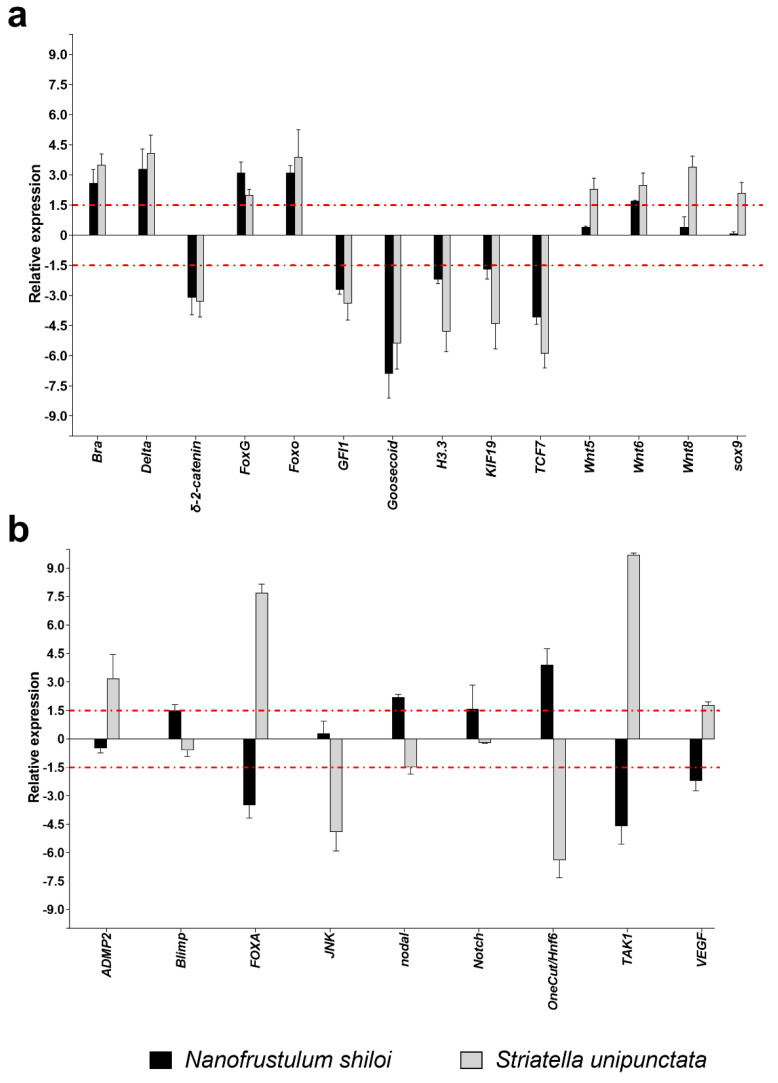

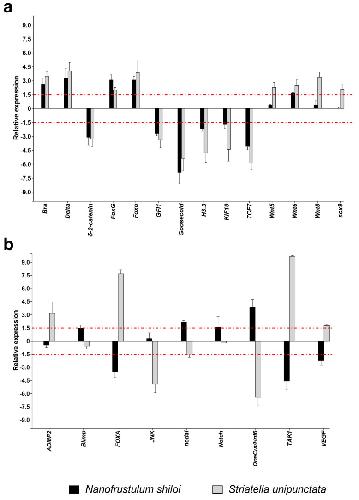

Figure 3. Fold changes of development and differentiation genes in plutei from sea urchin adults fed with N. shiloi (black bar) and S. unipunctata (gray bar) encapsulated in alginate beads where (a) the two diatoms induced the same gene expression (up- or down-regulation for both diatoms) or (b) different gene expression (up- in one diatom and down-regulation in the other diatom). The dotted red line represents the cut-off (1.5). Values are reported as the average fold changes ± SD (n = 3). Statistical differences were evaluated by nonparametric Mann–Whitney test. p-values < 0.05 were considered significant.

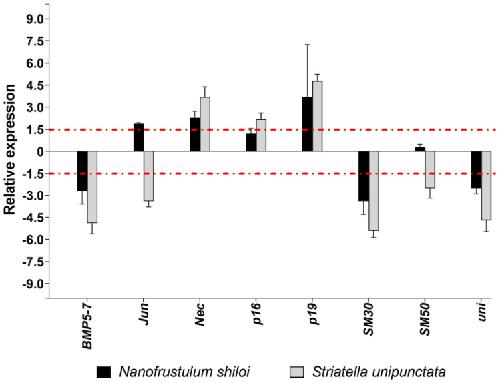

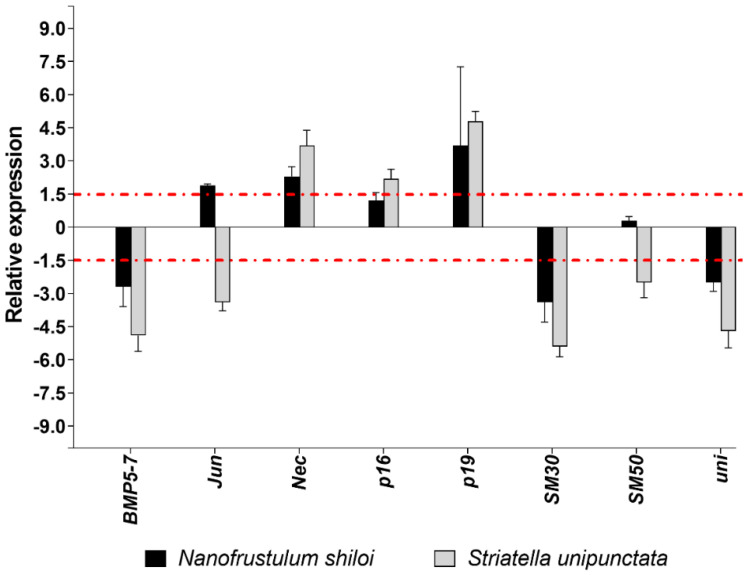

Figure 4. Fold changes of skeletogenesis genes in plutei from sea urchin adults fed with N. shiloi (black bar) and S. unipunctata (gray bar) encapsulated in alginate beads. The dotted red line represents the cut-off (1.5). Values are reported as the average fold changes ± SD (n = 3). Statistical differences were evaluated by nonparametric Mann–Whitney test. p-values < 0.05 were considered significant.

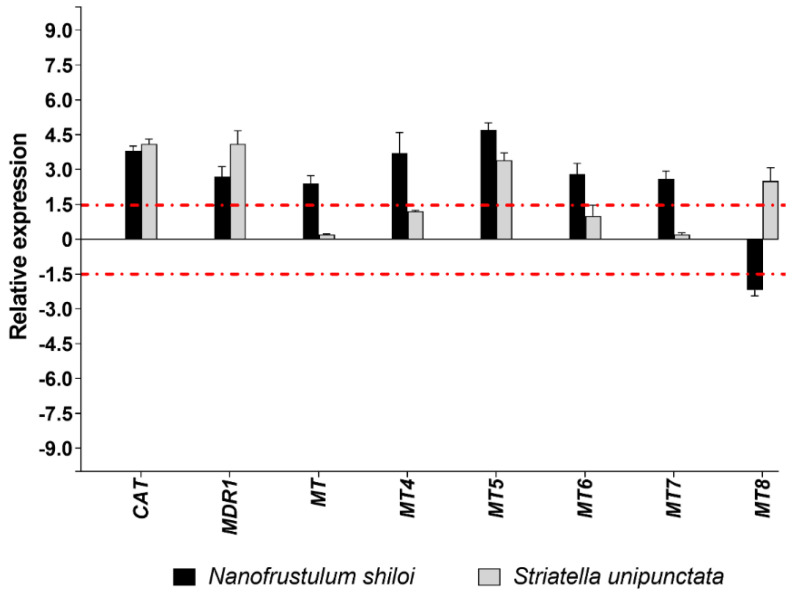

Figure 5. Fold changes of detoxification genes in plutei from sea urchin adults fed with N. shiloi (black bar) and S. unipunctata (gray bar) encapsulated in alginate beads. The dotted red line represents the cut-off (1.5). Values are reported as the average fold changes ± SD (n = 3). Statistical differences were evaluated by nonparametric Mann–Whitney test. p-values < 0.05 were considered significant.

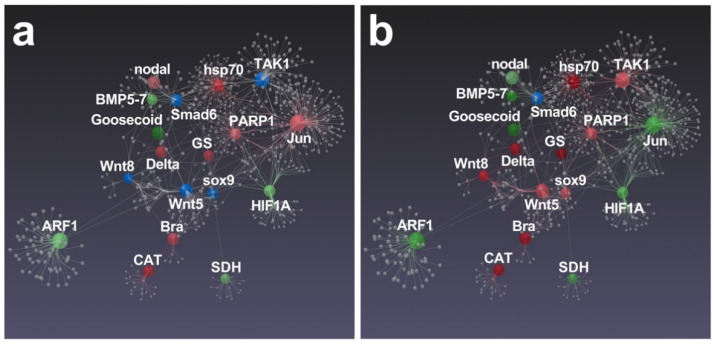

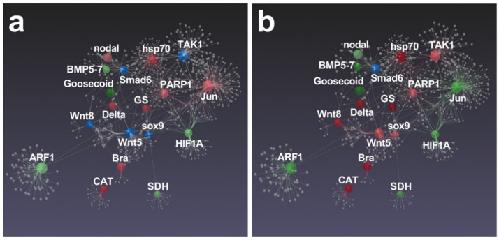

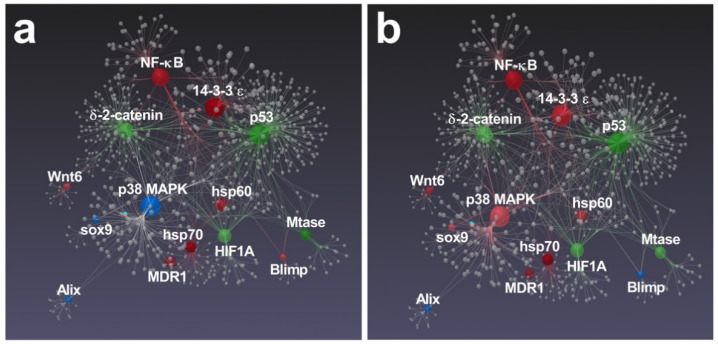

Figure 6. Gene network performed by STRING interactome of protein–protein interactions. Correlations with high confidence score cut-off (900) were reported. Among functionally correlated genes, those with up (red), down (green) and unchanged (blue) expression affected by N. shiloi (a) and S. unipunctata (b) were reported. Color shading depends on fold-change values. Gray spheres represent additional connections.

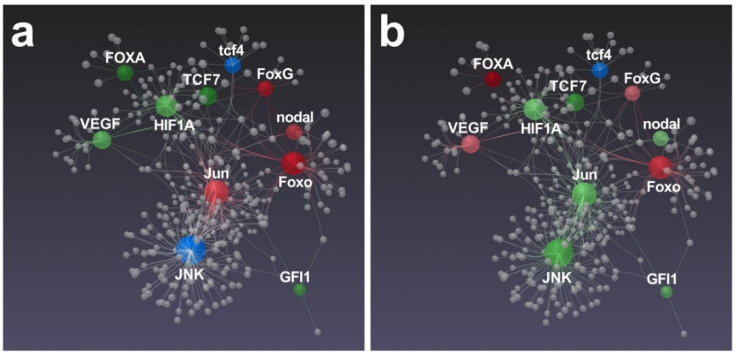

Figure 7. Gene network performed by STRING interactome of protein–protein interactions. Correlations with high confidence score cut-off (900) were reported. Among functionally correlated genes, those with up (red), down (green) and unchanged (blue) expression affected by N. shiloi (a) and S. unipunctata (b) were reported. Color shading depends on fold change values. Gray spheres represent additional connections.
Figure 8. Gene network performed by STRING interactome of protein–protein interactions. Correlations with high confidence score cut-off (900) were reported. Among functionally correlated genes, those with up (red), down (green) and unchanged (blue) expression affected by N. shiloi (a) and S. unipunctata (b) were reported. Full color shows greater fold change values. Gray spheres represent additional connections.
Altschul,
Basic local alignment search tool.
1990, Pubmed
Altschul,
Basic local alignment search tool.
1990,
Pubmed
Ben-Tabou de-Leon,
Experimentally based sea urchin gene regulatory network and the causal explanation of developmental phenomenology.
2009,
Pubmed
,
Echinobase
Buttino,
Giant liposomes as delivery system for ecophysiological studies in copepods.
2006,
Pubmed
Chang,
Asymmetric distribution of hypoxia-inducible factor α regulates dorsoventral axis establishment in the early sea urchin embryo.
2017,
Pubmed
,
Echinobase
Coffman,
Oral-aboral axis specification in the sea urchin embryo III. Role of mitochondrial redox signaling via H2O2.
2009,
Pubmed
,
Echinobase
Corpet,
Multiple sequence alignment with hierarchical clustering.
1988,
Pubmed
Costa,
Biocompatible polymeric microparticles produced by a simple biomimetic approach.
2014,
Pubmed
Croce,
Expression pattern of Brachyury in the embryo of the sea urchin Paracentrotus lividus.
2001,
Pubmed
,
Echinobase
Cui,
Specific functions of the Wnt signaling system in gene regulatory networks throughout the early sea urchin embryo.
2014,
Pubmed
,
Echinobase
Cutignano,
Development and Application of a Novel SPE-Method for Bioassay-Guided Fractionation of Marine Extracts.
2015,
Pubmed
Duboc,
Left-right asymmetry in the sea urchin embryo is regulated by nodal signaling on the right side.
2005,
Pubmed
,
Echinobase
Erkenbrack,
Divergence of ectodermal and mesodermal gene regulatory network linkages in early development of sea urchins.
2016,
Pubmed
,
Echinobase
Esposito,
Combined Effects of Diatom-Derived Oxylipins on the Sea Urchin Paracentrotus lividus.
2020,
Pubmed
,
Echinobase
Estévez-Calvar,
Adverse effects of the SSRI antidepressant sertraline on early life stages of marine invertebrates.
2017,
Pubmed
Gackowska,
Estimation of physicochemical properties of 2-ethylhexyl-4-methoxycinnamate (EHMC) degradation products and their toxicological evaluation.
2018,
Pubmed
Gross,
The role of Brachyury (T) during gastrulation movements in the sea urchin Lytechinus variegatus.
2001,
Pubmed
,
Echinobase
Johnson,
Consistency in a marine algal-grazer interaction over multiple scales.
2016,
Pubmed
Laurienzo,
Marine polysaccharides in pharmaceutical applications: an overview.
2010,
Pubmed
Laurienzo,
Novel alginate-acrylic polymers as a platform for drug delivery.
2006,
Pubmed
Layous,
The tolerance to hypoxia is defined by a time-sensitive response of the gene regulatory network in sea urchin embryos.
2021,
Pubmed
,
Echinobase
Long,
Jun N-terminal kinase activity is required for invagination but not differentiation of the sea urchin archenteron.
2015,
Pubmed
,
Echinobase
Materna,
A comprehensive analysis of Delta signaling in pre-gastrular sea urchin embryos.
2012,
Pubmed
,
Echinobase
Molina,
Nodal: master and commander of the dorsal-ventral and left-right axes in the sea urchin embryo.
2013,
Pubmed
,
Echinobase
Morgulis,
Possible cooption of a VEGF-driven tubulogenesis program for biomineralization in echinoderms.
2019,
Pubmed
,
Echinobase
Mutalipassi,
The sex change of the caridean shrimp Hippolyte inermis Leach: temporal development of the gonopore morphology.
2018,
Pubmed
Peckol,
Differential toxic effects of Ulva lactuca (Chlorophyta) on the herbivorous gastropods, Littorina littorea and L. obtusata (Mollusca).
2017,
Pubmed
Pfaffl,
A new mathematical model for relative quantification in real-time RT-PCR.
2001,
Pubmed
Pfaffl,
Relative expression software tool (REST) for group-wise comparison and statistical analysis of relative expression results in real-time PCR.
2002,
Pubmed
Pinsino,
Amino-modified polystyrene nanoparticles affect signalling pathways of the sea urchin (Paracentrotus lividus) embryos.
2017,
Pubmed
,
Echinobase
Ragusa,
Effects of cadmium exposure on sea urchin development assessed by SSH and RT-qPCR: metallothionein genes and their differential induction.
2013,
Pubmed
,
Echinobase
Reinardy,
Induction of innate immune gene expression following methyl methanesulfonate-induced DNA damage in sea urchins.
2016,
Pubmed
,
Echinobase
Reinardy,
Profiling DNA damage and repair capacity in sea urchin larvae and coelomocytes exposed to genotoxicants.
2015,
Pubmed
,
Echinobase
Rodríguez,
Microsphere-based immunoassay for the detection of azaspiracids.
2014,
Pubmed
Romano,
Nitric oxide mediates the stress response induced by diatom aldehydes in the sea urchin Paracentrotus lividus.
2011,
Pubmed
,
Echinobase
Ruocco,
Toxigenic effects of two benthic diatoms upon grazing activity of the sea urchin: morphological, metabolomic and de novo transcriptomic analysis.
2018,
Pubmed
,
Echinobase
Ruocco,
Noxious effects of the benthic diatoms Cocconeis scutellum and Diploneis sp. on sea urchin development: Morphological and de novo transcriptomic analysis.
2019,
Pubmed
,
Echinobase
Ruocco,
Lipoxygenase Pathways in Diatoms: Occurrence and Correlation with Grazer Toxicity in Four Benthic Species.
2020,
Pubmed
,
Echinobase
Ruocco,
New inter-correlated genes targeted by diatom-derived polyunsaturated aldehydes in the sea urchin Paracentrotus lividus.
2017,
Pubmed
,
Echinobase
Russo,
Time- and dose-dependent gene expression in sea urchin embryos exposed to UVB.
2014,
Pubmed
,
Echinobase
Russo,
The newly characterized Pl-jun is specifically expressed in skeletogenic cells of the Paracentrotus lividus sea urchin embryo.
2014,
Pubmed
,
Echinobase
Santagapita,
Formulation and drying of alginate beads for controlled release and stabilization of invertase.
2011,
Pubmed
Saudemont,
Ancestral regulatory circuits governing ectoderm patterning downstream of Nodal and BMP2/4 revealed by gene regulatory network analysis in an echinoderm.
2010,
Pubmed
,
Echinobase
Szklarczyk,
STRING v11: protein-protein association networks with increased coverage, supporting functional discovery in genome-wide experimental datasets.
2019,
Pubmed
Varrella,
Molecular response to toxic diatom-derived aldehydes in the sea urchin Paracentrotus lividus.
2014,
Pubmed
,
Echinobase
Varrella,
Toxic Diatom Aldehydes Affect Defence Gene Networks in Sea Urchins.
2016,
Pubmed
,
Echinobase
Wee,
Protein release from alginate matrices.
1998,
Pubmed
Zhou,
NetworkAnalyst 3.0: a visual analytics platform for comprehensive gene expression profiling and meta-analysis.
2019,
Pubmed
Zupo,
Chemoreception of the Seagrass Posidonia Oceanica by Benthic Invertebrates is Altered by Seawater Acidification.
2015,
Pubmed
