BMC Genomics
2007 Jun 28;8:201. doi: 10.1186/1471-2164-8-201.
Show Gene links
Show Anatomy links
Prevalence of the EH1Groucho interaction motif in the metazoan Fox family of transcriptional regulators.
Yaklichkin S
,
Vekker A
,
Stayrook S
,
Lewis M
,
Kessler DS
.
???displayArticle.abstract???
BACKGROUND: The Fox gene family comprises a large and functionally diverse group of forkhead-related transcriptional regulators, many of which are essential for metazoan embryogenesis and physiology. Defining conserved functional domains that mediate the transcriptional activity of Fox proteins will contribute to a comprehensive understanding of the biological function of Fox family genes.
RESULTS: Systematic analysis of 458 protein sequences of the metazoan Fox family was performed to identify the presence of the engrailed homology-1 motif (eh1), a motif known to mediate physical interaction with transcriptional corepressors of the TLE/Groucho family. Greater than 50% of Fox proteins contain sequences with high similarity to the eh1 motif, including ten of the nineteen Fox subclasses (A, B, C, D, E, G, H, I, L, and Q) and Fox proteins of early divergent species such as marine sponge. The eh1 motif is not detected in Fox proteins of the F, J, K, M, N, O, P, R and S subclasses, or in yeast Fox proteins. The eh1-like motifs are positioned C-terminal to the winged helix DNA-binding domain in all subclasses except for FoxG proteins, which have an N-terminal motif. Two similar eh1-like motifs are found in the zebrafish FoxQ1 and in FoxG proteins of sea urchin and amphioxus. The identification of eh1-like motifs by manual sequence alignment was validated by statistical analyses of the Swiss protein database, confirming a high frequency of occurrence of eh1-like sequences in Fox family proteins. Structural predictions suggest that the majority of identified eh1-like motifs are short alpha-helices, and wheel modeling revealed an amphipathicity that supports this secondary structure prediction.
CONCLUSION: A search for eh1 Groucho interaction motifs in the Fox gene family has identified eh1-like sequences in greater than 50% of Fox proteins. The results predict a physical and functional interaction of TLE/Groucho corepressors with many members of the Fox family of transcriptional regulators. Given the functional importance of the eh1 motif in transcriptional regulation, our annotation of this motif in the Fox gene family will facilitate further study of the diverse transcriptional and regulatory roles of Fox family proteins.

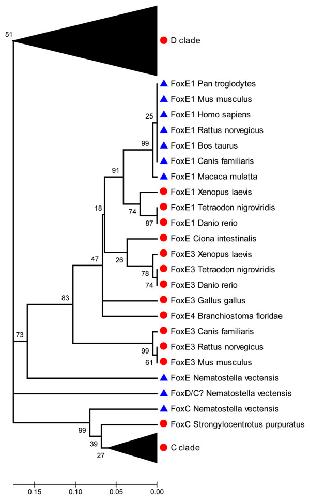

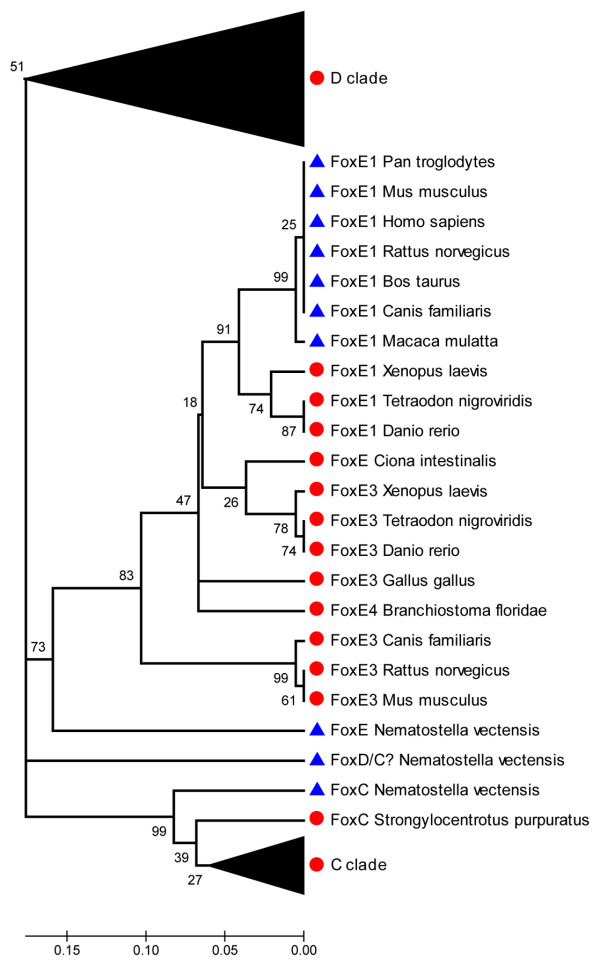

Figure 1. A phylogenetic tree for proteins of the FoxE subclass and the FoxC and FoxD outgroups. A neighbor-joining method was used to construct the tree topology and bootstrapping values are shown at each branch point (percentage of 1000 bootstrap samples) using the MEGA 3.1 software. Gaps were deleted in pairwise comparisons. The distance scale below the tree represents the number of substitutions per site. The C and D families are collapsed for better illustration. Protein sequences that lack a recognizable eh1-like motif are represented by blue triangles. Proteins and subclasses that contain an eh1-like motif are represented by red circles.

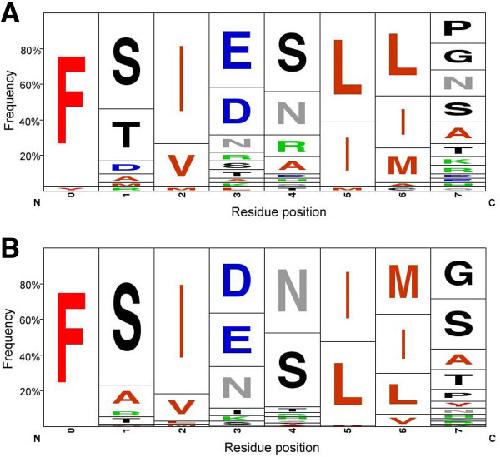

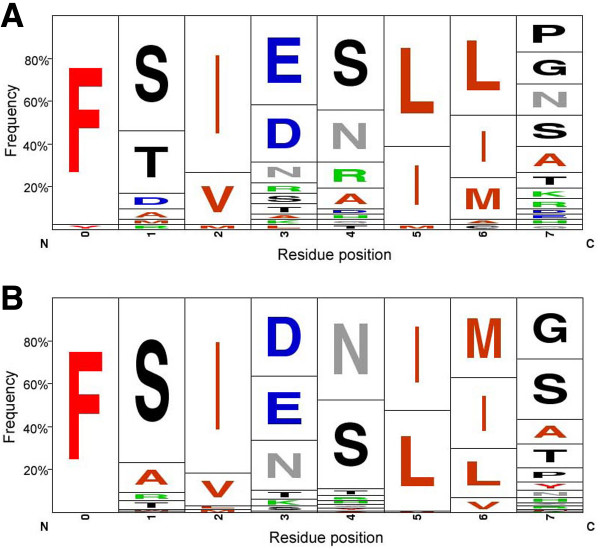

Figure 2. The diagrams summarize the amino acid compositions of the eh1-like motifs identified in Fox proteins. The amino acid usage frequency of eh1-like motifs identified in invertebrate (A) and vertebrate (B) Fox proteins. The diagrams were generated with the WebLogo program [44].

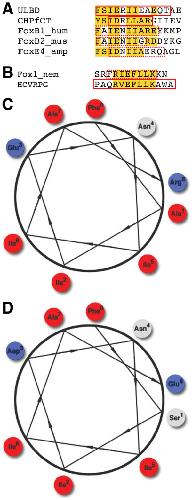

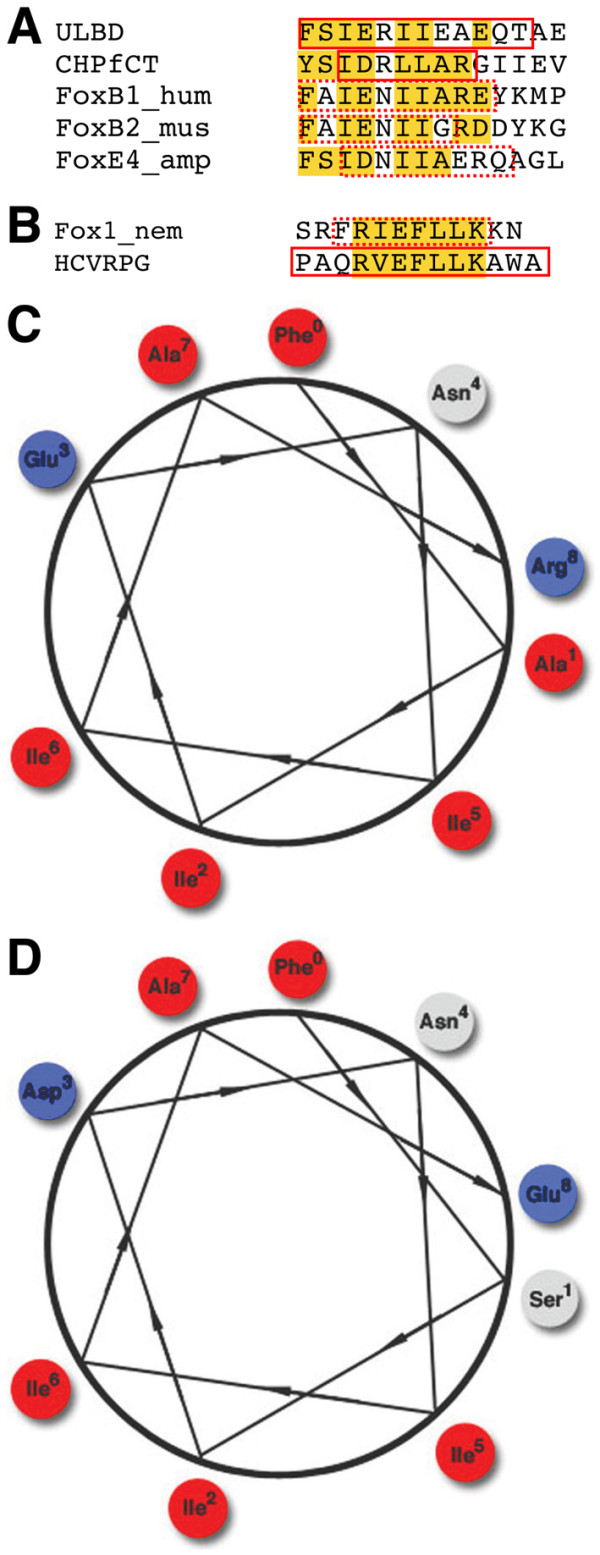

Figure 3. (A) Multiple sequence alignments of the α-helical region of an ultraspiracle ligand binding domain from Drosophila (ULBD), α-helix of a conserved hypothetical protein from C. tepidum (CHPfCT), and the eh1 motifs of human FoxB1, murine FoxB2 and amphioxus FoxE4 proteins, which have a high likelihood of α-helix formation. (B) Sequence alignment for the α-helical region of the Hepatitis C Virus RNA Polymerase Genotype 2a (HCVRPG) and the eh1 motif of the cnidarian Fox1 protein. The defined α-helices are represented as red solid boxes and predicted α-helices are shown as red dotted boxes. Amino acid similarities are shown in yellow. hum, Human; mus, Mouse; amp, amphioxus; nem, Sea Anemone. Wheel models of the eh1-like motifs of Xenopus FoxB1 (C) and amphioxus FoxE4 (D) form an amphipathic α-helical structure. Hydrophobic residues on the wheel are shown in the red, hydrophilic residues are shown in the blue, and non-charged residues are shown in the gray.

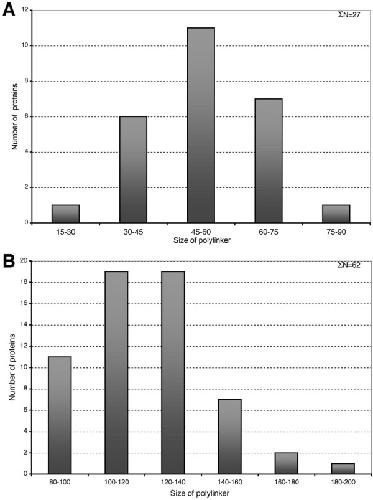

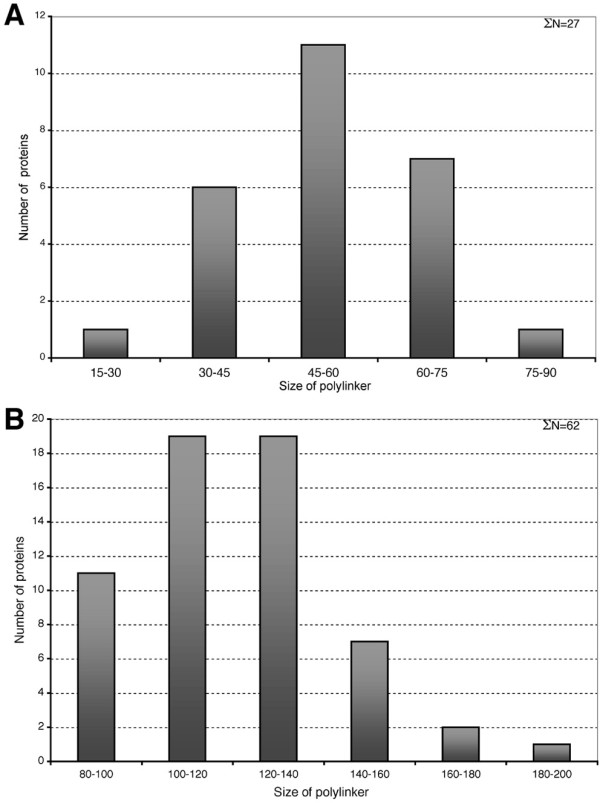

Figure 4. The positional distribution of the C-terminal eh1-like motifs in Fox proteins of the B, E, H and Q subclasses (A) and the A D, C and I subclasses (B). Size of polylinker represents the distance between the first residue of the eh1 motif and the conserved C-terminal residue of the winged helix DNA-binding domain.

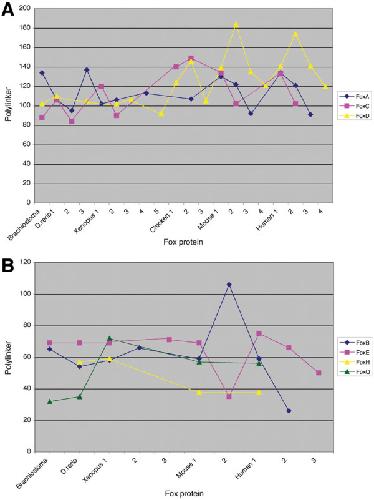

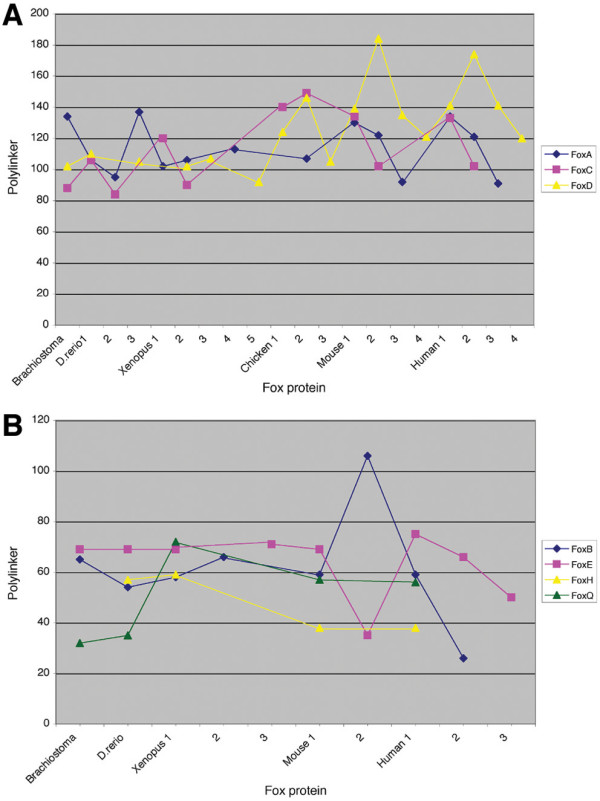

Figure 5. Positional fluctuations of eh1-like motifs in the ortholog and paralog groups of vertebrate Fox proteins. (A) Positional fluctuations of the eh1-like motifs of the ortholog and paralog groups of the A, C and D subclasses. (B) Positional fluctuations of the eh1-like motifs of the ortholog and paralog groups of the B, E, H and Q subclasses. Polylinker represents the distance between the first residue of the eh1-like motif and the conserved C-terminal residue of the winged helix DNA-binding domain. The paralog groups within a Fox subclass are indicated on the x-axis.
Andrioli,
Groucho-dependent repression by sloppy-paired 1 differentially positions anterior pair-rule stripes in the Drosophila embryo.
2004, Pubmed
Andrioli,
Groucho-dependent repression by sloppy-paired 1 differentially positions anterior pair-rule stripes in the Drosophila embryo.
2004,
Pubmed
Bailey,
Fitting a mixture model by expectation maximization to discover motifs in biopolymers.
1994,
Pubmed
Berry,
FOXC1 transcriptional regulation is mediated by N- and C-terminal activation domains and contains a phosphorylated transcriptional inhibitory domain.
2002,
Pubmed
Carlsson,
Forkhead transcription factors: key players in development and metabolism.
2002,
Pubmed
Chen,
Groucho/TLE family proteins and transcriptional repression.
2000,
Pubmed
Clark,
Co-crystal structure of the HNF-3/fork head DNA-recognition motif resembles histone H5.
1993,
Pubmed
Copley,
The EH1 motif in metazoan transcription factors.
2005,
Pubmed
Courey,
Transcriptional repression: the long and the short of it.
2001,
Pubmed
Crooks,
WebLogo: a sequence logo generator.
2004,
Pubmed
Freyaldenhoven,
Avian winged helix proteins CWH-1, CWH-2 and CWH-3 repress transcription from Qin binding sites.
1997,
Pubmed
Garcia-Fernàndez,
Hox, ParaHox, ProtoHox: facts and guesses.
2005,
Pubmed
Grundy,
Meta-MEME: motif-based hidden Markov models of protein families.
1997,
Pubmed
Guermeur,
Improved performance in protein secondary structure prediction by inhomogeneous score combination.
1999,
Pubmed
Hanna-Rose,
Active repression mechanisms of eukaryotic transcription repressors.
1996,
Pubmed
Higgins,
Using CLUSTAL for multiple sequence alignments.
1996,
Pubmed
Howell,
A novel Xenopus Smad-interacting forkhead transcription factor (XFast-3) cooperates with XFast-1 in regulating gastrulation movements.
2002,
Pubmed
Jennings,
Molecular recognition of transcriptional repressor motifs by the WD domain of the Groucho/TLE corepressor.
2006,
Pubmed
Jiménez,
A conserved motif in goosecoid mediates groucho-dependent repression in Drosophila embryos.
1999,
Pubmed
Kaestner,
Unified nomenclature for the winged helix/forkhead transcription factors.
2000,
Pubmed
Katoh,
Human FOX gene family (Review).
2004,
Pubmed
King,
DSC: public domain protein secondary structure predication.
1997,
Pubmed
Kofron,
New roles for FoxH1 in patterning the early embryo.
2004,
Pubmed
Kumar,
MEGA3: Integrated software for Molecular Evolutionary Genetics Analysis and sequence alignment.
2004,
Pubmed
Kussie,
Structure of the MDM2 oncoprotein bound to the p53 tumor suppressor transactivation domain.
1996,
Pubmed
Logan,
Cloning and sequence comparison of the mouse, human, and chicken engrailed genes reveal potential functional domains and regulatory regions.
1992,
Pubmed
López-Ríos,
Six3 and Six6 activity is modulated by members of the groucho family.
2003,
Pubmed
Mazet,
Phylogenetic relationships of the Fox (Forkhead) gene family in the Bilateria.
2003,
Pubmed
Muhr,
Groucho-mediated transcriptional repression establishes progenitor cell pattern and neuronal fate in the ventral neural tube.
2001,
Pubmed
Nomura,
The neural repressor NRSF/REST binds the PAH1 domain of the Sin3 corepressor by using its distinct short hydrophobic helix.
2005,
Pubmed
Rost,
PHD--an automatic mail server for protein secondary structure prediction.
1994,
Pubmed
Shimeld,
A transcriptional modification motif encoded by homeobox and fork head genes.
1997,
Pubmed
Smith,
A conserved region of engrailed, shared among all en-, gsc-, Nk1-, Nk2- and msh-class homeoproteins, mediates active transcriptional repression in vivo.
1996,
Pubmed
Stemple,
Vertebrate development: the fast track to nodal signalling.
2000,
Pubmed
Sullivan,
foxD5a, a Xenopus winged helix gene, maintains an immature neural ectoderm via transcriptional repression that is dependent on the C-terminal domain.
2001,
Pubmed
Sutton,
Genesis, a winged helix transcriptional repressor with expression restricted to embryonic stem cells.
1996,
Pubmed
Tolkunova,
Two distinct types of repression domain in engrailed: one interacts with the groucho corepressor and is preferentially active on integrated target genes.
1998,
Pubmed
Wang,
Transducin-like enhancer of split proteins, the human homologs of Drosophila groucho, interact with hepatic nuclear factor 3beta.
2000,
Pubmed
Williams,
An amphioxus Emx homeobox gene reveals duplication during vertebrate evolution.
2000,
Pubmed
Yaklichkin,
FoxD3 and Grg4 physically interact to repress transcription and induce mesoderm in Xenopus.
2007,
Pubmed
Yao,
The winged-helix protein brain factor 1 interacts with groucho and hes proteins to repress transcription.
2001,
Pubmed
