Fu X et al. (2023), circRNA432 enhances the coelomocyte phagocytosi...

ECB-ART-51644

Commun Biol 2023 Jan 28;61:115. doi: 10.1038/s42003-023-04516-8.

Show Gene links Show Anatomy links

circRNA432 enhances the coelomocyte phagocytosis via regulating the miR-2008-ELMO1 axis in Vibrio splendidus-challenged Apostichopus japonicus.

Fu X , Guo M , Liu J , Li C .

???displayArticle.abstract???
Circular RNAs (circRNAs) are a kind of extensive and diverse covalently closed circular endogenous RNA, which exert crucial functions in immune regulation in mammals. However, the functions and mechanisms of circRNAs in invertebrates are largely unclarified. In our previous work, 261 differentially expressed circRNAs including circRNA432 (circ432) were identified from skin ulcer syndrome (SUS) diseased sea cucumber Apostichopus japonicus by RNA-seq. To better address the functional role of sea cucumber circRNAs, circ432 was first found to be significantly induced by Vibrio splendidus challenge and LPS exposure in this study. Knock-down circ432 could depress the V. splendidus-induced coelomocytes phagocytosis. Moreover, circ432 is validated to serve as the sponge of miR-2008, a differential expressed miRNA in SUS-diseased sea cucumbers, by Argonaute 2-RNA immunoprecipitation (AGO2-RIP) assay, luciferase reporter assay and RNA fluorescence in situ hybridization (FISH) in vitro. Engulfment and cell motility protein 1 (AjELMO1) is further demonstrated to be the target of miR-2008, and silencing AjELMO1 inhibits the V. splendidus-induced coelomocytes phagocytosis, and this phenomenon could be further suppressed by supplementing with miR-2008 mimics, suggesting that circ432 might regulate coelomocytes phagocytosis via miR-2008-AjELMO1 axis. We further confirm that the depressed coelomocytes' phagocytosis by circ432 silencing is consistent with the decreased abundance of AjELMO1, and could be recovered by miR-2008 inhibitors transfection. All our results provide the evidence that circ432 is involved in regulating pathogen-induced coelomocyte phagocytosis via sponge miR-2008 and promotes the abundance of AjELMO1. These findings will enrich the regulatory mechanism of phagocytosis in echinoderm and provide theoretical data for SUS disease prevention and control in sea cucumbers.

???displayArticle.pubmedLink??? 36709365
???displayArticle.pmcLink??? PMC9884281
???displayArticle.link??? Commun Biol

???attribute.lit??? ???displayArticles.show???

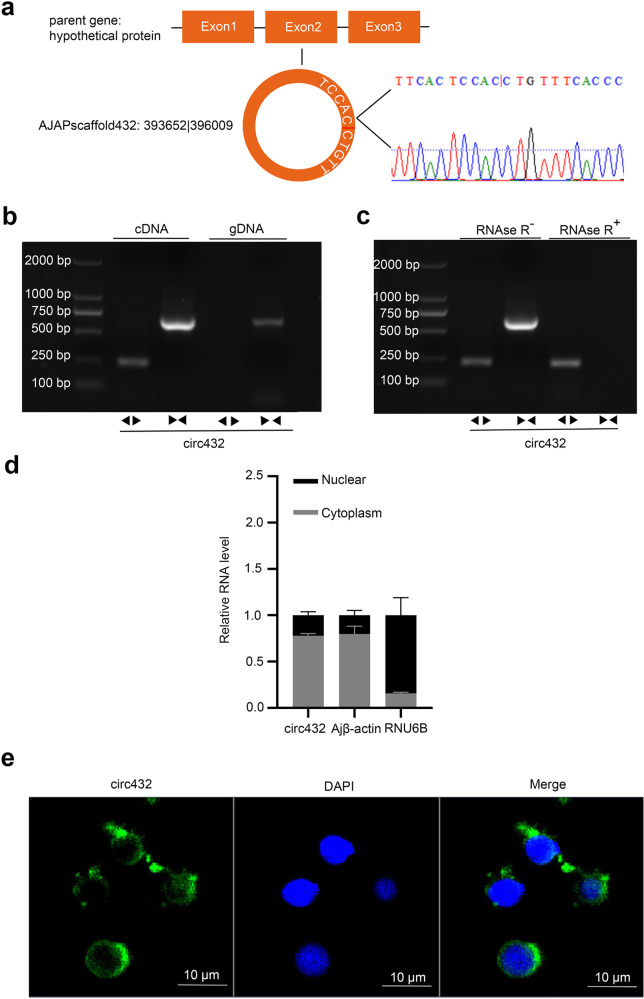

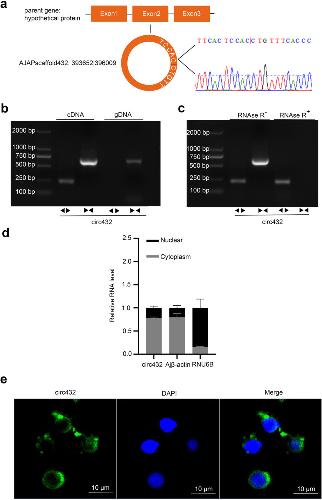

	Fig. 1. The characteristics of circ432.a The junction splice site of circ432 was confirmed by Sanger sequencing. b RT-PCR with divergent (◀▶) and convergent primers (▶◀) showing the amplification of circ432 from cDNA or gDNA of coelomocytes. c The divergent and convergent primers of circ432 in the presence or absence of RNase R was validated by RT-PCR. d RNA extracted from the cytoplasm and nuclear of coelomocytes were performed to detect circ432 abundance by RT-PCR. Ajβ-actin, and RNU6B served as the controls, n = 3. e circ432 mainly located in the cytoplasm was verified by RNA FISH. Scale bar, 10 μm. All data represented the mean ± SD from three independent triplicated experiments. P < 0.05, *P < 0.01.

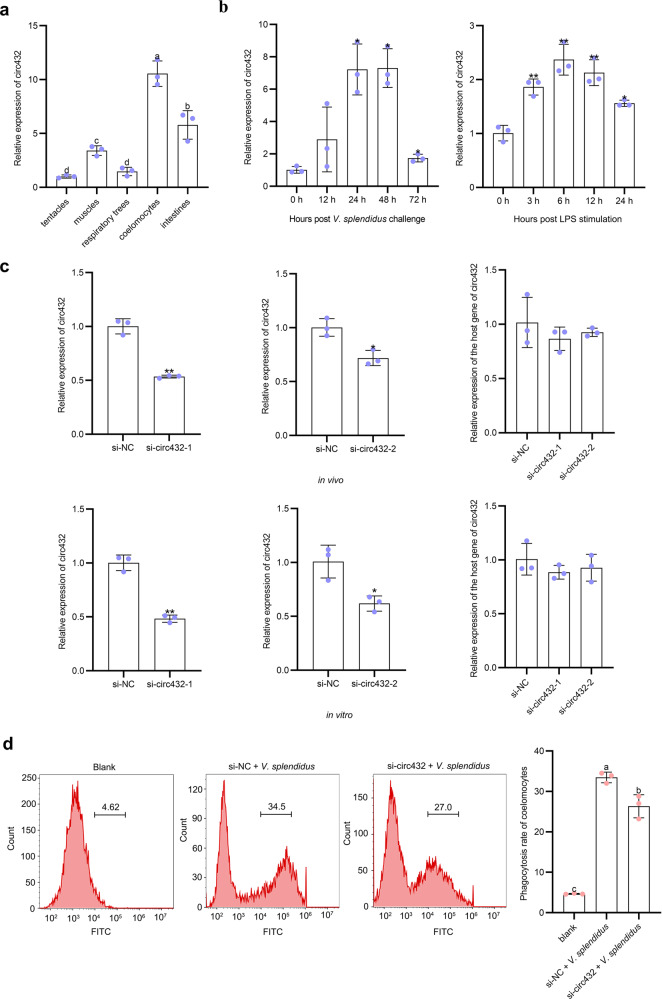

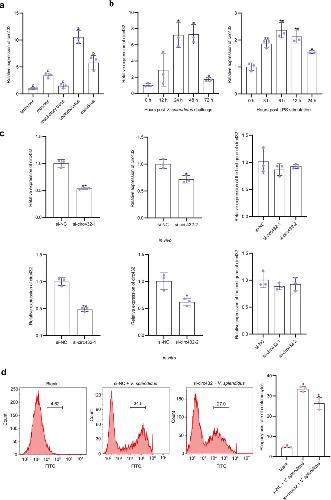

	Fig. 2. circ432 participates in the phagocytosis of coelomocytes induced by V. splendidus.a Tissue abundance distribution of circ432 in coelomocytes, intestine, tentacles, respiratory tree, and muscle was measured by qPCR. b The time-course abundance patterns of circ432 in coelomocytes of V. splendidus-challenged A. japonicus and the LPS-exposed primary cultured cell as measured by qPCR. c The relative abundance level of circ432 and the host gene of circ432 after circ432 siRNA transfection in vivo and in vitro were detected by qPCR. d The phagocytosis ratio of coelomocytes in circ432 siRNA transfection under the induction of V. splendidus was detected by flow cytometry. All data represented the mean ± SD from three independent triplicated experiments. P < 0.05, *P < 0.01. Different letters above each bar indicate significant differences: P < 0.05, whereas bars with the same letter indicates non-significant differences.

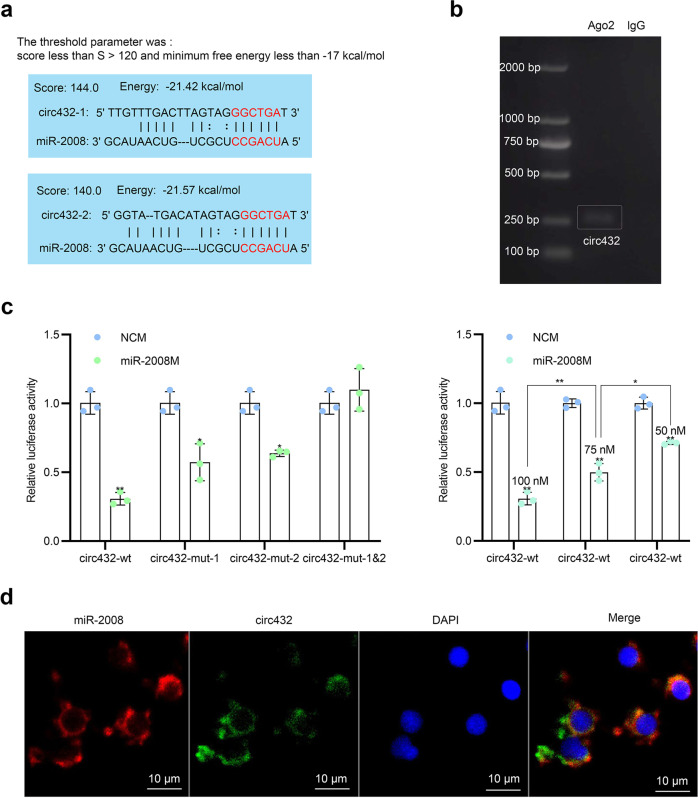

	Fig. 3. circ432 functions as a miRNA sponge of miR-2008.a The combination of circ432 and miR-2008 was predicted by miRanda. b The divergent primers of circ432 of AGO2-RIP were validated by RT-PCR. c The relative luciferase activities were detected after co-transfection with circ432-wt or circ432-mut and modified miR-2008 mimics or NCM, and the circ432 relative luciferase activity was detected at different concentration gradients of miR-2008 mimics, including 50, 75, and 100 nM. d That circ432 can adsorb miR-2008 was detected by RNA FISH. Scale bar, 10 μm. All data represented the mean ± SD from three independent triplicated experiments. P < 0.05, *P < 0.01.

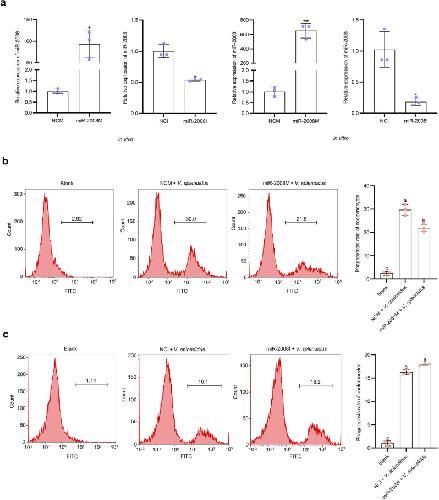

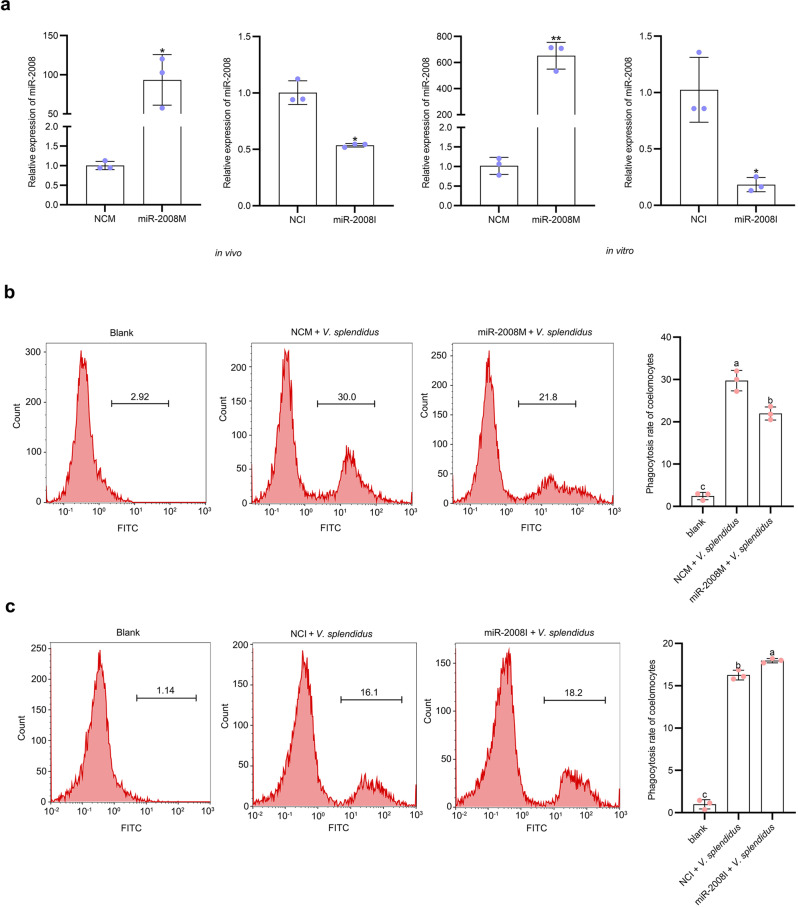

	Fig. 4. Inhibitory effect of miR-2008 on phagocytosis of coelomocytes.a The relative miR-2008 abundance level after transfection with modified miR-2008 mimics and inhibitor in vivo and in vitro was detected by qPCR. b, c The phagocytosis ratio of coelomocytes in modified miR-2008 mimics/inhibitor under the induction of V. splendidus was detected by flow cytometry. All data represented the mean ± SD from three independent triplicated experiments. P < 0.05, *P < 0.01. Different letters above each bar indicate significant differences: P < 0.05, whereas bars with the same letter indicates non-significant differences.

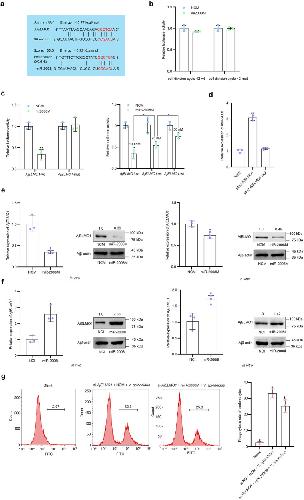

	Fig. 5. miR-2008 inhibits the V. splendidus-induced coelomocytes phagocytosis via targeting AjELMO1.a The combination of miR-2008 and AjELMO1, cell division cycle 42 was predicted by the miRanda program. b The relative luciferase activities were detected in Hela cells after co-transfection with cell division cycle 42-wt or cell division cycle 42-mut plasmids and modified miR-2008 mimics or NCM. c The relative luciferase activities were detected after co-transfection with AjELMO1-wt or AjELMO1-mut plasmids and modified miR-2008 mimics or NCM, and the AjELMO1 relative luciferase activity was detected at different concentration gradients of miR-2008 mimics, including 50, 75, and 100 nM. d Hela cells were co-transfected with pcGFP-MS2, pcGFP-MS2-AjELMO1, or pcGFP-MS2-AjELMO1-mut plasmids and miR-2008 mimics for 48 h, and then incubated with anti-GFP antibody and further detect the enrichment of miR-2008 by qPCR. e, f The relative abundance level of AjELMO1 after transfection with modified miR-2008 mimics and inhibitor in vivo and in vitro was detected by qPCR and western blotting. g The phagocytosis ratio of coelomocytes in AjELMO1 siRNA transfection and modified miR-2008 mimics under the induction of V. splendidus was detected by flow cytometry. All data represented the mean ± SD from three independent triplicated experiments. P < 0.05, *P < 0.01. Different letters above each bar indicate significant differences: P < 0.05, whereas bars with the same letter indicates non-significant differences.

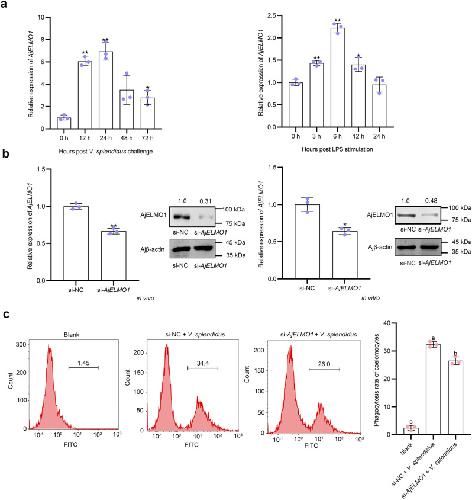

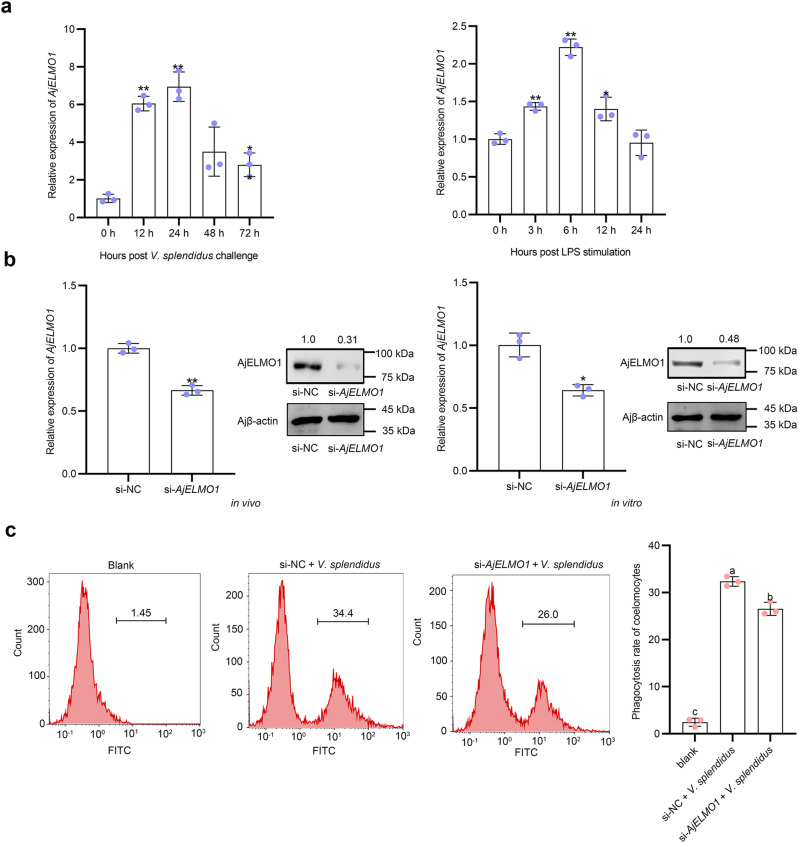

	Fig. 6. AjELMO1 promotes phagocytosis of responses upon V. splendidus infection.a The time-course abundance patterns of AjELMO1 in the V. splendidus-challenged A. japonicus and the LPS-exposed primary cultured cell as measured by qPCR. b The relative abundance level of AjELMO1 after AjELMO1 siRNA transfection in vivo and in vitro was detected by qPCR and western blotting. c The phagocytosis ratio of coelomocytes in AjELMO1 siRNA transfection under the induction of V. splendidus was detected by flow cytometry. All data represented the mean ± SD from three independent triplicated experiments. P < 0.05, *P < 0.01. Different letters above each bar indicate significant differences: P < 0.05, whereas bars with the same letter indicates non-significant differences.

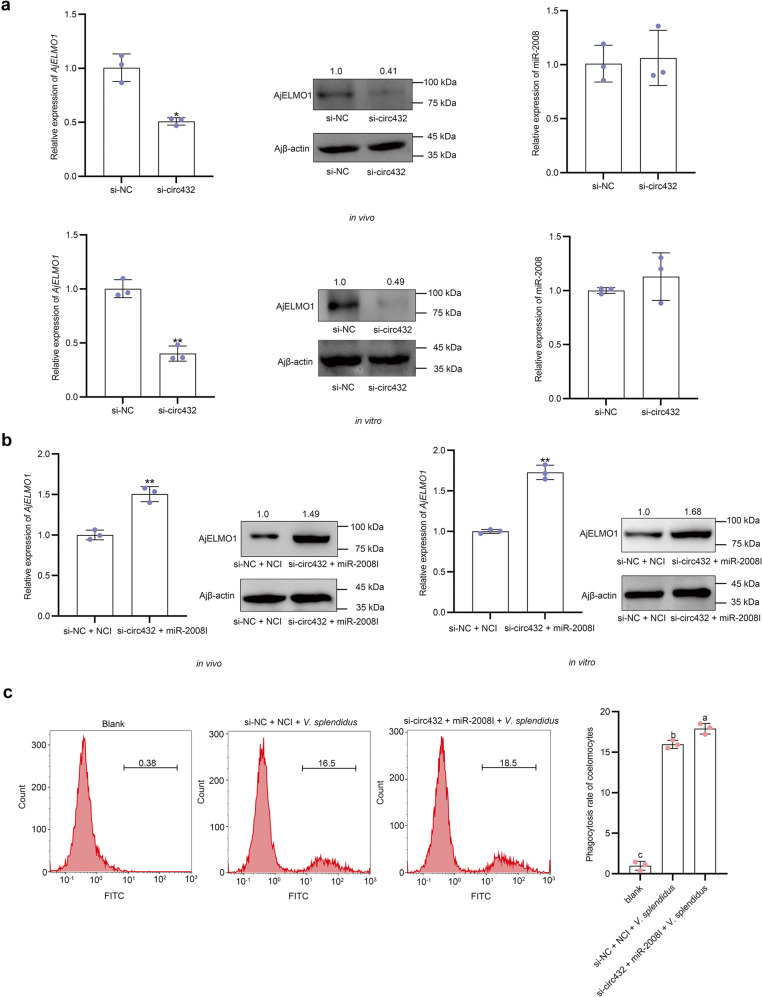

	Fig. 7. circ432 as a sponge for miR-2008 enhances phagocytosis of AjELMO1.a The relative abundance level of AjELMO1 and miR-2008 after circ432 siRNA transfection in vivo and in vitro was detected by qPCR and western blotting. b The relative abundance level of AjELMO1 after circ432 siRNA transfection and modified miR-2008 inhibitor in vivo and in vitro was detected by qPCR and western blotting. c The phagocytosis ratio of coelomocytes in circ432 siRNA transfection and modified miR-2008 inhibitor under the induction of V. splendidus was detected by flow cytometry. All data represented the mean ± SD from three independent triplicated experiments. P < 0.05, *P < 0.01. Different letters above each bar indicate significant differences: P < 0.05, whereas bars with the same letter indicates non-significant differences.

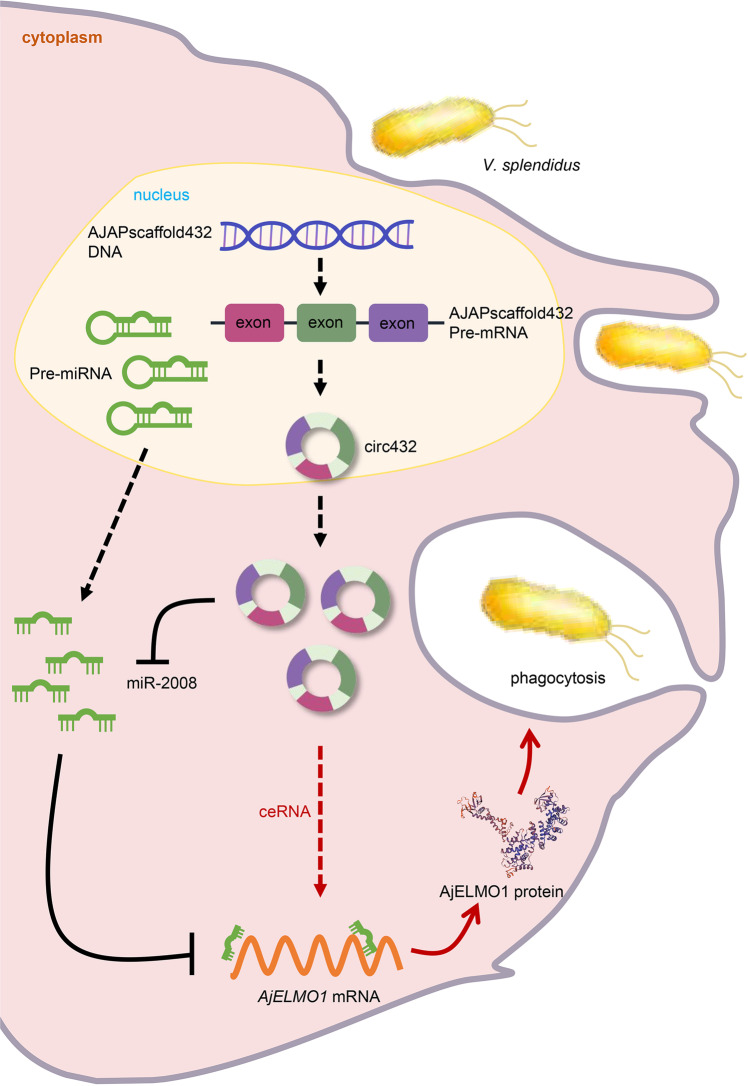

	Fig. 8. The schematic diagram shows the mechanism underlying circ432 as a ceRNA for miR-2008 to regulate V. splendidus-induced coelomocytes phagocytosis by targeting AjELMO1.miR-2008 targets AjELMO1 and represses AjELMO1-mediated coelomocytes phagocytosis. circ432 acts as a molecular sponge regulating miR-2008 to enhance AjELMO1 abundance to maintain the phagocytosis balance.
