Mar Drugs
2023 Feb 24;213:. doi: 10.3390/md21030145.
Show Gene links
Show Anatomy links
Glycoproteins Involved in Sea Urchin Temporary Adhesion.
Ventura I, Harman V, Beynon RJ, Santos R.
???displayArticle.abstract???
Biomedical adhesives, despite having been used increasingly in recent years, still face a major technological challenge: strong adhesion in wet environments. In this context, biological adhesives secreted by marine invertebrates have appealing characteristics to incorporate into new underwater biomimetic adhesives: water resistance, nontoxicity and biodegradability. Little is still known about temporary adhesion. Recently, a transcriptomic differential analysis of sea urchin Paracentrotus lividus tube feet pinpointed 16 adhesive/cohesive protein candidates. In addition, it has been demonstrated that the adhesive secreted by this species is composed of high molecular weight proteins associated with N-Acetylglucosamine in a specific chitobiose arrangement. As a follow-up, we aimed to investigate which of these adhesive/cohesive protein candidates were glycosylated through lectin pulldowns, protein identification by mass spectroscopy and in silico characterization. We demonstrate that at least five of the previously identified protein adhesive/cohesive candidates are glycoproteins. We also report the involvement of a third Nectin variant, the first adhesion-related protein to be identified in P. lividus. By providing a deeper characterization of these adhesive/cohesive glycoproteins, this work advances our understanding of the key features that should be replicated in future sea urchin-inspired bioadhesives.

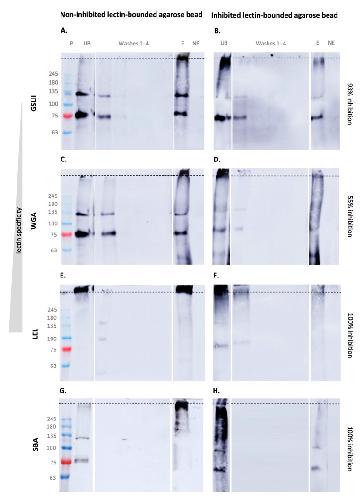

Figure 1. Glycoproteins pulldown assay from Paracentrotus lividus tube feet discs protein extracts using lectin-bounded agarose beads. Lectin blot of pulldowns using non-inhibited (A,C,E,G) and inhibited (B,D,F,H) lectin-bounded agarose beads. Abbreviations: E—eluted fraction; M—molecular weight markers; NE—non-eluted fraction; UB- unbound fraction; Wash 1–4—wash fractions. The dashed line indicates the separation between stacking and resolving gel. GSL II, Griffonia simplicifolia lectin II; WGA, Wheat germ agglutinin; LEL, Lycopersicon esculentum lectin; and SBA, Soybean agglutinin.

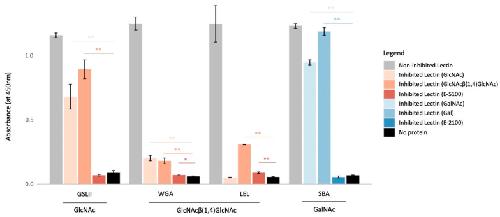

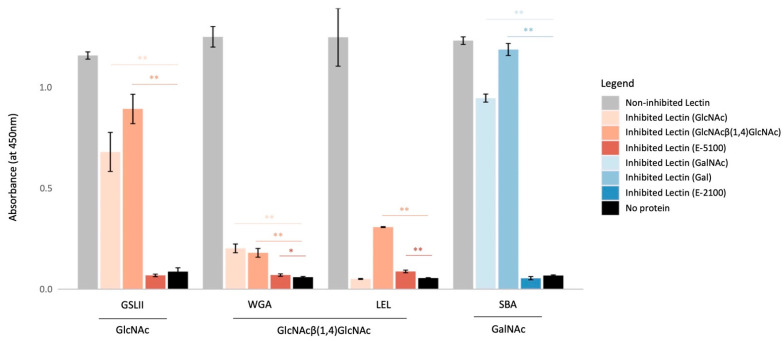

Figure 2. Lectin inhibition comparative analysis. Enzyme-linked lectin assay comparing the obtained absorbance values for non-inhibited and inhibited lectins. Assay performed in a 96 wells plate coated with Paracentrotus lividus tube feet discs protein extracts. The legend shows the tested inhibiting sugar or sugar solution. Black bars are controls with no bound protein. GSL II was used to detect the presence of N-acetylglucosamine; WGA and LEL to detect chitobiosis and SBA to detect N-acetylgalactosamine in the extracts. E-5100 glycoprotein eluting solution is comprised of GlcNAc and chitin, while E-2100 contains galactose and GalNAc. Each bar represents the mean and the standard deviation (N = 8). Parametric T-tests were performed to compare absorbance values of each lectin; * p < 0.05 and ** p < 0.001. Abbreviations: GSL II, Griffonia simplicifolia lectin II; Gal, galactose; GalNAc, N-acetylgalactosamine; GlcNAc, N-acetylglucosamine; LEL, Lycopersicon esculentum lectin; SBA, Soybean agglutinin; WGA, Wheat germ agglutinin.

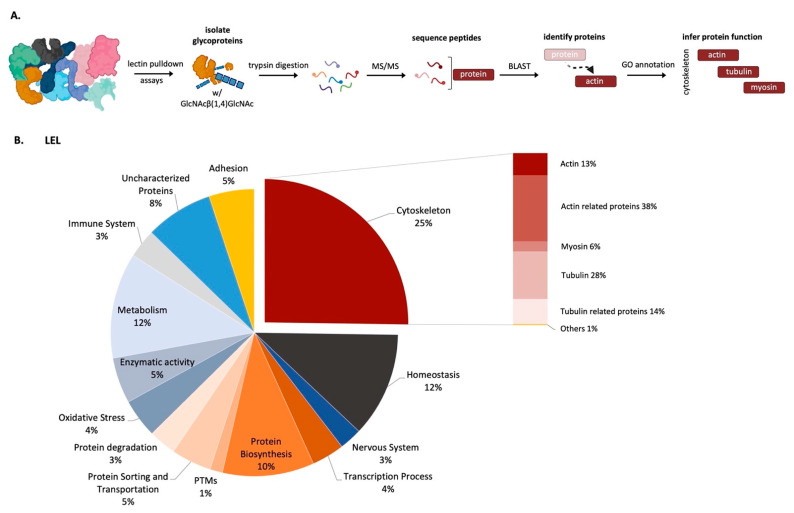

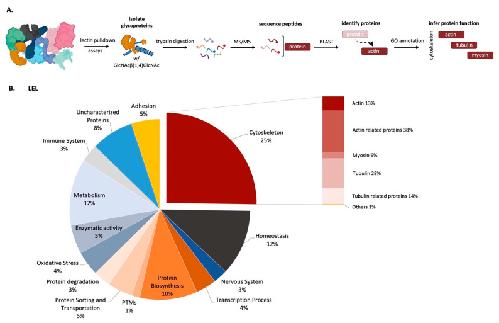

Figure 3. Global protein composition by functional groups of LEL-pulldown eluted fraction. Experimental approach used to identify proteins pulldown with LEL-bounded agarose beads (A) and the correspondent GO annotation analysis of Paracentrotus lividus disc proteins conjugated with GlcNAcβ(1,4)GlcNAc (B).

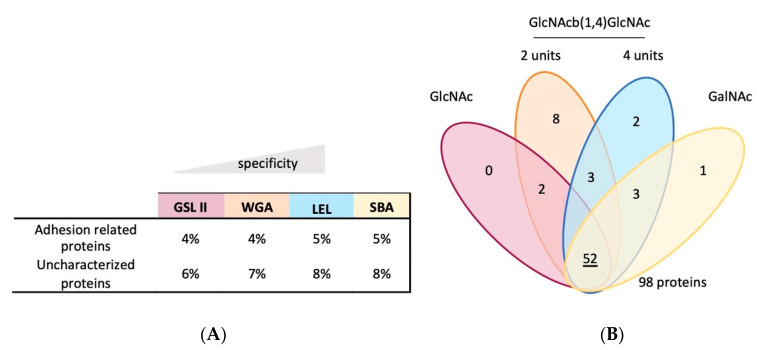

Figure 4. Adhesion-related and uncharacterized Paracentrotus lividus tube feet disc glycoproteins. Percentage of adhesion-related and uncharacterized proteins recovered in the different glycoprotein pulldown assays (A) and their conjugated glycans (B).

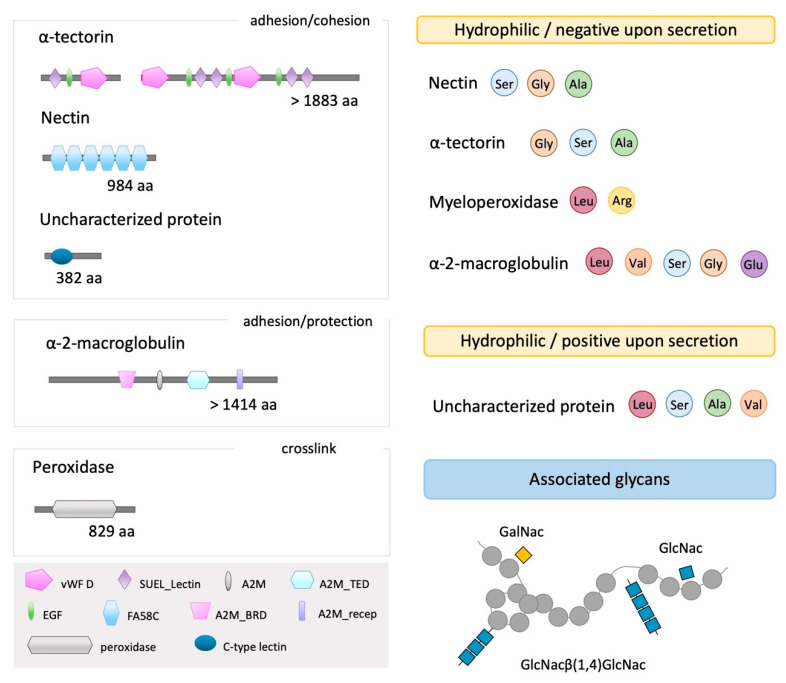

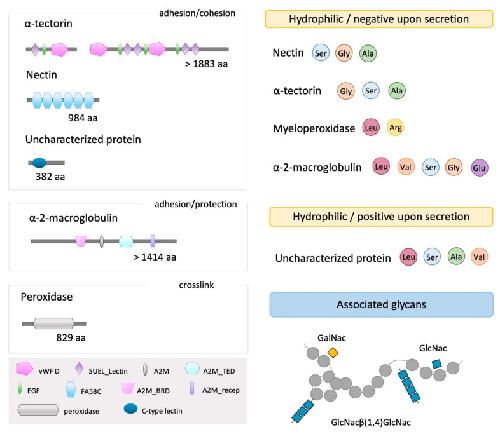

Figure 5. Summary of the characterization of glycosylated adhesive/cohesive protein candidates. Abbreviations: A2M, alpha macroglobulin domain; A2M_BRD, alpha macroglobulin bait region; A2M_recep, alpha macroglobulin receptor binding domain; A2M_TED, alpha macroglobulin receptor binding domain; Ala, alanine; Arg, arginine; EGF, EGF-like calcium-binding domain; FA58C, discoidin domains; GalNAc, N-acetylgalactosamine; GlcNAc, N-acetylglucosamine; GlcNAcβ(1,4)GlcNAc, N-acetylglucosamine in a specific chitobiose arrangement; Gly, glycine; Glu, glutamine; Leu, leucine; Ser, serine; SUEL_Lectin, SUEL lectin domain; Val, valine; vWF D, von Willebrand factor type D domain.

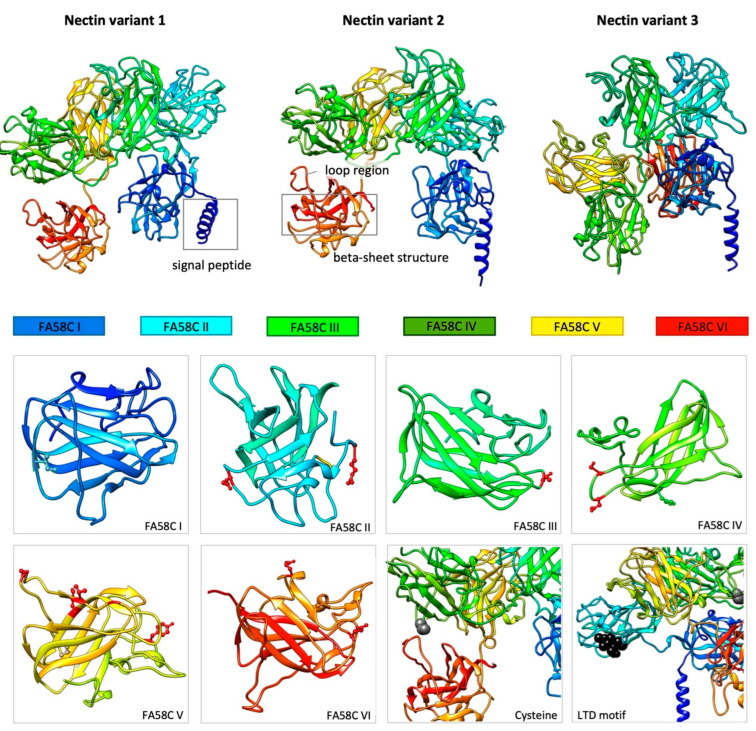

Figure 6. Comparative structural analysis of Paracentrotus lividus Nectin variants. Structural prediction of Nectin tertiary structure (first line) using Alphafold, with a close up on each of the six discoidin like domains (second and third line). Secondary structures are represented as arrows (beta-sheets), spirals (alpha-helix) and disorganized regions (random coils). Non-conservative amino acid substitutions are represented in red, while conservative substitutions maintain the color of the domain in which they occur. The cysteine residue responsible for Nectin homodimerization is indicated as a grey sphere and the LTD motif is identified as black spheres.
Algrain,
In the footsteps of sea stars: deciphering the catalogue of proteins involved in underwater temporary adhesion.
2022, Pubmed,
Echinobase
Algrain,
In the footsteps of sea stars: deciphering the catalogue of proteins involved in underwater temporary adhesion.
2022,
Pubmed
,
Echinobase Almagro Armenteros,
SignalP 5.0 improves signal peptide predictions using deep neural networks.
2019,
Pubmed Anand,
Computational modelling of wet adhesive mussel foot proteins (Bivalvia): Insights into the evolutionary convolution in diverse perspectives.
2020,
Pubmed Baldwin,
Protein identification by mass spectrometry: issues to be considered.
2004,
Pubmed Bertemes,
Sticking Together an Updated Model for Temporary Adhesion.
2022,
Pubmed Bhattacharjee,
Position-specific propensities of amino acids in the β-strand.
2010,
Pubmed Budisa,
Expanding the DOPA Universe with Genetically Encoded, Mussel-Inspired Bioadhesives for Material Sciences and Medicine.
2019,
Pubmed Costa,
Phylogenetic analysis and homology modelling of Paracentrotus lividus nectin.
2010,
Pubmed
,
Echinobase Davey,
Transcriptional characterisation of the Exaiptasia pallida pedal disc.
2019,
Pubmed Davey,
Omics-based molecular analyses of adhesion by aquatic invertebrates.
2021,
Pubmed DeMartini,
A cohort of new adhesive proteins identified from transcriptomic analysis of mussel foot glands.
2017,
Pubmed Dill,
The protein folding problem.
2008,
Pubmed Domínguez-Martín,
Quantitative Proteomics Shows Extensive Remodeling Induced by Nitrogen Limitation in Prochlorococcusmarinus SS120.
2017,
Pubmed Domínguez-Pérez,
The Quantitative Proteome of the Cement and Adhesive Gland of the Pedunculate Barnacle, Pollicipes pollicipes.
2020,
Pubmed Dreanno,
An alpha2-macroglobulin-like protein is the cue to gregarious settlement of the barnacle Balanus amphitrite.
2006,
Pubmed Dyson,
The role of hydrophobic interactions in initiation and propagation of protein folding.
2006,
Pubmed Federle,
Dynamic biological adhesion: mechanisms for controlling attachment during locomotion.
2019,
Pubmed Floriolli,
Marine Surfaces and the Expression of Specific Byssal Adhesive Protein Variants in Mytilus.
2000,
Pubmed Gantayet,
Novel proteins identified in the insoluble byssal matrix of the freshwater zebra mussel.
2014,
Pubmed Hennebert,
Characterisation of the carbohydrate fraction of the temporary adhesive secreted by the tube feet of the sea star Asterias rubens.
2011,
Pubmed
,
Echinobase Hennebert,
Sea star tenacity mediated by a protein that fragments, then aggregates.
2014,
Pubmed
,
Echinobase Hennebert,
An integrated transcriptomic and proteomic analysis of sea star epidermal secretions identifies proteins involved in defense and adhesion.
2015,
Pubmed
,
Echinobase Johnson,
NCBI BLAST: a better web interface.
2008,
Pubmed Jumper,
Highly accurate protein structure prediction with AlphaFold.
2021,
Pubmed Lebesgue,
Deciphering the molecular mechanisms underlying sea urchin reversible adhesion: A quantitative proteomics approach.
2016,
Pubmed
,
Echinobase Lefevre,
Sea star-inspired recombinant adhesive proteins self-assemble and adsorb on surfaces in aqueous environments to form cytocompatible coatings.
2020,
Pubmed
,
Echinobase Lengerer,
Interspecies comparison of sea star adhesive proteins.
2019,
Pubmed
,
Echinobase Lengerer,
Biological adhesion of the flatworm Macrostomum lignano relies on a duo-gland system and is mediated by a cell type-specific intermediate filament protein.
2014,
Pubmed Lengerer,
Adhesive organ regeneration in Macrostomum lignano.
2016,
Pubmed Lengerer,
Properties of temporary adhesion systems of marine and freshwater organisms.
2018,
Pubmed Lengerer,
The structural and chemical basis of temporary adhesion in the sea star Asterina gibbosa.
2018,
Pubmed
,
Echinobase Li,
Databases and Bioinformatic Tools for Glycobiology and Glycoproteomics.
2020,
Pubmed Lin,
Histology and transcriptomic analyses of barnacles with different base materials and habitats shed lights on the duplication and chemical diversification of barnacle cement proteins.
2021,
Pubmed Liu,
Comparative proteomics for an in-depth understanding of bioadhesion mechanisms and evolution across metazoans.
2022,
Pubmed Lu,
CDD/SPARCLE: the conserved domain database in 2020.
2020,
Pubmed Lu,
Adhesion of mussel foot proteins to different substrate surfaces.
2013,
Pubmed Madeira,
Search and sequence analysis tools services from EMBL-EBI in 2022.
2022,
Pubmed Matranga,
A new extracellular matrix protein of the sea urchin embryo with properties of a substrate adhesion molecule.
1992,
Pubmed
,
Echinobase Mitchell,
InterPro in 2019: improving coverage, classification and access to protein sequence annotations.
2019,
Pubmed Ohkawa,
A glycosylated byssal precursor protein from the green mussel Perna viridis with modified dopa side-chains.
2004,
Pubmed Pandey,
Mussel-inspired bioadhesives in healthcare: design parameters, current trends, and future perspectives.
2020,
Pubmed Pettersen,
UCSF Chimera--a visualization system for exploratory research and analysis.
2004,
Pubmed Pjeta,
Temporary adhesion of the proseriate flatworm Minona ileanae.
2019,
Pubmed Pjeta,
Integrative Transcriptome and Proteome Analysis of the Tube Foot and Adhesive Secretions of the Sea Urchin Paracentrotus lividus.
2020,
Pubmed
,
Echinobase Rees,
Fingerprinting of Proteins that Mediate Quagga Mussel Adhesion using a De Novo Assembled Foot Transcriptome.
2019,
Pubmed Rittschof,
Crustacean peptide and peptide-like pheromones and kairomones.
2004,
Pubmed Rodrigues,
Profiling of adhesive-related genes in the freshwater cnidarian Hydra magnipapillata by transcriptomics and proteomics.
2016,
Pubmed Santos,
Mapping sea urchins tube feet proteome--a unique hydraulic mechano-sensory adhesive organ.
2013,
Pubmed
,
Echinobase Santos,
First insights into the biochemistry of tube foot adhesive from the sea urchin Paracentrotus lividus (Echinoidea, Echinodermata).
2009,
Pubmed
,
Echinobase Schwartz,
Serine substitutions are linked to codon usage and differ for variable and conserved protein regions.
2019,
Pubmed Senior,
Improved protein structure prediction using potentials from deep learning.
2020,
Pubmed Stewart,
The role of coacervation and phase transitions in the sandcastle worm adhesive system.
2017,
Pubmed Stewart,
Natural Underwater Adhesives.
2011,
Pubmed Tabb,
Verification of automated peptide identifications from proteomic tandem mass spectra.
2006,
Pubmed Thompson,
Optimization of the enzyme-linked lectin assay for enhanced glycoprotein and glycoconjugate analysis.
2011,
Pubmed Tian,
Transcriptomes reveal the involved genes in the sea urchin Mesocentrotus nudus exposed to high flow velocities.
2022,
Pubmed
,
Echinobase Toubarro,
Cloning, Characterization, and Expression Levels of the Nectin Gene from the Tube Feet of the Sea Urchin Paracentrotus Lividus.
2016,
Pubmed
,
Echinobase Urushida,
Identification and functional characterization of a novel barnacle cement protein.
2007,
Pubmed Viana,
Nanoscale characterization of the temporary adhesive of the sea urchin Paracentrotus lividus.
2018,
Pubmed
,
Echinobase Wudarski,
The free-living flatworm Macrostomum lignano.
2020,
Pubmed Wunderer,
A mechanism for temporary bioadhesion.
2019,
Pubmed Zeng,
Papillae revisited and the nature of the adhesive secreting collocytes.
2019,
Pubmed Zhao,
Probing the adhesive footprints of Mytilus californianus byssus.
2006,
Pubmed Zhao,
Glycosylated hydroxytryptophan in a mussel adhesive protein from Perna viridis.
2009,
Pubmed
