Mar Drugs
2023 Mar 30;214:. doi: 10.3390/md21040222.
Show Gene links
Show Anatomy links
Echinochrome A Prevents Diabetic Nephropathy by Inhibiting the PKC-Iota Pathway and Enhancing Renal Mitochondrial Function in db/db Mice.
Pham TK
,
Nguyen THT
,
Yun HR
,
Vasileva EA
,
Mishchenko NP
,
Fedoreyev SA
,
Stonik VA
,
Vu TT
,
Nguyen HQ
,
Cho SW
,
Kim HK
,
Han J
.
???displayArticle.abstract???
Echinochrome A (EchA) is a natural bioproduct extracted from sea urchins, and is an active component of the clinical drug, Histochrome®. EchA has antioxidant, anti-inflammatory, and antimicrobial effects. However, its effects on diabetic nephropathy (DN) remain poorly understood. In the present study, seven-week-old diabetic and obese db/db mice were injected with Histochrome (0.3 mL/kg/day; EchA equivalent of 3 mg/kg/day) intraperitoneally for 12 weeks, while db/db control mice and wild-type (WT) mice received an equal amount of sterile 0.9% saline. EchA improved glucose tolerance and reduced blood urea nitrogen (BUN) and serum creatinine levels but did not affect body weight. In addition, EchA decreased renal malondialdehyde (MDA) and lipid hydroperoxide levels, and increased ATP production. Histologically, EchA treatment ameliorated renal fibrosis. Mechanistically, EchA suppressed oxidative stress and fibrosis by inhibiting protein kinase C-iota (PKCι)/p38 mitogen-activated protein kinase (MAPK), downregulating p53 and c-Jun phosphorylation, attenuating NADPH oxidase 4 (NOX4), and transforming growth factor-beta 1 (TGFβ1) signaling. Moreover, EchA enhanced AMPK phosphorylation and nuclear factor erythroid-2-related factor 2 (NRF2)/heme oxygenase 1 (HO-1) signaling, improving mitochondrial function and antioxidant activity. Collectively, these findings demonstrate that EchA prevents DN by inhibiting PKCι/p38 MAPK and upregulating the AMPKα/NRF2/HO-1 signaling pathways in db/db mice, and may provide a therapeutic option for DN.
2018R1A2A3074998 National Research Foundation of Korea, 2020R1A4A1018943 National Research Foundation of Korea, 22A0205L1-11 Korean Fund for Regenerative Medicine

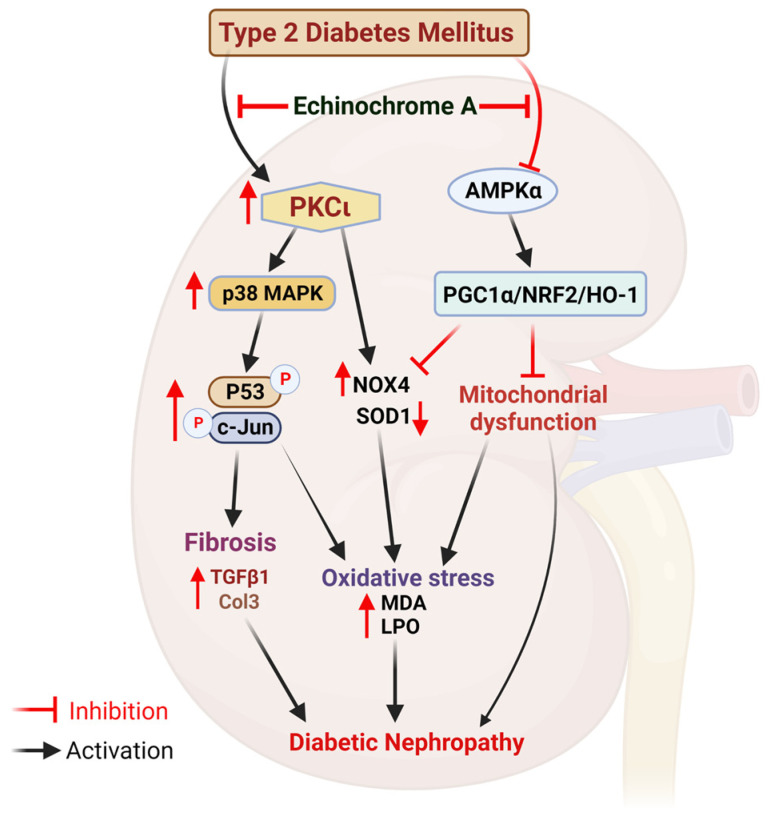

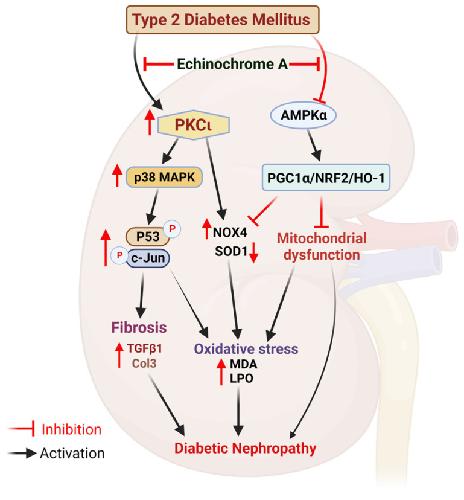

Figure 6. Schematic diagram depicting the potential renal-protective mechanism of EchA in diabetic nephropathy.

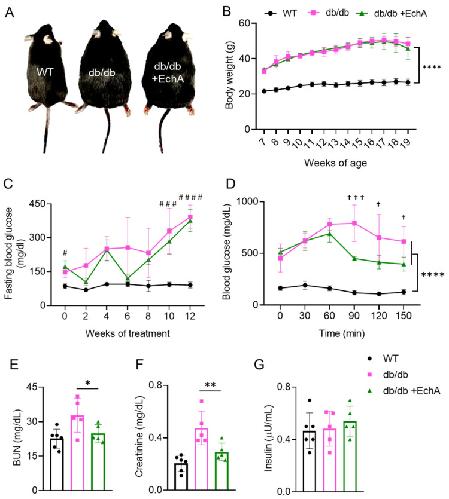

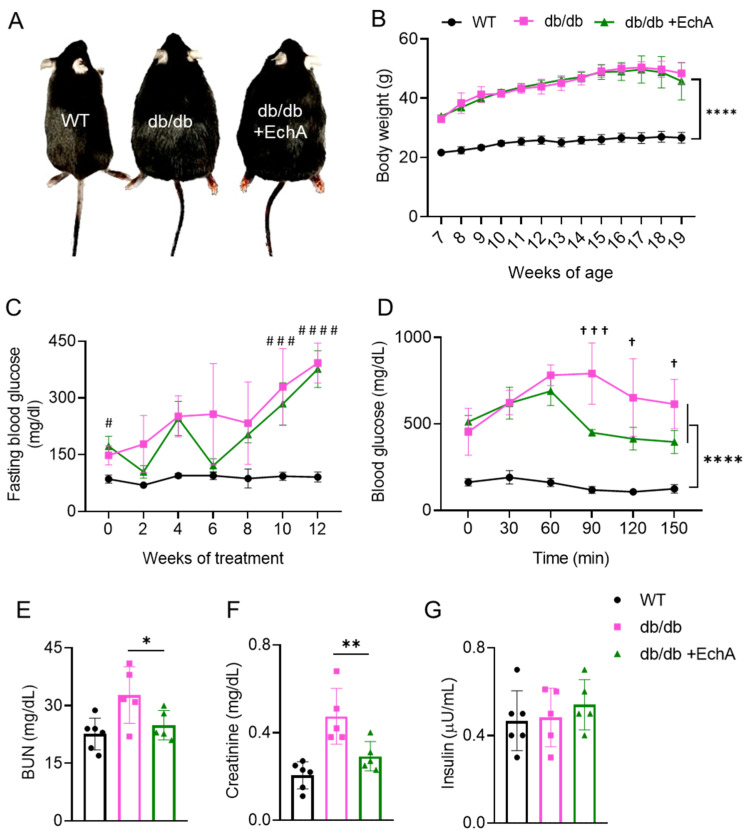

Figure 1. Effect of EchA on body weight, blood glucose, blood urea nitrogen (BUN), creatinine, and insulin levels in db/db mice. (A) Morphology of the WT, db/db, and db/db + EchA mice at 19 weeks old and after 12 weeks of treatment. (B) Body weight. (C) Fasting blood glucose. (D) BUN levels. (E) Serum creatinine levels. (F) Glucose tolerance. (G) Insulin levels. Data are presented as mean ± SEM; * p < 0.05, ** p < 0.01, **** p < 0.0001; #
p < 0.05, ###
p < 0.001, ####
p < 0.0001 in the WT vs. the db/db and db/db + EchA groups. ϯ
p < 0.05, ϯϯϯ
p < 0.001 in the db/db vs. the db/db + EchA groups (n = 6/group).

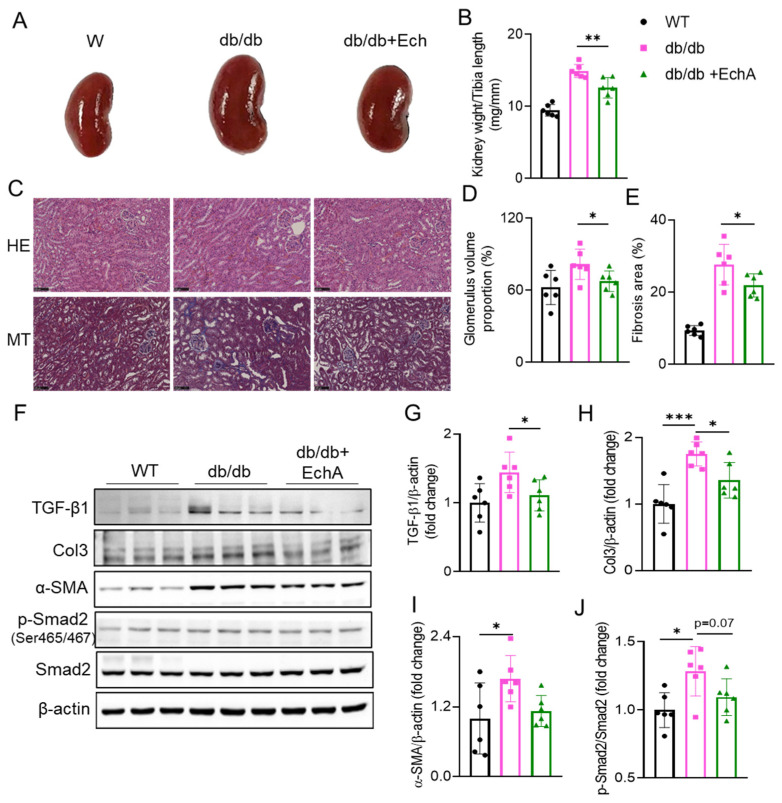

Figure 2. Effects of EchA treatment on renal hypertrophy and fibrosis in db/db mice. (A) Representative images of whole kidneys from mice in the different treatment groups. (B) The ratio of kidney weight to tibia length of the mice. (C) Representative images of HE- and MT-stained kidney sections. Magnification, 400×. The scale bar represents 100 μm. (D) Glomerulus volume proportion based on HE staining. (E) Renal interstitial fibrosis area based on MT staining. (F) Immunoblot analysis of protein expression related to renal fibrosis. (G–J) Quantitative analysis of transforming growth factor-beta 1 (TGF-β1), collagen III (Col3), alpha smooth muscle actin (αSMA), phospho-suppressor of mothers against decapentaplegic 2 (p-SMAD2), total SMAD2, and β-actin in the kidneys of mice, as determined via Western blotting. Data are presented as mean ± SEM. * p < 0.05, ** p < 0.01, *** p < 0.001 (n = 6/group).

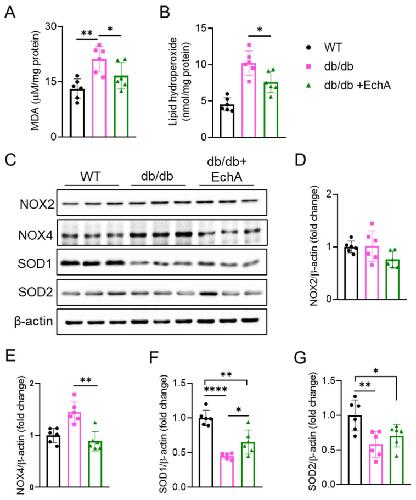

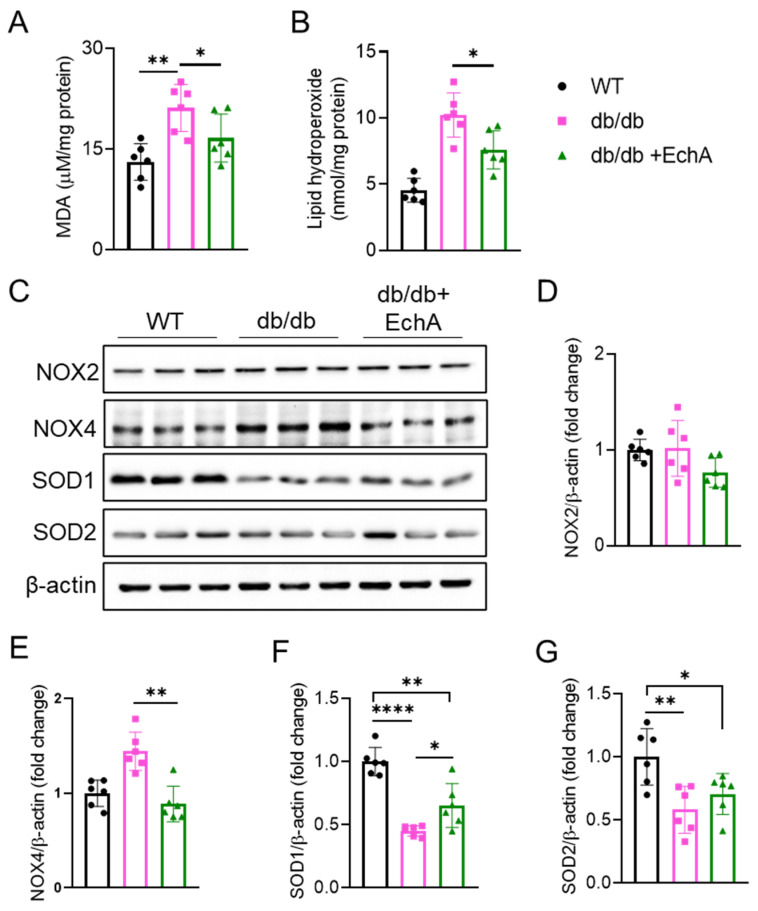

Figure 3. Effects of EchA treatment on oxidative stress in the renal tissue of db/db mice. (A) Renal malondialdehyde (MDA) levels. (B) Renal lipid hydroperoxide levels. (C) Immunoblot analysis of the expression of proteins related to oxidative stress in renal tissues. (D–G) Quantitative analysis of NADPH oxidase 2 (NOX2), NOX4, superoxide dismutase 1 (SOD1), SOD2, and β-actin protein expression levels in the kidneys of mice, as determined using Western blotting. Data are presented as mean ± SEM. * p < 0.05, ** p < 0.01, **** p < 0.0001 (n = 6/group).

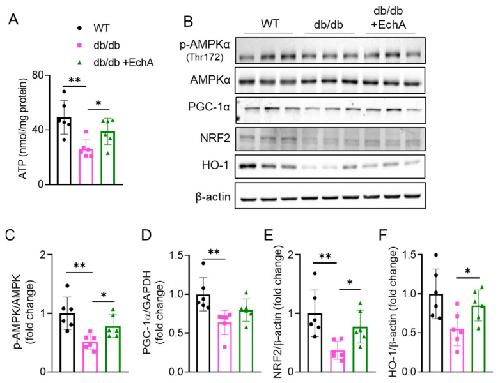

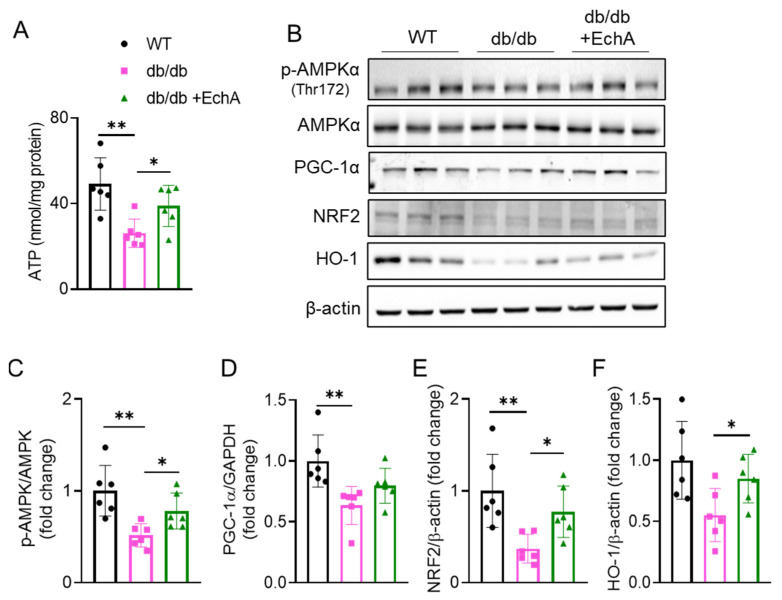

Figure 4. EchA regulates high-glucose-induced p-AMPK, PGC-1α, and NRF2/HO-1 expression and activates ATP production in diabetic kidneys. (A) Renal ATP levels. (B) Immunoblot analysis of the protein expression of AMP-activated protein kinase (AMPK) in the total and phosphorylated form, peroxisome proliferator-activated receptor gamma coactivator 1-alpha (PGC-1α), nuclear factor erythroid-2-related factor 2 (NRF2), heme oxygenase-1 (HO-1), and β-actin. (C–F) Statistical analysis of the expression of these proteins mentioned in (B). Data are presented as mean ± SEM. * p < 0.05, ** p < 0.01 (n = 6/group).

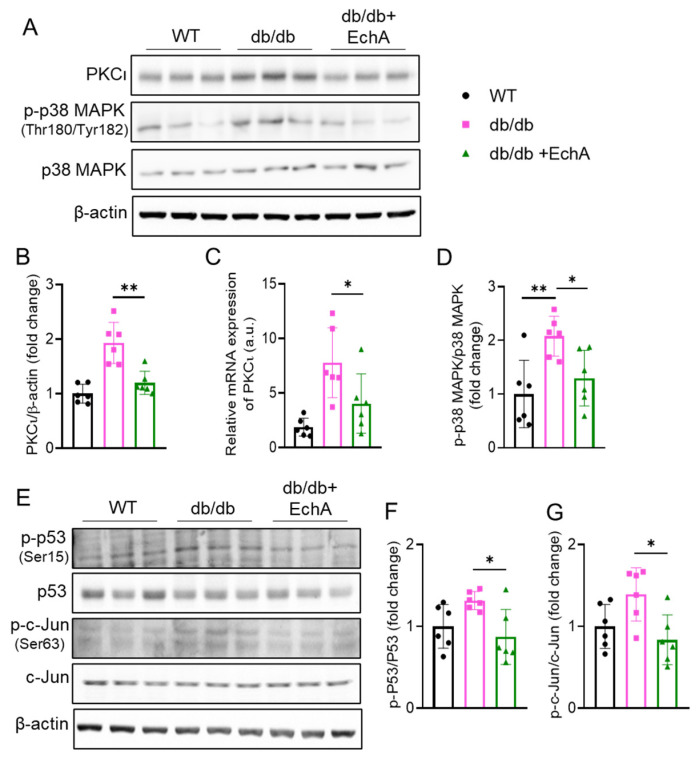

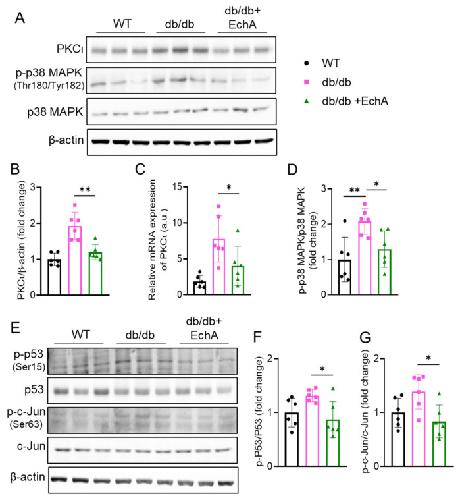

Figure 5. Effect of EchA treatment on PKCι expression and the phosphorylation p53 and c-Jun in the kidney tissues of db/db mice. (A) Analysis of the protein expression of PKCι, p-p38 MAPK, p38 MAPK, and β-actin using Western blot analysis. (B) Quantitative analysis of PKCι protein expression. (C) mRNA expression of PKCι in the kidney as determined using real-time PCR. (D) Quantitative analysis of p-p38 MAPK phosphorylation. (E) Immunoblot analysis of the protein expression of p-p53, p53, p-c-Jun, c-Jun, and β-actin. (F,G) Statistical analysis of the expression of the examined proteins. Data are presented as mean ± SEM. * p < 0.05, ** p < 0.01 (n = 6/group).
Afkarian,
Kidney disease and increased mortality risk in type 2 diabetes.
2013, Pubmed
Afkarian,
Kidney disease and increased mortality risk in type 2 diabetes.
2013,
Pubmed
Aladaileh,
Formononetin Upregulates Nrf2/HO-1 Signaling and Prevents Oxidative Stress, Inflammation, and Kidney Injury in Methotrexate-Induced Rats.
2019,
Pubmed
Anderson,
Distribution of spinochrome pigments in echinoids.
1969,
Pubmed
,
Echinobase
Artyukov,
Marine Polyhydroxynaphthoquinone, Echinochrome A: Prevention of Atherosclerotic Inflammation and Probable Molecular Targets.
2020,
Pubmed
,
Echinobase
Barnes,
Myofibroblast differentiation during fibrosis: role of NAD(P)H oxidases.
2011,
Pubmed
Buĭmov,
[Effect of the bioantioxidant histochrome on myocardial injury in reperfusion therapy on patients with myocardial infarction].
2002,
Pubmed
Bullon,
AMPK/Mitochondria in Metabolic Diseases.
2016,
Pubmed
Chen,
Oxidative stress mediated mitochondrial damage plays roles in pathogenesis of diabetic nephropathy rat.
2018,
Pubmed
Chuang,
Regulation of type II transforming-growth-factor-beta receptors by protein kinase C iota.
2003,
Pubmed
Clark,
Targeting energy pathways in kidney disease: the roles of sirtuins, AMPK, and PGC1α.
2021,
Pubmed
Cui,
Echinochrome A Reverses Kidney Abnormality and Reduces Blood Pressure in a Rat Model of Preeclampsia.
2022,
Pubmed
Egorov,
[Histochrome, a new antioxidant, in the treatment of ocular diseases].
1999,
Pubmed
Eid,
AMP-activated protein kinase (AMPK) negatively regulates Nox4-dependent activation of p53 and epithelial cell apoptosis in diabetes.
2010,
Pubmed
Fedoreyev,
Antiviral and Antioxidant Properties of Echinochrome A.
2018,
Pubmed
,
Echinobase
Firidin,
Oxidative Stress Parameters, Induction of Lipid Peroxidation, and ATPase Activity in the Liver and Kidney of Oreochromis niloticus Exposed to Lead and Mixtures of Lead and Zinc.
2018,
Pubmed
Fukuda,
Podocyte p53 Limits the Severity of Experimental Alport Syndrome.
2016,
Pubmed
Galicia-Garcia,
Pathophysiology of Type 2 Diabetes Mellitus.
2020,
Pubmed
Ghaderian,
Diabetes and end-stage renal disease; a review article on new concepts.
2015,
Pubmed
Giacco,
Oxidative stress and diabetic complications.
2010,
Pubmed
Jha,
Podocyte-specific Nox4 deletion affords renoprotection in a mouse model of diabetic nephropathy.
2016,
Pubmed
Jha,
Genetic targeting or pharmacologic inhibition of NADPH oxidase nox4 provides renoprotection in long-term diabetic nephropathy.
2014,
Pubmed
Kim,
Multifaceted Clinical Effects of Echinochrome.
2021,
Pubmed
,
Echinobase
Kim,
Echinochrome A Attenuates Cerebral Ischemic Injury through Regulation of Cell Survival after Middle Cerebral Artery Occlusion in Rat.
2019,
Pubmed
,
Echinobase
Kim,
A Novel Atypical PKC-Iota Inhibitor, Echinochrome A, Enhances Cardiomyocyte Differentiation from Mouse Embryonic Stem Cells.
2018,
Pubmed
,
Echinobase
Kurutas,
The importance of antioxidants which play the role in cellular response against oxidative/nitrosative stress: current state.
2016,
Pubmed
Lebedev,
Echinochrome, a naturally occurring iron chelator and free radical scavenger in artificial and natural membrane systems.
2005,
Pubmed
Lebed'ko,
Effect of Antioxidant Echinochrome A on Bleomycin-Induced Pulmonary Fibrosis.
2015,
Pubmed
Lee,
Function of NADPH Oxidases in Diabetic Nephropathy and Development of Nox Inhibitors.
2020,
Pubmed
Li,
Puerarin attenuates diabetic kidney injury through the suppression of NOX4 expression in podocytes.
2017,
Pubmed
Li,
Protein kinase C activation and its role in kidney disease.
2006,
Pubmed
Li,
Metabolomics reveal mitochondrial and fatty acid metabolism disorders that contribute to the development of DKD in T2DM patients.
2017,
Pubmed
Lovisa,
Partial Epithelial-to-Mesenchymal Transition and Other New Mechanisms of Kidney Fibrosis.
2016,
Pubmed
Ma,
A pathogenic role for c-Jun amino-terminal kinase signaling in renal fibrosis and tubular cell apoptosis.
2007,
Pubmed
Meier,
Deletion of protein kinase C-beta isoform in vivo reduces renal hypertrophy but not albuminuria in the streptozotocin-induced diabetic mouse model.
2007,
Pubmed
Meier,
Deletion of protein kinase C-epsilon signaling pathway induces glomerulosclerosis and tubulointerstitial fibrosis in vivo.
2007,
Pubmed
Mischenko,
Echinamines A and B, first aminated hydroxynaphthazarins from the sea urchin Scaphechinus mirabilis.
2005,
Pubmed
,
Echinobase
Mohamed,
Hepatoprotective Effect of Echinochrome Pigment in Septic Rats.
2019,
Pubmed
,
Echinobase
Overstreet,
Redox control of p53 in the transcriptional regulation of TGF-β1 target genes through SMAD cooperativity.
2014,
Pubmed
Ozbek,
Induction of oxidative stress in kidney.
2012,
Pubmed
Palicz,
Phosphatidic acid and diacylglycerol directly activate NADPH oxidase by interacting with enzyme components.
2001,
Pubmed
Pan,
The role of protein kinase C in diabetic microvascular complications.
2022,
Pubmed
Park,
Echinochrome A Treatment Alleviates Fibrosis and Inflammation in Bleomycin-Induced Scleroderma.
2021,
Pubmed
,
Echinobase
Qin,
AKF-PD alleviates diabetic nephropathy via blocking the RAGE/AGEs/NOX and PKC/NOX Pathways.
2019,
Pubmed
Rayego-Mateos,
Pathogenic Pathways and Therapeutic Approaches Targeting Inflammation in Diabetic Nephropathy.
2020,
Pubmed
Sagoo,
Diabetic nephropathy: Is there a role for oxidative stress?
2018,
Pubmed
Sawaf,
Therapeutic Advances in Diabetic Nephropathy.
2022,
Pubmed
Selby,
An updated overview of diabetic nephropathy: Diagnosis, prognosis, treatment goals and latest guidelines.
2020,
Pubmed
Singh,
Oxidative stress in early diabetic nephropathy: fueling the fire.
2011,
Pubmed
Song,
Regulation of Inflammation-Mediated Endothelial to Mesenchymal Transition with Echinochrome a for Improving Myocardial Dysfunction.
2022,
Pubmed
,
Echinobase
Sun,
IDF Diabetes Atlas: Global, regional and country-level diabetes prevalence estimates for 2021 and projections for 2045.
2022,
Pubmed
Teng,
Role of protein kinase C in podocytes and development of glomerular damage in diabetic nephropathy.
2014,
Pubmed
Thomas,
Diabetic kidney disease.
2015,
Pubmed
Tonneijck,
Glomerular Hyperfiltration in Diabetes: Mechanisms, Clinical Significance, and Treatment.
2017,
Pubmed
Tossidou,
PKC-alpha modulates TGF-beta signaling and impairs podocyte survival.
2009,
Pubmed
Umanath,
Update on Diabetic Nephropathy: Core Curriculum 2018.
2018,
Pubmed
Vasileva,
Spinochrome Identification and Quantification in Pacific Sea Urchin Shells, Coelomic Fluid and Eggs Using HPLC-DAD-MS.
2021,
Pubmed
,
Echinobase
Vinué,
Glucose and Insulin Tolerance Tests in the Mouse.
2015,
Pubmed
Wan,
Evidence for the role of AMPK in regulating PGC-1 alpha expression and mitochondrial proteins in mouse epididymal adipose tissue.
2014,
Pubmed
Xia,
Mesangial cell NADPH oxidase upregulation in high glucose is protein kinase C dependent and required for collagen IV expression.
2006,
Pubmed
Xiao,
Atorvastatin prevents glomerular extracellular matrix formation by interfering with the PKC signaling pathway.
2018,
Pubmed
Ying,
Targeted deletion of p53 in the proximal tubule prevents ischemic renal injury.
2014,
Pubmed
Younis,
Modulation of NADPH oxidase and Nrf2/HO-1 pathway by vanillin in cisplatin-induced nephrotoxicity in rats.
2020,
Pubmed
Yun,
Echinochrome A Treatment Alleviates Atopic Dermatitis-like Skin Lesions in NC/Nga Mice via IL-4 and IL-13 Suppression.
2021,
Pubmed
,
Echinobase
Zhang,
Signaling Pathways Involved in Diabetic Renal Fibrosis.
2021,
Pubmed
Zhao,
Transforming Growth Factor-Beta1 in Diabetic Kidney Disease.
2020,
Pubmed
