Mar Drugs
2023 Jan 12;211:. doi: 10.3390/md21010052.
Show Gene links
Show Anatomy links
Echinochrome Prevents Sulfide Catabolism-Associated Chronic Heart Failure after Myocardial Infarction in Mice.
Tang X
,
Nishimura A
,
Ariyoshi K
,
Nishiyama K
,
Kato Y
,
Vasileva EA
,
Mishchenko NP
,
Fedoreyev SA
,
Stonik VA
,
Kim HK
,
Han J
,
Kanda Y
,
Umezawa K
,
Urano Y
,
Akaike T
,
Nishida M
.
???displayArticle.abstract???
Abnormal sulfide catabolism, especially the accumulation of hydrogen sulfide (H2S) during hypoxic or inflammatory stresses, is a major cause of redox imbalance-associated cardiac dysfunction. Polyhydroxynaphtoquinone echinochrome A (Ech-A), a natural pigment of marine origin found in the shells and needles of many species of sea urchins, is a potent antioxidant and inhibits acute myocardial ferroptosis after ischemia/reperfusion, but the chronic effect of Ech-A on heart failure is unknown. Reactive sulfur species (RSS), which include catenated sulfur atoms, have been revealed as true biomolecules with high redox reactivity required for intracellular energy metabolism and signal transduction. Here, we report that continuous intraperitoneal administration of Ech-A (2.0 mg/kg/day) prevents RSS catabolism-associated chronic heart failure after myocardial infarction (MI) in mice. Ech-A prevented left ventricular (LV) systolic dysfunction and structural remodeling after MI. Fluorescence imaging revealed that intracellular RSS level was reduced after MI, while H2S/HS- level was increased in LV myocardium, which was attenuated by Ech-A. This result indicates that Ech-A suppresses RSS catabolism to H2S/HS- in LV myocardium after MI. In addition, Ech-A reduced oxidative stress formation by MI. Ech-A suppressed RSS catabolism caused by hypoxia in neonatal rat cardiomyocytes and human iPS cell-derived cardiomyocytes. Ech-A also suppressed RSS catabolism caused by lipopolysaccharide stimulation in macrophages. Thus, Ech-A has the potential to improve chronic heart failure after MI, in part by preventing sulfide catabolism.

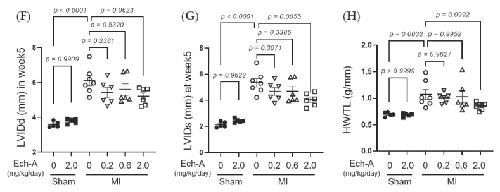

Figure 1. Effects of Ech-A after treatment on MI-induced chronic heart failure in C57BL/6J mice. (A) The chemical structure of Echinochrome A, numbering of carbon atoms is represented. (B) The representative M-mode echocardiography images of LV 5 weeks in all groups. Scale bar, 0.1 s. (C–G) Quantification of 4D-mode LV ejection fraction (LVEF) (C), LV fractional shortening (LVFS) (D), LV anterior wall thickness at end diastole (LVAWd) (E), LV internal diameter at end diastole (LVIDd) (F) and end systole (LVIDs) (G) at end point (5 weeks after MI). Osmotic pump filled with Ech-A or vehicle was implanted intraperitoneally 7 days after MI. (H) The heart weight (HW)/tibia length (TL) ratio in mice at 5 weeks after MI (Sham + vehicle (●): n = 5, Sham + Ech-A 2.0 mg/kg/day (■): n = 5, MI + vehicle (○): n = 7, MI + Ech-A 0.2 mg/kg/day (▽): n = 6, MI + Ech-A 0.6 mg/kg/day (△): n = 6, MI + Ech-A 2.0 mg/kg/day (□): n = 6). p-values were calculated using one-way ANOVA followed by Šídák’s multiple comparisons test (C–H).

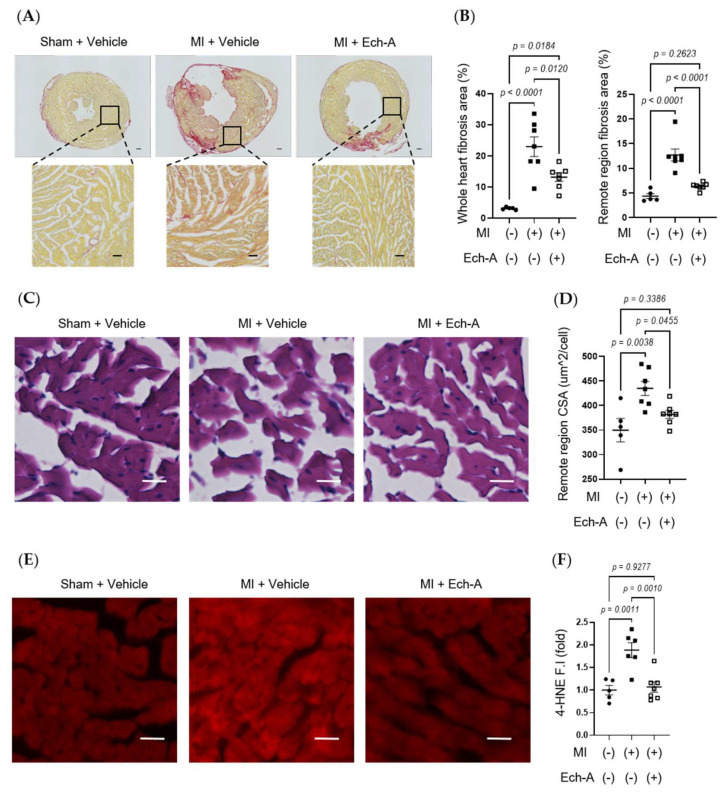

Figure 2. Ech-A treatment suppresses interstitial fibrosis, myocardial hypertrophy, and lipid peroxidation of LV after MI. (A) Representative whole heart section and higher magnification images stained with picrosirius red at 5 weeks after MI. Scale bar, 300 μm (upper), 100 μm (lower). (B) Quantitative result of collagen volume fractions in whole hearts and magnified remote areas. (C) Representative images of remote regions of LV tissue stained with hematoxylin and eosin at 5 weeks after MI. Scale bar, 30 μm. (D) Quantitative result of the cross-sectional area (CSA) of myocardium. (E) Representative immunofluorescence images of remote region of LV myocardium at 5 weeks after MI using anti-4-HNE antibody. Scale bar, 30 μm. (F) Semi-quantitative result of 4-HNE fluorescence intensity (F.I.). (Sham + vehicle (●): n = 5, MI + vehicle (■): n = 7, MI + Ech-A (□): n = 6). Data were presented as mean ± s.e.m. p-values were calculated using one-way ANOVA followed by Turkey’s multiple comparison test.

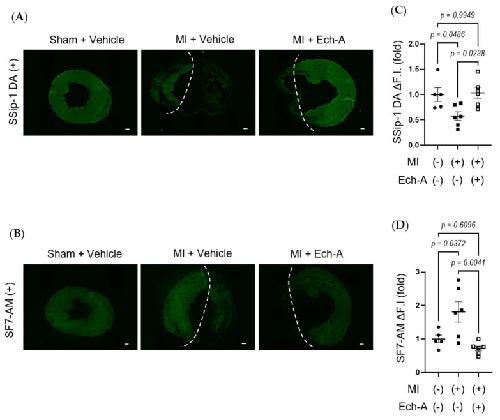

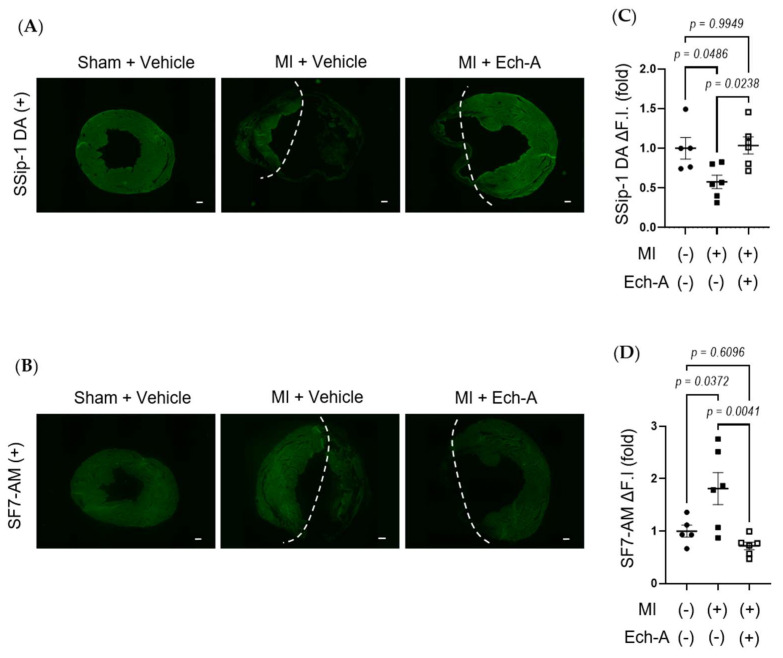

Figure 3. Ech-A treatment prevents RSS catabolism of LV after MI. (A,B) The representative LV section images of RSS (A) and H2S/HS−; (B) levels at 5 weeks after MI. The white dash line separates the infarct area from the non-infarct area of MI hearts. Scale bar, 300 μm. (C,D) Semi-quantitative results of fluorescent intensities in non-infarct regions of LV (A,B). (Sham + vehicle (●): n = 5, MI + vehicle (■): n = 7, MI + Ech-A (□): n = 6). Data were presented as mean ± s.e.m. p-values were calculated using one-way ANOVA followed by Turkey’s multiple comparison test.

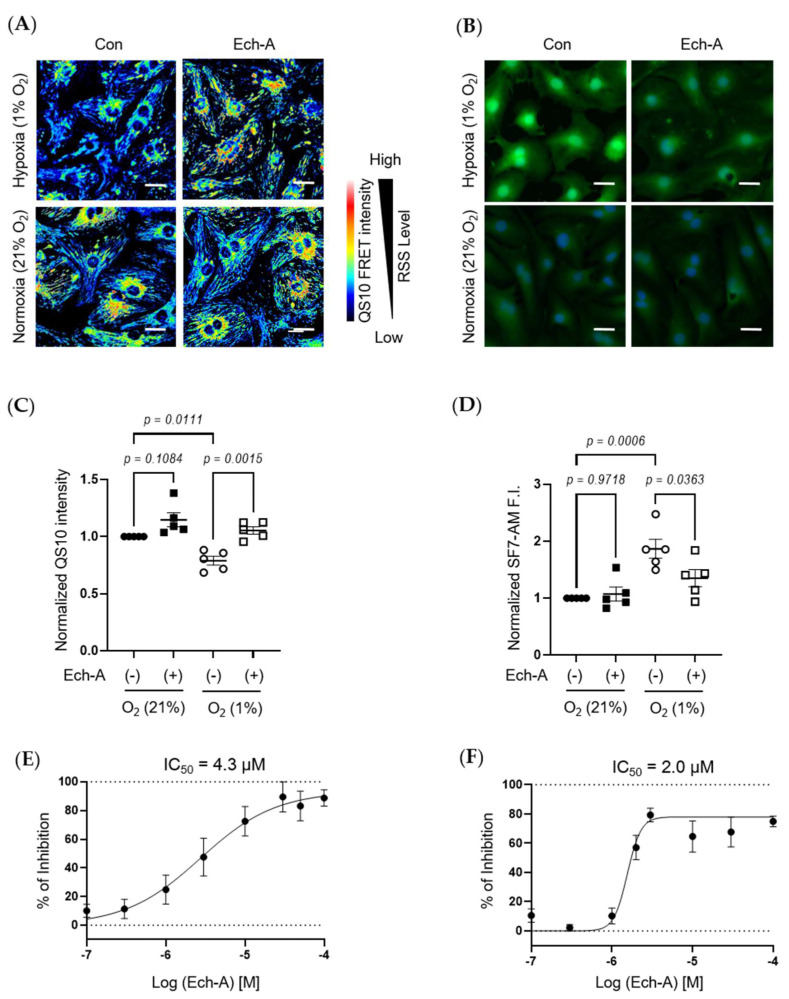

Figure 4. Ech-A treatment concentration-dependently prevents hypoxia-induced RSS catabolism in NRCMs. (A,B) The representative NRCMs images of RSS (A) and H2S/HS− (B) levels 24 h after normoxia (21% O2) or hypoxia (1% O2) incubation with or without Ech-A (10 μM). Intracellular RSS or H2S/HS− were visualized using QS10 or SF7-AM probe, respectively. Scale bar, 30 μm. (C,D) Semi-quantitative results of QS10 FRET or SF7-AM fluorescent intensities of (A,B) (Normoxia + vehicle (●), Normoxia + Ech-A (■), Hypoxia + vehicle (○), Hypoxia + Ech-A (□), n = 5 independent experiments). (E,F) Half-maximal inhibitory concentration (IC50) of Ech-A determined by percentage of QS-10 intensity decrease (E) and SF7-AM intensity increase (F). Average probe intensity at normoxia or hypoxia condition was defined as 100% or 0% grid line, respectively. Data were presented as mean ± s.e.m. p-values were calculated using one-way ANOVA followed by Šídák’s multiple comparisons test.

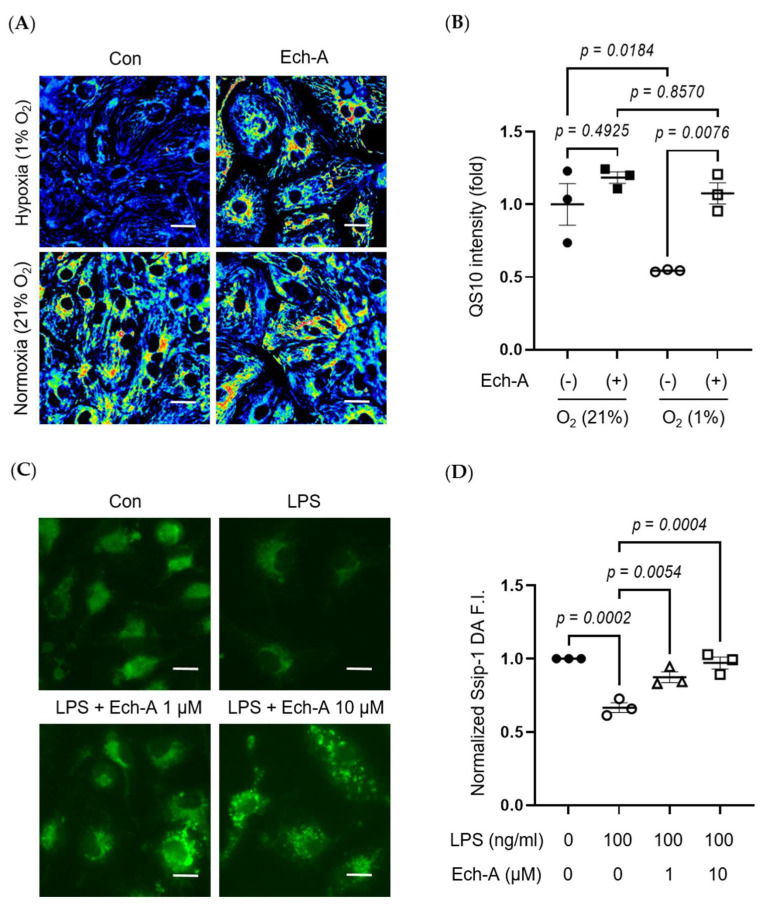

Figure 5. Ech-A suppresses various stress-induced RSS catabolism in vitro. (A) Representative hiPSC-CMs images of RSS level after 24 h normoxia (21% O2) or hypoxia (1% O2) incubation with or without Ech-A concentrations (10 μM). Intracellular RSS were visualized using QS10 probe. Scale bar, 30 μm. (B) Quantitative result of QS10 FRET intensities in (A) (Normoxia + vehicle (●), Normoxia + Ech-A (■), Hypoxia + vehicle (○), Hypoxia + Ech-A (□), n = 3). (C) Representative BMDMs images of RSS level 7 h after LPS stimulation with or without different Ech-A concentrations (1 or 10 μM). Intracellular RSS were detected by SSip-1 DA probe. Scale bar, 60 μm. (D) Quantitative result of the SSip-1 DA fluorescent intensity in (C) (Control + vehicle (●), LPS + vehicle (○), LPS + 1 μM Ech-A (△), LPS + 10 μM Ech-A (□), n = 3 independent experiments). Data were presented as mean ± s.e.m. p-values were calculated using one-way ANOVA followed by Šídák’s multiple comparisons test.
Abe,
The possible role of hydrogen sulfide as an endogenous neuromodulator.
1996, Pubmed
Abe,
The possible role of hydrogen sulfide as an endogenous neuromodulator.
1996,
Pubmed
Afanasiev,
[ATP-preserving effect of histochrome during acute myocardial ischemia in patients with ischemic heart disease].
1997,
Pubmed
Akaike,
Cysteinyl-tRNA synthetase governs cysteine polysulfidation and mitochondrial bioenergetics.
2017,
Pubmed
Artyukov,
Marine Polyhydroxynaphthoquinone, Echinochrome A: Prevention of Atherosclerotic Inflammation and Probable Molecular Targets.
2020,
Pubmed
,
Echinobase
Buĭmov,
[Effect of the bioantioxidant histochrome on myocardial injury in reperfusion therapy on patients with myocardial infarction].
2002,
Pubmed
Chen,
Production of the neuromodulator H2S by cystathionine beta-synthase via the condensation of cysteine and homocysteine.
2004,
Pubmed
Chouchani,
Ischaemic accumulation of succinate controls reperfusion injury through mitochondrial ROS.
2014,
Pubmed
Cooper,
The inhibition of mitochondrial cytochrome oxidase by the gases carbon monoxide, nitric oxide, hydrogen cyanide and hydrogen sulfide: chemical mechanism and physiological significance.
2008,
Pubmed
Dillon,
Polymeric persulfide prodrugs: Mitigating oxidative stress through controlled delivery of reactive sulfur species.
2020,
Pubmed
Eghbal,
H2S cytotoxicity mechanism involves reactive oxygen species formation and mitochondrial depolarisation.
2004,
Pubmed
Fahmy,
Protective effect of Echinochrome against intrahepatic cholestasis induced by alpha-naphthylisothiocyanate in rats.
2020,
Pubmed
Gakhramanov,
Effect of natural antioxidants on antioxidant activity and lipid peroxidation in eye tissue of rabbits with chemical burns.
2005,
Pubmed
Hwang,
Histochrome Attenuates Myocardial Ischemia-Reperfusion Injury by Inhibiting Ferroptosis-Induced Cardiomyocyte Death.
2021,
Pubmed
Ida,
Reactive cysteine persulfides and S-polythiolation regulate oxidative stress and redox signaling.
2014,
Pubmed
Ide,
Mitochondrial DNA damage and dysfunction associated with oxidative stress in failing hearts after myocardial infarction.
2001,
Pubmed
Jennings,
Historical perspective on the pathology of myocardial ischemia/reperfusion injury.
2013,
Pubmed
Jeong,
Echinochrome A protects mitochondrial function in cardiomyocytes against cardiotoxic drugs.
2014,
Pubmed
,
Echinobase
Kim,
Echinochrome A Attenuates Cerebral Ischemic Injury through Regulation of Cell Survival after Middle Cerebral Artery Occlusion in Rat.
2019,
Pubmed
,
Echinobase
Kim,
Multifaceted Clinical Effects of Echinochrome.
2021,
Pubmed
,
Echinobase
Kleikers,
NADPH oxidases as a source of oxidative stress and molecular target in ischemia/reperfusion injury.
2012,
Pubmed
Kunikata,
Metabolomic profiling of reactive persulfides and polysulfides in the aqueous and vitreous humors.
2017,
Pubmed
Lennikov,
Amelioration of endotoxin-induced uveitis treated with the sea urchin pigment echinochrome in rats.
2014,
Pubmed
,
Echinobase
Lin,
Cell-trappable fluorescent probes for endogenous hydrogen sulfide signaling and imaging H2O2-dependent H2S production.
2013,
Pubmed
Linden,
Sulphide quinone reductase contributes to hydrogen sulphide metabolism in murine peripheral tissues but not in the CNS.
2012,
Pubmed
Ma,
Impaired autophagosome clearance contributes to cardiomyocyte death in ischemia/reperfusion injury.
2012,
Pubmed
Marutani,
Sulfide catabolism ameliorates hypoxic brain injury.
2021,
Pubmed
Mohamed,
Hepatoprotective Effect of Echinochrome Pigment in Septic Rats.
2019,
Pubmed
,
Echinobase
Mouton,
Obesity, Hypertension, and Cardiac Dysfunction: Novel Roles of Immunometabolism in Macrophage Activation and Inflammation.
2020,
Pubmed
Murray,
The primary mechanism of the IL-10-regulated antiinflammatory response is to selectively inhibit transcription.
2005,
Pubmed
Nishi,
LPS induces hypoxia-inducible factor 1 activation in macrophage-differentiated cells in a reactive oxygen species-dependent manner.
2008,
Pubmed
Nishida,
Hydrogen sulfide anion regulates redox signaling via electrophile sulfhydration.
2012,
Pubmed
Nishimura,
Depolysulfidation of Drp1 induced by low-dose methylmercury exposure increases cardiac vulnerability to hemodynamic overload.
2019,
Pubmed
Nishimura,
Hypoxia-induced interaction of filamin with Drp1 causes mitochondrial hyperfission-associated myocardial senescence.
2018,
Pubmed
Nishimura,
Cardiac robustness regulated by reactive sulfur species.
2022,
Pubmed
Nishiyama,
Fatty acid transport protein 1 enhances the macrophage inflammatory response by coupling with ceramide and c-Jun N-terminal kinase signaling.
2018,
Pubmed
Nishiyama,
Redox-dependent internalization of the purinergic P2Y6 receptor limits colitis progression.
2022,
Pubmed
Nowbar,
Mortality From Ischemic Heart Disease.
2019,
Pubmed
Oh,
Echinochrome A Reduces Colitis in Mice and Induces In Vitro Generation of Regulatory Immune Cells.
2019,
Pubmed
,
Echinobase
Omatsu-Kanbe,
A simple antegrade perfusion method for isolating viable single cardiomyocytes from neonatal to aged mice.
2018,
Pubmed
Park,
Echinochrome A Treatment Alleviates Fibrosis and Inflammation in Bleomycin-Induced Scleroderma.
2021,
Pubmed
,
Echinobase
Paul,
H₂S signalling through protein sulfhydration and beyond.
2012,
Pubmed
Prokopov,
Animal-derived medicinal products in Russia: Current nomenclature and specific aspects of quality control.
2019,
Pubmed
Quinones,
Influence of acute changes in preload, afterload, contractile state and heart rate on ejection and isovolumic indices of myocardial contractility in man.
1976,
Pubmed
Quinzii,
The Role of Sulfide Oxidation Impairment in the Pathogenesis of Primary CoQ Deficiency.
2017,
Pubmed
Rosen,
Longitudinal associations between 4-hydroxynonenal and depression in coronary artery disease patients.
2018,
Pubmed
Sayed,
Echinochrome pigment as novel therapeutic agent against experimentally - induced gastric ulcer in rats.
2018,
Pubmed
,
Echinobase
St John Sutton,
Left ventricular remodeling and ventricular arrhythmias after myocardial infarction.
2003,
Pubmed
Sutton,
Left ventricular remodeling after myocardial infarction: pathophysiology and therapy.
2000,
Pubmed
Takano,
Development of a reversible fluorescent probe for reactive sulfur species, sulfane sulfur, and its biological application.
2017,
Pubmed
Thygesen,
Fourth universal definition of myocardial infarction (2018).
2019,
Pubmed
Uba,
Polysulfide inhibits hypoxia-elicited hypoxia-inducible factor activation in a mitochondria-dependent manner.
2021,
Pubmed
Umezawa,
A Reversible Fluorescent Probe for Real-Time Live-Cell Imaging and Quantification of Endogenous Hydropolysulfides.
2018,
Pubmed
Yun,
Echinochrome A Treatment Alleviates Atopic Dermatitis-like Skin Lesions in NC/Nga Mice via IL-4 and IL-13 Suppression.
2021,
Pubmed
,
Echinobase
Zakirova,
[Pharmacokinetics and clinical efficacy of histochrome in patients with acute myocardial infarction].
1997,
Pubmed
Zhang,
Enhanced Cellular Polysulfides Negatively Regulate TLR4 Signaling and Mitigate Lethal Endotoxin Shock.
2019,
Pubmed
Zhang,
New Insights and Novel Therapeutic Potentials for Macrophages in Myocardial Infarction.
2021,
Pubmed
Zhang,
Allopurinol attenuates oxidative injury in rat hearts suffered ischemia/reperfusion via suppressing the xanthine oxidase/vascular peroxidase 1 pathway.
2021,
Pubmed
Zhang,
Antioxidative and anti-inflammatory actions of reactive cysteine persulfides.
2021,
Pubmed
