Guatelli S , Ferrario C , Bonasoro F , Anjo SI , Manadas B , Candia Carnevali MD , Varela Coelho A , Sugni M .

POCI-01-0145-FEDER-029311 Fundação para a Ciência e a Tecnologia, POCI-01-0145-FEDER-402-022125 National Mass Spectrometry Network

	Fig. 1. a–e CE of non-regenerating arm. a Semithin longitudinal section of M. glacialis non-regenerating arm tip showing coelomic compartments lined by CE (arrows): perivisceral coelomic cavity (cc), radial water canal (rwc), ampullae (a), tube feet (tf), hyponeural sinus (hs), terminal tube foot (ttf). Scale bar = 400 µm. b Diagrammatic representation of perivisceral CE structure consisting of apical peritoneocytes (p); longitudinally oriented subapical myocytes (lm); common basal lamina (bl); basiepithelial nerve processes (np); and neurosecretory cells (nc). Circular muscle layer (cm) is housed within the dermis (d) and is surrounded by a proper basal lamina (bl). Unusual vesicular cells (vc) are detected close to circular myocytes: they project their flagella into intercellular niches. Note the apocrine secretion(s) of peritoneocyte apical portions. c Semithin longitudinal section of proximal CE showing peritoneocyte layer (p); longitudinal (lm); and circular (cm) muscle layers separated by connective tissue (ct); dermis (d) infiltrated by muscle bundles (asterisk). Scale bar = 10 µm. d TEM micrograph of the distal CE showing peritoneocytes (green); longitudinal muscle layer (blue); vesicular cell layer (red). Note the absence of the circular muscle layer. Scale bar = 2 µm. e Semithin longitudinal section of the distal CE showing peritoneocyte layer releasing blebs (arrow); longitudinal muscle layer; vesicular cell layer (arrowheads). Scale bar = 10 µm. Abbreviations: CE, coelomic epithelium; ct, connective tissue; o, ossicles; rnc, radial nerve cord; TEM, transmission electron microscopy
	Fig. 2. a–k CE of non-regenerating arm. a TEM micrograph of peritoneocytes. Apical junctions among adjacent cells are visible (black arrows) as well as typical flagella (white arrow). Intense apocrine secretion (asterisk) can be observed. Inset: detail of flagellum surrounded by a crown of microvilli. Scale bar A = 2 µm, scale bar inset = 500 nm. b TEM micrograph of peritoneocytes. Secreted cytoplasmic portion of different shapes and sizes (asterisks) are visible in the perivisceral coelomic lumen. Scale bar = 2 µm. c TEM micrograph of peritoneocytes. Phagosomes are visible at the cell base (arrows). Scale bar = 1 µm. d TEM micrograph of secreted peritoneocyte products filled with granular electron-dense material and other small vesicles (arrow). Scale bar = 2 µm. e Semithin longitudinal section of perivisceral CE showing an evident apocrine secretion. Scale bar = 5 µm. f Semithin longitudinal section of radial water canal CE: a massive apical secretion is shown. Scale bar = 10 µm. g TEM micrograph of CE vesicular cell layer. Vesicular cells are characterized by electron-lucent vesicles and flagella (arrow), and are in direct contact with the longitudinal muscle layer (lm). Scale bar = 2 µm. h TEM micrograph of vesicular cell containing small RER cisternae (black asterisks) and a presumptive phagosome (arrow). Note the presence of flagellum (red asterisk). Scale bar = 1 µm. i TEM detail of flagella of vesicular cells (arrowheads) projecting in an intercellular niche. Scale bar = 1 µm. j TEM detail of vesicular cell showing RER cisternae (arrows). Scale bar = 1 µm. k TEM micrograph of vesicular cells containing phagosomes (arrows) and presumptive lipid droplets (asterisks). Scale bar = 2 µm. Abbreviations: cc, coelomic cavity; CE, coelomic epithelium; RER, rough endoplasmic reticulum; rwc, radial water canal; TEM, transmission electron microscopy; vc, “vesicular” cells
	Fig. 3. a–h CE of stump in a regenerating sample: 24–48 h p.a. a Semithin longitudinal section of M. glacialis arm tip at 24 h p.a. Note the presence of coelomocyte clots at the level of the wound (asterisk), the thickening of the perivisceral CE immediately close to the amputation site, and the new thin epithelium covering the wound edges (arrow). Scale bar = 400 µm. b Semithin longitudinal section of the regenerating CE at 24 h p.a. showing peritoneocyte layer with massive apical secretion; longitudinal muscle layer (lml); thickening of vesicular cell layer (asterisk) associated to circular muscle layer (cml); connective tissue layer (ct). Scale bar = 10 µm. c TEM micrograph of regenerating CE at 24 h p.a. showing peritoneocytes (arrow); longitudinal muscle layer (lml); circular muscle layer (cml) with first signs of rearrangement; vesicular cells (asterisks). Scale bar = 2 µm. d TEM micrograph showing details of vesicular cell layer. A degenerating nucleus (an) is visible among cell debris (cd); a vesicular cell contains a phagosome (arrow). Scale bar = 2 µm. e Semithin longitudinal section of the regenerating CE at the level of the wound closure. The yellow line indicates the beginning of the looser CE structure with the progressive disappearing of both longitudinal (lml) and circular (cml) muscle layers. Scale bar = 50 µm. f TEM micrograph of circular muscle layer (cml). Fibers undergo rearrangement phenomena indicated by evident modifications of their contractile apparatus (arrows). Flagellated vesicular cells are apparently involved. Yellow line marks the rearrangement beginning in both longitudinal and circular muscle fibers. Scale bar = 5 µm. g TEM micrograph of vesicular cells showing flagella (arrow) projecting into intercellular niches. Big phagosomes are visible (asterisks). Scale bar = 2 µm. (h) TEM detail of a large phagosome in vesicular cell. Scale bar = 1 µm. Abbreviations: a, ampulla; cc, coelomic cavity; CE, coelomic epithelium; o, ossicle; p.a., post amputation; TEM, transmission electron microscopy; vc, “vesicular” cell
	Fig. 4. a–j CE of 1 week p.a. regenerating sample. a Semithin longitudinal section of M. glacialis regenerating arm tip. Re-growing perivisceral coelomic cavity (cc) and radial water canal (rwc) appear to penetrate an area of loose coelomocytes clot (asterisk) at the level of the wound site. Scale bar = 400 µm. b Semithin longitudinal section of the regenerating perivisceral coelomic cavity (arrows). A rearranging ampulla (a) is recognizable. Scale bar = 50 µm. c Semithin longitudinal section of the regenerating radial water canal (rwc) lined by the CE. Note the peritoneocyte apocrine secretion at the very tip of the new regenerating structure. Scale bar = 20 µm. d Semithin longitudinal section of CE at the level of the closure of the wound. Both longitudinal and circular muscle layers are not detectable. Scale bar = 50 µm. e TEM micrograph of vesicular cell layer showing several big phagosomes (asterisks). Scale bar = 2 µm. f TEM micrograph of the new coelomic cavity tip, showing details of peritoneocytes. Apical secretion phenomena are evident (asterisks). Adjacent cells are apically joined by cell junctions (double arrows); numerous myelin figures (arrow) and phagosomes (arrowhead) are present in their cytoplasm. Scale bar = 2 µm. g TEM micrograph of regenerating perivisceral CE (p). A faint basal lamina (arrows) is present under coelothelial cells (p) and separates them from the underlying mesenchymal tissue. Scale bar = 2 µm. h TEM micrograph of regenerating perivisceral CE (p) showing evident cell migration toward the mesenchymal tissue (mt). Triple white arrowheads indicate the site of EMT. Cells have high nucleus/cytoplasm ratio (asterisks). Scale bar = 2 µm. i TEM micrograph of new radial water canal (rwc) CE. Peritoneocytes are releasing apical cytoplasmic portions (asterisks). Scale bar = 5 µm. j TEM micrograph of radial water canal (rwc) CE showing the presence of SLSs (asterisks) in peritoneocytes (p). Scale bar = 2 µm. Abbreviations: CE, coelomic epithelium; cf, collagen fibrils; ct, connective tissue; ml, mesenchymal layer; n, nucleus; o, ossicle; p.a., post amputation; rnc, radial nerve cord; SLS, spindle-like structures; TEM transmission electron microscopy

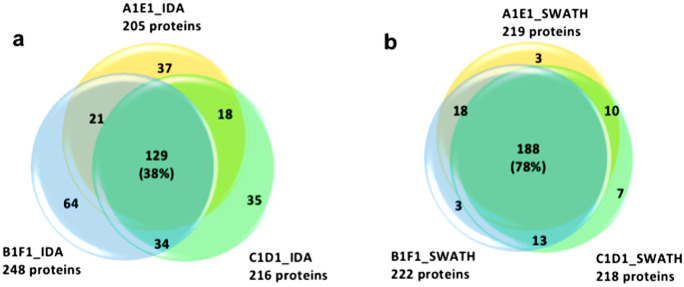

	Fig. 5. Proteins identified in the M. glacialis CE by LC–MS/MS (a, b). a IDA analysis results; b SWATH analysis results. Each colored circle corresponds to one of the three biological replicates analyzed by LC–MS/MS: in pink, number of proteins identified from A1E1 replicate; in green, number of proteins identified from B1F1 replicate; in blue, number of proteins identified from C1D1 replicate. The total number of proteins identified for each biological replicate is shown between parentheses

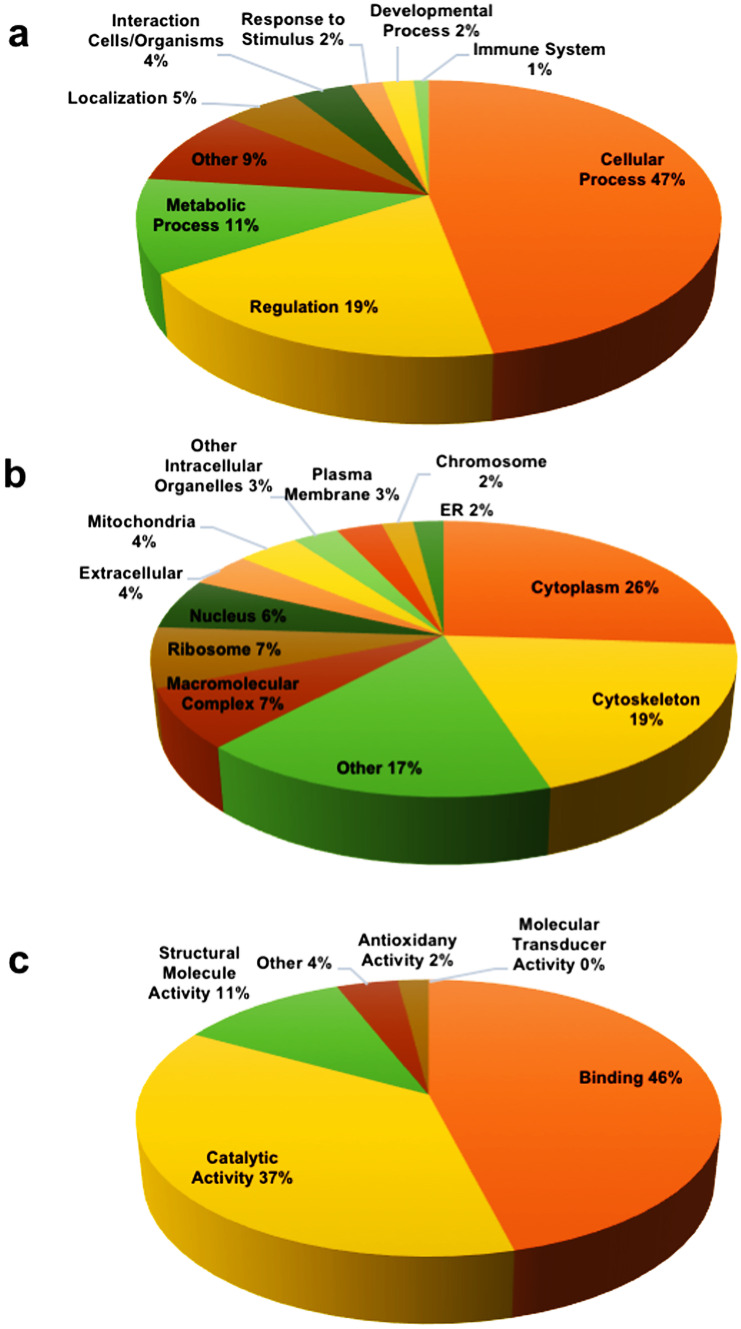

	Fig. 6. Gene ontology results from STRAP analysis (a–c). a Biological process; b cellular components; c molecular function

Andrade, Characterization of Coelomic Fluid Cell Types in the Starfish Marthasterias glacialis Using a Flow Cytometry/Imaging Combined Approach. 2021, Pubmed, Echinobase

Andrade, Characterization of Coelomic Fluid Cell Types in the Starfish Marthasterias glacialis Using a Flow Cytometry/Imaging Combined Approach. 2021, Pubmed , Echinobase
Anjo, Short GeLC-SWATH: a fast and reliable quantitative approach for proteomic screenings. 2015, Pubmed
Ariza, Coelomic epithelium-derived cells in visceral morphogenesis. 2016, Pubmed
Auguste, Conservation of Cell Communication Systems in Invertebrate Host-Defence Mechanisms: Possible Role in Immunity and Disease. 2020, Pubmed
Beck, Isolation and characterization of a primitive interleukin-1-like protein from an invertebrate, Asterias forbesi. 1986, Pubmed , Echinobase
Ben Khadra, An integrated view of asteroid regeneration: tissues, cells and molecules. 2017, Pubmed , Echinobase
Ben Khadra, Wound repair during arm regeneration in the red starfish Echinaster sepositus. 2015, Pubmed , Echinobase
Ben Khadra, Regeneration in Stellate Echinoderms: Crinoidea, Asteroidea and Ophiuroidea. 2018, Pubmed
Bhatia, Software tool for researching annotations of proteins: open-source protein annotation software with data visualization. 2009, Pubmed
Bossche, Epithelial origin of starfish coelomocytes. 1976, Pubmed , Echinobase
Bradley, TNF-mediated inflammatory disease. 2008, Pubmed
Butt, Pre-extraction sample handling by automated frozen disruption significantly improves subsequent proteomic analyses. 2006, Pubmed
Cameron, SpBase: the sea urchin genome database and web site. 2009, Pubmed , Echinobase
Candia Carnevali, Pattern of bromodeoxyuridine incorporation in the advanced stages of arm regeneration in the feather star Antedon mediterranea. 1997, Pubmed , Echinobase
Candia Carnevali, Microscopic overview of crinoid regeneration. 2001, Pubmed , Echinobase
Chan, Integration of luminal pressure and signalling in tissue self-organization. 2020, Pubmed
Dheilly, Shotgun proteomics of coelomic fluid from the purple sea urchin, Strongylocentrotus purpuratus. 2013, Pubmed , Echinobase
Dolmatov, Derivation of muscles of the Aristotle's lantern from coelomic epithelia. 2007, Pubmed , Echinobase
Dolmatov, Muscle regeneration in holothurians. 2001, Pubmed , Echinobase
Dylus, Developmental transcriptomics of the brittle star Amphiura filiformis reveals gene regulatory network rewiring in echinoderm larval skeleton evolution. 2018, Pubmed , Echinobase
Fabriek, The macrophage scavenger receptor CD163. 2005, Pubmed
Fasoli, Popeye strikes again: The deep proteome of spinach leaves. 2011, Pubmed
Ferrario, Fundamental aspects of arm repair phase in two echinoderm models. 2018, Pubmed , Echinobase
Franco, Proteome characterization of sea star coelomocytes--the innate immune effector cells of echinoderms. 2011, Pubmed , Echinobase
Gabre, The coelomic epithelium transcriptome from a clonal sea star, Coscinasterias muricata. 2015, Pubmed , Echinobase
García-Arrarás, Cell dedifferentiation and epithelial to mesenchymal transitions during intestinal regeneration in H. glaberrima. 2011, Pubmed , Echinobase
García-Arrarás, Echinoderms: potential model systems for studies on muscle regeneration. 2010, Pubmed , Echinobase
Gillet, Targeted data extraction of the MS/MS spectra generated by data-independent acquisition: a new concept for consistent and accurate proteome analysis. 2012, Pubmed
Goitre, The Ras superfamily of small GTPases: the unlocked secrets. 2014, Pubmed
Golconda, The Axial Organ and the Pharynx Are Sites of Hematopoiesis in the Sea Urchin. 2019, Pubmed , Echinobase
Gomes, Proteomic Analyses Reveal New Insights on the Antimicrobial Mechanisms of Chitosan Biopolymers and Their Nanosized Particles against Escherichia coli. 2019, Pubmed
Gorshkov, [Ultrastructure of coelomic epithelium and coelomocytes of intact and wounded starfish Asterias rubens L]. 2009, Pubmed , Echinobase
Gros, Vertebrate limb bud formation is initiated by localized epithelial-to-mesenchymal transition. 2014, Pubmed
Han, A MAP kinase targeted by endotoxin and hyperosmolarity in mammalian cells. 1994, Pubmed
Hernroth, Possibility of mixed progenitor cells in sea star arm regeneration. 2010, Pubmed , Echinobase
Holm, Induced cell proliferation in putative haematopoietic tissues of the sea star, Asterias rubens (L.). 2008, Pubmed , Echinobase
Khong, Inorganic polyphosphate controls cyclophilin B-mediated collagen folding in osteoblast-like cells. 2020, Pubmed
Kiang, A Review on Adducin from Functional to Pathological Mechanisms: Future Direction in Cancer. 2018, Pubmed
Kim, Transcriptomics reveals tissue/organ-specific differences in gene expression in the starfish Patiria pectinifera. 2018, Pubmed , Echinobase
Kleiger, Perilous journey: a tour of the ubiquitin-proteasome system. 2014, Pubmed
Kozlova, [The analysis of cellular elements in coelomic fluid during early regeneration of of the starfish Asterias rubens L]. 2006, Pubmed , Echinobase
Liang, Exocytosis, Endocytosis, and Their Coupling in Excitable Cells. 2017, Pubmed
Matranga, Monitoring chemical and physical stress using sea urchin immune cells. 2005, Pubmed , Echinobase
May, Involvement of the Arp2/3 complex in phagocytosis mediated by FcgammaR or CR3. 2000, Pubmed
Miller, Analysis of a vinculin homolog in a sponge (phylum Porifera) reveals that vertebrate-like cell adhesions emerged early in animal evolution. 2018, Pubmed
Muñoz-Chápuli, The origin of the endothelial cells: an evo-devo approach for the invertebrate/vertebrate transition of the circulatory system. 2005, Pubmed
Mutsaers, Structure and function of mesothelial cells. 2007, Pubmed
Naslavsky, The enigmatic endosome - sorting the ins and outs of endocytic trafficking. 2018, Pubmed
Navis, Developing pressures: fluid forces driving morphogenesis. 2015, Pubmed
Olazabal, Rho-kinase and myosin-II control phagocytic cup formation during CR, but not FcgammaR, phagocytosis. 2002, Pubmed
Olver, Developmental regulation of lung liquid transport. 2004, Pubmed
O'Neil, The Chaperonin GroEL: A Versatile Tool for Applied Biotechnology Platforms. 2018, Pubmed
Pastar, Epithelialization in Wound Healing: A Comprehensive Review. 2014, Pubmed
Pinsino, Coelomocytes and post-traumatic response in the common sea star Asterias rubens. 2007, Pubmed , Echinobase
Piovani, Ultrastructural and molecular analysis of the origin and differentiation of cells mediating brittle star skeletal regeneration. 2021, Pubmed , Echinobase
Pobre, The endoplasmic reticulum (ER) chaperone BiP is a master regulator of ER functions: Getting by with a little help from ERdj friends. 2019, Pubmed
Sennels, Improved results in proteomics by use of local and peptide-class specific false discovery rates. 2009, Pubmed
Sharlaimova, Coelomocyte replenishment in adult Asterias rubens: the possible ways. 2021, Pubmed , Echinobase
Sharlaimova, Small coelomic epithelial cells of the starfish Asterias rubens L. that are able to proliferate in vivo and in vitro. 2014, Pubmed , Echinobase
Sharlaimova, [The characteristic of the coelomic fluid and coelomic epithelium cell populations of starfish Asterias rubens L., capable to attach and spread on various substrates]. 2011, Pubmed , Echinobase
Smith, Echinoderm immunity. 2010, Pubmed , Echinobase
Szklarczyk, STRING v10: protein-protein interaction networks, integrated over the tree of life. 2015, Pubmed
Teixeira, Impact of the Secretome of Human Mesenchymal Stem Cells on Brain Structure and Animal Behavior in a Rat Model of Parkinson's Disease. 2017, Pubmed
Tong, FK506-Binding Proteins and Their Diverse Functions. 2015, Pubmed
Tsarouhas, Sequential pulses of apical epithelial secretion and endocytosis drive airway maturation in Drosophila. 2007, Pubmed
Wood, Ultrastructure of the coelomic lining in the podium of the starfish Stylasterias forreri. 1981, Pubmed , Echinobase
Wyles, Vesicle-associated membrane protein-associated protein-A (VAP-A) interacts with the oxysterol-binding protein to modify export from the endoplasmic reticulum. 2002, Pubmed
Yamada, Deconstructing the cadherin-catenin-actin complex. 2005, Pubmed
Yang, Heat shock protein gp96 is a master chaperone for toll-like receptors and is important in the innate function of macrophages. 2007, Pubmed
Yeo, Sequential recruitment of Rab GTPases during early stages of phagocytosis. 2016, Pubmed
Zhang, Proteomic identification of differentially expressed proteins in sea cucumber Apostichopus japonicus coelomocytes after Vibrio splendidus infection. 2014, Pubmed , Echinobase
