Liu J et al. (2021), CircRNA75 and CircRNA72 Function as the Sponge ...

ECB-ART-50645

Front Immunol 2021 Jan 01;12:770055. doi: 10.3389/fimmu.2021.770055.

Show Gene links Show Anatomy links

CircRNA75 and CircRNA72 Function as the Sponge of MicroRNA-200 to Suppress Coelomocyte Apoptosis Via Targeting Tollip in Apostichopus japonicus.

Liu J , Zhao X , Duan X , Zhang W , Li C .

???displayArticle.abstract???
Circular RNAs (circRNAs) act as essential regulators in many biological processes, especially in mammalian immune response. Nonetheless, the functions and mechanisms of circRNAs in the invertebrate immune system are largely unclarified. In our previous work, 261 differentially expressed circRNAs potentially related to the development of Apostichopus japonicus skin ulceration syndrome (SUS), which is a major problem restricting the sea cucumber breeding industry, were identified by genome-wide screening. In this study, via miRanda analysis, both circRNA75 and circrRNA72 were shown to share the miR-200 binding site, a key microRNA in the SUS. The two circRNAs were verified to be increased significantly in LPS-exposed primary coelomocytes, similar to the results of circRNA-seq in sea cucumber under Vibrio splendidus-challenged conditions. A dual-luciferase assay indicated that both circRNA75 and circRNA72 could bind miR-200 in vivo, in which circRNA75 had four binding sites of miR-200 and only one for circRNA72. Furthermore, we found that miR-200 could bind the 3'-UTR of Toll interacting protein (Tollip) to negatively mediate the expression of Tollip. Silencing Tollip increased primary coelomocyte apoptosis. Consistently, inference of circRNA75 and circRNA72 could also downregulate Tollip expression, thereby increasing the apoptosis of primary coelomocytes, which could be blocked by miR-200 inhibitor treatment. Moreover, the rate of si-circRNA75-downregulated Tollip expression was higher than that of si-circRNA72 under an equivalent amount. CircRNA75 and circRNA72 suppressed coelomocyte apoptosis by sponging miR-200 to promote Tollip expression. The ability of circRNA to adsorb miRNA might be positively related to the number of binding sites for miRNA.

???displayArticle.pubmedLink??? 34868028
???displayArticle.pmcLink??? PMC8635487
???displayArticle.link??? Front Immunol

???attribute.lit??? ???displayArticles.show???

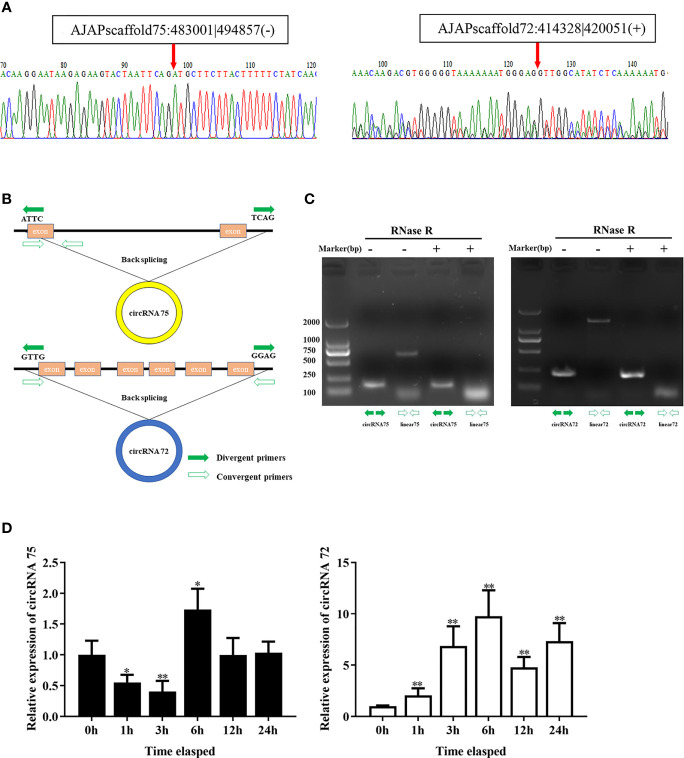

	Figure 1. Identification of the two circRNAs related to SUS development. (A) The back-splicing junctions of circRNA75 and circRNA72 were verified by RT-PCR and Sanger sequencing, respectively. (B) Schematic illustration exhibited the formation of the two circRNAs through the circularization of their host genes. (C) Relative expressions of circRNAs and linear RNA in coelomocytes were detected by RT-PCR upon RNase R treatment. (D) The expression patterns of circRNA75 and circRNA72 under LPS stimulation. p < 0.05 and *p < 0.01.

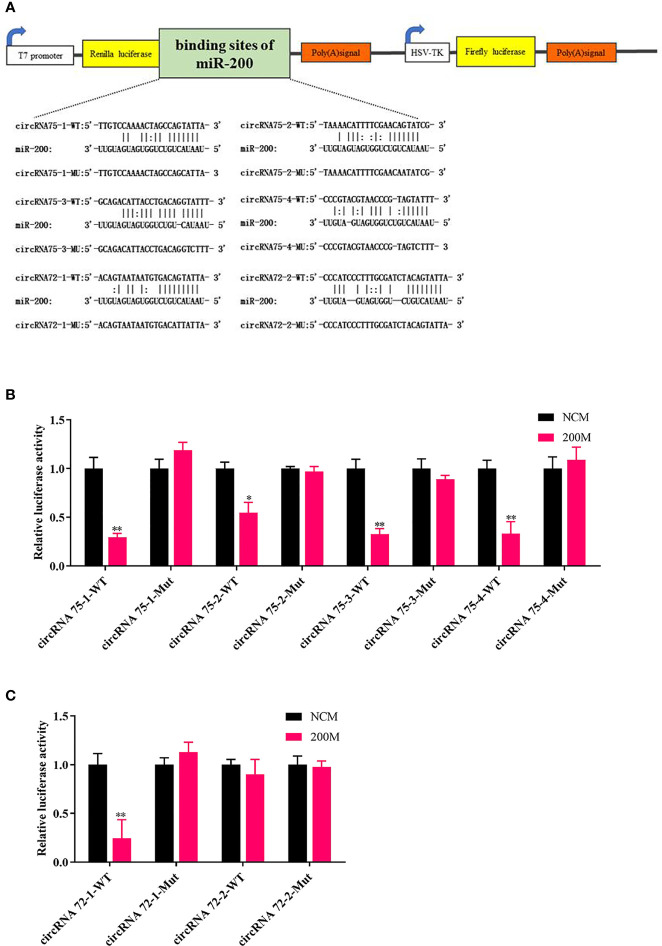

	Figure 2. CircRNA75 and circRNA72 could bind to miR-200 as seen in the dual-luciferase reporter assay. (A) Schematic illustration of the two circRNAs and mutant luciferase reporter vectors. (B, C) Relative luciferase activities were measured after transfection in EPC with circRNA-WT or circRNA-Mut and miR-200 mimic or miR-NC. p < 0.05 and *p < 0.01.

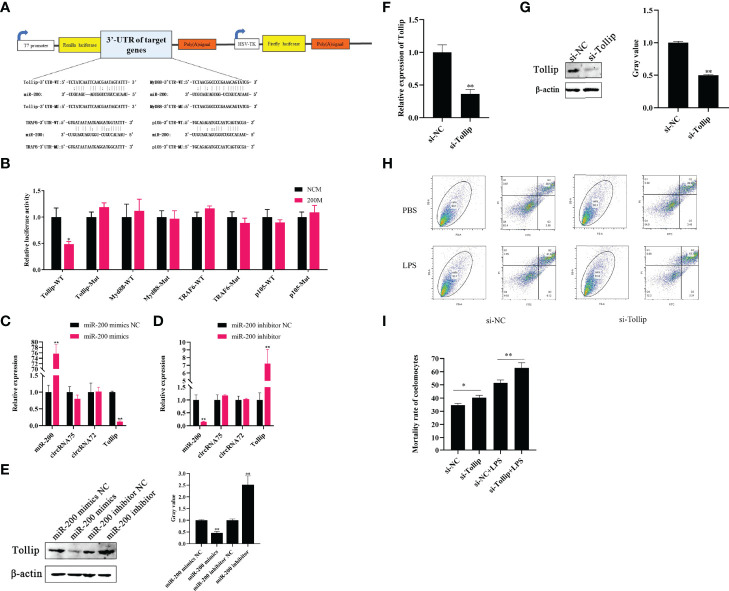

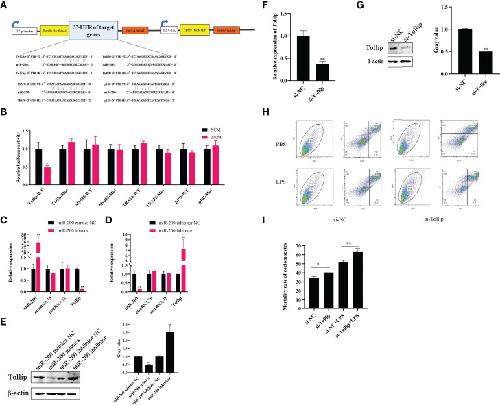

	Figure 3. Tollip is a direct target of miR-200 to attenuate LPS-induced coelomocyte apoptosis. (A) Schematic illustration of target genes and Mut luciferase reporter vectors. (B) Relative luciferase activities were measured in EPC cells after transfection with WT or Mut and a miR-200 mimic or miR-NC. (C, D) qRT-PCR was applied to detect the regulation of miR-200 mimics and inhibitors on the mRNA levels of Tollip, circRNA75, and circRNA72. (E) Western blot and gray value analysis were used to detect the regulation of miR-200 mimics and inhibitors on the protein levels of Tollip. (F) qRT-PCR detected the mRNA level of Tollip after the transfection of si-Tollip. (G) Western blot and gray value analyses detected the protein level of Tollip after the transfection of si-Tollip. (H) Coelomocyte apoptosis assay after Tollip knockdown in vitro. (I) Statistical analysis of apoptosis rate after Tollip knockdown. p < 0.05 and *p < 0.01.

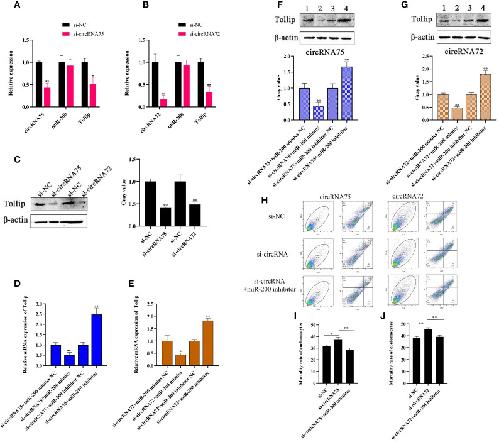

	Figure 4. CircRNA75 and circRNA72 could regulate Tollip-mediated coelomocyte apoptosis by sponging miR-200. (A, B) After circRNA75 or circRNA72 knockdown, qRT-PCR detected the regulatory effect on Tollip and miR-200 mRNA levels. (C) After circRNA75 or circRNA72 knockdown, Western blot and gray value analyses detected the regulatory effects on Tollip protein levels. (D, E) Under knockdown conditions of circRNA75 or circRNA72, qRT-PCR detected the effect of miR-200 mimics or inhibitors on the mRNA expression of Tollip. (F, G) Under knockdown conditions of circRNA75 or circRNA72, Western blot and gray value analyses detected the effect of miR-200 mimics or inhibitors on the protein expression of Tollip. (H) Coelomocyte apoptosis assay after circRNA75 or circRNA72 knockdown and in circRNA knockdown after the addition of the miR-200 inhibitor. (I, J) Statistical analysis of apoptosis rate after circRNA75 or circRNA72 knockdown and in the circRNA knockdown of the added miR-200 inhibitor. p < 0.05 and *p < 0.01.

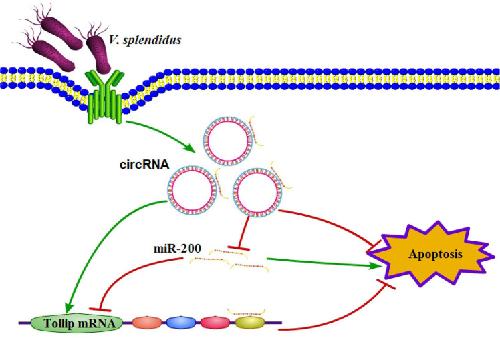

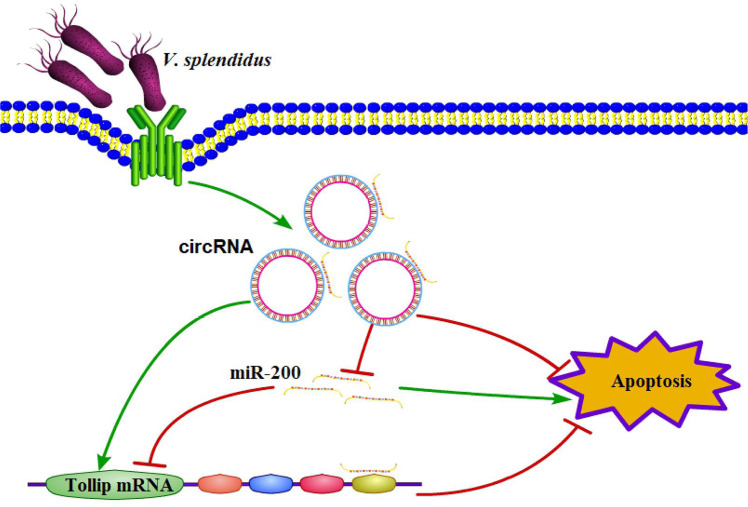

	Figure 5. Schematic diagram displaying the mechanism underlying the two circRNAs as endogenous ceRNA for miR-200.

References [+] :

Bossi, Competing endogenous RNAs: a target-centric view of small RNA regulation in bacteria. 2016, Pubmed

Bossi, Competing endogenous RNAs: a target-centric view of small RNA regulation in bacteria. 2016, Pubmed
Broadbent, Strand-specific RNA sequencing in Plasmodium falciparum malaria identifies developmentally regulated long non-coding RNA and circular RNA. 2015, Pubmed
Chen, CircRNA-UBE2G1 regulates LPS-induced osteoarthritis through miR-373/HIF-1a axis. 2020, Pubmed
Dong, Increased complexity of circRNA expression during species evolution. 2017, Pubmed
Dong, The Expression, Functions and Mechanisms of Circular RNAs in Gynecological Cancers. 2020, Pubmed
Feng, MiR-200, a new star miRNA in human cancer. 2014, Pubmed
Huang, Circular RNA HIPK2 regulates astrocyte activation via cooperation of autophagy and ER stress by targeting MIR124-2HG. 2017, Pubmed
Huang, CircRNA hsa_circRNA_104348 promotes hepatocellular carcinoma progression through modulating miR-187-3p/RTKN2 axis and activating Wnt/β-catenin pathway. 2020, Pubmed
Jeck, Detecting and characterizing circular RNAs. 2014, Pubmed
Jeck, Circular RNAs are abundant, conserved, and associated with ALU repeats. 2013, Pubmed
Jin, Hsa_circ_0001944 promotes the growth and metastasis in bladder cancer cells by acting as a competitive endogenous RNA for miR-548. 2020, Pubmed
Keskitalo, Dominant TOM1 mutation associated with combined immunodeficiency and autoimmune disease. 2019, Pubmed
Kopp, Functional Classification and Experimental Dissection of Long Noncoding RNAs. 2018, Pubmed
Li, The Biogenesis, Functions, and Challenges of Circular RNAs. 2018, Pubmed
Li, CircTLK1 promotes the proliferation and metastasis of renal cell carcinoma by sponging miR-136-5p. 2020, Pubmed
Li, Emerging roles of circular RNAs in innate immunity. 2021, Pubmed
Li, Characterization of skin ulceration syndrome associated microRNAs in sea cucumber Apostichopus japonicus by deep sequencing. 2012, Pubmed , Echinobase
Li, MiR-200a is involved in proliferation and apoptosis in the human endometrial adenocarcinoma cell line HEC-1B by targeting the tumor suppressor PTEN. 2014, Pubmed
Li, Toll interacting protein protects bronchial epithelial cells from bleomycin-induced apoptosis. 2020, Pubmed
Liu, Identification of the pathogens associated with skin ulceration and peristome tumescence in cultured sea cucumbers Apostichopus japonicus (Selenka). 2010, Pubmed , Echinobase
Liu, Excretory/secretory proteome of the adult developmental stage of human blood fluke, Schistosoma japonicum. 2009, Pubmed
Lu, Transcriptome-wide investigation of circular RNAs in rice. 2015, Pubmed
Lu, Characterization of two negative regulators of the Toll-like receptor pathway in Apostichopus japonicus: inhibitor of NF-κB and Toll-interacting protein. 2013, Pubmed , Echinobase
Lv, miR-92a regulates coelomocytes apoptosis in sea cucumber Apostichopus japonicus via targeting Aj14-3-3ζ in vivo. 2017, Pubmed , Echinobase
Lv, MiR-200 modulates coelomocytes antibacterial activities and LPS priming via targeting Tollip in Apostichopus japonicus. 2015, Pubmed , Echinobase
Ma, microRNA-579 upregulation mediates death of human macrophages with mycobacterium tuberculosis infection. 2019, Pubmed
Meng, CircRNA: functions and properties of a novel potential biomarker for cancer. 2017, Pubmed
Mukherjee, Activation of TOLLIP by porin prevents TLR2-associated IFN-γ and TNF-α-induced apoptosis of intestinal epithelial cells. 2014, Pubmed
Pamudurti, Translation of CircRNAs. 2017, Pubmed
Patop, circRNAs in Cancer. 2018, Pubmed
Piwecka, Loss of a mammalian circular RNA locus causes miRNA deregulation and affects brain function. 2017, Pubmed
Salmena, A ceRNA hypothesis: the Rosetta Stone of a hidden RNA language? 2011, Pubmed
Sang, circRNA_0025202 Regulates Tamoxifen Sensitivity and Tumor Progression via Regulating the miR-182-5p/FOXO3a Axis in Breast Cancer. 2019, Pubmed
Shangguan, Circular RNA circSLC25A16 contributes to the glycolysis of non-small-cell lung cancer through epigenetic modification. 2020, Pubmed
Shao, miR-31 Links Lipid Metabolism and Cell Apoptosis in Bacteria-Challenged Apostichopus japonicus via Targeting CTRP9. 2017, Pubmed , Echinobase
Takeda, TLR signaling pathways. 2004, Pubmed
Wang, Circular RNA is expressed across the eukaryotic tree of life. 2014, Pubmed
Wang, An invertebrate β-integrin mediates coelomocyte phagocytosis via activation of septin2 and 7 but not septin10. 2018, Pubmed , Echinobase
Wang, Circular RNA hsa_circ_0000848 Promotes Trophoblast Cell Migration and Invasion and Inhibits Cell Apoptosis by Sponging hsa-miR-6768-5p. 2020, Pubmed
Westholm, Genome-wide analysis of drosophila circular RNAs reveals their structural and sequence properties and age-dependent neural accumulation. 2014, Pubmed
Wu, Cloning and expression analysis of the gene encoding fibrinogen-like protein A, a novel regeneration-related protein from Apostichopus japonicus. 2014, Pubmed , Echinobase
Xiao, An improved method for circular RNA purification using RNase R that efficiently removes linear RNAs containing G-quadruplexes or structured 3' ends. 2019, Pubmed
Xu, Transcriptome-wide identification and functional investigation of circular RNA in the teleost large yellow croaker (Larimichthys crocea). 2017, Pubmed
Zhang, Complementary sequence-mediated exon circularization. 2014, Pubmed
Zhao, Genome-Wide Identification of Circular RNAs Revealed the Dominant Intergenic Region Circularization Model in Apostichopus japonicus. 2019, Pubmed , Echinobase
Zheng, Circular RNA profiling reveals an abundant circHIPK3 that regulates cell growth by sponging multiple miRNAs. 2016, Pubmed
Zhu, Downregulation of circRNA DMNT3B contributes to diabetic retinal vascular dysfunction through targeting miR-20b-5p and BAMBI. 2019, Pubmed

	Figure 1. Identification of the two circRNAs related to SUS development. (A) The back-splicing junctions of circRNA75 and circRNA72 were verified by RT-PCR and Sanger sequencing, respectively. (B) Schematic illustration exhibited the formation of the two circRNAs through the circularization of their host genes. (C) Relative expressions of circRNAs and linear RNA in coelomocytes were detected by RT-PCR upon RNase R treatment. (D) The expression patterns of circRNA75 and circRNA72 under LPS stimulation. p < 0.05 and *p < 0.01.
	Figure 2. CircRNA75 and circRNA72 could bind to miR-200 as seen in the dual-luciferase reporter assay. (A) Schematic illustration of the two circRNAs and mutant luciferase reporter vectors. (B, C) Relative luciferase activities were measured after transfection in EPC with circRNA-WT or circRNA-Mut and miR-200 mimic or miR-NC. p < 0.05 and *p < 0.01.
	Figure 3. Tollip is a direct target of miR-200 to attenuate LPS-induced coelomocyte apoptosis. (A) Schematic illustration of target genes and Mut luciferase reporter vectors. (B) Relative luciferase activities were measured in EPC cells after transfection with WT or Mut and a miR-200 mimic or miR-NC. (C, D) qRT-PCR was applied to detect the regulation of miR-200 mimics and inhibitors on the mRNA levels of Tollip, circRNA75, and circRNA72. (E) Western blot and gray value analysis were used to detect the regulation of miR-200 mimics and inhibitors on the protein levels of Tollip. (F) qRT-PCR detected the mRNA level of Tollip after the transfection of si-Tollip. (G) Western blot and gray value analyses detected the protein level of Tollip after the transfection of si-Tollip. (H) Coelomocyte apoptosis assay after Tollip knockdown in vitro. (I) Statistical analysis of apoptosis rate after Tollip knockdown. p < 0.05 and *p < 0.01.
	Figure 4. CircRNA75 and circRNA72 could regulate Tollip-mediated coelomocyte apoptosis by sponging miR-200. (A, B) After circRNA75 or circRNA72 knockdown, qRT-PCR detected the regulatory effect on Tollip and miR-200 mRNA levels. (C) After circRNA75 or circRNA72 knockdown, Western blot and gray value analyses detected the regulatory effects on Tollip protein levels. (D, E) Under knockdown conditions of circRNA75 or circRNA72, qRT-PCR detected the effect of miR-200 mimics or inhibitors on the mRNA expression of Tollip. (F, G) Under knockdown conditions of circRNA75 or circRNA72, Western blot and gray value analyses detected the effect of miR-200 mimics or inhibitors on the protein expression of Tollip. (H) Coelomocyte apoptosis assay after circRNA75 or circRNA72 knockdown and in circRNA knockdown after the addition of the miR-200 inhibitor. (I, J) Statistical analysis of apoptosis rate after circRNA75 or circRNA72 knockdown and in the circRNA knockdown of the added miR-200 inhibitor. p < 0.05 and *p < 0.01.
	Figure 5. Schematic diagram displaying the mechanism underlying the two circRNAs as endogenous ceRNA for miR-200.
