2022 Feb 10;102:. doi: 10.3390/toxics10020083.
Show Gene links
Show Anatomy links
Vanadium Toxicity Monitored by Fertilization Outcomes and Metal Related Proteolytic Activities in Paracentrotus lividus Embryos.
Chiarelli R
,
Martino C
,
Roccheri MC
,
Geraci F
.
???displayArticle.abstract???
Metal pharmaceutical residues often represent emerging toxic pollutants of the aquatic environment, as wastewater treatment plants do not sufficiently remove these compounds. Recently, vanadium (V) derivatives have been considered as potential therapeutic factors in several diseases, however, only limited information is available about their impact on aquatic environments. This study used sea urchin embryos (Paracentrotus lividus) to test V toxicity, as it is known they are sensitive to V doses from environmentally relevant to very cytotoxic levels (50 nM; 100 nM; 500 nM; 1 µM; 50 µM; 100 µM; 500 µM; and 1 mM). We used two approaches: The fertilization test (FT) and a protease detection assay after 36 h of exposure. V affected the fertilization percentage and increased morphological abnormalities of both egg and fertilization envelope, in a dose-dependent manner. Moreover, a total of nine gelatinases (with apparent molecular masses ranging from 309 to 22 kDa) were detected, and their proteolytic activity depended on the V concentration. Biochemical characterization shows that some of them could be aspartate proteases, whereas substrate specificity and the Ca2+/Zn2+ requirement suggest that others are similar to mammalian matrix metalloproteinases (MMPs).

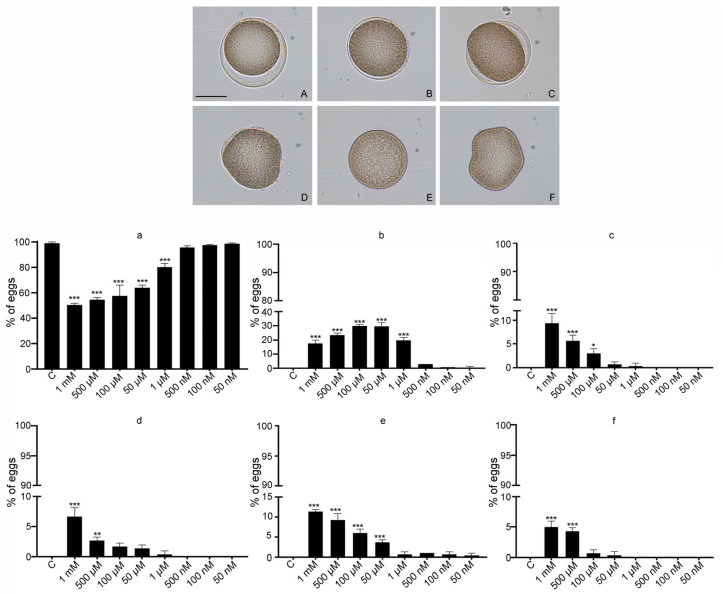

Figure 1. Effects of V exposure on the percentage of fertilization events in the sea urchin Paracentrotus lividus. Upper panel: images of representative eggs captured by light microscopy. Egg with normal morphology and normal fertilization membrane (A). Egg with normal morphology and abnormal fertilization membrane (B). Egg with abnormal morphology and normal fertilization membrane (C). Egg with abnormal morphology and abnormal fertilization membrane (D). Unfertilized egg with normal morphology (E). Unfertilized egg with abnormal morphology (F). Bar = 50 µm. Lower panel: histogram bars showing the percentage of the number of eggs with each morphology per total of eggs used in each treatment. % of eggs with normal morphology and normal fertilization membrane (a). % of eggs with normal morphology and abnormal fertilization membrane (b). % of eggs with abnormal morphology and normal fertilization membrane (c). % of eggs with abnormal morphology and abnormal fertilization membrane (d). % of unfertilized eggs with normal morphology (e). % of unfertilized eggs with abnormal morphology (f). The statistical significances was set to p < 0.05 (*), p < 0.01 (**) and p < 0.001 (***).

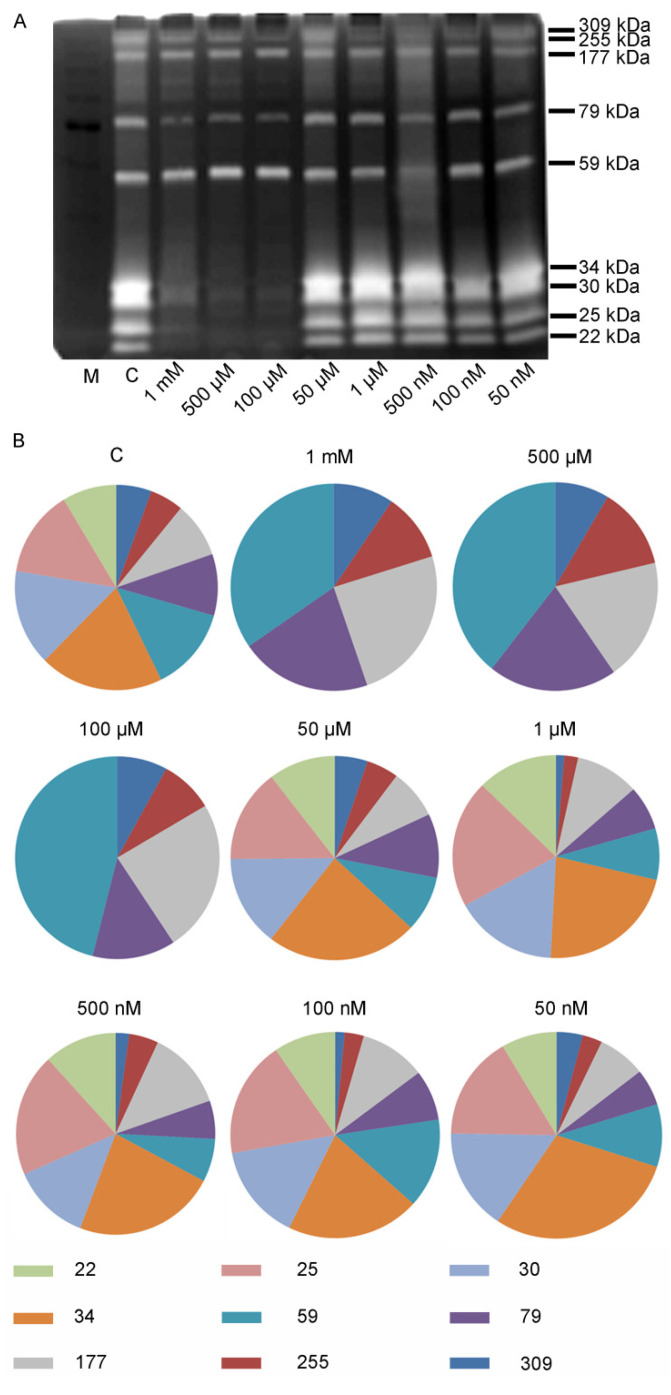

Figure 2. Proteolytic activities analyzed by gelatin substrate gel zimography. (A) Zimogram showing gelatinase bands in lysates of embryos at 36 h of growth from: control and V-treated embryos. M = protein molecular weight marker. (B) The pie charts display the percentages of each gelatinase activity (309, 225, 177, 79, 59, 34, 30, 25, and 22 kDa), for control and treated embryos after 36 h of development.

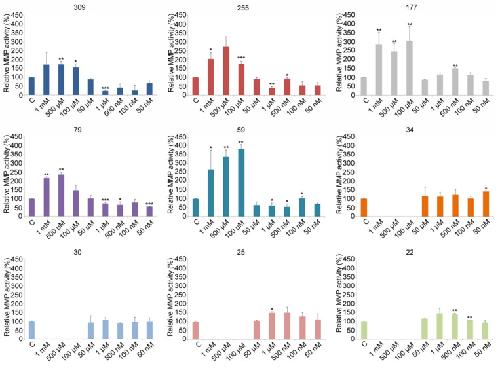

Figure 3. Relative gelatinase activities. The histograms show the percentage of relative gelatinase activity for each gelatinase in control and V-treated embryos after 36 h of development. All values were normalized with respect to the gelatinases activity of the control samples (fixed to 100%). The statistical significances were set to p ⤠0.05 (*), p ⤠0.01 (**), and p ⤠0.0005 (***).

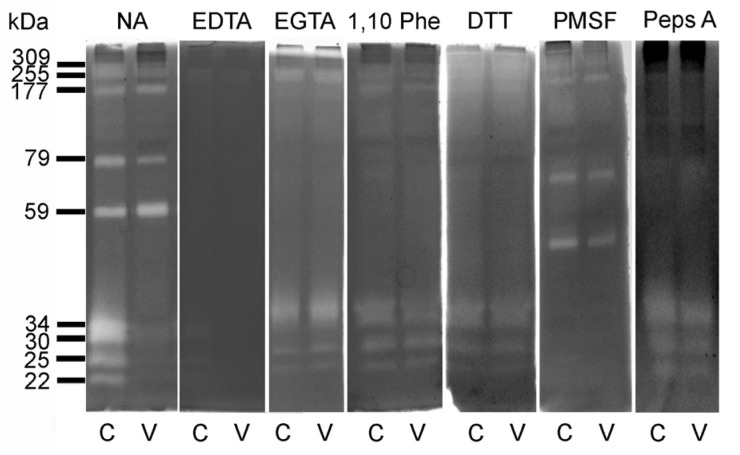

Figure 4. Proteolytic activities analyzed by gelatin substrate gel zimography for control (C) and V-treated (V) embryos. The analysis was conducted in the absence (NA) or in the presence of a variety of protease inhibitors: Ethylenediaminetetraacetic acid (EDTA); ethylene glycol-bis (β-aminoethyl ether)-N,N,Nâ²,Nâ²-tetraacetic acid (EGTA); 1,10 phenanthroline (1,10-Phe); Dithiothreitol (DTT); Phenylmethylsulfonyl fluoride (PMSF); pepstatin A (peps A).
Agnello,
Autophagy is required for sea urchin oogenesis and early development.
2016, Pubmed,
Echinobase
Agnello,
Autophagy is required for sea urchin oogenesis and early development.
2016,
Pubmed
,
Echinobase
Blobel,
ADAMs: key components in EGFR signalling and development.
2005,
Pubmed
Bonaventura,
Nickel toxicity in P. lividus embryos: Dose dependent effects and gene expression analysis.
2018,
Pubmed
,
Echinobase
Brenner,
Genes for extracellular-matrix-degrading metalloproteinases and their inhibitor, TIMP, are expressed during early mammalian development.
1989,
Pubmed
Cappello,
Alteration of neurotransmission and skeletogenesis in sea urchin Arbacia lixula embryos exposed to copper oxide nanoparticles.
2017,
Pubmed
,
Echinobase
Carballeira,
Influence of salinity on fertilization and larval development toxicity tests with two species of sea urchin.
2011,
Pubmed
,
Echinobase
Carmen Casado-Martinez,
Metal toxicity in a sediment-dwelling polychaete: threshold body concentrations or overwhelming accumulation rates?
2010,
Pubmed
Chiarelli,
Heavy metals and metalloids as autophagy inducing agents: focus on cadmium and arsenic.
2012,
Pubmed
,
Echinobase
Chiarelli,
Cadmium stress effects indicating marine pollution in different species of sea urchin employed as environmental bioindicators.
2019,
Pubmed
,
Echinobase
Chiarelli,
Autophagy as a defense strategy against stress: focus on Paracentrotus lividus sea urchin embryos exposed to cadmium.
2016,
Pubmed
,
Echinobase
Chiarelli,
Sea urchin embryos as a model system for studying autophagy induced by cadmium stress.
2011,
Pubmed
,
Echinobase
Chiarelli,
Toxic effects induced by vanadium on sea urchin embryos.
2021,
Pubmed
,
Echinobase
Colín-Barenque,
Matrix metalloproteinases 2 and 9 in central nervous system and their modification after vanadium inhalation.
2008,
Pubmed
Desaulniers,
Effects of vanadium (sodium metavanadate) and aflatoxin-B1 on cytochrome p450 activities, DNA damage and DNA methylation in human liver cell lines.
2021,
Pubmed
Geraci,
Nickel, lead, and cadmium induce differential cellular responses in sea urchin embryos by activating the synthesis of different HSP70s.
2004,
Pubmed
,
Echinobase
Giannetto,
Copper oxide nanoparticles induce the transcriptional modulation of oxidative stress-related genes in Arbacia lixula embryos.
2018,
Pubmed
,
Echinobase
Hussain Shah,
Genotoxic And Cytotoxic Effects Of Oral Vanadyl Sulphate.
2019,
Pubmed
Ingersoll,
Ultrastructural localization of spicule matrix proteins in normal and metalloproteinase inhibitor-treated sea urchin primary mesenchyme cells.
2003,
Pubmed
,
Echinobase
Ingersoll,
Matrix metalloproteinase inhibitors disrupt spicule formation by primary mesenchyme cells in the sea urchin embryo.
1998,
Pubmed
,
Echinobase
Kamika,
Effect of vanadium toxicity at its different oxidation states on selected bacterial and protozoan isolates in wastewater systems.
2014,
Pubmed
Klein,
Effects of sublethal Cd, Zn, and mixture exposures on antioxidant defense and oxidative stress parameters in early life stages of the purple sea urchin Strongylocentrotus purpuratus.
2019,
Pubmed
,
Echinobase
Koivula,
Metal-related oxidative stress in birds.
2010,
Pubmed
Korbecki,
Biochemical and medical importance of vanadium compounds.
2012,
Pubmed
Li,
Bis(α-furancarboxylato)oxovanadium(IV) exerts durable antidiabetic effects and suppresses matrix metalloproteinase-2 activity in spontaneous type 2 diabetic KKAy mice.
2013,
Pubmed
Maisano,
Developmental abnormalities and neurotoxicological effects of CuO NPs on the black sea urchin Arbacia lixula by embryotoxicity assay.
2015,
Pubmed
,
Echinobase
Martino,
Gadolinium perturbs expression of skeletogenic genes, calcium uptake and larval development in phylogenetically distant sea urchin species.
2018,
Pubmed
,
Echinobase
Martino,
Interactive effects of increased temperature and gadolinium pollution in Paracentrotus lividus sea urchin embryos: a climate change perspective.
2021,
Pubmed
,
Echinobase
Martino,
Effects of exposure to gadolinium on the development of geographically and phylogenetically distant sea urchins species.
2017,
Pubmed
,
Echinobase
Martino,
Induction of skeletal abnormalities and autophagy in Paracentrotus lividus sea urchin embryos exposed to gadolinium.
2017,
Pubmed
,
Echinobase
Mukherjee,
Vanadium--an element of atypical biological significance.
2004,
Pubmed
Oliver,
Vanadate, an inhibitor of stromelysin and collagenase expression, suppresses collagen induced arthritis.
2007,
Pubmed
Petanidis,
Novel ternary vanadium-betaine-peroxido species suppresses H-ras and matrix metalloproteinase-2 expression by increasing reactive oxygen species-mediated apoptosis in cancer cells.
2013,
Pubmed
Pinsino,
Rapid changes in heat-shock cognate 70 levels, heat-shock cognate phosphorylation state, heat-shock transcription factor, and metal transcription factor activity levels in response to heavy metal exposure during sea urchin embryonic development.
2011,
Pubmed
,
Echinobase
Pinsino,
Manganese overload affects p38 MAPK phosphorylation and metalloproteinase activity during sea urchin embryonic development.
2014,
Pubmed
,
Echinobase
Ramdial,
Elevated toxicity of resuspended mine tailings over time.
2021,
Pubmed
,
Echinobase
Rana,
Is there a Role for Sodium Orthovanadate in the Treatment of Diabetes?
2019,
Pubmed
Rehder,
The role of vanadium in biology.
2015,
Pubmed
Roe,
Inhibitors of metalloendoproteases block spiculogenesis in sea urchin primary mesenchyme cells.
1989,
Pubmed
,
Echinobase
Sarras,
BMP-1 and the astacin family of metalloproteinases: a potential link between the extracellular matrix, growth factors and pattern formation.
1996,
Pubmed
Ścibior,
Vanadium: Risks and possible benefits in the light of a comprehensive overview of its pharmacotoxicological mechanisms and multi-applications with a summary of further research trends.
2020,
Pubmed
Soldevila-Barreda,
Approaches to the design of catalytic metallodrugs.
2015,
Pubmed
Tiwari,
Review on fate and mechanism of removal of pharmaceutical pollutants from wastewater using biological approach.
2017,
Pubmed
Vu,
Matrix metalloproteinases: effectors of development and normal physiology.
2000,
Pubmed
