Nucleic Acids Res
2009 Oct 01;3718:6184-93. doi: 10.1093/nar/gkp600.
Show Gene links
Show Anatomy links
Accurate and efficient reconstruction of deep phylogenies from structured RNAs.
Stocsits RR
,
Letsch H
,
Hertel J
,
Misof B
,
Stadler PF
.
???displayArticle.abstract???
Ribosomal RNA (rRNA) genes are probably the most frequently used data source in phylogenetic reconstruction. Individual columns of rRNA alignments are not independent as a consequence of their highly conserved secondary structures. Unless explicitly taken into account, these correlation can distort the phylogenetic signal and/or lead to gross overestimates of tree stability. Maximum likelihood and Bayesian approaches are of course amenable to using RNA-specific substitution models that treat conserved base pairs appropriately, but require accurate secondary structure models as input. So far, however, no accurate and easy-to-use tool has been available for computing structure-aware alignments and consensus structures that can deal with the large rRNAs. The RNAsalsa approach is designed to fill this gap. Capitalizing on the improved accuracy of pairwise consensus structures and informed by a priori knowledge of group-specific structural constraints, the tool provides both alignments and consensus structures that are of sufficient accuracy for routine phylogenetic analysis based on RNA-specific substitution models. The power of the approach is demonstrated using two rRNA data sets: a mitochondrial rRNA set of 26 Mammalia, and a collection of 28S nuclear rRNAs representative of the five major echinoderm groups.

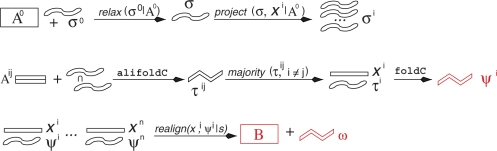

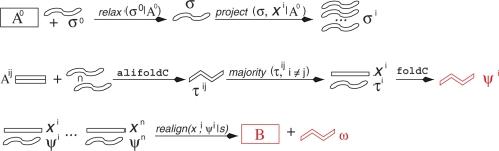

Figure 1. Overview of the RNAsalsa workflow. Starting from an initial sequence alignment 𝔸0 and a structure constraint σ0, a relaxed consensus constraint and then constraints for each input sequence are produced. Pairwise sequence alignments and the intersections of the two individualized constraints are used to compute a collection of constrained pairwise consensus structures τij, from which a refined individualized structure constraint τi is extracted by means of a majority voting procedure. Then τi is used as constraint in minimum energy folding to obtain the final structural annotation ψi for input sequence xi. The structure-annotated input sequences are now aligned with a structure-aware alignment method, resulting in the final alignment 𝔹 and a corresponding consensus structure ω.

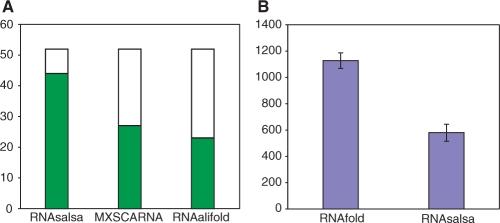

Figure 2. Accuracy of structure prediction. Fraction of correctly predicted helices (green bars) compared with the mammalian 16S rRNA consensus models (36). (A) RNAsalsa significantly outperforms MXSCARNA and RNAalifold (default parameter settings; three-sample test for equality of proportions without continuity correction; χ2 = 19.96, df = 2, P < 0.0001). Average tree-edit distance (37) (B) between predicted individual structures and the mammalian 16S rRNA reference model. RNAsalsa predictions conform the consensus model much better (paired sampled t-test; t = 33.46, df = 1, P < 0.0001; N = 26).

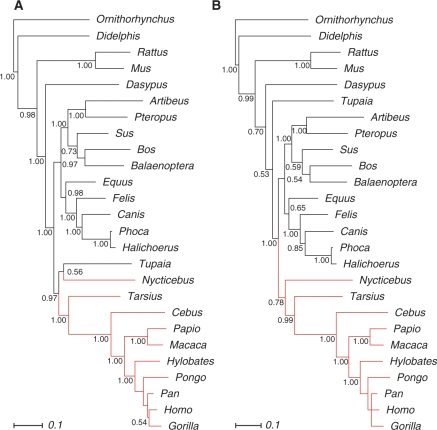

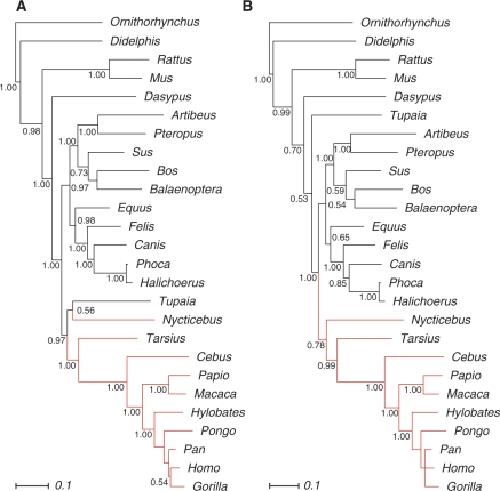

Figure 3. Bayesian tree inferred from the combined mammalian 12S rRNA and 16S rRNA. (A) Analysis with GTR + Γ model in simple DNA mode. (B) Analysis with GTR + Γ model in RNA mode for paired positions and DNA mode for loop regions. Numbers indicate Bayesian posterior probabilities. The scale bar denotes the estimated number of substitutions per site.

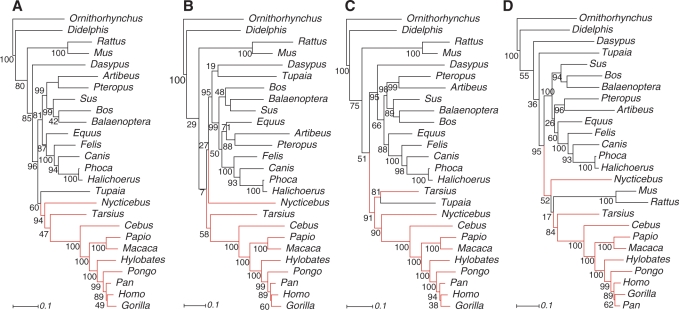

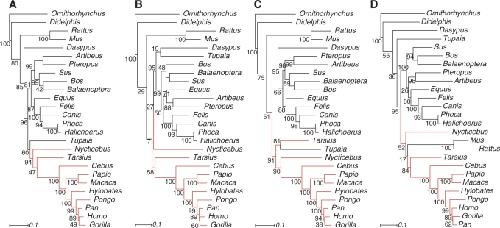

Figure 4. Phylogenies inferred from combined analyses of the mammalian 12S rRNA and 16S rRNA. Sequences are aligned with (A) RNAsalsa, (B) MAFFT, (C) ClustalW and (D) MXSCARNA. Tree reconstruction is based on ML analyses with GTR + Γ model. Numbers indicate Bootstrap support values (1000 replicates). The scale bar denotes the estimated number of substitutions per site.

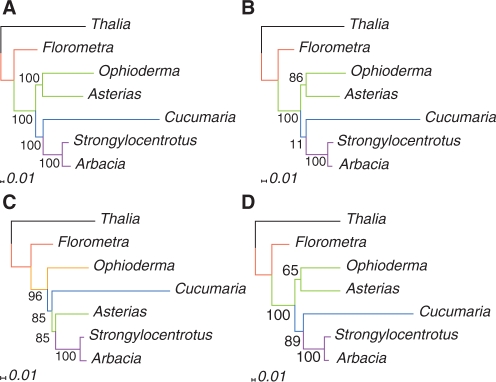

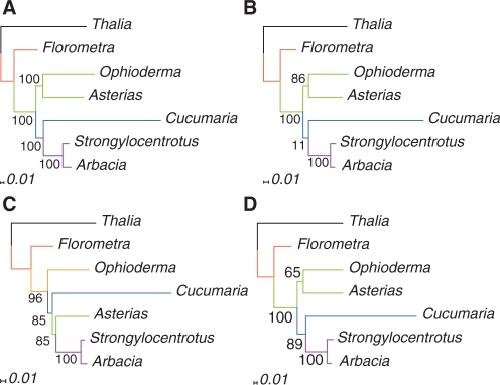

Figure 5. Phylogenies inferred from analyses of the echinoderm 28S rRNA. Sequences are aligned with (A) RNAsalsa, (B) MAFFT, (C) ClustalW and (D) MXSCARNA. Tree reconstruction is based on ML analyses with GTR + Γ model. Numbers indicate Bootstrap support values (1000 replicates). The scale bar denotes the estimated number of substitutions per site.
