Enhanced primers for amplification of DNA barcodes from a broad range of marine metazoans.
Lobo J
,
Costa PM
,
Teixeira MA
,
Ferreira MS
,
Costa MH
,
Costa FO
.
???displayArticle.abstract???
BACKGROUND: Building reference libraries of DNA barcodes is relatively straightforward when specifically designed primers are available to amplify the COI-5P region from a relatively narrow taxonomic group (e.g. single class or single order). DNA barcoding marine communities have been comparatively harder to accomplish due to the broad taxonomic diversity and lack of consistently efficient primers. Although some of the so-called "universal" primers have been relatively successful, they still fail to amplify COI-5P of many marine animal groups, while displaying random success even among species within each group. Here we propose a new pair of primers designed to enhance amplification of the COI-5P region in a wide range of marine organisms.
RESULTS: Amplification tests conducted on a wide range of marine animal taxa, rendered possible the first-time sequencing of DNA barcodes from eight separated phyla (Annelida, Arthropoda, Chordata, Cnidaria, Echinodermata, Mollusca, Nemertea and Platyhelminthes), comprising a total of 14 classes, 28 orders, 57 families, 68 genus and 76 species.
CONCLUSIONS: These primers demonstrated to be highly cost-effective, which is of key importance for DNA barcoding procedures, such as for building comprehensive DNA barcode libraries of marine communities, where the processing of a large numbers of specimens from a wide variety of marine taxa is compulsory.

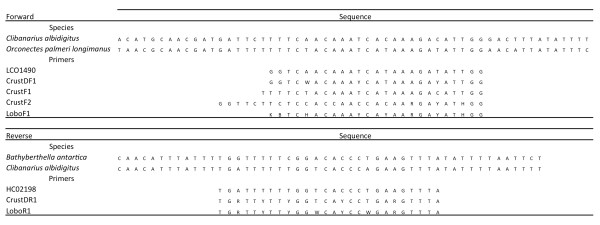

Figure 1. COI sequences of three exemplificative species aligned with forward and reverse primers for the amplification of COI-5P.Clibanarius albidigitus (Phylum Arthropoda), GenBank Accession AF425321; Orconectes palmeri longimanus (Phylum Arthropoda), GenBank Accession AY701214; Bathyberthella antarctica (Phylum Mollusca), GenBank Accession AY345027. LCO1490 and HCO2198
[1]; CrustDF1 and CrustDR1 (D. Steinke unpublished in
[19]); CrustF1 and CrustF2
[18]; LoboF1 and LoboR1 (present study).

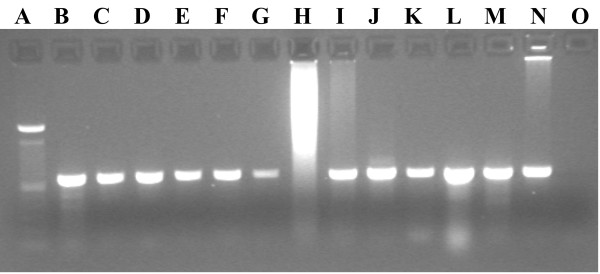

Figure 2. Image an agarose gel of COI-5P PCR products amplified using the LoboF1 and LoboR1 primer pairs. A) 100Â bp Ladder, B-G) Class Bivalvia (Phylum Mollusca), H-J) Class Malacostraca (Phylum Arthropoda), K) Class Polyplacophora (Phylum Mollusca), L) Class Ophiuroidea (Phylum Echinodermata), M) Class Asteroidea (Phylum Echinodermata), N) Class Malacostraca (Phylum Arthropoda), O) Negative control. H) Possible excess of template blocked PCR amplification.

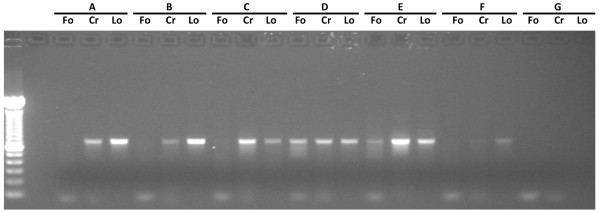

Figure 3. Image of an agarose gel (1.5%) showing PCR products of crustaceans obtained with using different primer pairs. A), B) and F)Pilumnus hirtellus; C) and E)Lophozozymus incisus; D)Porcellana platycheles; G) Negative control; Fo) LCO1490 and HCO2198
[1]; Cr) CrustDF1 and CrustDR1 (D. Steinke unpublished in
[19]); Lo) LoboF1 and LoboR1 (present study).
Blankenship,
Universal primers and PCR of gut contents to study marine invertebrate diets.
2005, Pubmed
Blankenship,
Universal primers and PCR of gut contents to study marine invertebrate diets.
2005,
Pubmed
Bucklin,
DNA barcoding of marine metazoa.
2011,
Pubmed
Carr,
A tri-oceanic perspective: DNA barcoding reveals geographic structure and cryptic diversity in Canadian polychaetes.
2011,
Pubmed
Costa,
A ranking system for reference libraries of DNA barcodes: application to marine fish species from Portugal.
2012,
Pubmed
Dawnay,
Validation of the barcoding gene COI for use in forensic genetic species identification.
2007,
Pubmed
Ekrem,
A comprehensive DNA sequence library is essential for identification with DNA barcodes.
2007,
Pubmed
Folmer,
DNA primers for amplification of mitochondrial cytochrome c oxidase subunit I from diverse metazoan invertebrates.
1994,
Pubmed
,
Echinobase
Hajibabaei,
Benchmarking DNA barcodes: An assessment using available primate sequences.
2006,
Pubmed
Hajibabaei,
DNA barcodes distinguish species of tropical Lepidoptera.
2006,
Pubmed
Hebert,
Identification of Birds through DNA Barcodes.
2004,
Pubmed
Hebert,
Biological identifications through DNA barcodes.
2003,
Pubmed
Hebert,
The promise of DNA barcoding for taxonomy.
2005,
Pubmed
Hoareau,
Design of phylum-specific hybrid primers for DNA barcoding: addressing the need for efficient COI amplification in the Echinodermata.
2010,
Pubmed
,
Echinobase
Jones,
The rapid generation of mutation data matrices from protein sequences.
1992,
Pubmed
Kimura,
A simple method for estimating evolutionary rates of base substitutions through comparative studies of nucleotide sequences.
1980,
Pubmed
León-Règagnon,
Evidence of new species of Haematoloechus (Platyhelminthes: Digenea) using partial cox1 sequences.
2010,
Pubmed
Lohman,
Improved COI barcoding primers for Southeast Asian perching birds (Aves: Passeriformes).
2009,
Pubmed
Matzen da Silva,
Systematic and evolutionary insights derived from mtDNA COI barcode diversity in the Decapoda (Crustacea: Malacostraca).
2011,
Pubmed
McGinnis,
BLAST: at the core of a powerful and diverse set of sequence analysis tools.
2004,
Pubmed
Plazzi,
Towards a molecular phylogeny of Mollusks: bivalves' early evolution as revealed by mitochondrial genes.
2010,
Pubmed
Ratnasingham,
bold: The Barcode of Life Data System (http://www.barcodinglife.org).
2007,
Pubmed
Saitou,
The neighbor-joining method: a new method for reconstructing phylogenetic trees.
1987,
Pubmed
Siddall,
Barcoding bamboozled by bacteria: convergence to metazoan mitochondrial primer targets by marine microbes.
2009,
Pubmed
Song,
Many species in one: DNA barcoding overestimates the number of species when nuclear mitochondrial pseudogenes are coamplified.
2008,
Pubmed
Tamura,
MEGA5: molecular evolutionary genetics analysis using maximum likelihood, evolutionary distance, and maximum parsimony methods.
2011,
Pubmed
Uthicke,
Genetic barcoding of commercial Bêche-de-mer species (Echinodermata: Holothuroidea).
2010,
Pubmed
,
Echinobase
Ward,
DNA barcoding discriminates echinoderm species.
2008,
Pubmed
,
Echinobase
Ward,
DNA barcoding Australia's fish species.
2005,
Pubmed
Zarowiecki,
Making the most of mitochondrial genomes--markers for phylogeny, molecular ecology and barcodes in Schistosoma (Platyhelminthes: Digenea).
2007,
Pubmed
Zou,
Multigene barcoding and phylogeny of geographically widespread muricids (Gastropoda: Neogastropoda) along the coast of China.
2012,
Pubmed
