Genome Biol Evol
2020 Oct 01;1210:1819-1829. doi: 10.1093/gbe/evaa150.
Show Gene links
Show Anatomy links
Population Genomic Analyses of the Sea Urchin Echinometra sp. EZ across an Extreme Environmental Gradient.
Ketchum RN
,
Smith EG
,
DeBiasse MB
,
Vaughan GO
,
McParland D
,
Leach WB
,
Al-Mansoori N
,
Ryan JF
,
Burt JA
,
Reitzel AM
.
???displayArticle.abstract???
Extreme environmental gradients represent excellent study systems to better understand the variables that mediate patterns of genomic variation between populations. They also allow for more accurate predictions of how future environmental change might affect marine species. The Persian/Arabian Gulf is extreme in both temperature and salinity, whereas the adjacent Gulf of Oman has conditions more typical of tropical oceans. The sea urchin Echinometra sp. EZ inhabits both of these seas and plays a critical role in coral reef health as a grazer and bioeroder, but, to date, there have been no population genomic studies on this or any urchin species in this unique region. E sp. EZ's life history traits (e.g., large population sizes, large reproductive clutches, and long life spans), in theory, should homogenize populations unless nonneutral processes are occurring. Here, we generated a draft genome and a restriction site-associated DNA sequencing data set from seven populations along an environmental gradient across the Persian/Arabian Gulf and the Gulf of Oman. The estimated genome size of E. sp. EZ was 609 Mb and the heterozygosity was among the highest recorded for an echinoderm at 4.5%. We recovered 918 high-quality SNPs from 85 individuals which we then used in downstream analyses. Population structure analyses revealed a high degree of admixture between all sites, although there was population differentiation and significant pairwise FST values between the two seas. Preliminary results suggest migration is bidirectional between the seas and nine candidate loci were identified as being under putative natural selection, including one collagen gene. This study is the first to investigate the population genomics of a sea urchin from this extreme environmental gradient and is an important contribution to our understanding of the complex spatial patterns that drive genomic divergence.

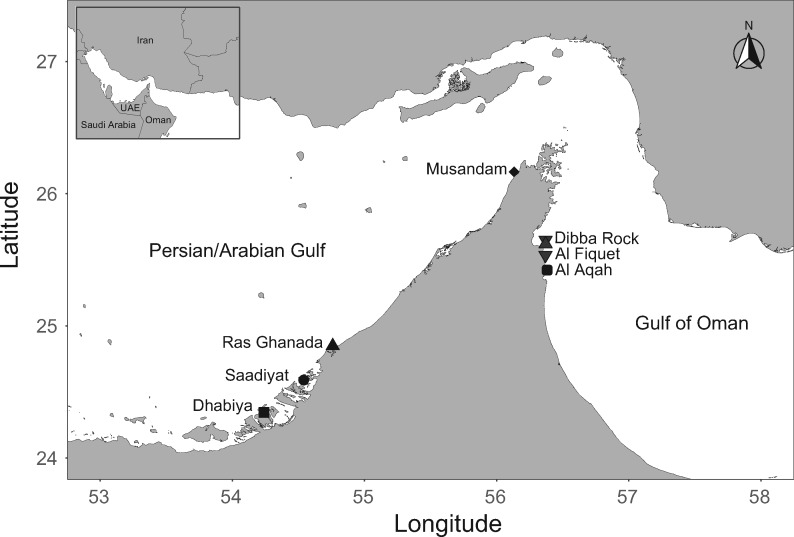

Fig. 1. Map of the seven E. sp. EZ sampling locations.

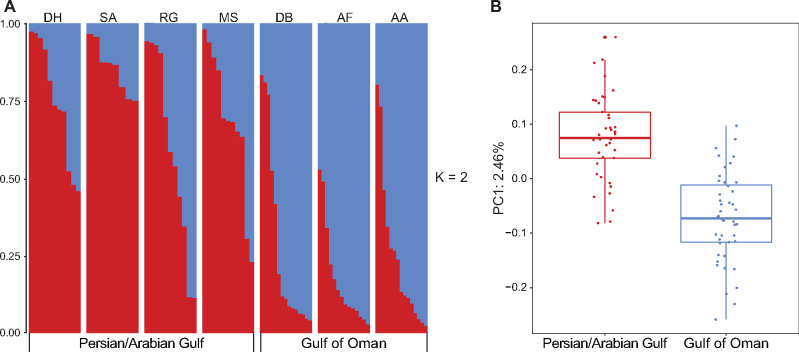

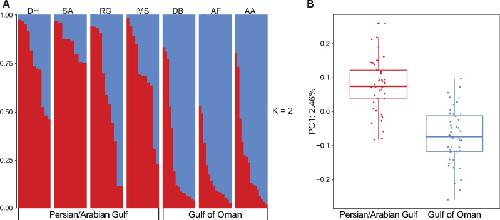

Fig. 2. (A) Plot of the individual ancestry inference for Kâ=â2 based on 918 loci. The population abbreviations are as follows: DH, Dhabiya; SA, Saadiyat; RG, Ras Ghanada; MS, Musandam; DB, Dibba Rock; AF, Al Fiquet; AA, Al Aqah. (B) Box plot of eigenvalues for 85 individuals explained by principal component one, generated in the smartpca package.

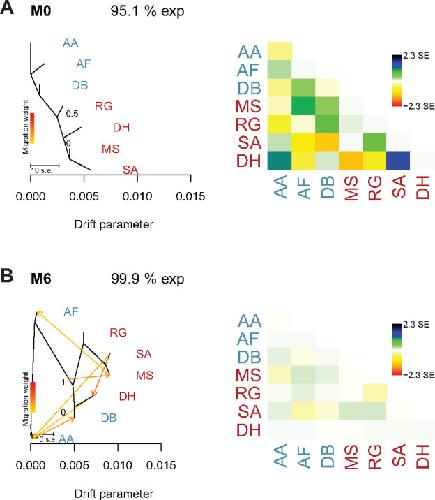

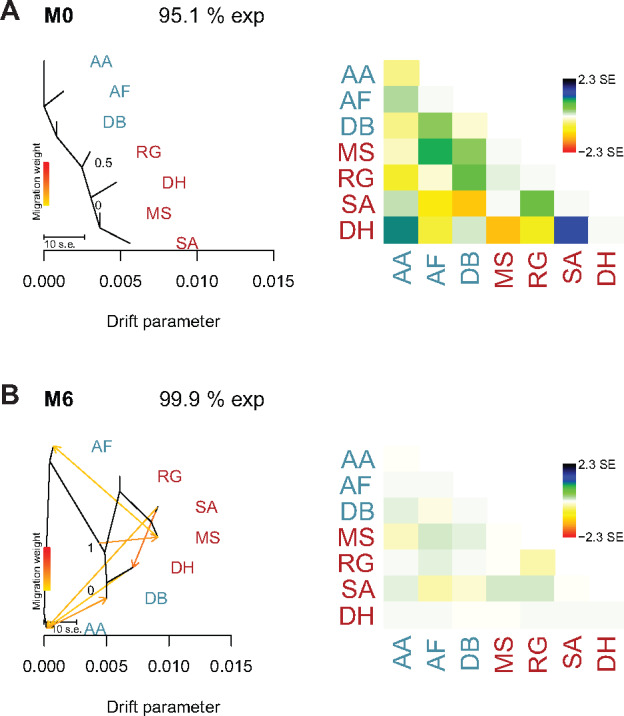

Fig. 3. Phylogenetic network of the inferred relationships between seven populations of E. sp. EZ. The population abbreviations are: DH, Dhabiya; SA, Saadiyat; RG, Ras Ghanada; MS, Musandam; DB, Dibba Rock; AF, Al Fiquet; AA, Al Aqah. Population abbreviations were colored based on their Gulf of origin (PAG, red; GO, blue). Migration edges are colored according to percent ancestry received from the donor population and SE represents the standard error of migration rates. (A) M0 represents a phylogram with no migration edges. (B) M6 contains six migration edges. Next to each phylogenetic network are the corresponding residual plots.
Bauman,
Multiple environmental factors influence the spatial distribution and structure of reef communities in the northeastern Arabian Peninsula.
2013, Pubmed
Bauman,
Multiple environmental factors influence the spatial distribution and structure of reef communities in the northeastern Arabian Peninsula.
2013,
Pubmed
Boetzer,
Scaffolding pre-assembled contigs using SSPACE.
2011,
Pubmed
Bolger,
Trimmomatic: a flexible trimmer for Illumina sequence data.
2014,
Pubmed
Bronstein,
The taxonomy and phylogeny of Echinometra (Camarodonta: Echinometridae) from the red sea and western Indian Ocean.
2013,
Pubmed
,
Echinobase
Cameron,
Do echinoderm genomes measure up?
2015,
Pubmed
,
Echinobase
Catchen,
Stacks: an analysis tool set for population genomics.
2013,
Pubmed
Cattell,
The Scree Test For The Number Of Factors.
1966,
Pubmed
Cluzel,
Characterization of fibrosurfin, an interfibrillar component of sea urchin catch connective tissues.
2001,
Pubmed
,
Echinobase
Danecek,
The variant call format and VCFtools.
2011,
Pubmed
DeFaveri,
Heterogeneous Genomic Differentiation in marine threespine sticklebacks: adaptation along an environmental gradient.
2013,
Pubmed
Excoffier,
Arlequin (version 3.0): an integrated software package for population genetics data analysis.
2007,
Pubmed
Exposito,
Characterization of two genes coding for a similar four-cysteine motif of the amino-terminal propeptide of a sea urchin fibrillar collagen.
1995,
Pubmed
,
Echinobase
Gautier,
The effect of RAD allele dropout on the estimation of genetic variation within and between populations.
2013,
Pubmed
Gleason,
Genomic evidence for ecological divergence against a background of population homogeneity in the marine snail Chlorostoma funebralis.
2016,
Pubmed
Gnerre,
High-quality draft assemblies of mammalian genomes from massively parallel sequence data.
2011,
Pubmed
Howells,
Host adaptation and unexpected symbiont partners enable reef-building corals to tolerate extreme temperatures.
2016,
Pubmed
Jakobsson,
CLUMPP: a cluster matching and permutation program for dealing with label switching and multimodality in analysis of population structure.
2007,
Pubmed
Kajitani,
Efficient de novo assembly of highly heterozygous genomes from whole-genome shotgun short reads.
2014,
Pubmed
Kelley,
The life aquatic: advances in marine vertebrate genomics.
2016,
Pubmed
Kelly,
Natural variation and the capacity to adapt to ocean acidification in the keystone sea urchin Strongylocentrotus purpuratus.
2013,
Pubmed
,
Echinobase
Kenkel,
Gene expression under chronic heat stress in populations of the mustard hill coral (Porites astreoides) from different thermal environments.
2013,
Pubmed
Ketchum,
The complete mitochondrial genome of the sea urchin, Echinometra sp. EZ.
2018,
Pubmed
,
Echinobase
Lal,
Swept away: ocean currents and seascape features influence genetic structure across the 18,000 Km Indo-Pacific distribution of a marine invertebrate, the black-lip pearl oyster Pinctada margaritifera.
2017,
Pubmed
Landry,
Recent speciation in the Indo-West Pacific: rapid evolution of gamete recognition and sperm morphology in cryptic species of sea urchin.
2003,
Pubmed
,
Echinobase
Lessios,
Population structure and speciation in tropical seas: global phylogeography of the sea urchin Diadema.
2001,
Pubmed
,
Echinobase
Li,
Fast and accurate short read alignment with Burrows-Wheeler transform.
2009,
Pubmed
Li,
The Sequence Alignment/Map format and SAMtools.
2009,
Pubmed
Luu,
pcadapt: an R package to perform genome scans for selection based on principal component analysis.
2017,
Pubmed
Marçais,
A fast, lock-free approach for efficient parallel counting of occurrences of k-mers.
2011,
Pubmed
McCartney,
Dispersal barriers in tropical oceans and speciation in Atlantic and eastern Pacific sea urchins of the genus Echinometra.
2000,
Pubmed
,
Echinobase
Nishimura,
gVolante for standardizing completeness assessment of genome and transcriptome assemblies.
2017,
Pubmed
Oleksiak,
Marine genomics: insights and challenges.
2016,
Pubmed
Palumbi,
SPECIATION AND POPULATION GENETIC STRUCTURE IN TROPICAL PACIFIC SEA URCHINS.
1997,
Pubmed
,
Echinobase
Parra,
CEGMA: a pipeline to accurately annotate core genes in eukaryotic genomes.
2007,
Pubmed
Patterson,
Population structure and eigenanalysis.
2006,
Pubmed
Pespeni,
Differences in the regulation of growth and biomineralization genes revealed through long-term common-garden acclimation and experimental genomics in the purple sea urchin.
2013,
Pubmed
,
Echinobase
Pespeni,
Genome-wide polymorphisms show unexpected targets of natural selection.
2012,
Pubmed
,
Echinobase
Pespeni,
Signals of selection in outlier loci in a widely dispersing species across an environmental mosaic.
2013,
Pubmed
,
Echinobase
Pickrell,
Inference of population splits and mixtures from genome-wide allele frequency data.
2012,
Pubmed
Pritchard,
Inference of population structure using multilocus genotype data.
2000,
Pubmed
Puritz,
dDocent: a RADseq, variant-calling pipeline designed for population genomics of non-model organisms.
2014,
Pubmed
Rahman,
Effects of delayed metamorphosis on larval survival, metamorphosis, and juvenile performance of four closely related species of tropical sea urchins (genus Echinometra).
2014,
Pubmed
,
Echinobase
Reitzel,
Going where traditional markers have not gone before: utility of and promise for RAD sequencing in marine invertebrate phylogeography and population genomics.
2013,
Pubmed
Simão,
BUSCO: assessing genome assembly and annotation completeness with single-copy orthologs.
2015,
Pubmed
Small,
Extreme genomic variation in a natural population.
2007,
Pubmed
Smith,
Genetic structure of coral-Symbiodinium symbioses on the world's warmest reefs.
2017,
Pubmed
Smith,
Symbiont community stability through severe coral bleaching in a thermally extreme lagoon.
2017,
Pubmed
Sodergren,
The genome of the sea urchin Strongylocentrotus purpuratus.
2006,
Pubmed
,
Echinobase
Takeuchi,
Divergent northern and southern populations and demographic history of the pearl oyster in the western Pacific revealed with genomic SNPs.
2020,
Pubmed
Torquato,
Consequences of marine barriers for genetic diversity of the coral-specialist yellowbar angelfish from the Northwestern Indian Ocean.
2019,
Pubmed
Vaughan,
The changing dynamics of coral reef science in Arabia.
2016,
Pubmed
Vurture,
GenomeScope: fast reference-free genome profiling from short reads.
2017,
Pubmed
Whiteley,
Ecological and life history characteristics predict population genetic divergence of two salmonids in the same landscape.
2004,
Pubmed
Xuereb,
Asymmetric oceanographic processes mediate connectivity and population genetic structure, as revealed by RADseq, in a highly dispersive marine invertebrate (Parastichopus californicus).
2018,
Pubmed
,
Echinobase
