Mol Biol Evol
2021 Mar 09;383:981-985. doi: 10.1093/molbev/msaa262.
Show Gene links
Show Anatomy links
Mitogenomes Reveal Alternative Initiation Codons and Lineage-Specific Gene Order Conservation in Echinoderms.
Quek ZBR
,
Chang JJM
,
Ip YCA
,
Chan YKS
,
Huang D
.
???displayArticle.abstract???
The mitochondrial genetic code is much more varied than the standard genetic code. The invertebrate mitochondrial code, for instance, comprises six initiation codons, including five alternative start codons. However, only two initiation codons are known in the echinoderm and flatworm mitochondrial code, the canonical ATG and alternative GTG. Here, we analyzed 23 Asteroidea mitogenomes, including ten newly sequenced species and unambiguously identified at least two other start codons, ATT and ATC, both of which also initiate translation of mitochondrial genes in other invertebrates. These findings underscore the diversity of the genetic code and expand upon the suite of initiation codons among echinoderms to avoid erroneous annotations. Our analyses have also uncovered the remarkable conservation of gene order among asteroids, echinoids, and holothuroids, with only an interchange between two gene positions in asteroids over ∼500 Ma of echinoderm evolution.

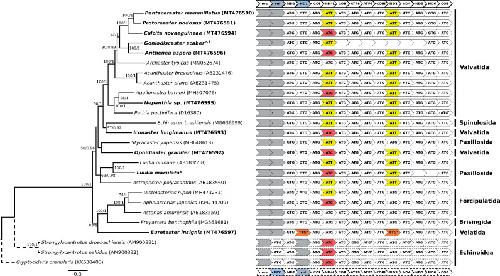

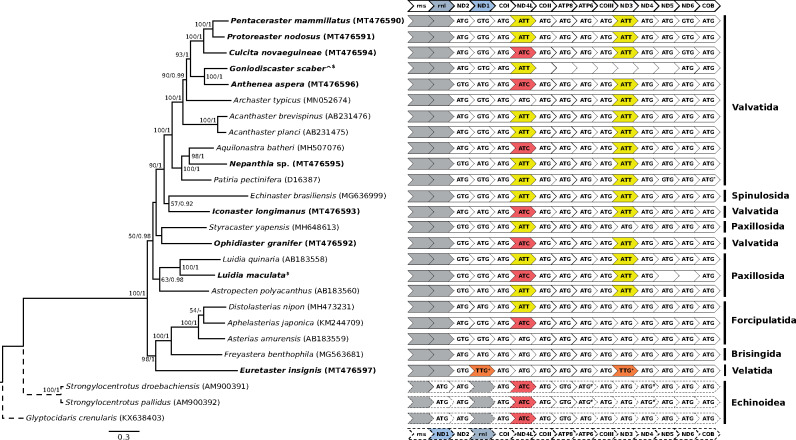

Fig. 1. Maximum likelihood phylogeny of Asteroidea mitochondrial genomes (solid lines) with Echinoidea as outgroup (dotted lines) (left) and mitochondrial initiation codons arranged in gene order (right). Values on nodes represent maximum likelihood bootstrap (â¥50)/posterior probability (â¥0.90) values. Samples sequenced in this study are in bold. ^Two Goniodiscaster scaber samples pooled into a single terminal. */#Annotated as ATT and ATA respectively in GenBank but corrected to ATG (see main text for details). +Possible novel initiation codon but inconclusive (see main text for details). $See Data availability.

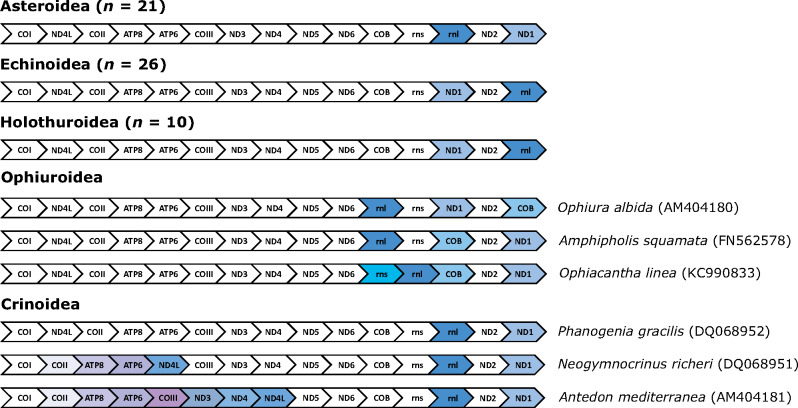

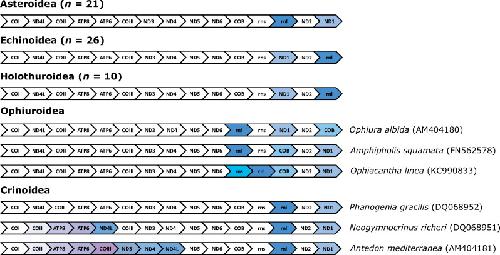

Fig. 2. Mitochondrial gene order among the five living classes of Echinodermata.
Allio,
MitoFinder: Efficient automated large-scale extraction of mitogenomic data in target enrichment phylogenomics.
2020, Pubmed
Allio,
MitoFinder: Efficient automated large-scale extraction of mitogenomic data in target enrichment phylogenomics.
2020,
Pubmed
Asakawa,
Nucleotide sequence and gene organization of the starfish Asterina pectinifera mitochondrial genome.
1995,
Pubmed
,
Echinobase
Bankevich,
SPAdes: a new genome assembly algorithm and its applications to single-cell sequencing.
2012,
Pubmed
Barrell,
A different genetic code in human mitochondria.
1979,
Pubmed
Bernt,
A comprehensive analysis of bilaterian mitochondrial genomes and phylogeny.
2013,
Pubmed
Bernt,
MITOS: improved de novo metazoan mitochondrial genome annotation.
2013,
Pubmed
Bolger,
Trimmomatic: a flexible trimmer for Illumina sequence data.
2014,
Pubmed
Boore,
Big trees from little genomes: mitochondrial gene order as a phylogenetic tool.
1998,
Pubmed
Bronstein,
Mind the gap! The mitochondrial control region and its power as a phylogenetic marker in echinoids.
2018,
Pubmed
,
Echinobase
Cantatore,
The complete nucleotide sequence, gene organization, and genetic code of the mitochondrial genome of Paracentrotus lividus.
1989,
Pubmed
,
Echinobase
Chen,
Extensive gene rearrangements in the mitochondrial genomes of two egg parasitoids, Trichogramma japonicum and Trichogramma ostriniae (Hymenoptera: Chalcidoidea: Trichogrammatidae).
2018,
Pubmed
Crick,
The origin of the genetic code.
1968,
Pubmed
Donath,
Improved annotation of protein-coding genes boundaries in metazoan mitochondrial genomes.
2019,
Pubmed
Fritzsch,
Alignments of mitochondrial genome arrangements: applications to metazoan phylogeny.
2006,
Pubmed
Galaska,
Conservation of mitochondrial genome arrangements in brittle stars (Echinodermata, Ophiuroidea).
2019,
Pubmed
,
Echinobase
Hecht,
Measurements of translation initiation from all 64 codons in E. coli.
2017,
Pubmed
Himeno,
Unusual genetic codes and a novel gene structure for tRNA(AGYSer) in starfish mitochondrial DNA.
1987,
Pubmed
,
Echinobase
Inoue,
An Investigation into the Genetic History of Japanese Populations of Three Starfish, Acanthaster planci, Linckia laevigata, and Asterias amurensis, Based on Complete Mitochondrial DNA Sequences.
2020,
Pubmed
,
Echinobase
Ip,
From marine park to future genomic observatory? Enhancing marine biodiversity assessments using a biocode approach.
2019,
Pubmed
Jacobs,
Nucleotide sequence and gene organization of sea urchin mitochondrial DNA.
1988,
Pubmed
,
Echinobase
Janies,
Echinoderm phylogeny including Xyloplax, a progenetic asteroid.
2011,
Pubmed
,
Echinobase
Lavrov,
Poriferan mtDNA and animal phylogeny based on mitochondrial gene arrangements.
2005,
Pubmed
Lin,
Mitochondrial genome rearrangements in the scleractinia/corallimorpharia complex: implications for coral phylogeny.
2014,
Pubmed
Linchangco,
The phylogeny of extant starfish (Asteroidea: Echinodermata) including Xyloplax, based on comparative transcriptomics.
2017,
Pubmed
,
Echinobase
Lobanov,
Dual functions of codons in the genetic code.
2010,
Pubmed
Mah,
Global diversity and phylogeny of the Asteroidea (Echinodermata).
2012,
Pubmed
,
Echinobase
O'Hara,
Phylogenomic resolution of the class Ophiuroidea unlocks a global microfossil record.
2014,
Pubmed
,
Echinobase
O'Hara,
Restructuring higher taxonomy using broad-scale phylogenomics: The living Ophiuroidea.
2017,
Pubmed
Okimoto,
Evidence for the frequent use of TTG as the translation initiation codon of mitochondrial protein genes in the nematodes, Ascaris suum and Caenorhabditis elegans.
1990,
Pubmed
Oxusoff,
A complete logical approach to resolve the evolution and dynamics of mitochondrial genome in bilaterians.
2018,
Pubmed
Perseke,
Evolution of mitochondrial gene orders in echinoderms.
2008,
Pubmed
,
Echinobase
Quattrini,
Palaeoclimate ocean conditions shaped the evolution of corals and their skeletons through deep time.
2020,
Pubmed
Quek,
Transcriptome-based target-enrichment baits for stony corals (Cnidaria: Anthozoa: Scleractinia).
2020,
Pubmed
Quek,
Complete mitochondrial genome of the sea star Archaster typicus (Asteroidea: Archasteridae).
2019,
Pubmed
,
Echinobase
Ronquist,
MrBayes 3.2: efficient Bayesian phylogenetic inference and model choice across a large model space.
2012,
Pubmed
Scouras,
Complete mitochondrial genome DNA sequence for two ophiuroids and a holothuroid: the utility of protein gene sequence and gene maps in the analyses of deep deuterostome phylogeny.
2004,
Pubmed
,
Echinobase
Shao,
Rates of gene rearrangement and nucleotide substitution are correlated in the mitochondrial genomes of insects.
2003,
Pubmed
Stamatakis,
RAxML version 8: a tool for phylogenetic analysis and post-analysis of large phylogenies.
2014,
Pubmed
Terraneo,
Using ezRAD to reconstruct the complete mitochondrial genome of Porites fontanesii (Cnidaria: Scleractinia).
2018,
Pubmed
Terraneo,
The complete mitochondrial genome of Porites harrisoni (Cnidaria: Scleractinia) obtained using next-generation sequencing.
2018,
Pubmed
Tyagi,
Rearrangement and evolution of mitochondrial genomes in Thysanoptera (Insecta).
2020,
Pubmed
Xu,
The relationship between the rate of molecular evolution and the rate of genome rearrangement in animal mitochondrial genomes.
2006,
Pubmed
Yasuda,
Complete mitochondrial genome sequences for Crown-of-thorns starfish Acanthaster planci and Acanthaster brevispinus.
2006,
Pubmed
,
Echinobase
Yokobori,
Long-term conservation of six duplicated structural genes in cephalopod mitochondrial genomes.
2004,
Pubmed
Yokobori,
Complete nucleotide sequence of the mitochondrial genome of Doliolum nationalis with implications for evolution of urochordates.
2005,
Pubmed
