Nanomaterials (Basel)
2020 Oct 23;1011:. doi: 10.3390/nano10112102.
Show Gene links
Show Anatomy links
Safety Evaluation of TiO2 Nanoparticle-Based Sunscreen UV Filters on the Development and the Immunological State of the Sea Urchin Paracentrotus lividus.
Catalano R
,
Labille J
,
Gaglio D
,
Alijagic A
,
Napodano E
,
Slomberg D
,
Campos A
,
Pinsino A
.
???displayArticle.abstract???
Sunscreens are emulsions of water and oil that contain filters capable of protecting against the detrimental effects of ultraviolet radiation (UV). The widespread use of cosmetic products based on nanoparticulate UV filters has increased concerns regarding their safety and compatibility with both the environment and human health. In the present work, we evaluated the effects of titanium dioxide nanoparticle (TiO2 NP)-based UV filters with three different surface coatings on the development and immunity of the sea urchin, Paracentrotus lividus. A wide range of NP concentrations was analyzed, corresponding to different levels of dilution starting from the original cosmetic dispersion. Variations in surface coating, concentration, particle shape, and pre-dispersant medium (i.e., water or oil) influenced the embryonic development without producing a relevant developmental impairment. The most common embryonic abnormalities were related to the skeletal growth and the presence of a few cells, which were presumably involved in the particle uptake. Adult P. lividus immune cells exposed to silica-coated TiO2 NP-based filters showed a broad metabolic plasticity based on the biosynthesis of metabolites that mediate inflammation, phagocytosis, and antioxidant response. The results presented here highlight the biosafety of the TiO2 NP-based UV filters toward sea urchin, and the importance of developing safer-by-design sunscreens.
671881 European Union's Horizon 2020 research and innovation program under the Marie Skłodowska-Curie grant agreement, 713750 European Union's Horizon 2020 research and innovation program under the Marie Skłodowska-Curie grant agreement, PICS n°08322 SODA Light CNRS, ANR- 11-LABX-0064 Labex Serenade

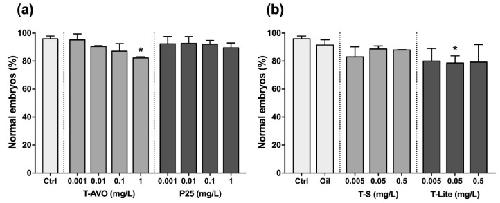

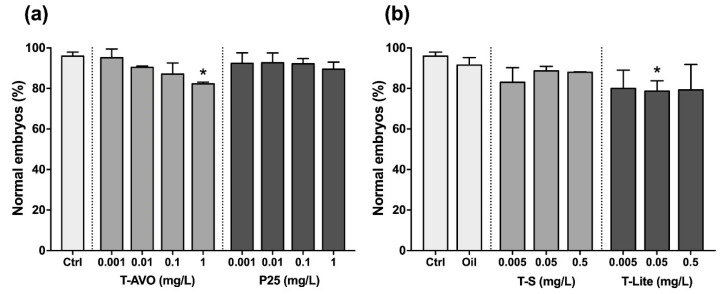

Figure 1. The hydrophilic and hydrophobic TiO2 NP-based UV filters at different concentrations and dispersant phases influence the sea urchin embryonic development without producing a relevant developmental impairment. Histograms represent the results expressed as mean percentage (%) of normal embryos ± standard deviation after 48 h of exposure to the (a) hydrophilic (T-AVO and P25) and (b) hydrophobic (T-S and T-Lite) TiO2 NP-based UV filters. * p < 0.05.
Figure 2. Optical images of representative sea urchin Paracentrotus lividus exposed to TiO2 NP-based UV filters. Black arrows indicate decrease or increase in arm growth and supporting skeletal rods. Red arrows indicate crossed or separated tips at the hood apex arms. Blue arrows indicate the atypical big cells found in abnormally developed embryos.

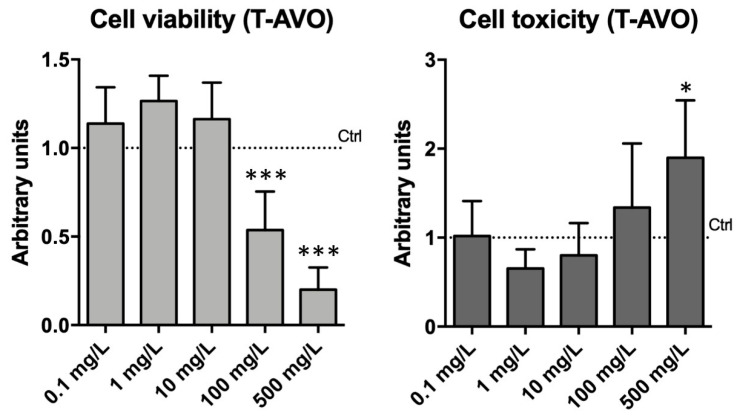

Figure 3. Impact of T-AVO UV filters on the sea urchin immune cell viability and toxicity. Real-time viability over two days of continuous monitoring, of which one measurement point (48) is shown (0.1, 1, 10, 100, 500 mg/L final concentration). The highest doses (100 and 500 mg/L) provoked decreases in cell viability and increase in cell toxicity. Levels are expressed in arbitrary units as fold increase or decrease compared to controls assumed as 1 (dot line). Data are reported as the mean ± SD; stars (*) indicate significant differences among groups (* p < 0.05; *** p < 0.001).

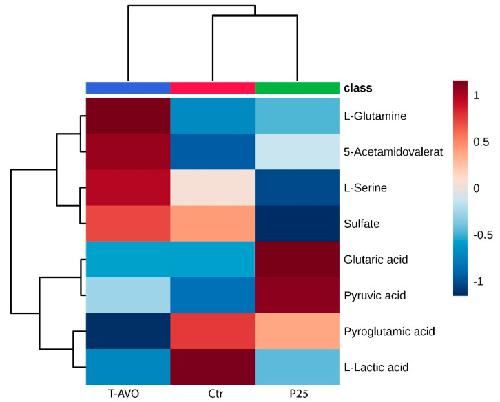

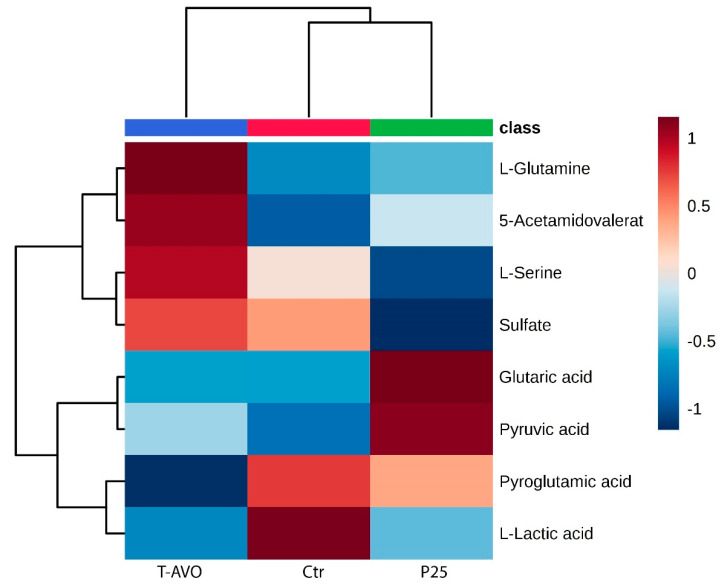

Figure 4. Sea urchin immune cell metabolic profile under hydrophilic nano-TiO2-based UV filters. Untargeted metabolic profiling of T-AVO and P25 exposed for one day at 2 mg/L and for two days at 1 mg/L and unexposed immune cells (Ctr) for 72 h. Hierarchical clustering heatmaps display significantly (p ⤠0.05) different intracellular metabolites by LC-MS. Metabolic typing was performed on P. lividus primary immune cell cultures obtained from five individual donors.

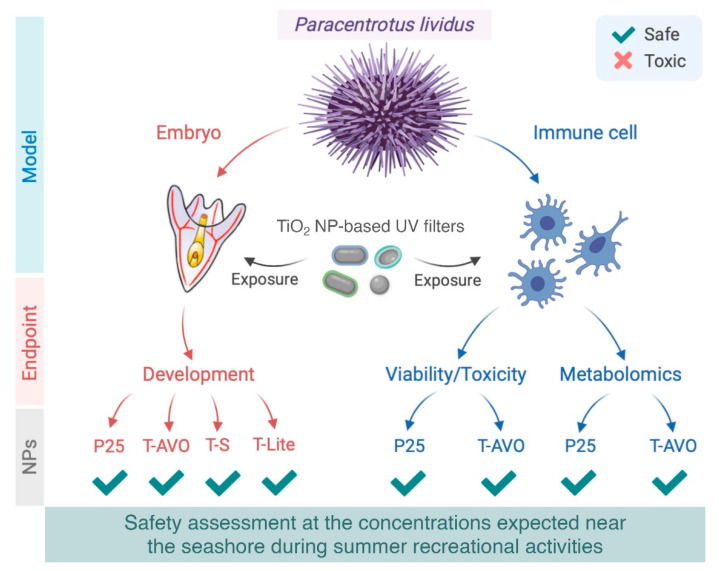

Figure 5. Schematic illustration of the results obtained from the evaluation of the TiO2 NP-based sunscreen UV filters on the development and the immunological state of the sea urchin Paracentrotus lividus. Models: Sea urchin embryos and adult P. lividus immune cells in vitro. Endpoints: Sea urchin embryos at the pluteus stage (48 h), immune cell viability/toxicity (48 h), and metabolomics (72 h). Commercial nanoparticulate UV filters with three surface coatings: T-S, T-Lite, and T-AVO tested on embryonic development and T-AVO on immune cells. P25 was used as an uncoated nano-TiO2 reference. The results presented here highlight the biosafety of TiO2 NP-based UV filters on sea urchin, and the importance of developing safer-by-design sunscreens and evaluating the associated risk. Created by Andi Alijagic using BioRender.com.
Alijagic,
Titanium dioxide nanoparticles temporarily influence the sea urchin immunological state suppressing inflammatory-relate gene transcription and boosting antioxidant metabolic activity.
2020, Pubmed,
Echinobase
Alijagic,
Titanium dioxide nanoparticles temporarily influence the sea urchin immunological state suppressing inflammatory-relate gene transcription and boosting antioxidant metabolic activity.
2020,
Pubmed
,
Echinobase
Alijagic,
Gold nanoparticles coated with polyvinylpyrrolidone and sea urchin extracellular molecules induce transient immune activation.
2021,
Pubmed
,
Echinobase
Alijagic,
Sea Urchin Extracellular Proteins Design a Complex Protein Corona on Titanium Dioxide Nanoparticle Surface Influencing Immune Cell Behavior.
2019,
Pubmed
,
Echinobase
Auffan,
Towards a definition of inorganic nanoparticles from an environmental, health and safety perspective.
2009,
Pubmed
Bols,
Invitromatics, invitrome, and invitroomics: introduction of three new terms for in vitro biology and illustration of their use with the cell lines from rainbow trout.
2017,
Pubmed
Botta,
TiO₂-based nanoparticles released in water from commercialized sunscreens in a life-cycle perspective: structures and quantities.
2011,
Pubmed
Carballeira,
Identification of specific malformations of sea urchin larvae for toxicity assessment: application to marine pisciculture effluents.
2012,
Pubmed
,
Echinobase
Cole,
Metal oxide sunscreens protect skin by absorption, not by reflection or scattering.
2016,
Pubmed
Corinaldesi,
Impact of inorganic UV filters contained in sunscreen products on tropical stony corals (Acropora spp.).
2018,
Pubmed
Downs,
Toxicopathological Effects of the Sunscreen UV Filter, Oxybenzone (Benzophenone-3), on Coral Planulae and Cultured Primary Cells and Its Environmental Contamination in Hawaii and the U.S. Virgin Islands.
2016,
Pubmed
Fent,
A tentative environmental risk assessment of the UV-filters 3-(4-methylbenzylidene-camphor), 2-ethyl-hexyl-4-trimethoxycinnamate, benzophenone-3, benzophenone-4 and 3-benzylidene camphor.
2010,
Pubmed
Foltyn,
Serine racemase modulates intracellular D-serine levels through an alpha,beta-elimination activity.
2005,
Pubmed
Gambardella,
Developmental abnormalities and changes in cholinesterase activity in sea urchin embryos and larvae from sperm exposed to engineered nanoparticles.
2013,
Pubmed
,
Echinobase
Ganeshan,
Metabolic regulation of immune responses.
2014,
Pubmed
Gerloff,
Distinctive toxicity of TiO2 rutile/anatase mixed phase nanoparticles on Caco-2 cells.
2012,
Pubmed
Giese,
Risks, Release and Concentrations of Engineered Nanomaterial in the Environment.
2018,
Pubmed
He,
l-Serine Lowers the Inflammatory Responses during Pasteurella multocida Infection.
2019,
Pubmed
Labille,
Stability of nanoparticles in water.
2010,
Pubmed
Labille,
Assessing UV filter inputs into beach waters during recreational activity: A field study of three French Mediterranean beaches from consumer survey to water analysis.
2020,
Pubmed
Li,
Computational investigation of interaction between nanoparticles and membranes: hydrophobic/hydrophilic effect.
2008,
Pubmed
Magesky,
Toxicity mechanisms of ionic silver and polymer-coated silver nanoparticles with interactions of functionalized carbon nanotubes on early development stages of sea urchin.
2015,
Pubmed
,
Echinobase
Matta,
Effect of Sunscreen Application Under Maximal Use Conditions on Plasma Concentration of Sunscreen Active Ingredients: A Randomized Clinical Trial.
2019,
Pubmed
Miller,
Impacts of metal oxide nanoparticles on marine phytoplankton.
2010,
Pubmed
Minetto,
Ecotoxicity of engineered TiO2 nanoparticles to saltwater organisms: an overview.
2014,
Pubmed
Paredes,
Ecotoxicological evaluation of four UV filters using marine organisms from different trophic levels Isochrysis galbana, Mytilus galloprovincialis, Paracentrotus lividus, and Siriella armata.
2014,
Pubmed
,
Echinobase
Pederzolli,
Acute administration of 5-oxoproline induces oxidative damage to lipids and proteins and impairs antioxidant defenses in cerebral cortex and cerebellum of young rats.
2010,
Pubmed
Pinsino,
Sea urchin immune cells as sentinels of environmental stress.
2015,
Pubmed
,
Echinobase
Pinsino,
Amino-modified polystyrene nanoparticles affect signalling pathways of the sea urchin (Paracentrotus lividus) embryos.
2017,
Pubmed
,
Echinobase
Pinsino,
Sea urchin Paracentrotus lividus immune cells in culture: formulation of the appropriate harvesting and culture media and maintenance conditions.
2019,
Pubmed
,
Echinobase
Rani,
Acetamides: chemotherapeutic agents for inflammation-associated cancers.
2016,
Pubmed
Ratter,
In vitro and in vivo Effects of Lactate on Metabolism and Cytokine Production of Human Primary PBMCs and Monocytes.
2018,
Pubmed
Schneider,
A review of inorganic UV filters zinc oxide and titanium dioxide.
2019,
Pubmed
Slomberg,
Aqueous aging of a silica coated TiO2 UV filter used in sunscreens: investigations at the molecular scale with dynamic nuclear polarization NMR.
2020,
Pubmed
Tolaymat,
Analysis of metallic and metal oxide nanomaterial environmental emissions.
2017,
Pubmed
Tovar-Sánchez,
Sunscreen products as emerging pollutants to coastal waters.
2013,
Pubmed
Yung,
Salinity-dependent toxicities of zinc oxide nanoparticles to the marine diatom Thalassiosira pseudonana.
2015,
Pubmed
Ziental,
Titanium Dioxide Nanoparticles: Prospects and Applications in Medicine.
2020,
Pubmed
