Sci Rep
2021 Jan 11;111:346. doi: 10.1038/s41598-020-79436-2.
Show Gene links
Show Anatomy links
Transcriptomic analysis of early stages of intestinal regeneration in Holothuria glaberrima.
Quispe-Parra DJ
,
Medina-Feliciano JG
,
Cruz-González S
,
Ortiz-Zuazaga H
,
García-Arrarás JE
.
???displayArticle.abstract???
Echinoderms comprise a group of animals with impressive regenerative capabilities. They can replace complex internal organs following injury or autotomy. In holothurians or sea cucumbers, cellular processes of intestinal regeneration have been extensively studied. The molecular machinery behind this faculty, however, remains to be understood. Here we assembled and annotated a de novo transcriptome using RNA-seq data consisting of regenerating and non-regenerating intestinal tissues from the sea cucumber Holothuria glaberrima. Comparisons of differential expression were made using the mesentery as a reference against 24 h and 3 days regenerating intestine, revealing a large number of differentially expressed transcripts. Gene ontology and pathway enrichment analysis showed evidence of increasing transcriptional activity. Further analysis of transcripts associated with transcription factors revealed diverse expression patterns with mechanisms involving developmental and cancer-related activity that could be related to the regenerative process. Our study demonstrates the broad and diversified gene expression profile during the early stages of the process using the mesentery as the focal point of intestinal regeneration. It also establishes the genes that are the most important candidates in the cellular processes that underlie regenerative responses.

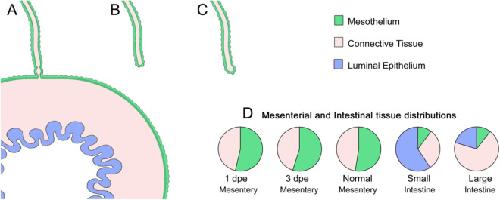

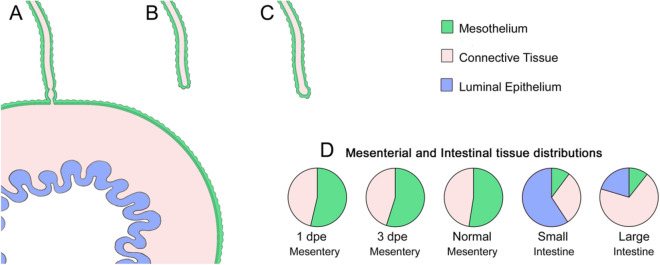

Figure 1. Diagram illustrating the intestine composition of normal and regenerating stages in H. glaberrima. (A) Normal intestine and attached mesentery. The other end of the mesentery (not shown) is attached to the body wall. (B) Mesentery one day after evisceration of the intestine. (C) Mesentery three days following evisceration Distribution of tissues in normal intestine and mesentery and in regenerating mesentery/intestine at 1 and 3Â days post-evisceration (dpe).

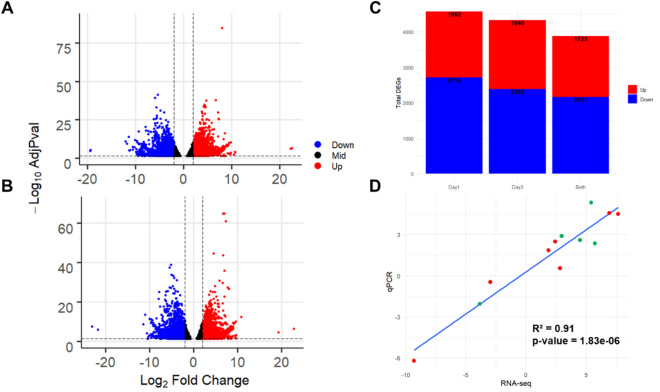

Figure 2. Gene expression patterns of RNA-seq and correlation with RT-qPCR. (A) Volcano plot of differentially expressed transcripts (DETs) at day 1 of regeneration. (B) Volcano plot of DETs at day 3 of regeneration. (C) Bar plots show upregulated and downregulated DETs in one or both days of regeneration. (D) Plot showing correlation line, squared Pearson correlation coefficient and p-value between 12 expression values (Log2FC) of seven genes in regeneration stages compared to the normal stage. RNA-seq values are located in the x axis and RT-qPCR values are located on the y axis. Green colored points are from day 1 values, while red colored are from day 3.

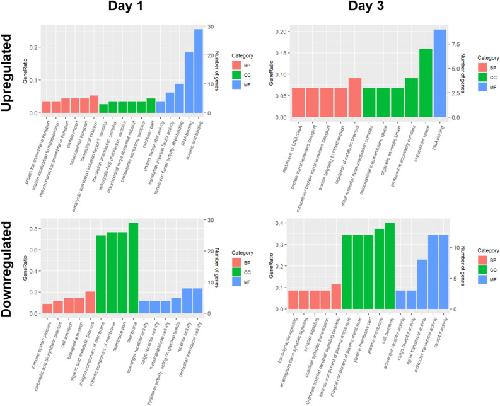

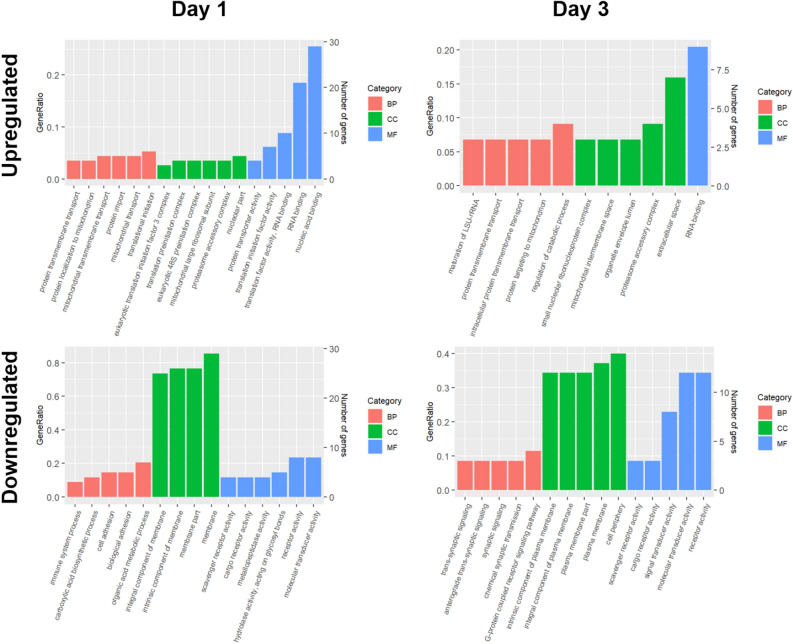

Figure 3. Gene ontology enrichment analysis of differentially expressed genes (DEGs) at day 1 and day 3 of regeneration using DAVID database. Ontology domains comprise biological process (BP), cellular component (CC) and molecular function (MF). The GeneRation is a measure of the gene count divided by the number of genes in the total group of genes assayed that belong to the specific gene category.

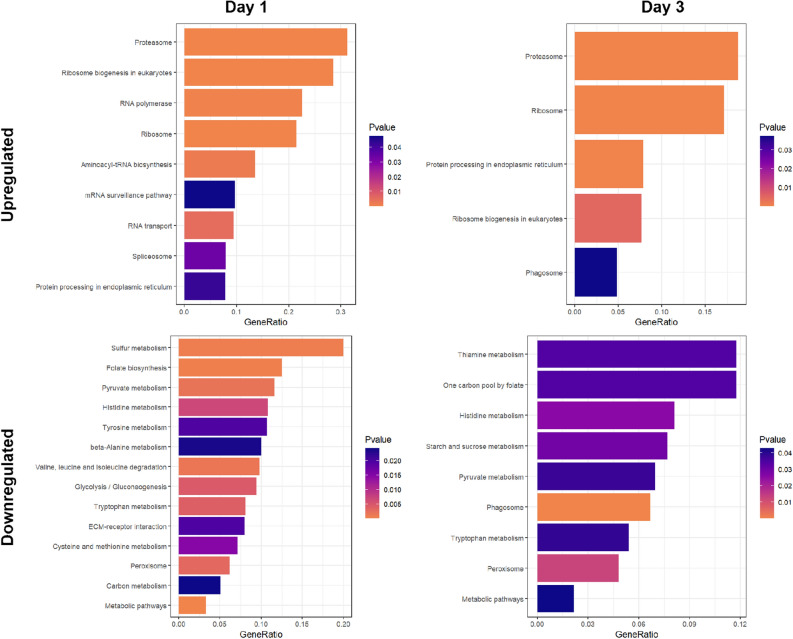

Figure 4. Pathway enrichment analysis of differentially expressed genes (DEGs) at day 1 and day 3 of regeneration using KEGG database. The GeneRation is a measure of the number of genes in the differentially expressed set divided by the total number of genes for that specific pathway found in KEGG.

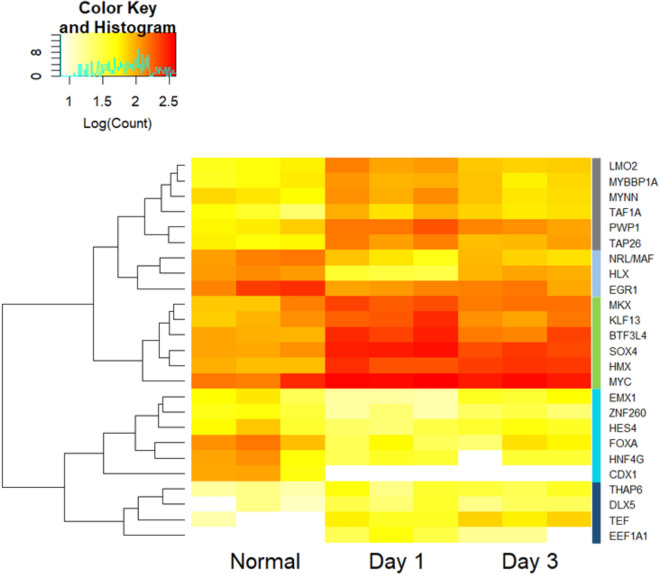

Figure 5. Heatmap of differentially expressed transcription factors (DETFs) in non-regenerating stage mesentery (Normal), and regenerating (days 1 3) intestines. DETFs showing a similar expression profiles are grouped in the dendrogram and labeled by colors in the right part of the heatmap. Logarithm count measures for expression values encompass non-negative integer values from the expression analysis.
Alibardi,
Review: Limb regeneration in humans: Dream or reality?
2018, Pubmed
Alibardi,
Review: Limb regeneration in humans: Dream or reality?
2018,
Pubmed
Arenas-Mena,
Spatial expression of Hox cluster genes in the ontogeny of a sea urchin.
2000,
Pubmed
,
Echinobase
Bates,
The Hlx homeobox transcription factor is required early in enteric nervous system development.
2006,
Pubmed
Bely,
Evolution of animal regeneration: re-emergence of a field.
2010,
Pubmed
Bianchetti,
Structure of the C-terminal heme-binding domain of THAP domain containing protein 4 from Homo sapiens.
2011,
Pubmed
Bolger,
Trimmomatic: a flexible trimmer for Illumina sequence data.
2014,
Pubmed
Boyko,
The Eupentacta fraudatrix transcriptome provides insights into regulation of cell transdifferentiation.
2020,
Pubmed
,
Echinobase
Brockstedt,
Preparative high-resolution two-dimensional electrophoresis enables the identification of RNA polymerase B transcription factor 3 as an apoptosis-associated protein in the human BL60-2 Burkitt lymphoma cell line.
1999,
Pubmed
Candelaria,
Contribution of mesenterial muscle dedifferentiation to intestine regeneration in the sea cucumber Holothuria glaberrima.
2006,
Pubmed
,
Echinobase
Cifuentes-Diaz,
Neuromuscular expression of the BTB/POZ and zinc finger protein myoneurin.
2004,
Pubmed
Crusoe,
The khmer software package: enabling efficient nucleotide sequence analysis.
2015,
Pubmed
Davidson,
Corset: enabling differential gene expression analysis for de novo assembled transcriptomes.
2014,
Pubmed
Debrus,
The zinc finger-only protein Zfp260 is a novel cardiac regulator and a nuclear effector of alpha1-adrenergic signaling.
2005,
Pubmed
Drolet,
TEF, a transcription factor expressed specifically in the anterior pituitary during embryogenesis, defines a new class of leucine zipper proteins.
1991,
Pubmed
Ferrario,
Fundamental aspects of arm repair phase in two echinoderm models.
2018,
Pubmed
,
Echinobase
Finn,
Pfam: the protein families database.
2014,
Pubmed
Foronda,
Sox4 links tumor suppression to accelerated aging in mice by modulating stem cell activation.
2014,
Pubmed
Forsthoefel,
Stem cell-based growth, regeneration, and remodeling of the planarian intestine.
2011,
Pubmed
Forsthoefel,
Cell-type diversity and regionalized gene expression in the planarian intestine.
2020,
Pubmed
Friedrich,
TBP-TAF complex SL1 directs RNA polymerase I pre-initiation complex formation and stabilizes upstream binding factor at the rDNA promoter.
2005,
Pubmed
Fukazawa,
Suppression of the immune response potentiates tadpole tail regeneration during the refractory period.
2009,
Pubmed
García-Arrarás,
The mesentery as the epicenter for intestinal regeneration.
2019,
Pubmed
,
Echinobase
García-Arrarás,
Cell dedifferentiation and epithelial to mesenchymal transitions during intestinal regeneration in H. glaberrima.
2011,
Pubmed
,
Echinobase
García-Arrarás,
Cellular mechanisms of intestine regeneration in the sea cucumber, Holothuria glaberrima Selenka (Holothuroidea:Echinodermata).
1998,
Pubmed
,
Echinobase
García-Arrarás,
Echinoderms: potential model systems for studies on muscle regeneration.
2010,
Pubmed
,
Echinobase
Grabherr,
Full-length transcriptome assembly from RNA-Seq data without a reference genome.
2011,
Pubmed
Griffiths-Jones,
Rfam: an RNA family database.
2003,
Pubmed
Heid,
Real time quantitative PCR.
1996,
Pubmed
Hernández-Pasos,
Melanotransferrin: New Homolog Genes and Their Differential Expression during Intestinal Regeneration in the Sea Cucumber Holothuria glaberrima.
2017,
Pubmed
,
Echinobase
Hernroth,
Possibility of mixed progenitor cells in sea star arm regeneration.
2010,
Pubmed
,
Echinobase
Hochstatter,
Myb-binding protein 1a (Mybbp1a) regulates levels and processing of pre-ribosomal RNA.
2012,
Pubmed
Hollnagel,
The cell adhesion molecule M-cadherin is not essential for muscle development and regeneration.
2002,
Pubmed
Huang,
The DAVID Gene Functional Classification Tool: a novel biological module-centric algorithm to functionally analyze large gene lists.
2007,
Pubmed
Jayaram,
Focus on molecules: neural retina leucine zipper (NRL).
2012,
Pubmed
Jiang,
Microtubule motors transport phagosomes in the RPE, and lack of KLC1 leads to AMD-like pathogenesis.
2015,
Pubmed
Keller,
Phagosomal transport depends strongly on phagosome size.
2017,
Pubmed
Kitajima,
The Ubiquitin-Proteasome System Is Indispensable for the Maintenance of Muscle Stem Cells.
2018,
Pubmed
Lai,
EvoRegen in animals: Time to uncover deep conservation or convergence of adult stem cell evolution and regenerative processes.
2018,
Pubmed
Lee,
The initiation of liver development is dependent on Foxa transcription factors.
2005,
Pubmed
Liu,
The atypical homeodomain transcription factor Mohawk controls tendon morphogenesis.
2010,
Pubmed
Love,
Amputation-induced reactive oxygen species are required for successful Xenopus tadpole tail regeneration.
2013,
Pubmed
Love,
Moderated estimation of fold change and dispersion for RNA-seq data with DESeq2.
2014,
Pubmed
Mashanov,
Visceral regeneration in a sea cucumber involves extensive expression of survivin and mortalin homologs in the mesothelium.
2010,
Pubmed
,
Echinobase
Mashanov,
Active Notch signaling is required for arm regeneration in a brittle star.
2020,
Pubmed
,
Echinobase
Mashanov,
Gut regeneration in holothurians: a snapshot of recent developments.
2011,
Pubmed
,
Echinobase
Mashanov,
Transcriptomic changes during regeneration of the central nervous system in an echinoderm.
2014,
Pubmed
,
Echinobase
Mashanov,
Expression of pluripotency factors in echinoderm regeneration.
2015,
Pubmed
,
Echinobase
Mashanov,
Myc regulates programmed cell death and radial glia dedifferentiation after neural injury in an echinoderm.
2015,
Pubmed
,
Echinobase
Mashanov,
Expression of Wnt9, TCTP, and Bmp1/Tll in sea cucumber visceral regeneration.
2012,
Pubmed
,
Echinobase
Méndez,
Identification of Hox Gene Sequences in the Sea Cucumber Holothuria glaberrima Selenka (Holothuroidea: Echinodermata).
2000,
Pubmed
,
Echinobase
Meng,
LIM Domain Only 2 Regulates Endothelial Proliferation, Angiogenesis, and Tissue Regeneration.
2016,
Pubmed
Mori,
Myb-binding protein 1A (MYBBP1A) is essential for early embryonic development, controls cell cycle and mitosis, and acts as a tumor suppressor.
2012,
Pubmed
Mosteiro,
Tissue damage and senescence provide critical signals for cellular reprogramming in vivo.
2016,
Pubmed
Müller-Taubenberger,
Calreticulin and calnexin in the endoplasmic reticulum are important for phagocytosis.
2001,
Pubmed
Nieves-Ríos,
The nervous system component of the mesentery of the sea cucumber Holothuria glaberrima in normal and regenerating animals.
2020,
Pubmed
,
Echinobase
Ortiz-Pineda,
Gene expression profiling of intestinal regeneration in the sea cucumber.
2009,
Pubmed
,
Echinobase
Oviedo,
Regeneration: The origin of cancer or a possible cure?
2009,
Pubmed
Pasten,
Ubiquitin-proteasome system components are upregulated during intestinal regeneration.
2012,
Pubmed
,
Echinobase
Pearson,
Krüppel-like transcription factors: a functional family.
2008,
Pubmed
Pirotte,
Reactive Oxygen Species in Planarian Regeneration: An Upstream Necessity for Correct Patterning and Brain Formation.
2015,
Pubmed
Ponti,
The transcription factor EGR1 localizes to the nucleolus and is linked to suppression of ribosomal precursor synthesis.
2014,
Pubmed
Quispe-Parra,
A roadmap for intestinal regeneration.
2021,
Pubmed
,
Echinobase
Reinardy,
Tissue regeneration and biomineralization in sea urchins: role of Notch signaling and presence of stem cell markers.
2015,
Pubmed
,
Echinobase
Ritchie,
limma powers differential expression analyses for RNA-sequencing and microarray studies.
2015,
Pubmed
Rojas-Cartagena,
Distinct profiles of expressed sequence tags during intestinal regeneration in the sea cucumber Holothuria glaberrima.
2007,
Pubmed
,
Echinobase
San Miguel-Ruiz,
Regeneration of the radial nerve cord in the sea cucumber Holothuria glaberrima.
2009,
Pubmed
,
Echinobase
San Miguel-Ruiz,
Common cellular events occur during wound healing and organ regeneration in the sea cucumber Holothuria glaberrima.
2007,
Pubmed
,
Echinobase
Santiago,
Serum amyloid A protein in an echinoderm: its primary structure and expression during intestinal regeneration in the sea cucumber Holothuria glaberrima.
2000,
Pubmed
,
Echinobase
Seppey,
BUSCO: Assessing Genome Assembly and Annotation Completeness.
2019,
Pubmed
Silberg,
Cdx1 and cdx2 expression during intestinal development.
2000,
Pubmed
Suárez-Castillo,
Ependymin, a gene involved in regeneration and neuroplasticity in vertebrates, is overexpressed during regeneration in the echinoderm Holothuria glaberrima.
2004,
Pubmed
,
Echinobase
Sun,
RNA-Seq reveals dynamic changes of gene expression in key stages of intestine regeneration in the sea cucumber Apostichopus japonicus. [corrected].
2013,
Pubmed
,
Echinobase
Supek,
REVIGO summarizes and visualizes long lists of gene ontology terms.
2011,
Pubmed
Suzek,
UniRef: comprehensive and non-redundant UniProt reference clusters.
2007,
Pubmed
Takahashi,
Induction of pluripotent stem cells from mouse embryonic and adult fibroblast cultures by defined factors.
2006,
Pubmed
Talkish,
Ribosome assembly factors Pwp1 and Nop12 are important for folding of 5.8S rRNA during ribosome biogenesis in Saccharomyces cerevisiae.
2014,
Pubmed
Tsukamoto,
Challenging Regeneration to Transform Medicine.
2016,
Pubmed
Vera,
The translation elongation factor eEF1A1 couples transcription to translation during heat shock response.
2014,
Pubmed
Wang,
Expression of HNF4G and its potential functions in lung cancer.
2018,
Pubmed
Waterhouse,
OrthoDB: a hierarchical catalog of animal, fungal and bacterial orthologs.
2013,
Pubmed
Willis,
Sent to destroy: the ubiquitin proteasome system regulates cell signaling and protein quality control in cardiovascular development and disease.
2010,
Pubmed
Zhang,
Actin-based phagosome motility.
2002,
Pubmed
Zhang,
Reactive oxygen species generated from skeletal muscles are required for gecko tail regeneration.
2016,
Pubmed
