Sci Rep
2021 May 27;111:11244. doi: 10.1038/s41598-021-90564-1.
Show Gene links
Show Anatomy links
A novel system for intensive Diadema antillarum propagation as a step towards population enhancement.
Pilnick AR
,
O'Neil KL
,
Moe M
,
Patterson JT
.
???displayArticle.abstract???
The long-spined sea urchin Diadema antillarum was once an abundant reef grazing herbivore throughout the Caribbean. During the early 1980s, D. antillarum populations were reduced by > 93% due to an undescribed disease. This event resulted in a lack of functional reef herbivory and contributed to ongoing ecological shifts from hard coral towards macroalgae dominated reefs. Limited natural recovery has increased interest in a range of strategies for augmenting herbivory. An area of focus has been developing scalable ex situ methods for rearing D. antillarum from gametes. The ultimate use of such a tool would be exploring hatchery origin restocking strategies. Intensive ex situ aquaculture is a potentially viable, yet difficult, method for producing D. antillarum at scales necessary to facilitate restocking. Here we describe a purpose-built, novel recirculating aquaculture system and the broodstock management and larval culture process that has produced multiple D. antillarum cohorts, and which has the potential for practical application in a dedicated hatchery setting. Adult animals held in captivity can be induced to spawn year-round, with some evidence for annual and lunar periodicity. Fecundity and fertilization rates are both consistently very high, yet challenges persist in both late stage larval development and early post-settlement survival. Initial success was realized with production of 100 juvenile D. antillarum from ~ 1200 competent larvae. While the system we describe requires a significant level of investment and technical expertise, this work advances D. antillarum culture efforts in potential future hatchery settings and improves the viability of scalable ex situ production for population enhancement.

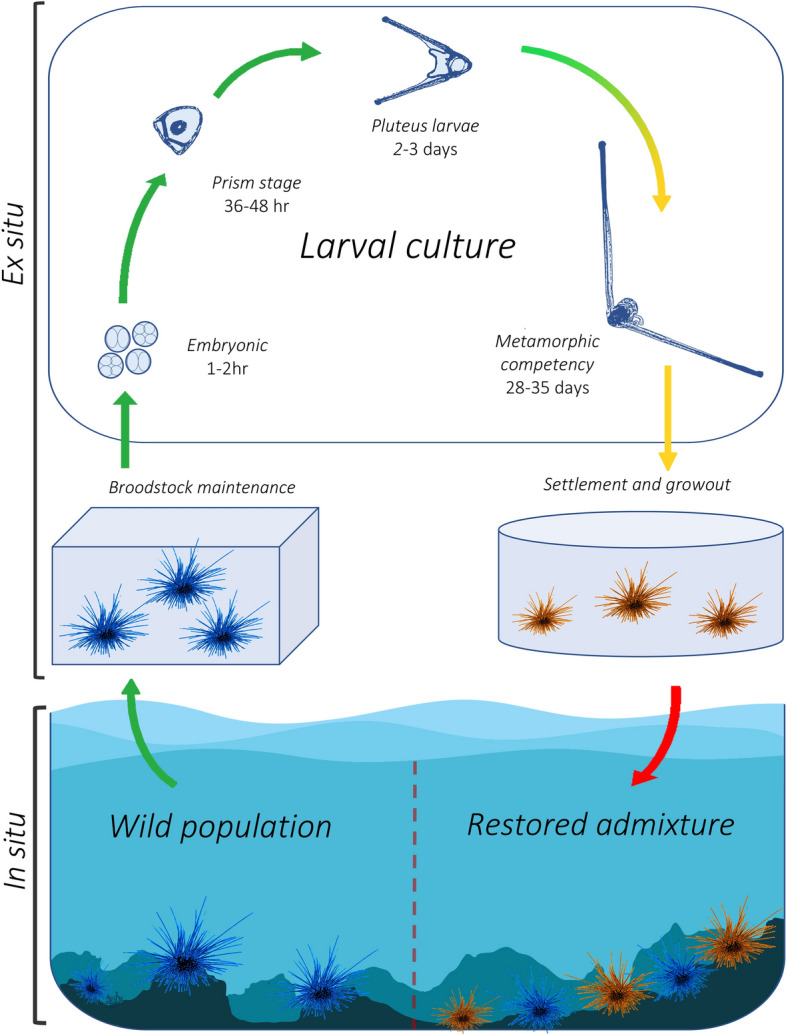

Figure 1. Conceptual model illustrating D. antillarum restocking via hatchery produced animals. Stages include in situ broodstock collection from wild populations, ex situ broodstock maintenance, larval development within scalable hatchery production settings, settlement and juvenile growout, and in situ restocking on targeted coral reefs. Arrow colors depict current levels of success in achieving each stage; greenâ=âachieved reliably at large scale, yellowâ=âachieved somewhat reliably at reduced scale, redâ=ânot yet tested. The transition from green to yellow depicts a shift from reliable, successful production of hundreds of thousands of late-stage larvae to relatively fewer metamorphically competent larvae at 28â35 DPF (days post fertilization). Figure by Joseph A. Henry.

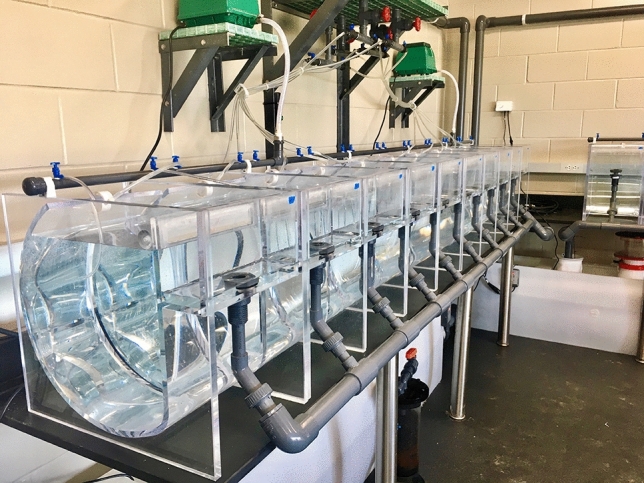

Figure 2. Photograph depicting configuration of the 1800-L recirculating larviculture system used to rear D. antillarum larvae.

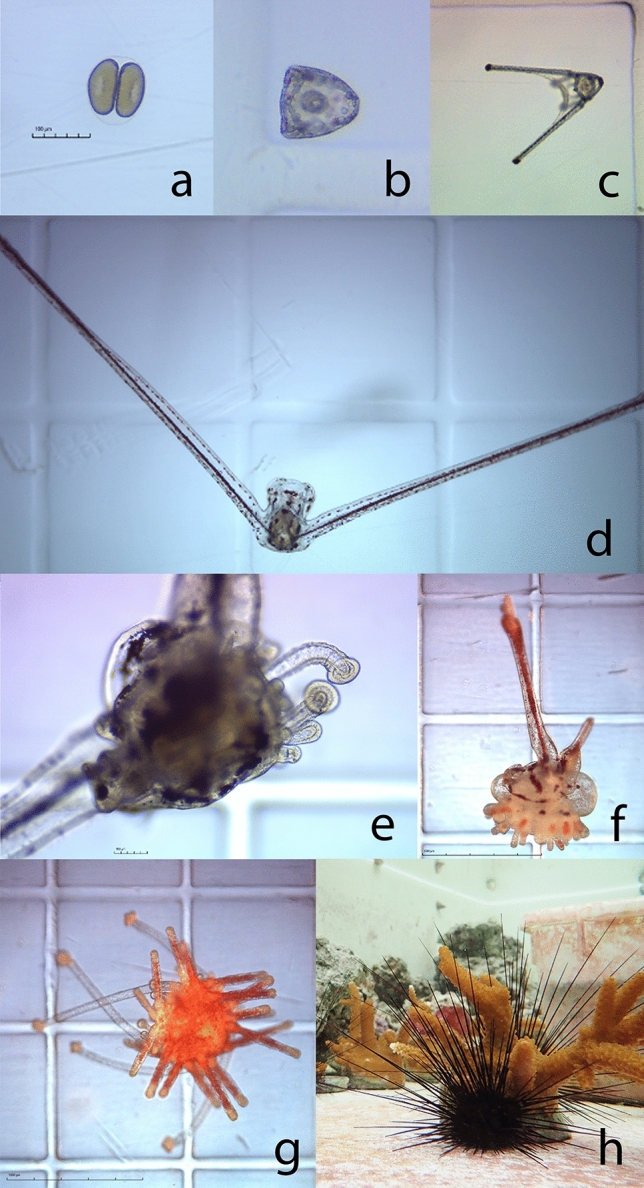

Figure 3. Representative photographs of D. antillarum development at (a) 2 h post fertilization, first cell division, Dâ=â80 µm, (b) 36 h post fertilization, late gastrula/prism, mid body length (MBL)â=â85 µm, (c) 3 d post fertilization, early pluteus larvae, MBLâ=â90 µm, appendage length (AL)â=â190 µm, (d) 21 d post fertilization, 4-armed echinopluteus transversus larvae, MBLâ=â250 µm, ALâ=â2000 µm, (e) 28 d post fertilization, metamorphically competent late pluteus larvae with adult rudiment and extended tube feet, MBLâ=â600 µm, (f) 36 d post fertilization, mid-metamorphic radially symmetrical juvenile resorbing bilaterally symmetrical larval structure, Dâ=â850 µm, (g) 36 d post fertilization, settled juvenile, Dâ=â900 µm, (h) 248 d post fertilization, hatchery reared D. antillarum, Dâ=â1â3 cm.
Abelson,
Upgrading Marine Ecosystem Restoration Using Ecological-Social Concepts.
2016, Pubmed
Abelson,
Upgrading Marine Ecosystem Restoration Using Ecological-Social Concepts.
2016,
Pubmed
Bielmyer,
The effects of metals on embryo-larval and adult life stages of the sea urchin, Diadema antillarum.
2005,
Pubmed
,
Echinobase
Boström-Einarsson,
Coral restoration - A systematic review of current methods, successes, failures and future directions.
2020,
Pubmed
Carpenter,
Mass mortality of a Caribbean sea urchin: Immediate effects on community metabolism and other herbivores.
1988,
Pubmed
,
Echinobase
Downs,
Toxicopathological Effects of the Sunscreen UV Filter, Oxybenzone (Benzophenone-3), on Coral Planulae and Cultured Primary Cells and Its Environmental Contamination in Hawaii and the U.S. Virgin Islands.
2016,
Pubmed
Duarte,
Rebuilding marine life.
2020,
Pubmed
Feehan,
Fertilization limitation of Diadema antillarum on coral reefs in the Florida Keys.
2016,
Pubmed
,
Echinobase
Gardner,
Long-term region-wide declines in Caribbean corals.
2003,
Pubmed
Gaylord,
Turbulent shear spurs settlement in larval sea urchins.
2013,
Pubmed
,
Echinobase
Hodin,
Culturing echinoderm larvae through metamorphosis.
2019,
Pubmed
,
Echinobase
Hoegh-Guldberg,
Coral reefs under rapid climate change and ocean acidification.
2007,
Pubmed
Hughes,
Rising to the challenge of sustaining coral reef resilience.
2010,
Pubmed
Krinsky,
The antioxidant and biological properties of the carotenoids.
1998,
Pubmed
Lessios,
The Great Diadema antillarum Die-Off: 30 Years Later.
2016,
Pubmed
,
Echinobase
Lessios,
Mass mortalities of coral reff organisms.
1983,
Pubmed
Lessios,
Spread of diadema mass mortality through the Caribbean.
1984,
Pubmed
,
Echinobase
Lirman,
Ecological solutions to reef degradation: optimizing coral reef restoration in the Caribbean and Western Atlantic.
2016,
Pubmed
Lorenzen,
Understanding and managing enhancements: why fisheries scientists should care.
2014,
Pubmed
Miller,
Reef-scale trends in Florida Acropora spp. abundance and the effects of population enhancement.
2016,
Pubmed
Mos,
Do cues matter? Highly inductive settlement cues don't ensure high post-settlement survival in sea urchin aquaculture.
2011,
Pubmed
,
Echinobase
Nadella,
Toxicity of lead and zinc to developing mussel and sea urchin embryos: critical tissue residues and effects of dissolved organic matter and salinity.
2013,
Pubmed
,
Echinobase
Neilson,
Herbivore biocontrol and manual removal successfully reduce invasive macroalgae on coral reefs.
2018,
Pubmed
,
Echinobase
Osinga,
The biology and economics of coral growth.
2011,
Pubmed
Phillips,
Toxicity of cadmium-copper-nickel-zinc mixtures to larval purple sea urchins (Strongylocentrotus purpuratus).
2003,
Pubmed
,
Echinobase
Possingham,
Optimal conservation outcomes require both restoration and protection.
2015,
Pubmed
Radenac,
Bioaccumulation and toxicity of four dissolved metals in Paracentrotus lividus sea-urchin embryo.
2001,
Pubmed
,
Echinobase
Reuter,
Influence of sperm and phytoplankton on spawning in the echinoid Lytechinus variegatus.
2010,
Pubmed
,
Echinobase
Rocha,
Cnidarians as a source of new marine bioactive compounds--an overview of the last decade and future steps for bioprospecting.
2011,
Pubmed
,
Echinobase
Ware,
Survivorship and growth in staghorn coral (Acropora cervicornis) outplanting projects in the Florida Keys National Marine Sanctuary.
2020,
Pubmed
Westbrook,
Survivorship and feeding preferences among size classes of outplanted sea urchins, Tripneustes gratilla, and possible use as biocontrol for invasive alien algae.
2015,
Pubmed
,
Echinobase
