AMB Express
2019 Dec 05;91:197. doi: 10.1186/s13568-019-0917-z.
Show Gene links
Show Anatomy links
Effect of the luxI/R gene on AHL-signaling molecules and QS regulatory mechanism in Hafnia alvei H4.
Li X
,
Zhang G
,
Zhu Y
,
Bi J
,
Hao H
,
Hou H
.
???displayArticle.abstract???
Hafnia alvei H4 is a bacterium subject to regulation by a N-acyl-l-homoserine lactone (AHL)-mediated quorum sensing system and is closely related to the corruption of instant sea cucumber. Studying the effect of Hafnia alvei H4 quorum sensing regulatory genes on AHLs is necessary for the quality and preservation of instant sea cucumber. In this study, the draft genome of H. alvei H4, which comprises a single chromosome of 4,687,151 bp, was sequenced and analyzed and the types of AHLs were analyzed employing thin-layer chromatography (TLC) and high resolution triple quadrupole liquid chromatography/mass spectrometry (LC/MS). Then the wild-type strain of H. alvei H4 and the luxI/R double mutant (ΔluxIR) were compared by transcriptome sequencing (RNA-seq). The results indicate that the incomplete genome sequence revealed the presence of one quorum-sensing (QS) gene set, designated as lasI/expR. Three major AHLs, N-hexanoyl-L-homoserine lactone (C6-HSL), N-butyryl-L-homoserine lactone (C4-HSL), and N-(3-oxo-octanoyl)-L-homoserine lactone (3-oxo-C8-HSL) were found, with C6-HSL being the most abundant. C6-HSL was not detected in the culture of the luxI mutant (ΔluxI) and higher levels of C4-HSL was found in the culture of the luxR mutant (ΔluxR), which suggested that the luxR gene may have a positive effect on C4-HSL production. It was also found that AHL and QS genes are closely related in the absence of luxIR double deletion. The results of this study can further elucidate at the genetic level that luxI and luxR genes are involved in the regulation of AHL.
Fig. 1. TLC bioassay of AHLs produced by H. alvei H4 wt and ΔluxR with C. violaceum CV026 as a sensor strain. Lane 1: C4-HSL standard AHL; Lane 2: C6-HSL standard AHL; Lane 3–Lane 9: 0–36 h every 6 h of AHL extracted from H. alvei H4 wild type and mutant strain culture supernatant

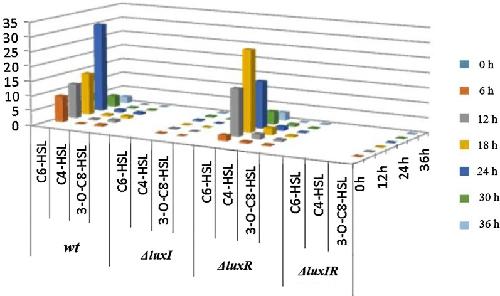

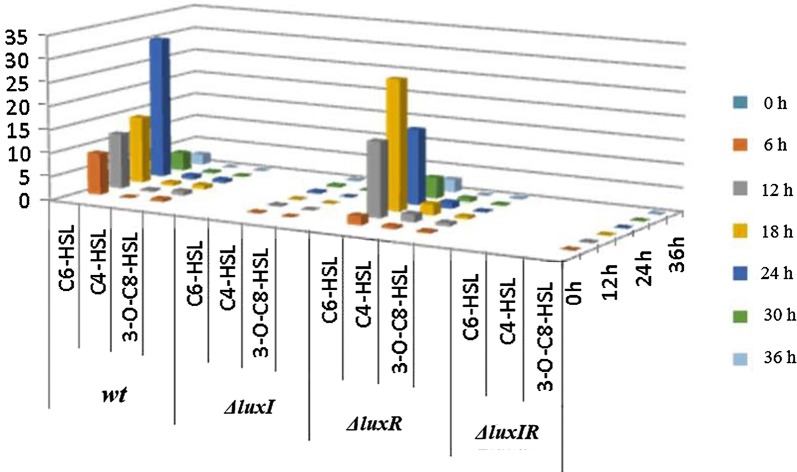

Fig. 2. The AHL extracts of wild-type H. alvei H4 and its ΔluxI,ΔluxR,ΔluxIR mutants at different times were detected by LC/MS

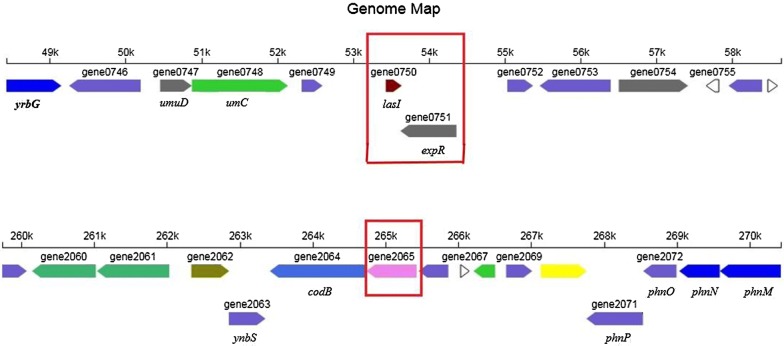

Fig. 3. Arrows indicate the direction of transcription of the gene. The number below the gene arrow is the locus tag corresponding to the genome. Different colors represent the predictive function of different genes. LuxI family AHL synthase gene: lasI (gene0750), brown; luxR family transcription factor gene: expR (gene0751), gray; another LuxR family transcription factor gene “solo R”: gene2065, pink

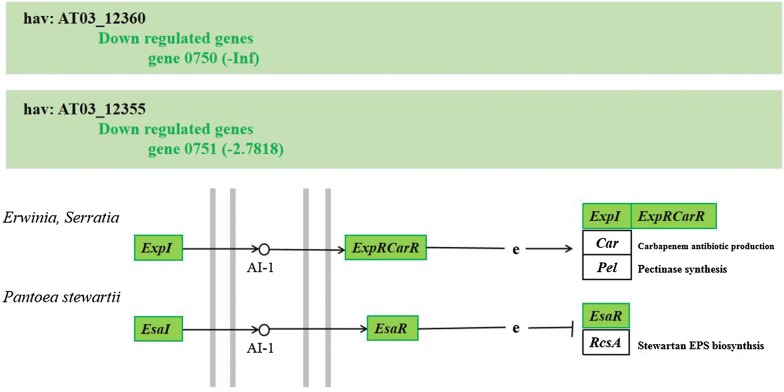

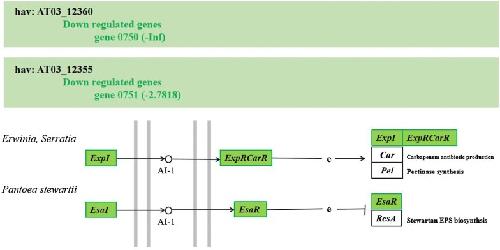

Fig. 4. KEGG “quorum sensing” pathway based on RNA high-throughput sequencing analysis. Proteins appearing in the green boxes are down-regulated at the mRNA level
Anders,
Differential expression analysis for sequence count data.
2010, Pubmed
Anders,
Differential expression analysis for sequence count data.
2010,
Pubmed
Barrell,
Overlapping genes in bacteriophage phiX174.
1976,
Pubmed
Bruhn,
Presence of acylated homoserine lactones (AHLs) and AHL-producing bacteria in meat and potential role of AHL in spoilage of meat.
2004,
Pubmed
Camilli,
Bacterial small-molecule signaling pathways.
2006,
Pubmed
Case,
AHL-driven quorum-sensing circuits: their frequency and function among the Proteobacteria.
2008,
Pubmed
Chen,
Short chain N-acyl homoserine lactone production by soil isolate Burkholderia sp. strain A9.
2013,
Pubmed
Coutinho,
Regulon studies and in planta role of the BraI/R quorum-sensing system in the plant-beneficial Burkholderia cluster.
2013,
Pubmed
Cude,
Acyl-homoserine lactone-based quorum sensing in the Roseobacter clade: complex cell-to-cell communication controls multiple physiologies.
2013,
Pubmed
Dong,
Molecular basis for the substrate specificity of quorum signal synthases.
2017,
Pubmed
Frederix,
Quorum sensing: regulating the regulators.
2011,
Pubmed
Fuqua,
The QscR quorum-sensing regulon of Pseudomonas aeruginosa: an orphan claims its identity.
2006,
Pubmed
Galloway,
Applications of small molecule activators and inhibitors of quorum sensing in Gram-negative bacteria.
2012,
Pubmed
Gelencsér,
Chromosomal Arrangement of AHL-Driven Quorum Sensing Circuits in Pseudomonas.
2012,
Pubmed
Gelencsér,
Classifying the topology of AHL-driven quorum sensing circuits in proteobacterial genomes.
2012,
Pubmed
González,
A novel widespread interkingdom signaling circuit.
2013,
Pubmed
Goryachev,
Understanding bacterial cell-cell communication with computational modeling.
2011,
Pubmed
Goryachev,
Design principles of the bacterial quorum sensing gene networks.
2009,
Pubmed
Guo,
Insight into c-di-GMP Regulation in Anammox Aggregation in Response to Alternating Feed Loadings.
2017,
Pubmed
Hongman,
Effects of Sulfide Flavors on AHL-Mediated Quorum Sensing and Biofilm Formation of Hafnia alvei.
2018,
Pubmed
Hou,
Characteristics of N-Acylhomoserine Lactones Produced by Hafnia alvei H4 Isolated from Spoiled Instant Sea Cucumber.
2017,
Pubmed
,
Echinobase
Huang,
Transcriptional Sequencing Uncovers Survival Mechanisms of Salmonella enterica Serovar Enteritidis in Antibacterial Egg White.
2019,
Pubmed
Kaw,
Translational independence between overlapping genes for a restriction endonuclease and its transcriptional regulator.
2010,
Pubmed
Keese,
Origins of genes: "big bang" or continuous creation?
1992,
Pubmed
Khajanchi,
N-acylhomoserine lactones involved in quorum sensing control the type VI secretion system, biofilm formation, protease production, and in vivo virulence in a clinical isolate of Aeromonas hydrophila.
2009,
Pubmed
Khider,
Differential expression profiling of ΔlitR and ΔrpoQ mutants reveals insight into QS regulation of motility, adhesion and biofilm formation in Aliivibrio salmonicida.
2019,
Pubmed
Kimura,
Metagenomic approaches to understanding phylogenetic diversity in quorum sensing.
2014,
Pubmed
Krakauer,
Redundancy, antiredundancy, and the robustness of genomes.
2002,
Pubmed
Krakauer,
Stability and evolution of overlapping genes.
2000,
Pubmed
Kumar,
Detection of Quorum Sensing Molecules and Biofilm Formation in Ralstonia solanacearum.
2016,
Pubmed
Langmead,
Fast gapped-read alignment with Bowtie 2.
2012,
Pubmed
Lequette,
A distinct QscR regulon in the Pseudomonas aeruginosa quorum-sensing circuit.
2006,
Pubmed
Love,
Moderated estimation of fold change and dispersion for RNA-seq data with DESeq2.
2014,
Pubmed
Majerczyk,
Global analysis of the Burkholderia thailandensis quorum sensing-controlled regulon.
2014,
Pubmed
McClean,
Quorum sensing and Chromobacterium violaceum: exploitation of violacein production and inhibition for the detection of N-acylhomoserine lactones.
1997,
Pubmed
Miller,
Quorum sensing in bacteria.
2001,
Pubmed
Mori,
Involvement of ralfuranones in the quorum sensing signalling pathway and virulence of Ralstonia solanacearum strain OE1-1.
2018,
Pubmed
Morohoshi,
Complete Genome Sequence of Pseudomonas chlororaphis subsp. aurantiaca Reveals a Triplicate Quorum-Sensing Mechanism for Regulation of Phenazine Production.
2017,
Pubmed
Nagalakshmi,
RNA-Seq: a method for comprehensive transcriptome analysis.
2010,
Pubmed
Okutsu,
Characterization of N-Acylhomoserine Lactones Produced by Bacteria Isolated from Industrial Cooling Water Systems.
2015,
Pubmed
Parsek,
Acyl homoserine-lactone quorum-sensing signal generation.
1999,
Pubmed
Patzelt,
You are what you talk: quorum sensing induces individual morphologies and cell division modes in Dinoroseobacter shibae.
2013,
Pubmed
Puri,
Quorum Sensing in a Methane-Oxidizing Bacterium.
2017,
Pubmed
Ravn,
Methods for detecting acylated homoserine lactones produced by Gram-negative bacteria and their application in studies of AHL-production kinetics.
2001,
Pubmed
Sanger,
Nucleotide sequence of bacteriophage phi X174 DNA.
1977,
Pubmed
Sorek,
Prokaryotic transcriptomics: a new view on regulation, physiology and pathogenicity.
2010,
Pubmed
Subramoni,
LuxR-family 'solos': bachelor sensors/regulators of signalling molecules.
2009,
Pubmed
Swift,
Quorum sensing-dependent regulation and blockade of exoprotease production in Aeromonas hydrophila.
1999,
Pubmed
Tan,
Gene clusters of Hafnia alvei strain FB1 important in survival and pathogenesis: a draft genome perspective.
2014,
Pubmed
Tsai,
LuxR-type quorum-sensing regulators that are detached from common scents.
2010,
Pubmed
Viana,
Biofilm formation and acyl homoserine lactone production in Hafnia alvei isolated from raw milk.
2009,
Pubmed
Vivas,
Influence of environmental conditions on biofilm formation by Hafnia alvei strains.
2008,
Pubmed
Waters,
Quorum sensing: cell-to-cell communication in bacteria.
2005,
Pubmed
Weeks,
Brucella melitensis VjbR and C12-HSL regulons: contributions of the N-dodecanoyl homoserine lactone signaling molecule and LuxR homologue VjbR to gene expression.
2010,
Pubmed
Wiegand,
RNA-Seq of Bacillus licheniformis: active regulatory RNA features expressed within a productive fermentation.
2013,
Pubmed
Wilf,
RNA-seq reveals the RNA binding proteins, Hfq and RsmA, play various roles in virulence, antibiotic production and genomic flux in Serratia sp. ATCC 39006.
2013,
Pubmed
Zhu,
AHLs Regulate Biofilm Formation and Swimming Motility of Hafnia alvei H4.
2019,
Pubmed
