Front Microbiol
2020 Jan 01;11:308. doi: 10.3389/fmicb.2020.00308.
Show Gene links
Show Anatomy links
Characterization of the Gut Microbiota of the Antarctic Heart Urchin (Spatangoida) Abatus agassizii.
Schwob G
,
Cabrol L
,
Poulin E
,
Orlando J
.
???displayArticle.abstract???
Abatus agassizii is an irregular sea urchin species that inhabits shallow waters of South Georgia and South Shetlands Islands. As a deposit-feeder, A. agassizii nutrition relies on the ingestion of the surrounding sediment in which it lives barely burrowed. Despite the low complexity of its feeding habit, it harbors a long and twice-looped digestive tract suggesting that it may host a complex bacterial community. Here, we characterized the gut microbiota of specimens from two A. agassizii populations at the south of the King George Island in the West Antarctic Peninsula. Using a metabarcoding approach targeting the 16S rRNA gene, we characterized the Abatus microbiota composition and putative functional capacity, evaluating its differentiation among the gut content and the gut tissue in comparison with the external sediment. Additionally, we aimed to define a core gut microbiota between A. agassizii populations to identify potential keystone bacterial taxa. Our results show that the diversity and the composition of the microbiota, at both genetic and predicted functional levels, were mostly driven by the sample type, and to a lesser extent by the population location. Specific bacterial taxa, belonging mostly to Planctomycetacia and Spirochaetia, were differently enriched in the gut content and the gut tissue, respectively. Predictive functional profiles revealed higher abundance of specific pathways, as the sulfur cycle in the gut content and the amino acid metabolism, in the gut tissue. Further, the definition of a core microbiota allowed to obtain evidence of specific localization of bacterial taxa and the identification of potential keystone taxa assigned to the Desulfobacula and Spirochaeta genera as potentially host selected. The ecological relevance of these keystone taxa in the host metabolism is discussed.

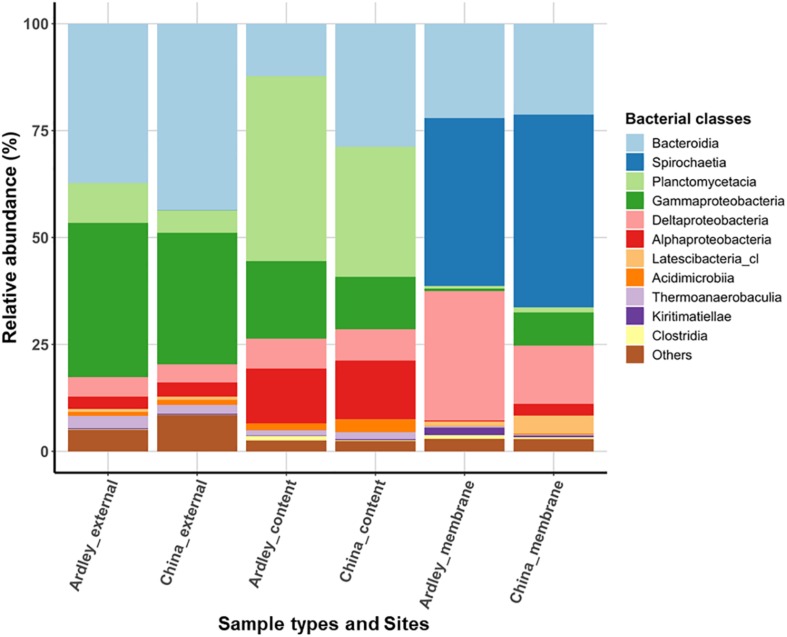

FIGURE 1. Relative abundance of bacterial classes in Abatus agassizii gut and external sediment microbiota in Ardley and China sampling sites. Bacterial classes were filtered at >0.5% relative abundance threshold and the average of the replicate abundances are presented for each condition (i.e., for each combination of sites and sample types). Each color represents a distinct bacterial class.

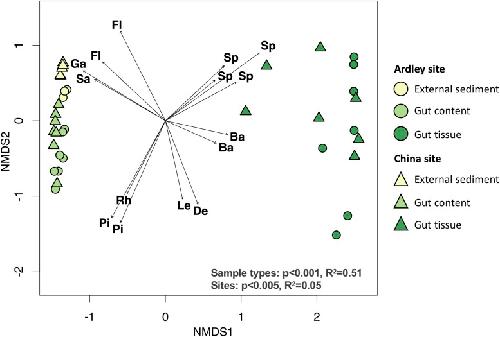

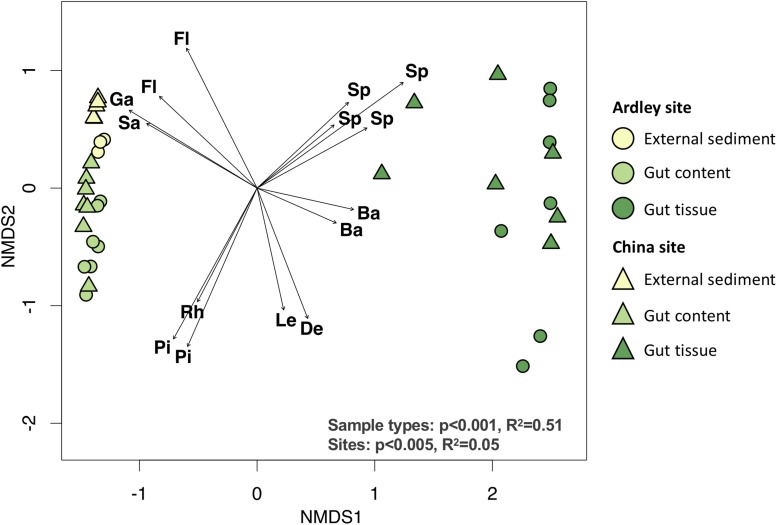

FIGURE 2. Non-metric multidimensional scaling ordination of the bacterial community composition of the Abatus agassizii gut and external sediment microbiota. Colors are assigned to the different sample types. Circles and triangles represent samples from Ardley and China sites, respectively. The arrows represent the variations of the 15 discriminant OTUs most significantly correlated with community ordination (envfit, p < 0.05). The letters indicate the taxonomic identification at the family level of the discriminant OTUs (Ba: Bacteroidetes BD2-2, De: Desulfobacteraceae, Fl: Flavobacteriaceae, Ga: Gammaproteobacteria unclassified, Le: Lentimicrobiaceae, Pi: Pirullulaceae, Rh: Rhodobacteraceae, Sa: Sandaracinaceae, Sp: Spirochaetaceae). Effect of the sample type and the site was tested using permutational multivariate analysis of variance (Adonis test) on BrayâCurtis distance matrix computed from the OTU table (details provided in Supplementary Table S2).

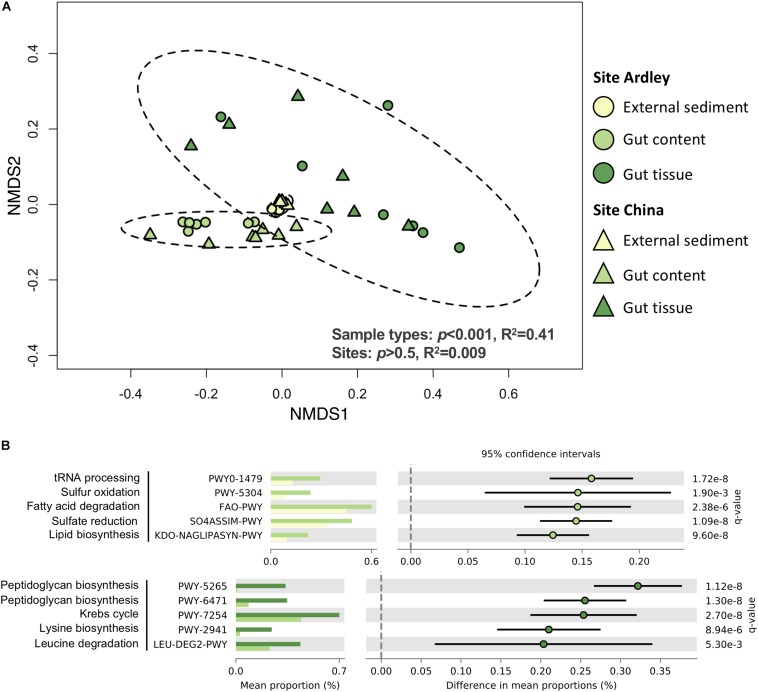

FIGURE 3. Functional differentiation of the bacterial communities from the Abatus agassizii gut microbiota determined using PICRUSt v2.2.0. (A) NMDS ordination of the MetaCyc pathways composition of the external sediment and the Abatus agassizii gut microbiota. Colors are assigned to the different sample types. Circles and triangles represent samples from Ardley and China sites, respectively. Ellipses represent the standard deviation of all points for each sample type, with a confidence interval at 0.95. Strength and significance of sample groupings according to the sample type and the site were tested using permutational multivariate analysis of variance (Adonis test) on BrayâCurtis distance matrix computed from pathwaysâ abundance table. (B) Details of the top 5 MetaCyc pathways significantly enriched either in the gut tissue or in the gut content. Colors are assigned to the different sample type. Relative abundances and p-values obtained from the two-sided Welchâs test corrected with the BenjaminiâHochberg FDR method are provided. Comparisons with p-values < 0.05 were considered significant.

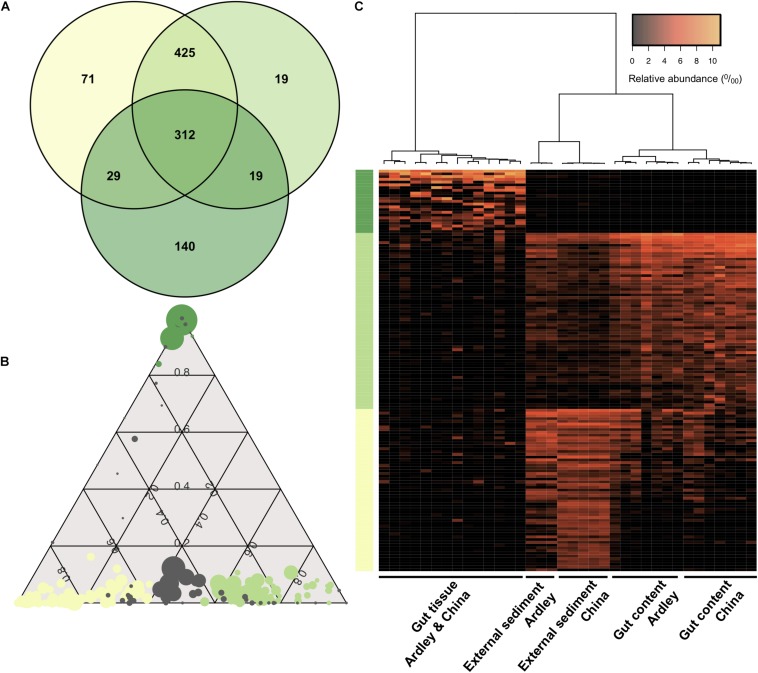

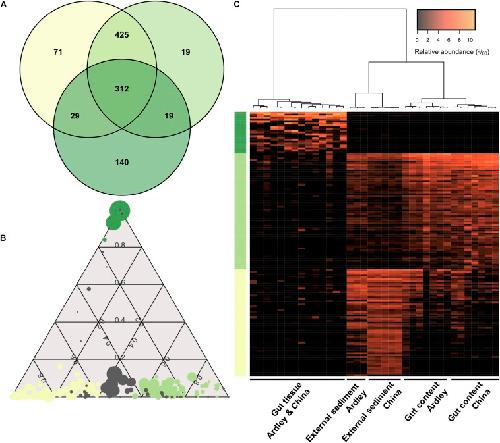

FIGURE 4. Distinctive sample type specificity of the Abatus agassizii microbiota. (A) Venn diagram of shared and specific OTUs for the three sample types (based on the total OTU table). The number of OTUs in each biological sample type is shown. Dark green, light green and aniseed yellow represent the external sediment, the gut content and the gut tissue, respectively. (B) Ternary plot of OTU compositions. Each circle represents one OTU. The size of each circle represents the relative abundance of the OTU (minimum of 0.5% relative abundance). The position of each circle represents its contribution to the relative total abundance of the biological sample type considered. Dark green, light green and aniseed yellow circles mark OTUs significantly enriched in the gut tissue, in the gut content and in the external sediment, respectively (FDR < 0.05). Gray circles represent OTUs without any significative enrichment. (C) Heatmap of the external, gut content and gut tissue enriched OTUs. Vertical columns represent samples. Horizontal rows represent OTUs (minimum of 0.5% relative abundance). Clustering at the top is computed using Pearson correlation coefficient as distance measurement and Ward agglomeration method. Colors on the left side represent OTU sample type enrichment as previously described.

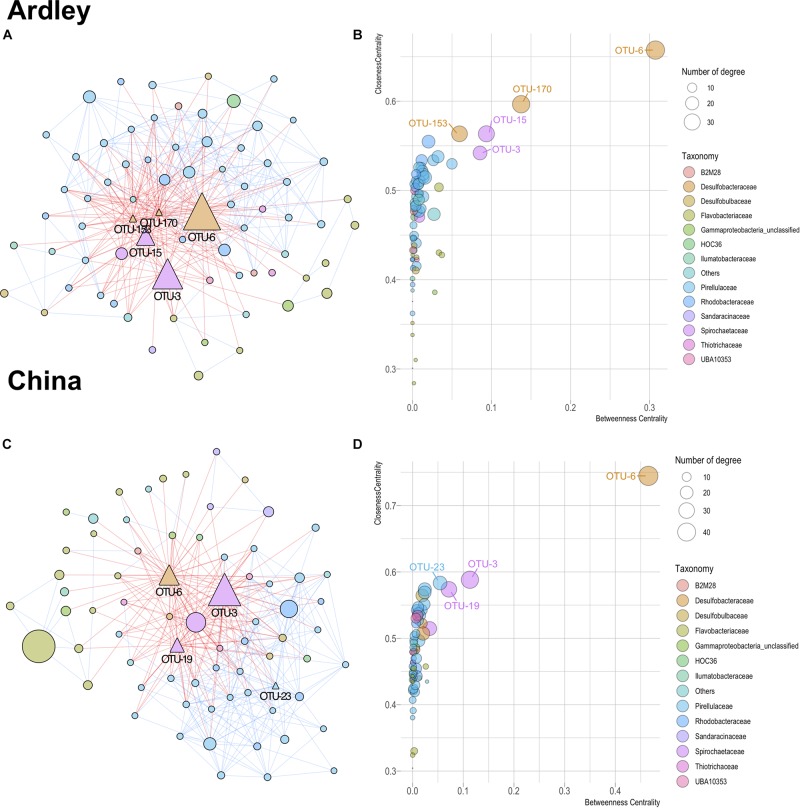

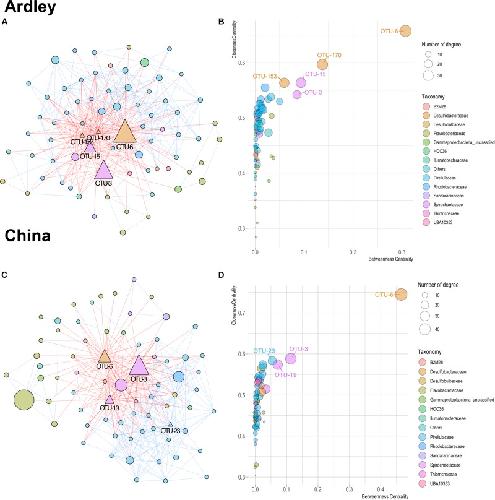

FIGURE 5. Co-occurrence patterns of bacterial taxa from gut microbiota (content and tissue) of Abatus agassiizi, determined through Co-occurrence Network inference (CoNet v1.1.1) and analyzed using Cytoscape (v3.6.0). Panels (AâD) refer to the Abatus populations of Ardley and China sites, respectively. Networks were built from the 321 OTUs coming from the core China/Ardley only. The networks (A,C) were edited using the Compound Spring Embedder algorithm in Cytoscape. Edges are drawn with red and blue lines representing co-exclusion and co-presence interactions, respectively. Nodes represent the bacterial OTUs and were colored according to their taxonomic affiliations (at the family level). Only OTUs with significant edges are represented. Nodesâ size is scaled on the abundance of the OTU (number of reads). Triangles in the networks indicate the hub taxa, defined as nodes with high centrality (i.e., closeness and betweenness) and high connectivity (i.e., node degree) (B,D).

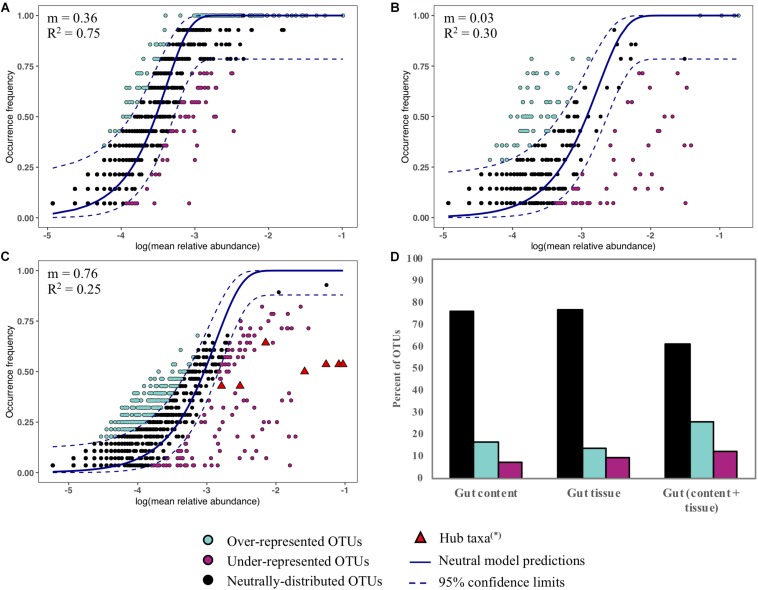

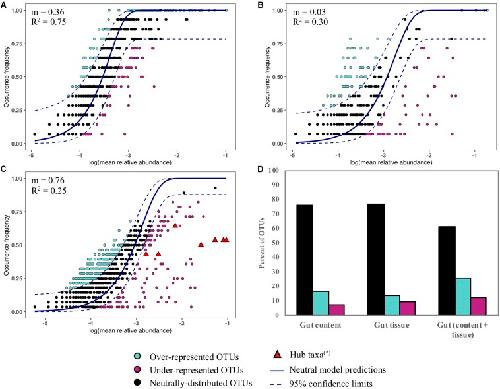

FIGURE 6. Fit to the neutral model for the gut content (A), the gut tissue (B) and the gut microbiota (content and tissue) (C). Each point represents an OTU and the color indicates its fitting to the neutral model. The predicted occurrence frequency and the 95% confidence interval (CI) around the neutral model prediction are drawn. OTUs that are within the confidence limits are well-predicted in terms of frequency and abundance by the neutral model. OTUs that are above the upper CI limit are over-represented in the samples. OTUs that are below the lower CI limit are under-represented in the samples. (â) OTUs previously identified as hub taxa in the co-occurrence analysis are highlighted. (D) Percent of OTUs that are within, above and below the 95% confidence limits of the neutral model.
Adair,
Microbial community assembly in wild populations of the fruit fly Drosophila melanogaster.
2018, Pubmed
Adair,
Microbial community assembly in wild populations of the fruit fly Drosophila melanogaster.
2018,
Pubmed
Agler,
Microbial Hub Taxa Link Host and Abiotic Factors to Plant Microbiome Variation.
2016,
Pubmed
Banerjee,
Keystone taxa as drivers of microbiome structure and functioning.
2018,
Pubmed
Bengtsson,
Planctomycetes dominate biofilms on surfaces of the kelp Laminaria hyperborea.
2010,
Pubmed
Benson,
Individuality in gut microbiota composition is a complex polygenic trait shaped by multiple environmental and host genetic factors.
2010,
Pubmed
Berry,
Deciphering microbial interactions and detecting keystone species with co-occurrence networks.
2014,
Pubmed
Blazejak,
Coexistence of bacterial sulfide oxidizers, sulfate reducers, and spirochetes in a gutless worm (Oligochaeta) from the Peru margin.
2005,
Pubmed
Bokulich,
Quality-filtering vastly improves diversity estimates from Illumina amplicon sequencing.
2013,
Pubmed
Bowles,
Global rates of marine sulfate reduction and implications for sub-sea-floor metabolic activities.
2014,
Pubmed
Brigmon,
Symbiotic relationship of thiothrix spp. with An echinoderm.
1998,
Pubmed
,
Echinobase
Brink,
Metagenomic assessment of body surface bacterial communities of the sea urchin, Tripneustes gratilla.
2019,
Pubmed
,
Echinobase
Brothers,
Ocean warming alters predicted microbiome functionality in a common sea urchin.
2018,
Pubmed
,
Echinobase
Bulgarelli,
Revealing structure and assembly cues for Arabidopsis root-inhabiting bacterial microbiota.
2012,
Pubmed
Burns,
Contribution of neutral processes to the assembly of gut microbial communities in the zebrafish over host development.
2016,
Pubmed
Choma,
Low abundance of Archaeorhizomycetes among fungi in soil metatranscriptomes.
2016,
Pubmed
Dubilier,
Symbiotic diversity in marine animals: the art of harnessing chemosynthesis.
2008,
Pubmed
Dubinina,
Spirochaeta perfilievii sp. nov., an oxygen-tolerant, sulfide-oxidizing, sulfur- and thiosulfate-reducing spirochaete isolated from a saline spring.
2011,
Pubmed
Edgar,
UCHIME improves sensitivity and speed of chimera detection.
2011,
Pubmed
Elshahed,
Phylogenetic and metabolic diversity of Planctomycetes from anaerobic, sulfide- and sulfur-rich Zodletone Spring, Oklahoma.
2007,
Pubmed
Faust,
CoNet app: inference of biological association networks using Cytoscape.
2016,
Pubmed
Faust,
Microbial co-occurrence relationships in the human microbiome.
2012,
Pubmed
Glöckner,
Complete genome sequence of the marine planctomycete Pirellula sp. strain 1.
2003,
Pubmed
Gong,
Depth shapes α- and β-diversities of microbial eukaryotes in surficial sediments of coastal ecosystems.
2015,
Pubmed
Guerinot,
N2-fixing vibrios isolated from the gastrointestinal tract of sea urchins.
1981,
Pubmed
,
Echinobase
Guillaumot,
Benthic species of the Kerguelen Plateau show contrasting distribution shifts in response to environmental changes.
2018,
Pubmed
Hacquard,
Microbiota and Host Nutrition across Plant and Animal Kingdoms.
2015,
Pubmed
Hakim,
The gut microbiome of the sea urchin, Lytechinus variegatus, from its natural habitat demonstrates selective attributes of microbial taxa and predictive metabolic profiles.
2016,
Pubmed
,
Echinobase
Hakim,
The Purple Sea Urchin Strongylocentrotus purpuratus Demonstrates a Compartmentalization of Gut Bacterial Microbiota, Predictive Functional Attributes, and Taxonomic Co-Occurrence.
2019,
Pubmed
,
Echinobase
Hammer,
Not all animals need a microbiome.
2019,
Pubmed
Hempel,
Epiphytic bacterial community composition on two common submerged macrophytes in brackish water and freshwater.
2008,
Pubmed
Hoover,
Spirochaeta americana sp. nov., a new haloalkaliphilic, obligately anaerobic spirochaete isolated from soda Mono Lake in California.
2003,
Pubmed
Jackson,
The Microbial Landscape of Sea Stars and the Anatomical and Interspecies Variability of Their Microbiome.
2018,
Pubmed
,
Echinobase
Kellogg,
Microbiomes of stony and soft deep-sea corals share rare core bacteria.
2019,
Pubmed
Kim,
Draft genome sequence of an aromatic compound-degrading bacterium, Desulfobacula sp. TS, belonging to the Deltaproteobacteria.
2014,
Pubmed
Lawler,
Coral-Associated Bacterial Diversity Is Conserved across Two Deep-Sea Anthothela Species.
2016,
Pubmed
Lee,
Jellyfish Life Stages Shape Associated Microbial Communities, While a Core Microbiome Is Maintained Across All.
2018,
Pubmed
Ley,
Worlds within worlds: evolution of the vertebrate gut microbiota.
2008,
Pubmed
Lilburn,
Nitrogen fixation by symbiotic and free-living spirochetes.
2001,
Pubmed
Littlewood,
A combined morphological and molecular phylogeny for sea urchins (Echinoidea: Echinodermata).
1995,
Pubmed
,
Echinobase
Liu,
Bacterial and archaeal communities in sediments of the north Chinese marginal seas.
2015,
Pubmed
Mangano,
Antagonistic interactions between psychrotrophic cultivable bacteria isolated from Antarctic sponges: a preliminary analysis.
2009,
Pubmed
Matcher,
Keeping it in the family: Coevolution of latrunculid sponges and their dominant bacterial symbionts.
2017,
Pubmed
Medina-Silva,
Microbiota associated with tubes of Escarpia sp. from cold seeps in the southwestern Atlantic Ocean constitutes a community distinct from that of surrounding marine sediment and water.
2018,
Pubmed
Miyazaki,
Spirochaeta psychrophila sp. nov., a psychrophilic spirochaete isolated from subseafloor sediment, and emended description of the genus Spirochaeta.
2014,
Pubmed
Moran,
Evolutionary and ecological consequences of gut microbial communities.
2019,
Pubmed
Nyholm,
The winnowing: establishing the squid-vibrio symbiosis.
2004,
Pubmed
Parada,
Every base matters: assessing small subunit rRNA primers for marine microbiomes with mock communities, time series and global field samples.
2016,
Pubmed
Parks,
STAMP: statistical analysis of taxonomic and functional profiles.
2014,
Pubmed
Plante,
The microbial environment of marine deposit-feeder guts characterized via microelectrodes.
1992,
Pubmed
,
Echinobase
Quast,
The SILVA ribosomal RNA gene database project: improved data processing and web-based tools.
2013,
Pubmed
Queirós,
A bioturbation classification of European marine infaunal invertebrates.
2013,
Pubmed
Quigley,
Unexpected mixed-mode transmission and moderate genetic regulation of Symbiodinium communities in a brooding coral.
2018,
Pubmed
Raber,
Anaerobic degradation and transformation of p-toluidine by the sulfate-reducing bacterium Desulfobacula toluolica.
1998,
Pubmed
Rodríguez-Marconi,
Characterization of Bacterial, Archaeal and Eukaryote Symbionts from Antarctic Sponges Reveals a High Diversity at a Three-Domain Level and a Particular Signature for This Ecosystem.
2015,
Pubmed
Sawabe,
Alginate degradation by bacteria isolated from the gut of sea urchins and abalones.
1995,
Pubmed
,
Echinobase
Schatt,
Completely Direct Development of Abatus cordatus, a Brooding Schizasterid (Echinodermata: Echinoidea) from Kerguelen, With Description of Perigastrulation, a Hypothetical New Mode of Gastrulation.
1996,
Pubmed
,
Echinobase
Schloss,
Introducing mothur: open-source, platform-independent, community-supported software for describing and comparing microbial communities.
2009,
Pubmed
Shannon,
Cytoscape: a software environment for integrated models of biomolecular interaction networks.
2003,
Pubmed
Sloan,
Quantifying the roles of immigration and chance in shaping prokaryote community structure.
2006,
Pubmed
Stagaman,
The role of adaptive immunity as an ecological filter on the gut microbiota in zebrafish.
2017,
Pubmed
Taylor,
'Sponge-specific' bacteria are widespread (but rare) in diverse marine environments.
2013,
Pubmed
van de Water,
Spirochaetes dominate the microbial community associated with the red coral Corallium rubrum on a broad geographic scale.
2016,
Pubmed
Vázquez,
Bacterial communities and chemical parameters in soils and coastal sediments in response to diesel spills at Carlini Station, Antarctica.
2017,
Pubmed
Wegner,
Expression of sulfatases in Rhodopirellula baltica and the diversity of sulfatases in the genus Rhodopirellula.
2013,
Pubmed
Yao,
The Composition, Diversity and Predictive Metabolic Profiles of Bacteria Associated With the Gut Digesta of Five Sea Urchins in Luhuitou Fringing Reef (Northern South China Sea).
2019,
Pubmed
,
Echinobase
Zhu,
Bacterial community composition of South China Sea sediments through pyrosequencing-based analysis of 16S rRNA genes.
2013,
Pubmed
Zilber-Rosenberg,
Role of microorganisms in the evolution of animals and plants: the hologenome theory of evolution.
2008,
Pubmed
Zinger,
Global patterns of bacterial beta-diversity in seafloor and seawater ecosystems.
2011,
Pubmed
