The enigmatic mitochondrial genome of Rhabdopleura compacta (Pterobranchia) reveals insights into selection of an efficient tRNA system and supports monophyly of Ambulacraria.
Perseke M
,
Hetmank J
,
Bernt M
,
Stadler PF
,
Schlegel M
,
Bernhard D
.
???displayArticle.abstract???
BACKGROUND: The Hemichordata comprises solitary-living Enteropneusta and colonial-living Pterobranchia, sharing morphological features with both Chordata and Echinodermata. Despite their key role for understanding deuterostome evolution, hemichordate phylogeny is controversial and only few molecular data are available for phylogenetic analysis. Furthermore, mitochondrial sequences are completely lacking for pterobranchs. Therefore, we determined and analyzed the complete mitochondrial genome of the pterobranch Rhabdopleura compacta to elucidate deuterostome evolution. Thereby, we also gained important insights in mitochondrial tRNA evolution.
RESULTS: The mitochondrial DNA of Rhabdopleura compacta corresponds in size and gene content to typical mitochondrial genomes of metazoans, but shows the strongest known strand-specific mutational bias in the nucleotide composition among deuterostomes with a very GT-rich main-coding strand. The order of the protein-coding genes in R. compacta is similar to that of the deuterostome ground pattern. However, the protein-coding genes have been highly affected by a strand-specific mutational pressure showing unusual codon frequency and amino acid composition. This composition caused extremely long branches in phylogenetic analyses. The unusual codon frequency points to a selection pressure on the tRNA translation system to codon-anticodon sequences of highest versatility instead of showing adaptations in anticodon sequences to the most frequent codons. Furthermore, an assignment of the codon AGG to Lysine has been detected in the mitochondrial genome of R. compacta, which is otherwise observed only in the mitogenomes of some arthropods. The genomes of these arthropods do not have such a strong strand-specific bias as found in R. compacta but possess an identical mutation in the anticodon sequence of the tRNALys.
CONCLUSION: A strong reversed asymmetrical mutational constraint in the mitochondrial genome of Rhabdopleura compacta may have arisen by an inversion of the replication direction and adaptation to this bias in the protein sequences leading to an enigmatic mitochondrial genome. Although, phylogenetic analyses of protein coding sequences are hampered, features of the tRNA system of R. compacta support the monophyly of Ambulacraria. The identical reassignment of AGG to Lysine in two distinct groups may have occurred by convergent evolution in the anticodon sequence of the tRNALys.

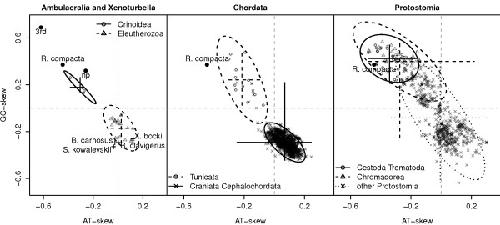

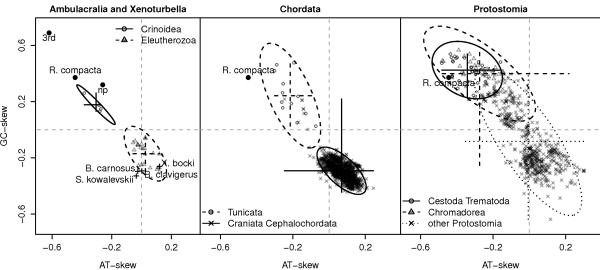

Figure 1. Nucleotide skews for the main-coding strand of the pterobranch Rhabdopleura compacta compared to other bilaterian mitochondrial genomes. Values of the nucleotide skews of R. compacta are marked by filled black circles (3rd: values for the 3rd codon position of all protein-coding genes; np: values for non- protein coding regions). The nucleotide skew values for other bilaterian mitochondrial genomes are marked by different symbols as indicated in each figure. The values of different phylogenetic groups are visualized by a cross giving the minimum and maximum of the nucleotide skews, and an ellipse with major axis in the direction of the eigenvector of the covariance matrix. Note the strong deviation of the nucleotide skews in R. compacta, similar to the mitochondrial genomes of the parasitic flatworms (Cestoda, Trematoda) and certain nematodes (Chromadorea).

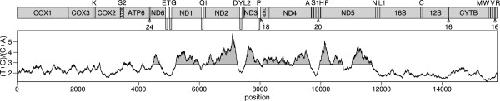

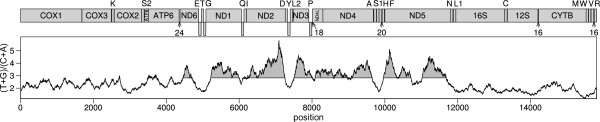

Figure 2. Linear map of the mitochondrial genome of the pterobranch Rhabdopleura compacta with the (G + T)/(A + C) ratios at each nucleotide position computed for windows of size 300 (see Methods). The nucleotides were counted starting with COX1 and are shown on the bottom scale. Genes located above the middle line are transcribed from the heavy strand whereas those located below the middle line are transcribed from the light strand. UAS regions > 16 bp are indicated by arrows with the number showing their length. The values of a (G + T)/(A + C) ratio larger than slope (m = 2.824) of a fitted linear model are shaded.

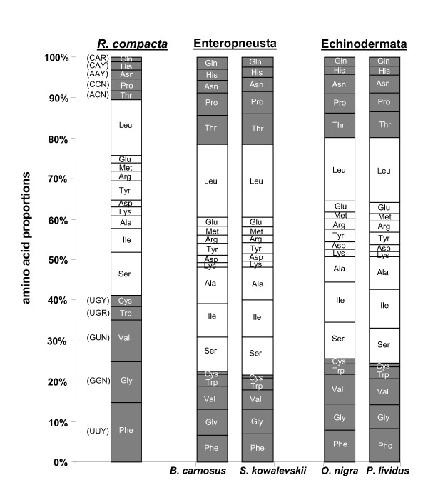

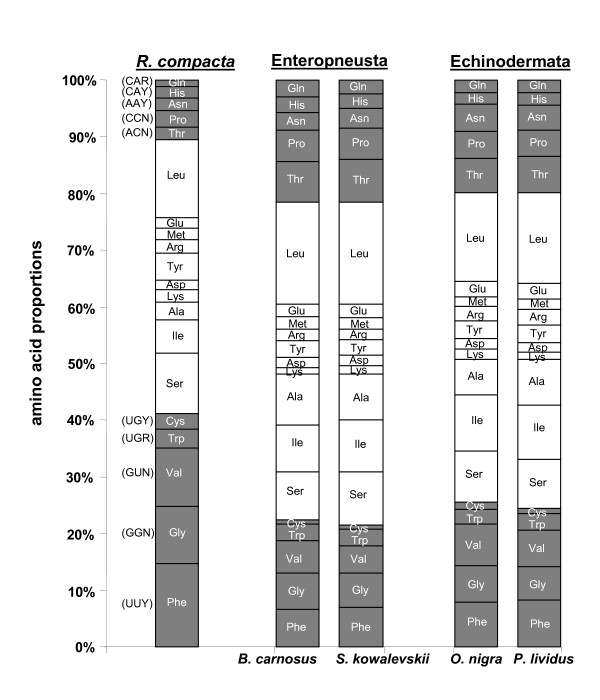

Figure 3. Amino acid composition of the 13 protein-coding genes in Rhabdopleura compacta compared to closely related deuterostome species: the enteropneusts Balanoglossus carnosus and Saccoglossus kowalevskii, the sea urchin Paracentrotus lividus and the brittle star Ophiocomina nigra. Amino acids solely encoded by GT or AC rich codons are indicated by white letters. These codons are listed on the left and are identical for all mtDNAs of Deuterostomia.

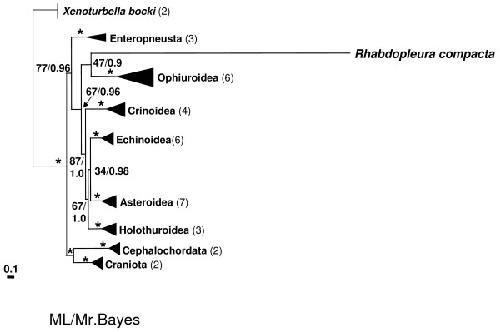

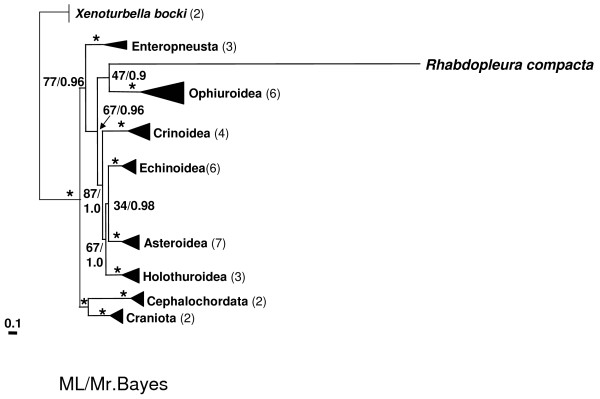

Figure 4. Maximum likelihood tree of the major deuterostome groups excluding tunicates using the amino acid sequences of all thirteen mitochondrial protein-coding genes. The numbers on the nodes show the bootstrap percentages (BP) for ML and the posterior probabilities (PP) of the Bayesian analyses in this order. Asterisks indicate highest support values. The numbers in parenthesis behind the deuterostome groups show the number of analyzed species. The length of the triangles for each group indicates the variability within the group. The extreme long branch leading to the pterobranch R. compacta is based on its highly different protein-composition compared to other deuterostome sequences (for details see text).

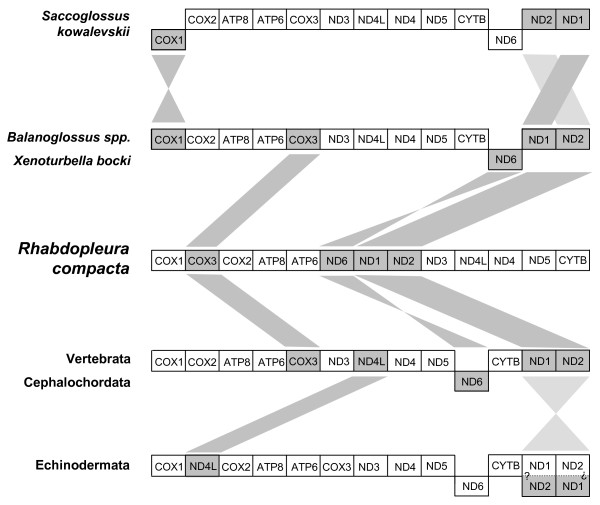

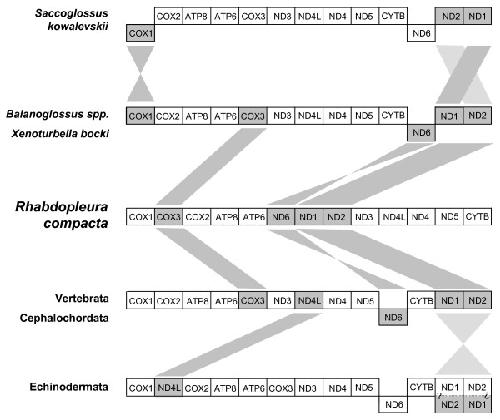

Figure 5. Protein-coding gene order comparison of the mtDNAs from the pterobranch Rhabdopleura compacta to the enteropneusts, Xenoturbella bocki, the ground pattern of echinoderms and the consensus arrangement of vertebrates. Genes located above the middle line are transcribed from the heavy strand whereas those located below the middle line are transcribed from the light strand. The question marks indicate the unknown ancestral strand affiliation of the fragment containing the ND1 and ND2 genes in echinoderm genomes (see [11]). Rearrangement steps between the gene orders are marked by grey straight lines (transpositions) and grey crossed lines (inversions).
Abascal,
Parallel evolution of the genetic code in arthropod mitochondrial genomes.
2006, Pubmed
Abascal,
Parallel evolution of the genetic code in arthropod mitochondrial genomes.
2006,
Pubmed
Abascal,
GenDecoder: genetic code prediction for metazoan mitochondria.
2006,
Pubmed
Asakawa,
Nucleotide sequence and gene organization of the starfish Asterina pectinifera mitochondrial genome.
1995,
Pubmed
,
Echinobase
Bernt,
CREx: inferring genomic rearrangements based on common intervals.
2007,
Pubmed
Boore,
Animal mitochondrial genomes.
1999,
Pubmed
Bourlat,
The mitochondrial genome structure of Xenoturbella bocki (phylum Xenoturbellida) is ancestral within the deuterostomes.
2009,
Pubmed
Bowmaker,
Mammalian mitochondrial DNA replicates bidirectionally from an initiation zone.
2003,
Pubmed
Brown,
Replication of mitochondrial DNA occurs by strand displacement with alternative light-strand origins, not via a strand-coupled mechanism.
2005,
Pubmed
Bulmer,
Coevolution of codon usage and transfer RNA abundance.
1987,
Pubmed
Bulmer,
The selection-mutation-drift theory of synonymous codon usage.
1991,
Pubmed
Cameron,
Evolution of the chordate body plan: new insights from phylogenetic analyses of deuterostome phyla.
2000,
Pubmed
Carullo,
An extensive study of mutation and selection on the wobble nucleotide in tRNA anticodons in fungal mitochondrial genomes.
2008,
Pubmed
Castresana,
Codon reassignment and amino acid composition in hemichordate mitochondria.
1998,
Pubmed
Castresana,
The mitochondrial genome of the hemichordate Balanoglossus carnosus and the evolution of deuterostome mitochondria.
1998,
Pubmed
,
Echinobase
Francino,
Strand asymmetries in DNA evolution.
1997,
Pubmed
Frederico,
A sensitive genetic assay for the detection of cytosine deamination: determination of rate constants and the activation energy.
1990,
Pubmed
Grigoriev,
Analyzing genomes with cumulative skew diagrams.
1998,
Pubmed
Guindon,
A simple, fast, and accurate algorithm to estimate large phylogenies by maximum likelihood.
2003,
Pubmed
Halanych,
The phylogenetic position of the pterobranch hemichordates based on 18S rDNA sequence data.
1995,
Pubmed
,
Echinobase
Hassanin,
Evidence for multiple reversals of asymmetric mutational constraints during the evolution of the mitochondrial genome of metazoa, and consequences for phylogenetic inferences.
2005,
Pubmed
,
Echinobase
He,
The mitochondrial genome of Xiphinema americanum sensu stricto (Nematoda: Enoplea): considerable economization in the length and structural features of encoded genes.
2005,
Pubmed
Holt,
Response: The mitochondrial DNA replication bubble has not burst.
2003,
Pubmed
Holt,
Coupled leading- and lagging-strand synthesis of mammalian mitochondrial DNA.
2000,
Pubmed
Ivanov,
A mechanism for stop codon recognition by the ribosome: a bioinformatic approach.
2001,
Pubmed
Jukes,
Further comments on codon reassignment.
1997,
Pubmed
Koike,
Evidence for discontinuous replication of circular mitochondrial DNA molecules from Novikoff rat ascites hepatoma cells.
1974,
Pubmed
Kondow,
An extra tRNAGly(U*CU) found in ascidian mitochondria responsible for decoding non-universal codons AGA/AGG as glycine.
1999,
Pubmed
Krishnan,
Detecting gradients of asymmetry in site-specific substitutions in mitochondrial genomes.
2004,
Pubmed
Lavrov,
Poriferan mtDNA and animal phylogeny based on mitochondrial gene arrangements.
2005,
Pubmed
Lobry,
Properties of a general model of DNA evolution under no-strand-bias conditions.
1995,
Pubmed
Lowe,
tRNAscan-SE: a program for improved detection of transfer RNA genes in genomic sequence.
1997,
Pubmed
Massey,
Comparative evolutionary genomics unveils the molecular mechanism of reassignment of the CTG codon in Candida spp.
2003,
Pubmed
Matsuyama,
A novel wobble rule found in starfish mitochondria. Presence of 7-methylguanosine at the anticodon wobble position expands decoding capability of tRNA.
1998,
Pubmed
,
Echinobase
Nohara,
Evolution of the mitochondrial genome in cephalochordata as inferred from complete nucleotide sequences from two epigonichthys species.
2005,
Pubmed
Notredame,
T-Coffee: A novel method for fast and accurate multiple sequence alignment.
2000,
Pubmed
Ojala,
tRNA punctuation model of RNA processing in human mitochondria.
1981,
Pubmed
Osawa,
Recent evidence for evolution of the genetic code.
1992,
Pubmed
,
Echinobase
Park,
A common origin of complex life cycles in parasitic flatworms: evidence from the complete mitochondrial genome of Microcotyle sebastis (Monogenea: Platyhelminthes).
2007,
Pubmed
Perseke,
Evolution of mitochondrial gene orders in echinoderms.
2008,
Pubmed
,
Echinobase
Perseke,
Mitochondrial genome evolution in Ophiuroidea, Echinoidea, and Holothuroidea: insights in phylogenetic relationships of Echinodermata.
2010,
Pubmed
,
Echinobase
Perseke,
The mitochondrial DNA of Xenoturbella bocki: genomic architecture and phylogenetic analysis.
2007,
Pubmed
,
Echinobase
Pikó,
Structural and replicative forms of mitochondrial DNA in tissues from adult and senescent BALB/c mice and Fischer 344 rats.
1984,
Pubmed
Pruitt,
NCBI reference sequences (RefSeq): a curated non-redundant sequence database of genomes, transcripts and proteins.
2007,
Pubmed
Reyes,
Asymmetrical directional mutation pressure in the mitochondrial genome of mammals.
1998,
Pubmed
Ronquist,
MrBayes 3: Bayesian phylogenetic inference under mixed models.
2003,
Pubmed
Schultz,
Transfer RNA mutation and the malleability of the genetic code.
1994,
Pubmed
Schultz,
On malleability in the genetic code.
1996,
Pubmed
Scouras,
The complete mitochondrial genomes of the sea lily Gymnocrinus richeri and the feather star Phanogenia gracilis: signature nucleotide bias and unique nad4L gene rearrangement within crinoids.
2006,
Pubmed
,
Echinobase
Scouras,
Complete mitochondrial genome DNA sequence for two ophiuroids and a holothuroid: the utility of protein gene sequence and gene maps in the analyses of deep deuterostome phylogeny.
2004,
Pubmed
,
Echinobase
Stach,
Erosion of phylogenetic signal in tunicate mitochondrial genomes on different levels of analysis.
2010,
Pubmed
Tomita,
7-Methylguanosine at the anticodon wobble position of squid mitochondrial tRNA(Ser)GCU: molecular basis for assignment of AGA/AGG codons as serine in invertebrate mitochondria.
1998,
Pubmed
,
Echinobase
Tong,
Anticodon and wobble evolution.
2004,
Pubmed
Winchell,
Evaluating hypotheses of deuterostome phylogeny and chordate evolution with new LSU and SSU ribosomal DNA data.
2002,
Pubmed
Xia,
The cost of wobble translation in fungal mitochondrial genomes: integration of two traditional hypotheses.
2008,
Pubmed
Xia,
Mutation and selection on the anticodon of tRNA genes in vertebrate mitochondrial genomes.
2005,
Pubmed
Yang,
Biased incorporation of ribonucleotides on the mitochondrial L-strand accounts for apparent strand-asymmetric DNA replication.
2002,
Pubmed
Yasukawa,
A bidirectional origin of replication maps to the major noncoding region of human mitochondrial DNA.
2005,
Pubmed
Yokobori,
Genetic code variations in mitochondria: tRNA as a major determinant of genetic code plasticity.
2001,
Pubmed
Zhang,
Modeling compositional dynamics based on GC and purine contents of protein-coding sequences.
2010,
Pubmed
