The SWIRM domain: a conserved module found in chromosomal proteins points to novel chromatin-modifying activities.
Aravind L
,
Iyer LM
.
???displayArticle.abstract???
BACKGROUND: Eukaryotic chromosomal components, especially histones, are subject to a wide array of covalent modifications and catalytic reorganization. These modifications have an important role in the regulation of chromatin structure and are mediated by large multisubunit complexes that contain modular proteins with several conserved catalytic and noncatalytic adaptor domains.
RESULTS: Using computational sequence-profile analysis methods, we identified a previously uncharacterized, predicted alpha-helical domain of about 85 residues in chromosomal proteins such as Swi3p, Rsc8p, Moira and several other uncharacterized proteins. This module, termed the SWIRM domain, is predicted to mediate specific protein-protein interactions in the assembly of chromatin-protein complexes. In one group of proteins, which are highly conserved throughout the crown-group eukaryotes, the SWIRM domain is linked to a catalytic domain related to the monoamine and polyamine oxidases. Another human protein has the SWIRM domain linked to a JAB domain that is involved in protein degradation through the ubiquitin pathway.
CONCLUSIONS: Identification of the SWIRM domain could help in directed experimental analysis of specific interactions in chromosomal proteins. We predict that the proteins in which it is combined with an amino-oxidase domain define a novel class of chromatin-modifying enzymes, which are likely to oxidize either the amino group of basic residues in histones and other chromosomal proteins or the polyamines in chromatin, and thereby alter the charge distribution. Other forms, such as KIAA1915, may link chromatin modification to ubiquitin-dependent protein degradation.

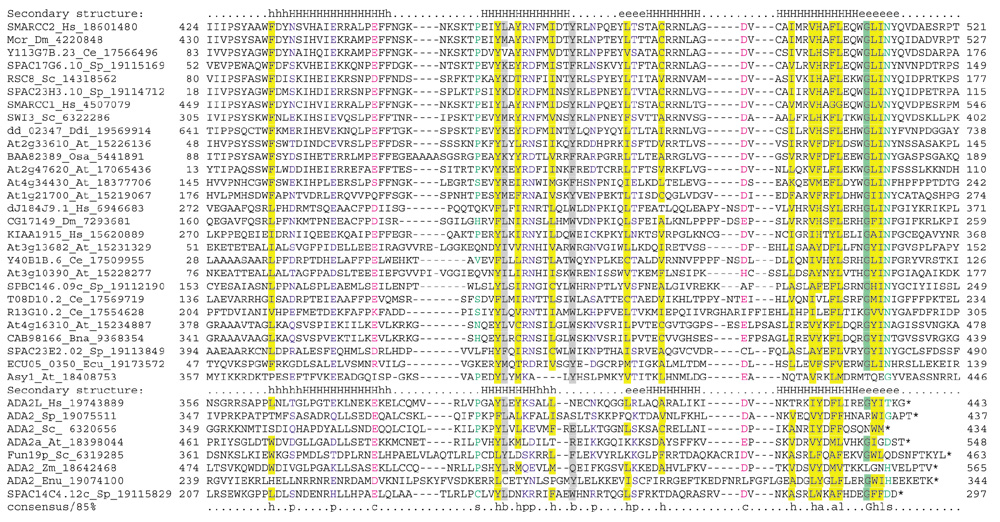

Figure 1. Multiple sequence alignment of the SWIRM domain. Proteins are designated by their gene names followed by the species abbreviations and GenBank (gi) numbers. The coloring represents the conservation profile of amino-acid residues at 90% consensus distinguished by the following amino-acid classes: h, hydrophobic residues (LIYFMWACV (in the single-letter amino-acid code)), a, aromatic residues (FHYW) and l, aliphatic (LIAV) residues, all shaded yellow; c, charged (KERDH) residues (basic (KRH) residues and acidic (DE) residues) colored magenta; p, polar (STEDRKHNQC) residues colored blue; s, small (SACGDNPVT) residues colored green; u, tiny (GAS) residues shaded green (in positions that are always glycine, this is indicated with a G); b, big (LIYERFMWQ) residues shaded gray. The predicted secondary structure is shown above the alignment: H or h, α helix; E or e, β strand. Species abbreviations: At, Arabidopsis thaliana; Bna, Brassica napus; Ce, Caenorhabditis elegans; Ddi, Dictyostelium discoideum; Dm, Drosophila melanogaster; Ecu, Encephalitozoon cuniculi; Hs, Homo sapiens; Osa, Oryza sativa; Sc, Saccharomyces cerevisiae; Sp, Schizosaccharomyces pombe; Zm, Zea mays. A subset of Rsc8p orthologs is represented in the automatically generated, uncurated PFAM-B entry 3680.

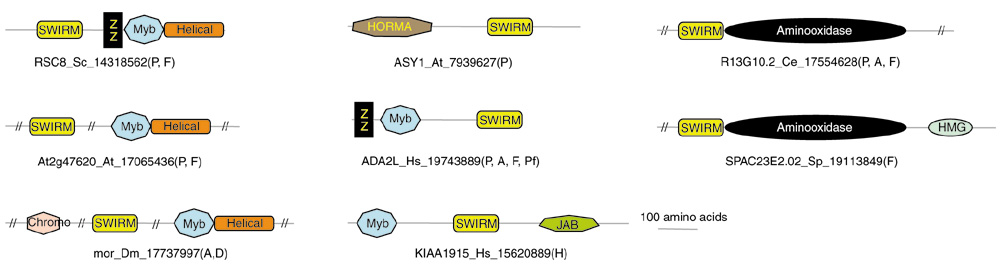

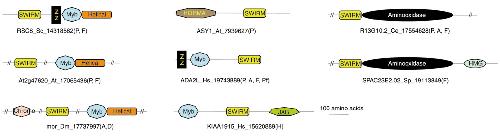

Figure 2. Domain architectures of proteins predicted to have the SWIRM domain. Proteins are designated by their gene names, species abbreviations and gi numbers. The phyletic distribution of a particular domain architecture is additionally given in brackets, where A represents animals; P, plants; F, fungi; D, D. discoideum and Pf, Plasmodium falciparum. Domains are typically represented by their standard names or abbreviations. ZZ represents the ZZ-type of zinc finger, and 'helical' designates the conserved α-helical domain found at the carboxyl terminus of proteins with a Myb (SANT) and an RSC8-like SWIRM domain.

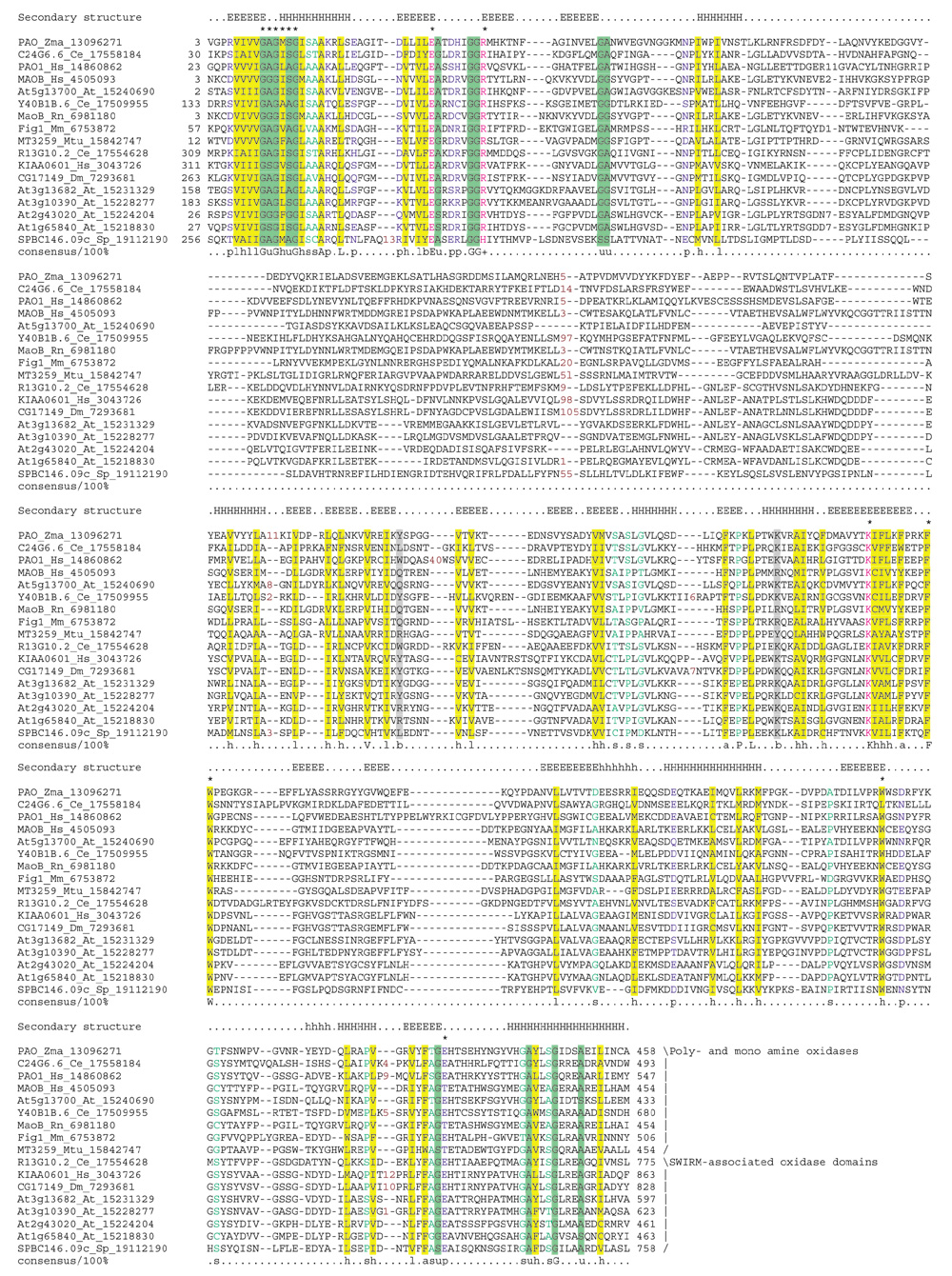

Figure 3. Multiple sequence alignment of the polyamine oxidase domain. Amino-acid residues are colored at 100% consensus. The protein designations, coloring scheme and consensus abbreviations are as described in Figure 1; +, acidic residues. The crystal-structure-derived secondary-structure assignments are shown above the alignment with positions involved in cofactor or substrate binding marked by an asterisk. Inserts in individual sequences are given as brown numbers. Species abbreviations: At, A. thaliana; Ce, C. elegans; Dm, D. melanogaster; Hs, Homo sapiens; Mm, Mus musculus; Mtu, Mycobacterium tuberculosis; Rn, Rattus norvegicus; Sp, S. pombe; Zma, Z. mays.
Aasland,
The PHD finger: implications for chromatin-mediated transcriptional regulation.
1995, Pubmed
Aasland,
The PHD finger: implications for chromatin-mediated transcriptional regulation.
1995,
Pubmed
Aasland,
The SANT domain: a putative DNA-binding domain in the SWI-SNF and ADA complexes, the transcriptional co-repressor N-CoR and TFIIIB.
1996,
Pubmed
Akhtar,
Chromodomains are protein-RNA interaction modules.
2000,
Pubmed
Altschul,
Gapped BLAST and PSI-BLAST: a new generation of protein database search programs.
1997,
Pubmed
Aravind,
SAP - a putative DNA-binding motif involved in chromosomal organization.
2000,
Pubmed
Aravind,
Lineage-specific loss and divergence of functionally linked genes in eukaryotes.
2000,
Pubmed
Aravind,
Homologues of 26S proteasome subunits are regulators of transcription and translation.
1998,
Pubmed
Aravind,
AT-hook motifs identified in a wide variety of DNA-binding proteins.
1998,
Pubmed
Aravind,
The HORMA domain: a common structural denominator in mitotic checkpoints, chromosome synapsis and DNA repair.
1998,
Pubmed
Ballas,
Regulation of neuronal traits by a novel transcriptional complex.
2001,
Pubmed
Baxevanis,
The HMG-1 box protein family: classification and functional relationships.
1995,
Pubmed
Binda,
Structural bases for inhibitor binding and catalysis in polyamine oxidase.
2001,
Pubmed
Binda,
A 30-angstrom-long U-shaped catalytic tunnel in the crystal structure of polyamine oxidase.
1999,
Pubmed
Cairns,
RSC, an essential, abundant chromatin-remodeling complex.
1996,
Pubmed
Candau,
Identification of human proteins functionally conserved with the yeast putative adaptors ADA2 and GCN5.
1996,
Pubmed
Caryl,
A homologue of the yeast HOP1 gene is inactivated in the Arabidopsis meiotic mutant asy1.
2000,
Pubmed
Crosby,
The trithorax group gene moira encodes a brahma-associated putative chromatin-remodeling factor in Drosophila melanogaster.
1999,
Pubmed
,
Echinobase
Cuff,
JPred: a consensus secondary structure prediction server.
1998,
Pubmed
Dhalluin,
Structure and ligand of a histone acetyltransferase bromodomain.
1999,
Pubmed
Ding,
Large-scale screening of intracellular protein localization in living fission yeast cells by the use of a GFP-fusion genomic DNA library.
2000,
Pubmed
Eddy,
Profile hidden Markov models.
1998,
Pubmed
Fry,
Chromatin remodeling enzymes: who's on first?
2001,
Pubmed
Grant,
A tale of histone modifications.
2001,
Pubmed
Hofmann,
The PCI domain: a common theme in three multiprotein complexes.
1998,
Pubmed
Humphrey,
Stable histone deacetylase complexes distinguished by the presence of SANT domain proteins CoREST/kiaa0071 and Mta-L1.
2001,
Pubmed
Jacobs,
Structure of HP1 chromodomain bound to a lysine 9-methylated histone H3 tail.
2002,
Pubmed
Jacobson,
Structure and function of a human TAFII250 double bromodomain module.
2000,
Pubmed
Jenuwein,
Translating the histone code.
2001,
Pubmed
Kim,
PCI complexes: pretty complex interactions in diverse signaling pathways.
2001,
Pubmed
Koonin,
The chromo superfamily: new members, duplication of the chromo domain and possible role in delivering transcription regulators to chromatin.
1995,
Pubmed
Kouzarides,
Acetylation: a regulatory modification to rival phosphorylation?
2000,
Pubmed
Lamond,
Structure and function in the nucleus.
1998,
Pubmed
Lander,
Initial sequencing and analysis of the human genome.
2001,
Pubmed
Muchardt,
ATP-dependent chromatin remodelling: SWI/SNF and Co. are on the job.
1999,
Pubmed
Nakayama,
Role of histone H3 lysine 9 methylation in epigenetic control of heterochromatin assembly.
2001,
Pubmed
Notredame,
T-Coffee: A novel method for fast and accurate multiple sequence alignment.
2000,
Pubmed
Peterson,
Five SWI/SNF gene products are components of a large multisubunit complex required for transcriptional enhancement.
1994,
Pubmed
Ponting,
ZZ and TAZ: new putative zinc fingers in dystrophin and other proteins.
1996,
Pubmed
Sauve,
Chemistry of gene silencing: the mechanism of NAD+-dependent deacetylation reactions.
2001,
Pubmed
Schäffer,
IMPALA: matching a protein sequence against a collection of PSI-BLAST-constructed position-specific score matrices.
1999,
Pubmed
Sterner,
The SANT domain of Ada2 is required for normal acetylation of histones by the yeast SAGA complex.
2002,
Pubmed
Strahl,
The language of covalent histone modifications.
2000,
Pubmed
Sudarsanam,
The Swi/Snf family nucleosome-remodeling complexes and transcriptional control.
2000,
Pubmed
Syntichaki,
The Gcn5 bromodomain co-ordinates nucleosome remodelling.
2000,
Pubmed
Treich,
Interaction of a Swi3 homolog with Sth1 provides evidence for a Swi/Snf-related complex with an essential function in Saccharomyces cerevisiae.
1997,
Pubmed
Treich,
Direct interaction between Rsc6 and Rsc8/Swh3,two proteins that are conserved in SWI/SNF-related complexes.
1998,
Pubmed
Turner,
Histone acetylation and an epigenetic code.
2000,
Pubmed
Wade,
Transcriptional regulation: SWItching circuitry.
1999,
Pubmed
Wang,
Diversity and specialization of mammalian SWI/SNF complexes.
1996,
Pubmed
