???displayArticle.abstract???
Articulated brittle stars are rare fossils because the skeleton rapidly disintegrates after death and only fossilises intact under special conditions. Here, we describe an extraordinary mass occurrence of the ophiacanthid ophiuroid Brezinacantha tolis gen. et sp. nov., preserved as articulated skeletons from an upper Campanian (Late Cretaceous) methane seep of South Dakota. It is uniquely the first fossil case of a seep-associated ophiuroid. The articulated skeletons overlie centimeter-thick accumulations of dissociated skeletal parts, suggesting lifetime densities of approximately 1000 individuals per m2, persisting at that particular location for several generations. The ophiuroid skeletons on top of the occurrence were preserved intact most probably because of increased methane seepage, killing the individuals and inducing rapid cementation, rather than due to storm-induced burial or slumping. The mass occurrence described herein is an unambiguous case of an autochthonous, dense ophiuroid community that persisted at a particular spot for some time. Thus, it represents a true fossil equivalent of a recent ophiuroid dense bed, unlike other cases that were used in the past to substantiate the claim of a mid-Mesozoic predation-induced decline of ophiuroid dense beds.

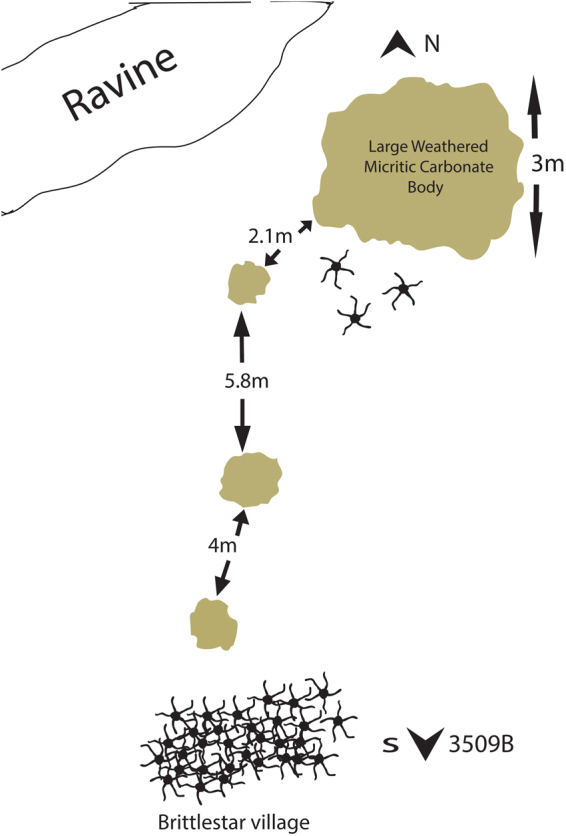

Figure 1. Site map of the ophiuroid-yielding seep site (AMNH locality 3509A) showing the location of the fossil ophiuroids, with three individuals near the large micritic body and a brittle-star mass aggregation (dubbed âbrittle star villageâ) at some distance of it. The seep site is covered with seep associated carbonate concretions across the entire map area except for the ravine. Map courtesy of Jamie Brezina.
Figure 2. New ophiuroid Brezinacantha tolis gen. et sp. nov. from Upper Cretaceous (Didymoceras cheyennense Zone, upper Campanian) methane seep deposits of Pennington County, South Dakota. (a) AMNH 113563 (holotype), articulated skeleton exposing ventral side. (b) Detail of (a) showing mouth plating. (c) MnhnL OPH039 (paratype), articulated skeleton showing ventral side. (d) AMNH 113564 (paratype), detail of an articulated skeleton fragment exposing the dorsal side shown in (e), with dorso-lateral view of three dental plates with teeth. (e) AMNH 113564 (paratype), articulated skeleton fragment exposing the dorsal side. (f) interpretative drawing of the articulated skeleton fragment shown in (f). Abbreviations: AOS: adoral shield; APa: apical oral papilla; AS: arm spine; DAP: dorsal arm plate; DP: dental plate; IS: interradial disc scales; LAP: lateral arm plate; LPa: lateral oral papilla; OP: oral plate; OS: oral shield; RS: radial shield; T: tooth; 1VAP: first ventral arm plate. Scale bars equal 1âmm.
Figure 3. New ophiuroid Brezinacantha tolis gen. et sp. nov. from Upper Cretaceous (Didymoceras cheyennense Zone, upper Campanian) methane seep deposits of Pennington County, South Dakota. (a) MnhnL OPH040 (paratype), dissociated proximal lateral arm plate in external view, with dorsal side pointing upwards. (b) AMNH 113565 (paratype), median arm segments in lateral view, with dorsal side pointing downwards. (c) detail of (a) showing spine articulation. (d) AMNH 113566 (paratype), dissociated oral plate in adradial view. (e) AMNH 113567 (paratype), dissociated proximal vertebra in distal view, with dorsal side pointing upwards. (f) AMNH 113568 (paratype), dissociated arm spines, with proximal tip pointing downwards. Abbreviations: MO: muscle opening; NO: nerve opening. Scale bars equal 0.5âmm in (a,b) and (dâf), and 0.1âmm in (c).
Figure 4. Slab with Brezinacantha tolis gen. et sp. nov. from Upper Cretaceous (Didymoceras cheyennense Zone, upper Campanian) methane seep deposits of Pennington County, South Dakota, AMNH 113563, in lateral view to show the densely packed articulated skeletons (top right detail: upside of slab) overlying an accumulation of dissociated skeletal plates (bottom right detail: underside of slab). Note the round arm sections in the lateral view.
