BMC Genomics
2018 May 18;191:368. doi: 10.1186/s12864-018-4768-9.
Show Gene links
Show Anatomy links
The developmental transcriptomes of two sea biscuit species with differing larval types.
Armstrong AF
,
Grosberg RK
.
???displayArticle.abstract???
BACKGROUND: Larval developmental patterns are extremely varied both between and within phyla, however the genetic mechanisms leading to this diversification are poorly understood. We assembled and compared the developmental transcriptomes for two sea biscuit species (Echinodermata: Echinoidea) with differing patterns of larval development, to provide a resource for investigating the evolution of alternate life cycles. One species (Clypeaster subdepressus) develops via an obligately feeding larva which metamorphoses 3-4 weeks after fertilization; the other (Clypeaster rosaceus) develops via a rare, intermediate larval type-facultative feeding- and can develop through metamorphosis entirely based on egg provisioning in under one week.
RESULTS: Overall, the two transcriptomes are highly similar, containing largely orthologous contigs with similar functional annotation. However, we found distinct differences in gene expression patterns between the two species. Larvae from C. rosaceus, the facultative planktotroph, turned genes on at earlier stages and had less differentiation in gene expression between larval stages, whereas, C. subdepressus showed a higher degree of stage-specific gene expression.
CONCLUSION: This study is the first genetic analysis of a species with facultatively feeding larvae. Our results are consistent with known developmental differences between the larval types and raise the question of whether earlier onset of developmental genes is a key step in the evolution of a reduced larval period. By publishing a transcriptome for this rare, intermediate, larval type, this study adds developmental breadth to the current genetic resources, which will provide a valuable tool for future research on echinoderm development as well as studies on the evolution of development in general.

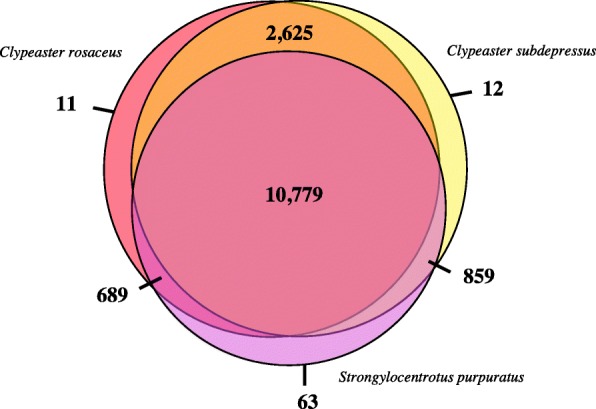

Fig. 1. Summary of orthogroups between Clypeaster rosaceus (red), C. subdepressus (yellow), and Strongylocentrotus purpuratus (purple). Orthogroups with all three species present are shown overlapping in the middle (10,779). Orthogroups shared exclusively by the Clypeaster species are shown in orange (2625)

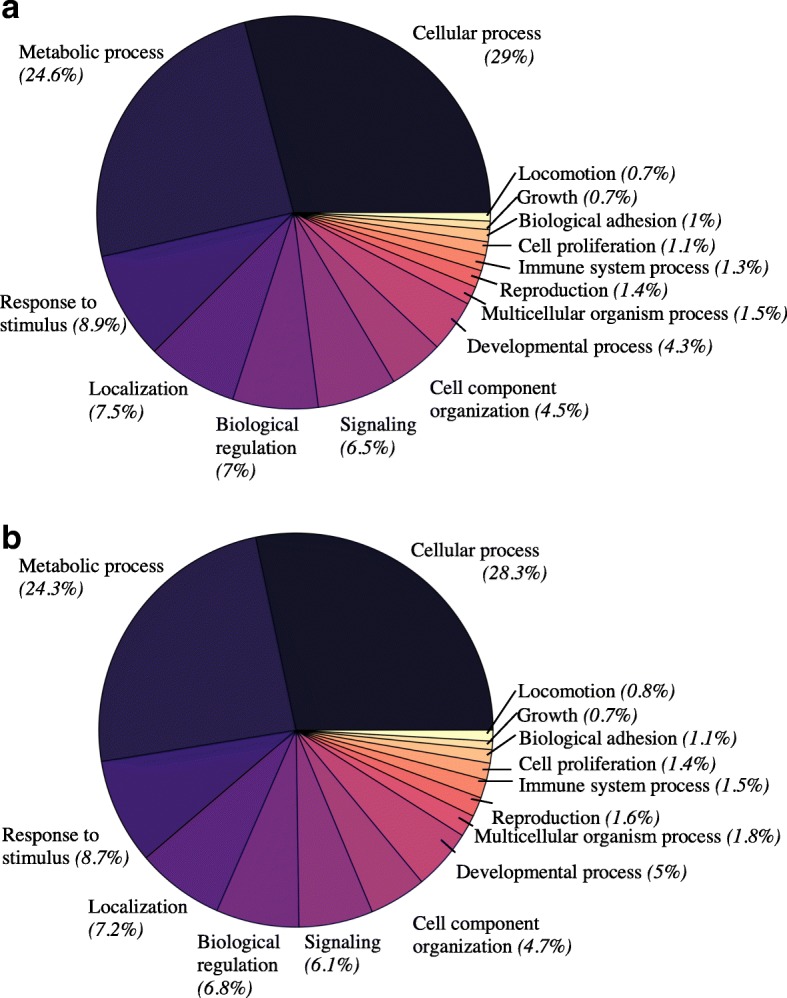

Fig. 2. Distribution of biological process gene ontology terms in each transcriptome. The category and percent of GO terms belonging to that category are labeled for both Clypeaster rosaceus (a) and C. subdepressus (b)

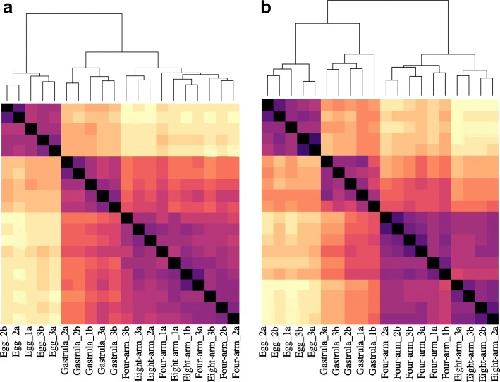

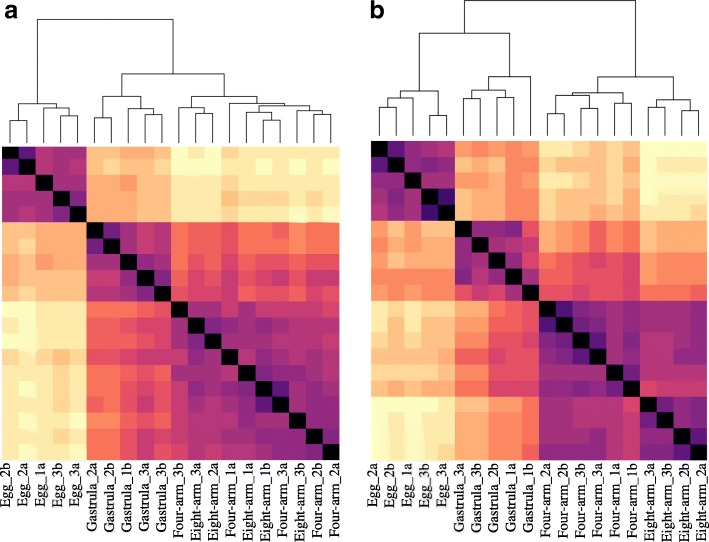

Fig. 3. Heatmaps of the Euclidean distance between samples for each Clypeaster rosaceus (a), and C. subdepressus (b). Dark purple colors represent highly similar samples, while lighter, yellow colors reflect more distant samples. The order of samples is denoted below each column with the sample names indicating first the developmental stage, followed by experiment (1â3), and replicate within experiment (a or b). The branching pattern at the top of each plot represents relative distances between samples

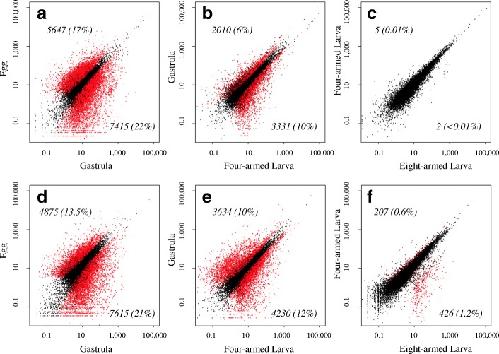

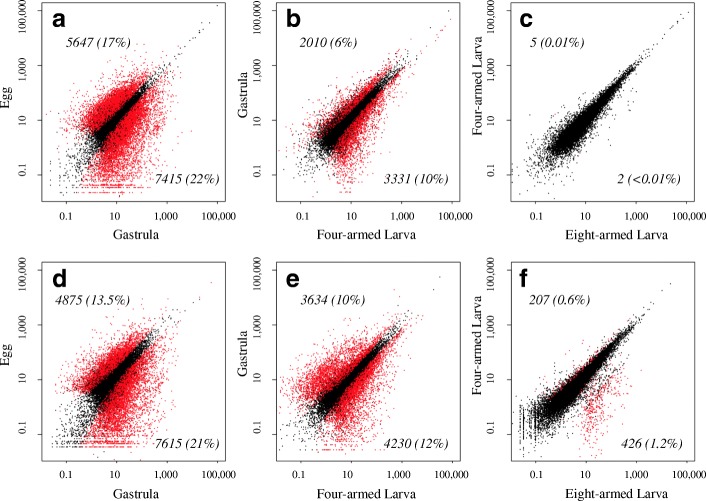

Fig. 4. Scatterplots of stage specific gene expression. a-c
Clypeaster rosaceus, (d-f) C. subdepressus. Expression levels are displayed in counts per million contrasted pairwise between developmental stages as labeled on the x- and y-axes. Red points represent genes identified as significantly differentially expressed, using a false discovery rate of 0.05, between stages while black dots are not significantly different. The number (and percent) of differentially expressed genes is indicated in each plot
Allen,
Intermediate modes of larval development: bridging the gap between planktotrophy and lecithotrophy.
2007, Pubmed
Allen,
Intermediate modes of larval development: bridging the gap between planktotrophy and lecithotrophy.
2007,
Pubmed
Anders,
Differential expression analysis for sequence count data.
2010,
Pubmed
Armstrong,
The evolution of larval developmental mode: insights from hybrids between species with obligately and facultatively planktotrophic larvae.
2015,
Pubmed
,
Echinobase
Ashburner,
Gene ontology: tool for the unification of biology. The Gene Ontology Consortium.
2000,
Pubmed
Cameron,
SpBase: the sea urchin genome database and web site.
2009,
Pubmed
,
Echinobase
Cary,
Echinoderm development and evolution in the post-genomic era.
2017,
Pubmed
,
Echinobase
Christiansen,
Evolution of marine invertebrate reproduction patterns.
1979,
Pubmed
Collin,
Nontraditional life-history choices: what can "intermediates" tell us about evolutionary transitions between modes of invertebrate development?
2012,
Pubmed
Conesa,
Blast2GO: a universal tool for annotation, visualization and analysis in functional genomics research.
2005,
Pubmed
Emms,
OrthoFinder: solving fundamental biases in whole genome comparisons dramatically improves orthogroup inference accuracy.
2015,
Pubmed
Falcon,
Using GOstats to test gene lists for GO term association.
2007,
Pubmed
Gaitán-Espitia,
Gene expression profiling during the embryo-to-larva transition in the giant red sea urchin Mesocentrotus franciscanus.
2017,
Pubmed
,
Echinobase
Gildor,
Quantitative developmental transcriptomes of the Mediterranean sea urchin Paracentrotus lividus.
2016,
Pubmed
,
Echinobase
Gildor,
Comparative Study of Regulatory Circuits in Two Sea Urchin Species Reveals Tight Control of Timing and High Conservation of Expression Dynamics.
2015,
Pubmed
,
Echinobase
Grabherr,
Full-length transcriptome assembly from RNA-Seq data without a reference genome.
2011,
Pubmed
Haas,
De novo transcript sequence reconstruction from RNA-seq using the Trinity platform for reference generation and analysis.
2013,
Pubmed
Hart,
EVOLUTIONARY LOSS OF LARVAL FEEDING: DEVELOPMENT, FORM AND FUNCTION IN A FACULTATIVELY FEEDING LARVA, BRISASTER LATIFRONS.
1996,
Pubmed
,
Echinobase
Henry,
Evolutionary dissociation between cleavage, cell lineage and embryonic axes in sea urchin embryos.
1992,
Pubmed
,
Echinobase
Israel,
Comparative Developmental Transcriptomics Reveals Rewiring of a Highly Conserved Gene Regulatory Network during a Major Life History Switch in the Sea Urchin Genus Heliocidaris.
2016,
Pubmed
,
Echinobase
Jeffery,
Macroevolutionary consequences of developmental mode in temnopleurid echinoids from the Tertiary of southern Australia.
2003,
Pubmed
Li,
Cd-hit: a fast program for clustering and comparing large sets of protein or nucleotide sequences.
2006,
Pubmed
McEdward,
Reproductive strategies of marine benthic invertebrates revisited: facultative feeding by planktotrophic larvae.
1997,
Pubmed
McIntyre,
Branching out: origins of the sea urchin larval skeleton in development and evolution.
2014,
Pubmed
,
Echinobase
Nielsen,
Novel gene expression patterns in hybrid embryos between species with different modes of development.
2000,
Pubmed
,
Echinobase
Parra,
CEGMA: a pipeline to accurately annotate core genes in eukaryotic genomes.
2007,
Pubmed
Puritz,
Extraordinarily rapid life-history divergence between Cryptasterina sea star species.
2012,
Pubmed
,
Echinobase
Raff,
A novel ontogenetic pathway in hybrid embryos between species with different modes of development.
1999,
Pubmed
,
Echinobase
Raff,
Regulatory punctuated equilibrium and convergence in the evolution of developmental pathways in direct-developing sea urchins.
2003,
Pubmed
,
Echinobase
Raff,
The active evolutionary lives of echinoderm larvae.
2006,
Pubmed
,
Echinobase
Robinson,
A scaling normalization method for differential expression analysis of RNA-seq data.
2010,
Pubmed
Robinson,
edgeR: a Bioconductor package for differential expression analysis of digital gene expression data.
2010,
Pubmed
Samanta,
The transcriptome of the sea urchin embryo.
2006,
Pubmed
,
Echinobase
Simão,
BUSCO: assessing genome assembly and annotation completeness with single-copy orthologs.
2015,
Pubmed
Smith,
Evolution of direct-developing larvae: selection vs loss.
2007,
Pubmed
,
Echinobase
Strathmann,
THE EVOLUTION AND LOSS OF FEEDING LARVAL STAGES OF MARINE INVERTEBRATES.
1978,
Pubmed
Tadros,
The maternal-to-zygotic transition: a play in two acts.
2009,
Pubmed
,
Echinobase
Thomas,
PANTHER: a browsable database of gene products organized by biological function, using curated protein family and subfamily classification.
2003,
Pubmed
THORSON,
Reproductive and larval ecology of marine bottom invertebrates.
1950,
Pubmed
Tu,
Quantitative developmental transcriptomes of the sea urchin Strongylocentrotus purpuratus.
2014,
Pubmed
,
Echinobase
Wei,
A database of mRNA expression patterns for the sea urchin embryo.
2006,
Pubmed
,
Echinobase
Wray,
The evolution of developmental strategy in marine invertebrates.
1991,
Pubmed
Wygoda,
Transcriptomic analysis of the highly derived radial body plan of a sea urchin.
2014,
Pubmed
,
Echinobase
Zakas,
Dimorphic development in Streblospio benedicti: genetic analysis of morphological differences between larval types.
2014,
Pubmed
Zigler,
Adaptive evolution of bindin in the genus Heliocidaris is correlated with the shift to direct development.
2003,
Pubmed
,
Echinobase
Zigler,
A shift in germ layer allocation is correlated with large egg size and facultative planktotrophy in the echinoid Clypeaster rosaceus.
2013,
Pubmed
,
Echinobase
Zigler,
Egg energetics, fertilization kinetics, and population structure in echinoids with facultatively feeding larvae.
2008,
Pubmed
,
Echinobase
