Appl Environ Microbiol
2018 Jun 18;8413:. doi: 10.1128/AEM.00181-18.
Show Gene links
Show Anatomy links
Crown-of-Thorns Sea Star Acanthaster cf. solaris Has Tissue-Characteristic Microbiomes with Potential Roles in Health and Reproduction.
Høj L
,
Levy N
,
Baillie BK
,
Clode PL
,
Strohmaier RC
,
Siboni N
,
Webster NS
,
Uthicke S
,
Bourne DG
.
???displayArticle.abstract???
Outbreaks of coral-eating crown-of-thorns sea stars (CoTS; Acanthaster species complex) cause substantial coral loss; hence, there is considerable interest in developing prevention and control strategies. We characterized the microbiome of captive CoTS and assessed whether dysbiosis was evident in sea stars during a disease event. Most tissue types had a distinct microbiome. The exception was female gonads, in which the microbiomes were highly variable among individuals. Male gonads were dominated (>97% of reads) by a single Mollicutes-related operational taxonomic unit (OTU). Detailed phylogenetic and microscopy analysis demonstrated the presence of a novel Spiroplasma-related bacterium in the spermatogenic layer. Body wall samples had high relative abundance (43 to 64% of reads) of spirochetes, likely corresponding to subcuticular symbionts reported from many echinoderms. Tube feet were characterized by Hyphomonadaceae (24 to 55% of reads). Pyloric cecal microbiomes had high alpha diversity, comprising many taxa commonly found in gastrointestinal systems. The order Oceanospirillales (genera Endozoicomonas and Kistimonas) was detected in all tissues. A microbiome shift occurred in diseased individuals although differences between tissue types were retained. The relative abundance of spirochetes was significantly reduced in diseased individuals. Kistimonas was present in all diseased individuals and significantly associated with diseased tube feet, but its role in disease causation is unknown. While Arcobacter was significantly associated with diseased tissues and Vibrionaceae increased in diversity, no single OTU was detected in all diseased individuals, suggesting opportunistic proliferation of these taxa in this case. This study shows that CoTS have tissue-characteristic bacterial communities and identifies taxa that could play a role in reproduction and host health.IMPORTANCE Coral-eating crown-of-thorns sea stars (CoTS; Acanthaster species complex) are native to the Indo-Pacific, but during periodic population outbreaks they can reach extreme densities (>1,000 starfish per hectare) and function as a pest species. On the Great Barrier Reef, Australia, CoTS have long been considered one of the major contributors to coral loss. There has been significant investment in a targeted control program using lethal injection, and there is interest in developing additional and complementary technologies that can increase culling efficiencies. The biology of CoTS has been studied extensively, but little is known about their associated microbiome. This cultivation-independent analysis of the CoTS microbiome provides a baseline for future analyses targeting the functional role of symbionts, the identification of pathogens, or the development of reproduction manipulators.
FIG 1. Schematic drawing of Acanthaster cf. solaris showing the location of sampled somatic tissues (body wall, tube feet, and pyloric ceca) and gonads.

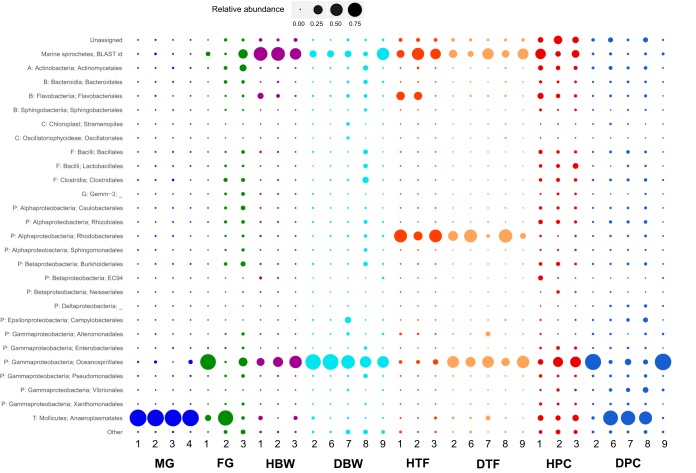

FIG 2. Taxonomic composition of amplicon sequences from healthy Acanthaster cf. solaris tissue samples. Labels reflect the phylum (abbreviated), class, and order as assigned by the QIIME pipeline. OTUs that could not be assigned to a taxonomic group by the QIIME pipeline are categorized as unassigned, with the exception of two OTUs (Unassigned_OTU1 and Unassigned_OTU2) categorized as marine spirochetes based on their best BLAST matches, as discussed in the text. Orders with relative abundances of >1% in at least one sample are shown, with remaining taxa included in the category âother.â Abbreviations: A, Actinobacteria; B, Bacteroidetes; C, Cyanobacteria; F, Firmicutes: G, Gemmatimonadetes; P, Proteobacteria; T, Tenericutes; MG, male gonads; FG, female gonads; HBW, healthy body wall; HTF, healthy tube feet; HPC, healthy pyloric ceca. The associated number identifies the sampled individual as described in Table S5 in the supplemental material.

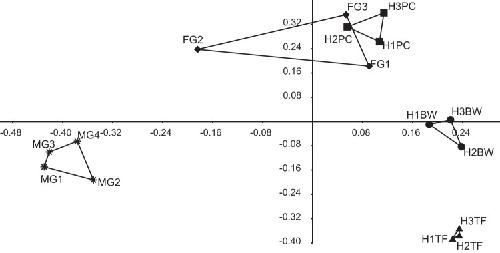

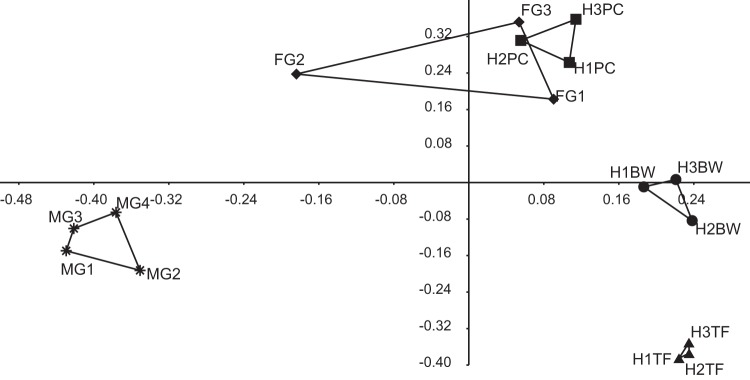

FIG 3. Principal-coordinate analysis (PCoA) plot based on Bray-Curtis similarities of Hellinger (square root)-transformed OTU abundance data evenly subsampled to 7,824 reads. Abbreviations: HBW, healthy body wall; HTF, healthy tube feet; HPC, healthy pyloric ceca; FG, female gonads; MG, male gonads. The number in the sample label identifies the sampled individual as described in Table S5 in the supplemental material.

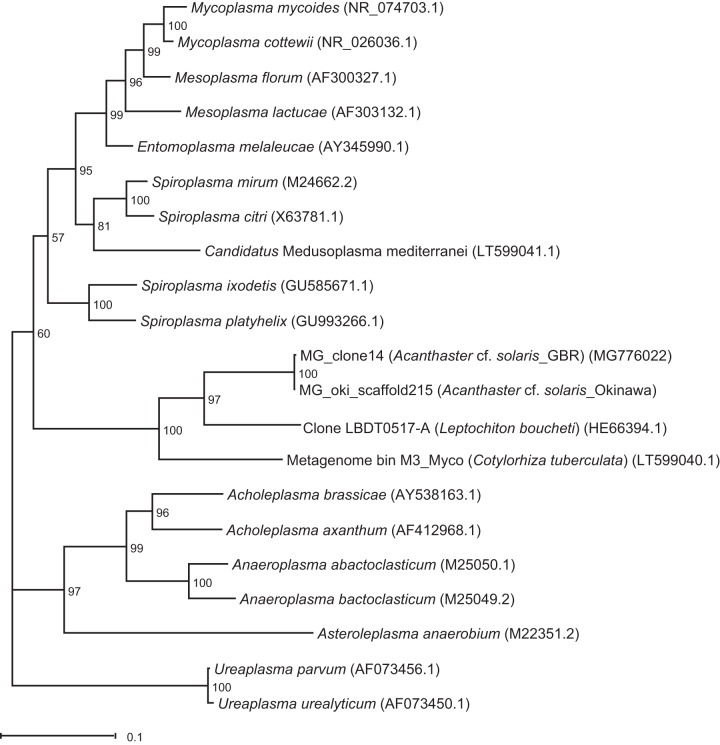

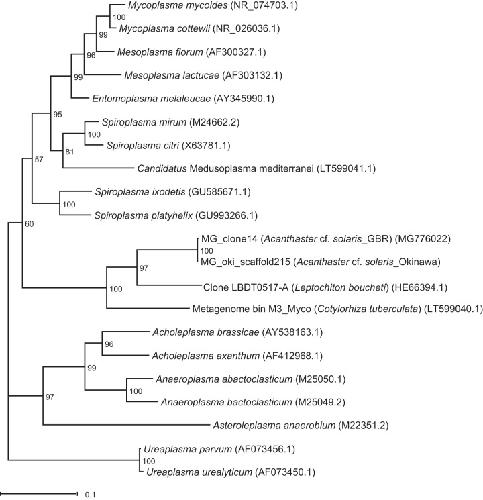

FIG 4. Maximum likelihood tree showing the phylogenetic position within the Mollicutes of the dominant bacterium in Acanthaster cf. solaris male gonads. The sequence MG_clone14 was cloned from male gonads of Acanthaster cf. solaris collected from the Great Barrier Reef. The sequence MG_ oki_scaffold215 was extracted from an existing scaffold produced from male gonads of Acanthaster cf. solaris collected near Okinawa (5). Bootstrap values are based on 1,000 bootstrap replications. The scale bar represents the number of substitutions per site. GenBank accession numbers are given in parentheses.
FIG 5. Transmission electron micrographs from healthy Acanthaster cf. solaris tissues. (A) The spermatogenic layer of a male gonad showing bacterial morphologies (arrowheads) similar to those of Spiroplasma in exponential growth and its pleiomorphic or intermediate forms. Scale bar, 1 μm. (B) A spirochete-shaped bacterium (arrowhead) detected in the coelomic epithelium of tube feet. Scale bar, 500 nm.

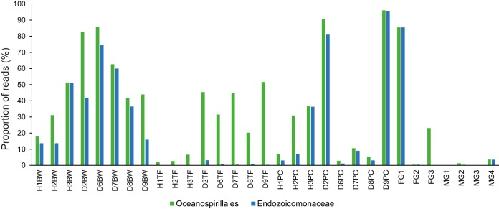

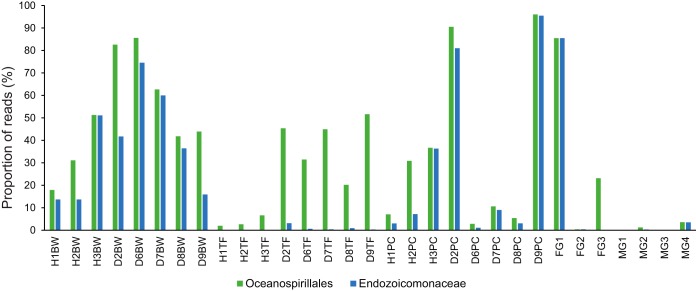

FIG 6. Proportion of reads classified as Oceanospirillales and Endozoicomonaceae by QIIME for healthy and diseased Acanthaster cf. solaris tissue samples. Abbreviations: H, healthy; D, diseased; BW, body wall; TF, tube feet; PC, pyloric ceca. The number in the sample label identifies the sampled individual as described in Table S5 in the supplemental material.
FIG 7. Photos and micrographs showing representative healthy and diseased Acanthaster cf. solaris samples. The micrographs were produced by automated tiling and stitching as indicated. (a and b) Arms of healthy (a) and diseased (b) individuals. (c to h) The following hematoxylin- and eosin-stained tissue sections are also shown: body wall from healthy (c) and diseased (d) individuals (5-by-5 tiles, 10à objective; scale bar, 500 μm); tube feet from healthy (e) and diseased (f) individuals (5-by-5 tiles; 20à objective; scale bar, 200 μm); pyloric ceca from healthy (g) and diseased (h) individuals (4-by-4 tiles; 20à objective; scale bar, 200 μm).
