Hock K et al. (2017), Connectivity and systemic resilience of the Gre...

ECB-ART-45897

PLoS Biol 2017 Nov 28;1511:e2003355. doi: 10.1371/journal.pbio.2003355.

Show Gene links Show Anatomy links

Connectivity and systemic resilience of the Great Barrier Reef.

Hock K , Wolff NH , Ortiz JC , Condie SA , Anthony KRN , Blackwell PG , Mumby PJ .

???displayArticle.abstract???
Australia''s iconic Great Barrier Reef (GBR) continues to suffer from repeated impacts of cyclones, coral bleaching, and outbreaks of the coral-eating crown-of-thorns starfish (COTS), losing much of its coral cover in the process. This raises the question of the ecosystem''s systemic resilience and its ability to rebound after large-scale population loss. Here, we reveal that around 100 reefs of the GBR, or around 3%, have the ideal properties to facilitate recovery of disturbed areas, thereby imparting a level of systemic resilience and aiding its continued recovery. These reefs (1) are highly connected by ocean currents to the wider reef network, (2) have a relatively low risk of exposure to disturbances so that they are likely to provide replenishment when other reefs are depleted, and (3) have an ability to promote recovery of desirable species but are unlikely to either experience or spread COTS outbreaks. The great replenishment potential of these ''robust source reefs'', which may supply 47% of the ecosystem in a single dispersal event, emerges from the interaction between oceanographic conditions and geographic location, a process that is likely to be repeated in other reef systems. Such natural resilience of reef systems will become increasingly important as the frequency of disturbances accelerates under climate change.

???displayArticle.pubmedLink??? 29182630
???displayArticle.pmcLink??? PMC5705071
???displayArticle.link??? PLoS Biol

Genes referenced: LOC115925415

???attribute.lit??? ???displayArticles.show???

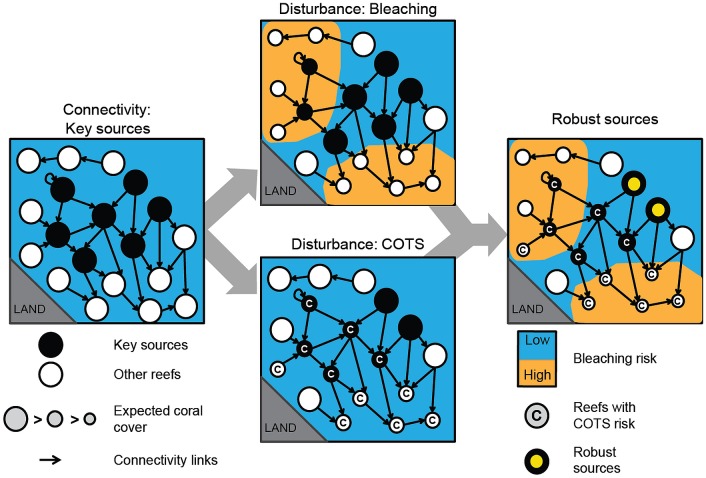

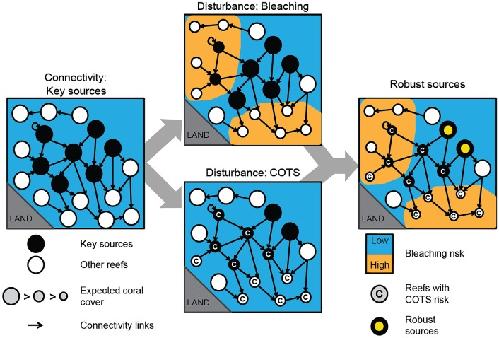

	Fig 1. Conceptual diagram describing the process for identifying robust source reefs in a coral reef system.Ocean currents disperse larvae and create interpopulation connectivity links among reefs, leading to an emergence of source reefs with high potential to support coral replenishment. For robust sources, high connectivity will be complemented by a reduced chance of being affected by disturbances, such as thermal stressâ€“induced bleaching, and COTS outbreaks. COTS, crown-of-thorns starfish.

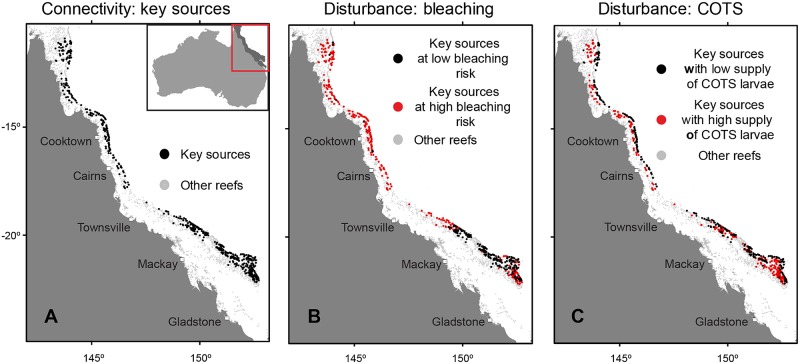

	Fig 2. Identifying reefs that exhibit high connectivity and low disturbance exposure.(A) Locations of key source reefs on the GBR with high replenishment potential. (B) Classification of key source reefs according to bleaching risk (>6 DHW) during major bleaching events between 1982 and 2017. (C) Classification of key sources according to their predicted supply of COTS larvae. Data provided in S1 Data. COTS, crown-of-thorns starfish; DHW, degree heating weeks; GBR, Great Barrier Reef.

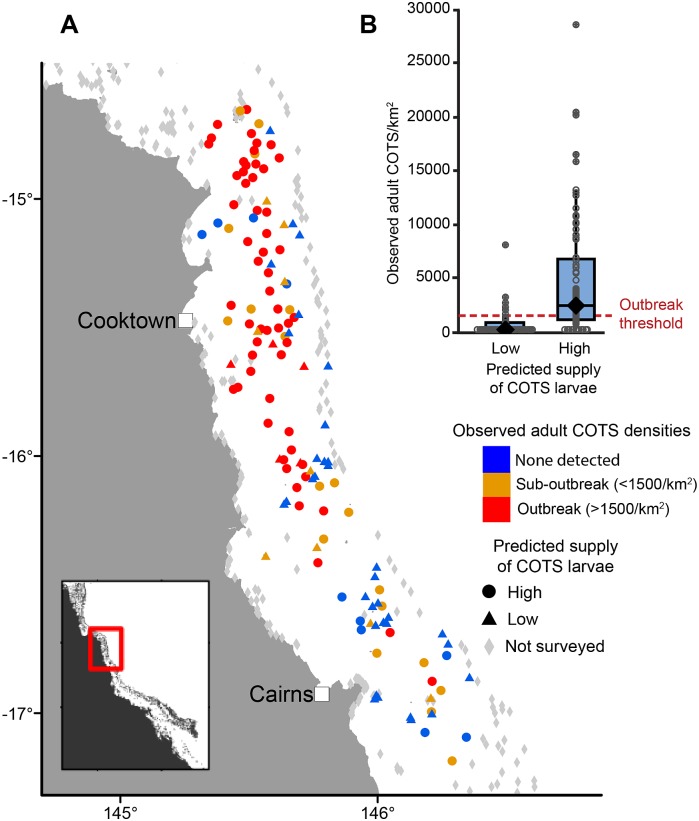

	Fig 3. Linking connectivity and COTS abundance estimates from field surveys.(A) A map of the GBR region surveyed for COTS in 2013â€“2015. Reefs with low predicted supply of COTS larvae (triangles; N = 48) were more likely to have low levels of adult COTS or no adult COTS detected (blue symbols). The highest incidence of COTS outbreaks (red) was observed on reefs with high potential supply of COTS larvae (circles; N = 89). Note that, although the outbreaks originated in the area north of Cooktown and spread southwards, latitude and longitude were not significant predictors in the analysis, but they were kept in the model as covariates to ensure that any spatial pattern observed in the figure did not affect the observed effect of connectivity. (B) Reefs with high predicted supply of COTS larvae had significantly higher densities of adult COTS. The outbreak threshold of 1,500 adult COTS kmâˆ’2 is shown as a red line [30]. The box plots show medians (black diamonds) and quartiles (blue box). The analysis also included a datum in the high category with an estimated COTS density of >30,000 per km2. Data provided in S1 Data. COTS, crown-of-thorns starfish; GBR, Great Barrier Reef.

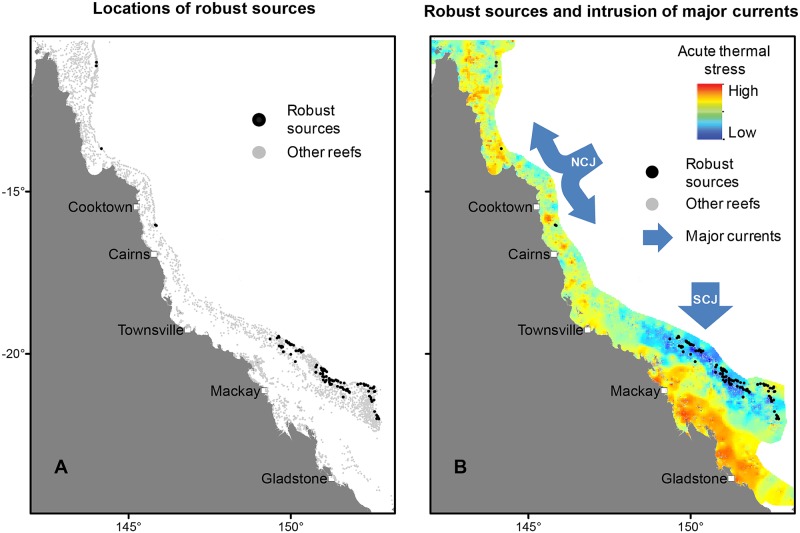

	Fig 4. Identifying robust sources on the GBR.(A) Robust sources are the reefs that possess high replenishment potential while also having low risk of bleaching and COTS outbreaks. (B) When robust sources are superimposed on estimates of acute thermal stress, the region of lower stress in the southern GBR is clearly visible. Most robust sources are located in a region where cooler oceanic water of the SCJ, and to a lesser extent the NCJ, of the South Equatorial Current flushes the GBR reef matrix [35]. Data provided in S1 Data. COTS, crown-of-thorns starfish; GBR, Great Barrier Reef; NCJ, North Caledonian Jet; SCJ, South Caledonian Jet.

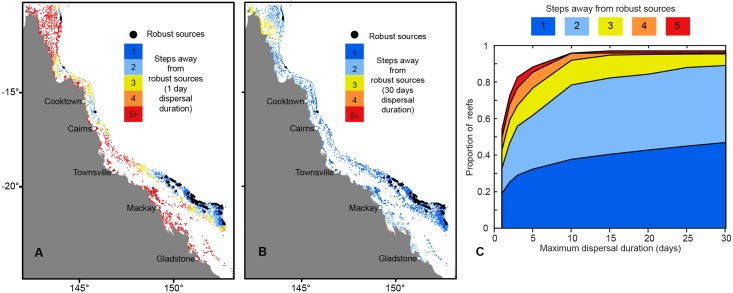

	Fig 5. Distance of reefs on the GBR from robust sources in terms of colonisation steps.(A) Number of colonisation steps needed to reach reefs from robust sources after 1 day of dispersal. (B) Number of colonisation steps needed to reach reefs from robust sources after 30 days of dispersal. (C) Percentage of reefs that can be reached in a given number of consecutive colonisation steps as a function of maximum dispersal duration (measured in days since release). Values for a single colonisation step correspond to direct links. After 30 days of dispersal, >80% of the reefs were within 2, and >95% of the reefs were within 5, colonisation steps away from robust sources. Data provided in S1 Data. GBR, Great Barrier Reef.

References [+] :

Ainsworth, Climate change disables coral bleaching protection on the Great Barrier Reef. 2016, Pubmed
