Biomed Res Int
2017 Jan 01;2017:4389525. doi: 10.1155/2017/4389525.
Show Gene links
Show Anatomy links
Nanoparticulate Tubular Immunostimulating Complexes: Novel Formulation of Effective Adjuvants and Antigen Delivery Systems.
Sanina N
,
Chopenko N
,
Mazeika A
,
Kostetsky E
.
???displayArticle.abstract???
New generation vaccines, based on isolated antigens, are safer than traditional ones, comprising the whole pathogen. However, major part of purified antigens has weak immunogenicity. Therefore, elaboration of new adjuvants, more effective and safe, is an urgent problem of vaccinology. Tubular immunostimulating complexes (TI-complexes) are a new type of nanoparticulate antigen delivery systems with adjuvant activity. TI-complexes consist of cholesterol and compounds isolated from marine hydrobionts: cucumarioside A2-2 (CDA) from Cucumaria japonica and monogalactosyldiacylglycerol (MGDG) from marine algae or seagrass. These components were selected due to immunomodulatory and other biological activities. Glycolipid MGDG from marine macrophytes comprises a high level of polyunsaturated fatty acids (PUFAs), which demonstrate immunomodulatory properties. CDA is a well-characterized individual compound capable of forming stable complex with cholesterol. Such complexes do not possess hemolytic activity. Ultralow doses of cucumariosides stimulate cell as well as humoral immunity. Therefore, TI-complexes comprising biologically active components turned out to be more effective than the strongest adjuvants: immunostimulating complexes (ISCOMs) and complete Freund''s adjuvant. In the present review, we discuss results published in series of our articles on elaboration, qualitative and quantitative composition, ultrastructure, and immunostimulating activity of TI-complexes. The review allows immersion in the history of creating TI-complexes.

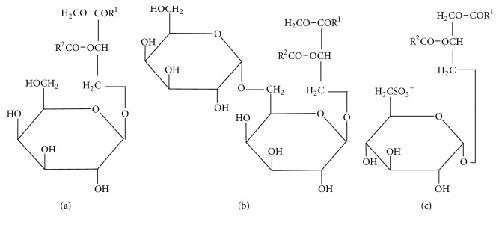

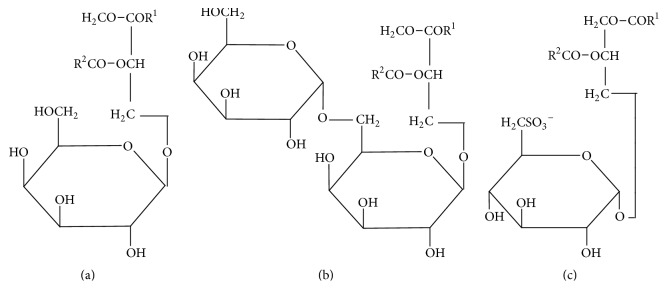

Figure 1. Chemical structures of glycoglycerolipids MGDG (a), DGDG (b), and SQDG (c). R1 and R2: hydrocarbon chains of fatty acid residues ((–CH2)n–CH3).
Figure 2. Electron micrograph of nanoparticles obtained after modification of ISCOMATRIX by MGDG from Laminaria japonica (magnification ×189000), taken with permission from [20].

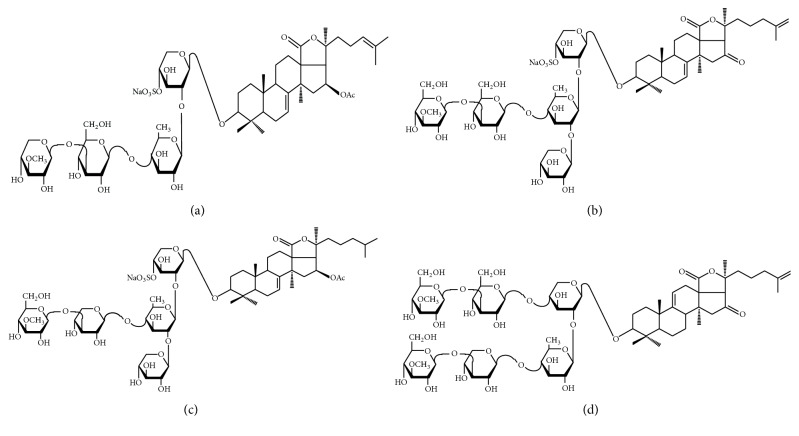

Figure 3. Structural formulas of triterpene glycosides extracted from holothurians: (a) cucumarioside G1, (b) CDA, (c) frondoside A, and (d) holotoxin A1.
Figure 4. Electron micrographs of supramolecular complexes of cholesterol with CDA (a), HTA (b), FRA (c), and CDG (d). Bar is 100 nm, taken with permission from [44].
Figure 5. Electron micrograph of TI-complexes with weight ratio of CDA, cholesterol, and MGDG 6 : 2 : 4. Bar is 100 nm, taken with permission from [5].

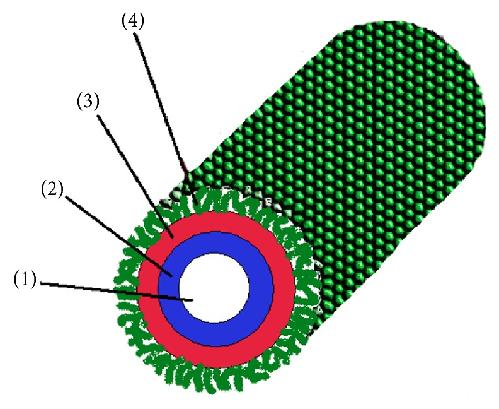

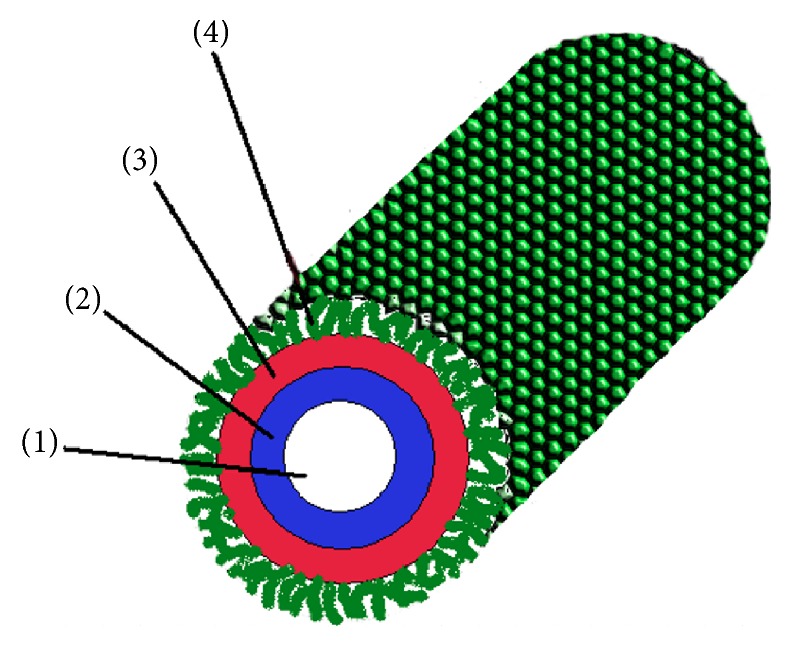

Figure 6. The model of the structure for tubular immunostimulating complex (TI-complex). (1) The inner channel, (2) the layer of MGDG from marine macrophytes, (3) the layer of cholesterol-aglycone complexes, and (4) the layer of carbohydrate chains of triterpene glycoside CDA, taken with permission from [46].
Aminin,
Immunomodulatory effects of holothurian triterpene glycosides on mammalian splenocytes determined by mass spectrometric proteome analysis.
2009, Pubmed
Aminin,
Immunomodulatory effects of holothurian triterpene glycosides on mammalian splenocytes determined by mass spectrometric proteome analysis.
2009,
Pubmed
Aminin,
Radioprotective properties of Cumaside, a complex of triterpene glycosides from the sea cucumber Cucumaria japonica and cholesterol.
2011,
Pubmed
,
Echinobase
Aminin,
Immunomodulatory properties of Cumaside.
2006,
Pubmed
,
Echinobase
Aminin,
Anticancer activity of sea cucumber triterpene glycosides.
2015,
Pubmed
,
Echinobase
Calder,
Polyunsaturated fatty acids and inflammatory processes: New twists in an old tale.
2009,
Pubmed
Calder,
Marine omega-3 fatty acids and inflammatory processes: Effects, mechanisms and clinical relevance.
2015,
Pubmed
Colorado,
Ulososides and urabosides--triterpenoid saponins from the Caribbean marine sponge Ectyoplasia ferox.
2013,
Pubmed
Copland,
Hydration of lipid films with an aqueous solution of Quil A: a simple method for the preparation of immune-stimulating complexes.
2000,
Pubmed
Cox,
ISCOMs and other saponin based adjuvants.
1998,
Pubmed
Eitsuka,
Telomerase inhibition by sulfoquinovosyldiacylglycerol from edible purple laver (Porphyra yezoensis).
2004,
Pubmed
Gustafson,
AIDS-antiviral sulfolipids from cyanobacteria (blue-green algae).
1989,
Pubmed
Kersten,
Liposomes and ISCOMS as vaccine formulations.
1995,
Pubmed
Keukens,
Molecular basis of glycoalkaloid induced membrane disruption.
1995,
Pubmed
Kostetsky,
Tubular immunostimulating complex based on cucumarioside A2-2 and monogalactosyldiacylglycerol from marine macrophytes.
2011,
Pubmed
,
Echinobase
Lee,
Morphological and immunological characterization of immunostimulatory complexes based on glycoglycerolipids from Laminaria japonica.
2004,
Pubmed
Lee,
[Membranotropic effect of some triterpene glycosides possessing immunostimulating properties].
2008,
Pubmed
,
Echinobase
Li,
Review of the apoptosis pathways in pancreatic cancer and the anti-apoptotic effects of the novel sea cucumber compound, Frondoside A.
2008,
Pubmed
,
Echinobase
Lövgren Bengtsson,
ISCOM technology-based Matrix M™ adjuvant: success in future vaccines relies on formulation.
2011,
Pubmed
Matsufuji,
Protective effects of bacterial glyceroglycolipid M874B against cell death caused by exposure to heat and hydrogen peroxide.
2000,
Pubmed
Mazeĭka,
[Elaboration of immune stimulating lipid-saponin subunit antigen carrier based on glycolipid monogalactosyldiacylglycerol from sea macrophytes and triterpene glycosides from Cucumaria japonica].
2013,
Pubmed
,
Echinobase
Mazeĭka,
[Complexation between triterpene glycosides of holothurians and cholesterol is the basis of lipid-saponin carriers of subunit protein antigens].
2008,
Pubmed
,
Echinobase
Menchinskaya,
Antitumor activity of cucumarioside A2-2.
2013,
Pubmed
,
Echinobase
Morein,
Iscom, a novel structure for antigenic presentation of membrane proteins from enveloped viruses.
1984,
Pubmed
Morimoto,
Anti-tumour-promoting glyceroglycolipids from the green alga, Chlorella vulgaris.
1995,
Pubmed
Ohta,
Sulfoquinovosyldiacylglycerol, KM043, a new potent inhibitor of eukaryotic DNA polymerases and HIV-reverse transcriptase type 1 from a marine red alga, Gigartina tenella.
1998,
Pubmed
Pearse,
ISCOMATRIX adjuvant for antigen delivery.
2005,
Pubmed
Pedebos,
Atomic model and micelle dynamics of QS-21 saponin.
2014,
Pubmed
Sanders,
ISCOM-based vaccines: the second decade.
2005,
Pubmed
Sanina,
Seasonal changes of fatty acid composition and thermotropic behavior of polar lipids from marine macrophytes.
2008,
Pubmed
Sanina,
Fatty acid composition of individual polar lipid classes from marine macrophytes.
2004,
Pubmed
Sanina,
The influence of monogalactosyldiacylglycerols from different marine macrophytes on immunogenicity and conformation of protein antigen of tubular immunostimulating complex.
2012,
Pubmed
Shaikh,
Polyunsaturated fatty acids, membrane organization, T cells, and antigen presentation.
2006,
Pubmed
Sun,
ISCOMs and ISCOMATRIX.
2009,
Pubmed
Tilley,
Mixed messages: modulation of inflammation and immune responses by prostaglandins and thromboxanes.
2001,
Pubmed
Vincken,
Saponins, classification and occurrence in the plant kingdom.
2007,
Pubmed
Wikman,
Achieving directed immunostimulating complexes incorporation.
2006,
Pubmed
Wikström,
Monoglucosyldiacylglycerol, a foreign lipid, can substitute for phosphatidylethanolamine in essential membrane-associated functions in Escherichia coli.
2004,
Pubmed
Wu,
A new unsaturated glycoglycerolipid from a cultured marine dinoflagellate Amphidinium carterae.
2005,
Pubmed
Yaqoob,
Fatty acids as gatekeepers of immune cell regulation.
2003,
Pubmed
Zhang,
Dietary (n-3) polyunsaturated fatty acids modulate murine Th1/Th2 balance toward the Th2 pole by suppression of Th1 development.
2005,
Pubmed
