Open Biol
2017 Apr 01;74:. doi: 10.1098/rsob.160300.
Show Gene links
Show Anatomy links
A puzzling homology: a brittle star using a putative cnidarian-type luciferase for bioluminescence.
Delroisse J
,
Ullrich-Lüter E
,
Blaue S
,
Ortega-Martinez O
,
Eeckhaut I
,
Flammang P
,
Mallefet J
.
???displayArticle.abstract???
Bioluminescence relies on the oxidation of a luciferin substrate catalysed by a luciferase enzyme. Luciferins and luciferases are generic terms used to describe a large variety of substrates and enzymes. Whereas luciferins can be shared by phylogenetically distant organisms which feed on organisms producing them, luciferases have been thought to be lineage-specific enzymes. Numerous light emission systems would then have co-emerged independently along the tree of life resulting in a plethora of non-homologous luciferases. Here, we identify for the first time a candidate luciferase of a luminous echinoderm, the ophiuroid Amphiura filiformis Phylogenomic analyses identified the brittle star predicted luciferase as homologous to the luciferase of the sea pansy Renilla (Cnidaria), contradicting with the traditional viewpoint according to which luciferases would generally be of convergent origins. The similarity between the Renilla and Amphiura luciferases allowed us to detect the latter using anti-Renilla luciferase antibodies. Luciferase expression was specifically localized in the spines which were demonstrated to be the bioluminescent organs in vivo However, enzymes homologous to the Renilla luciferase but unable to trigger light emission were also identified in non-luminous echinoderms and metazoans. Our findings strongly indicate that those enzymes, belonging to the haloalkane dehalogenase family, might then have been convergently co-opted into luciferases in cnidarians and echinoderms. In these two benthic suspension-feeding species, similar ecological pressures would constitute strong selective forces for the functional shift of these enzymes and the emergence of bioluminescence.
Figure 1. The brittle star Amphiura filiformis. (a) Arms of A. filiformis emerging out of the sediment (in aquarium; scale bar, 1 cm). (b) Oral view of A. filiformis (scale bar, 2 mm).

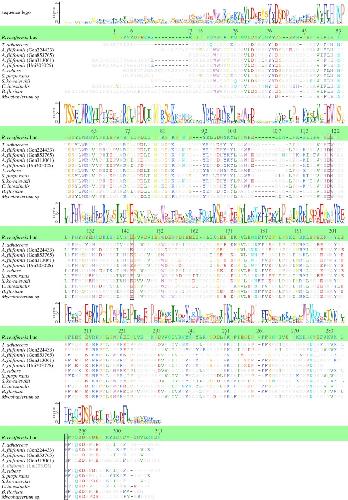

Figure 2. Multiple sequence alignment of the Renilla luciferase (RLuc), deuterostomian luciferase-like proteins (echinoderms: Amphiura filiformis, Asterias rubens, Strongylocentrotus purpuratus; hemichordate: Saccoglossus kowalevskii; urochordate: Ciona intestinalis), placozoan luciferase-like protein (Trichoplax adhaerens) and bacterial haloalkane dehalogenase proteins (Mycobacterium sp.). Alignment was performed using Geneious software (MAFFT alignment). Conserved amino acids relative to RLuc are coloured in all sequences. The amino acid triad known as the active site in haloalkane dehalogenases and RLuc is framed in black. This amino acid triad is conserved in all luciferase-like sequences we identified except in A. filiformis
Gen853765. Sequence accession numbers: T. adhaerens, XP002116677; R. reniformis, AAA29804.1; S. purpuratus, DspA XP794172.2; A. rubens, Ar_comp22488; B. floridae, XP002611539.1; C. intestinalis, XP002127127.1; S. kowalevskii, XP002738321.1, XPE002730984.1; Mycobacterium sp., WP067006024.

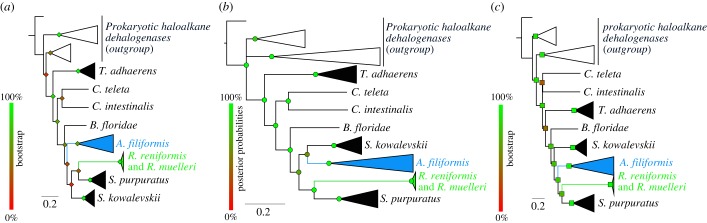

Figure 3. Phylogenetic reconstructions of RLuc-like sequence relationships based on maximum likelihood (a), Bayesian (b) and distance (c) methods. Bacterial haloalkane dehalogenases were taken as outgroup. Bootstrap (for a,c) and posterior probability (for b) values are colour-coded from red (0%) to green (100%). Short/partial sequences were not used for the analyses. The analyses included sequences from Amphiura filiformis (Gen224433, Uni203026, Gen313061 and Gen853765), Renilla reniformis (AAA29804), Renilla muelleri (AAG540941), Strongylocentrotus purpuratus (XP788943, XP794172, XP794218, XP798042 and XP792159), Saccoglossus kowalevskii (XP002730984 and XP002738321), Ciona intestinalis (XP002127127), Branchiostoma floridae (XP002611539), Capitella teleta (ELT94308), Trichoplax adhaerens (XP002116677 and XP002116678) and the haloalkane dehalogenases from Roseobacter (EBA17164.1, and WP009810405), Phaeobacter (WP054461824), Thalassobius mediterraneus (WP058317896.1), Sulfitobacter pontiacus (WP064216788), Shimia (WP054002384), Mycobacterium sp. (WP066929894), Geobacter daltonii (WP012647128), Dehalococcoidia bacterium (KPJ48875), Myxococcales bacterium (KPK14642) and Algiphilus aromaticivorans (WP043766976).

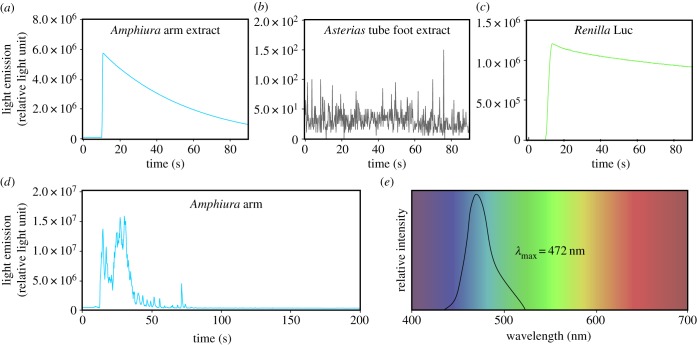

Figure 4. In vitro luciferase activity of echinoderm extracts (a–c) and in vivo light emission in A. filiformis (d,e). Luminometry tests of luciferase activity performed on A. filiformis arm extracts (a), on A. rubens tube foot extracts (b), and on purified RLuc (c), after coelenterazine addition. (d) Light emission of an arm in an adult A. filiformis measured by luminometry (RLU: relative light unit). (e) Bioluminescence spectral emission of A. filiformis measured by microspectrophotometry.
Figure 5. Light emission in A. filiformis and immunodetection of RLuc-like proteins. (a) Aboral view of an individual during KCl stimulation (scale bar, 0.5 cm). (b) Detail of the arm light emission (scale bar, 1 mm). (c) Detail of the spine emission (scale bar, 150 µm). (d) Schematic view of the arm bioluminescence. (e–h) Immunolocalization of RLuc-like proteins (red) and acetylated alpha tubulin (green) in an arm portion of A. filiformis. Nuclear DAPI staining is in blue (scale bar, 200 µm). (h) Immunolocalization of RLuc-like proteins in a single spine (scale bar, 40 µm; a, arm; d, disc; s, spine; bs, luminous blue spot; p, podia.

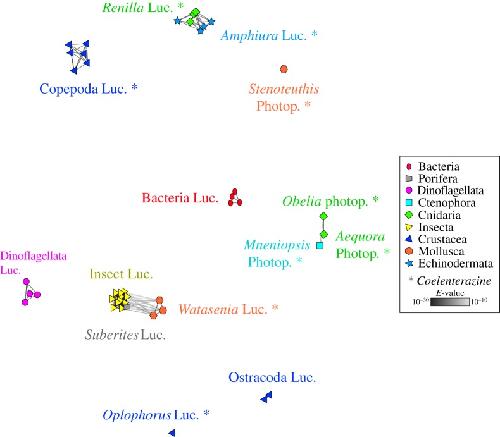

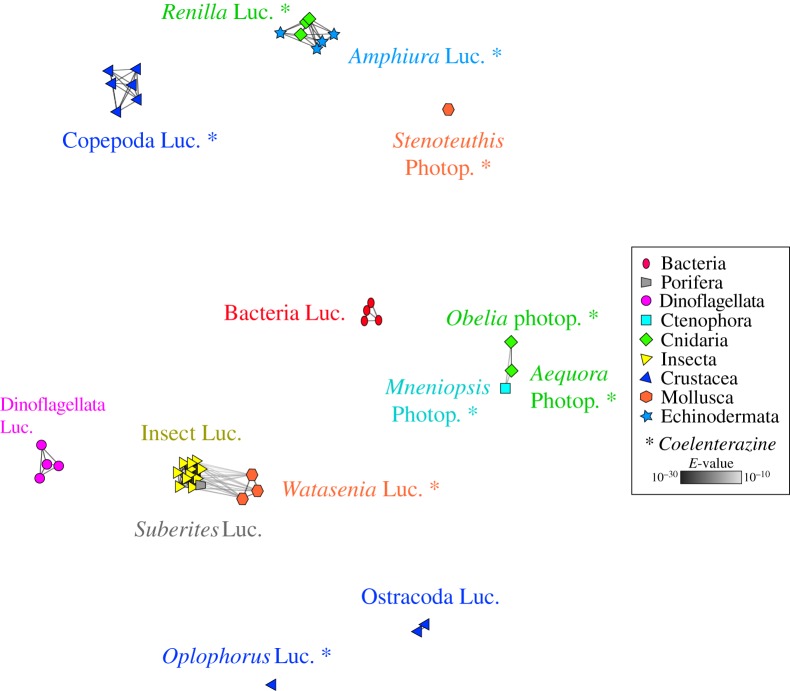

Figure 6. BLAST cluster map of all known luciferase/photoproteins. Node coloration is based on taxonomy. Lines correspond to BLAST connections of p-value < 1 10−3.

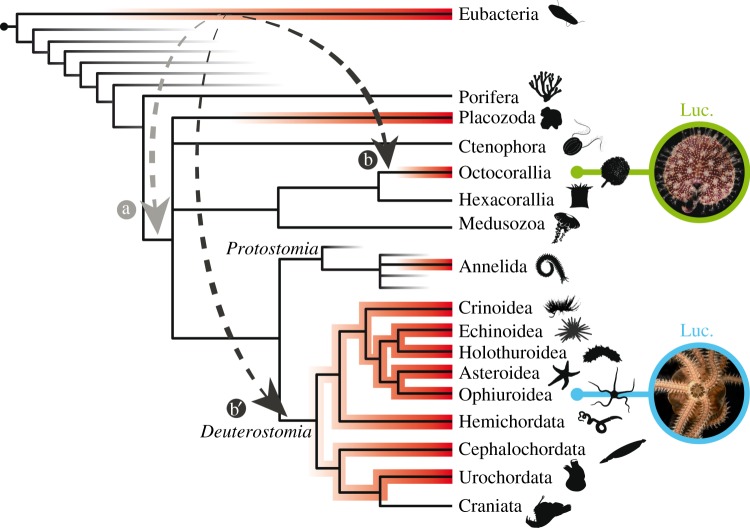

Figure 7. Distribution of haloalkane dehalogenases/RLuc-like proteins in metazoans and associated evolutionary hypotheses. The presence of haloalkane dehalogenases/RLuc-like proteins in specific taxa is shown in red (based on BLAST analyses performed on nr/nt/TSA databases). Arrows illustrated hypothetical gene transfers. Tree based on the Tree of Life Project (http://tolweb.org). Organism silhouettes were extracted from the PhyloPic open database (phylopic.org). Renilla reniformis picture courtesy of Dr Alvaro Esteves Migotto (University of Sao Paulo).
Anctil,
Mechanism of photoinactivation and re-activation in the bioluminescence system of the ctenophore Mnemiopsis.
1984, Pubmed
Anctil,
Mechanism of photoinactivation and re-activation in the bioluminescence system of the ctenophore Mnemiopsis.
1984,
Pubmed
Barnes,
Induction of bioluminescence in a luciferin deficient form of the marine teleost, Porichthys, in response to exogenous luciferin.
1973,
Pubmed
Boto,
Horizontal gene transfer in the acquisition of novel traits by metazoans.
2014,
Pubmed
Chovancová,
Phylogenetic analysis of haloalkane dehalogenases.
2007,
Pubmed
Christensen,
Phylogeny of Echinoderm Hemoglobins.
2015,
Pubmed
,
Echinobase
D'Aniello,
Opsin evolution in the Ambulacraria.
2015,
Pubmed
,
Echinobase
Deheyn,
Cytological changes during bioluminescence production in dissociated photocytes from the ophiuroid Amphipholis squamata (Echinodermata).
2000,
Pubmed
,
Echinobase
Delroisse,
High opsin diversity in a non-visual infaunal brittle star.
2014,
Pubmed
,
Echinobase
Delroisse,
De Novo Adult Transcriptomes of Two European Brittle Stars: Spotlight on Opsin-Based Photoreception.
2016,
Pubmed
,
Echinobase
Delroisse,
De novo transcriptome of the European brittle star Amphiura filiformis pluteus larvae.
2015,
Pubmed
,
Echinobase
Fortova,
DspA from Strongylocentrotus purpuratus: The first biochemically characterized haloalkane dehalogenase of non-microbial origin.
2013,
Pubmed
,
Echinobase
Frickey,
CLANS: a Java application for visualizing protein families based on pairwise similarity.
2004,
Pubmed
Gardner,
Control of acetyl-coenzyme A synthetase (AcsA) activity by acetylation/deacetylation without NAD(+) involvement in Bacillus subtilis.
2006,
Pubmed
Gimenez,
Mass spectrometry analysis and transcriptome sequencing reveal glowing squid crystal proteins are in the same superfamily as firefly luciferase.
2016,
Pubmed
Greer,
Imaging of light emission from the expression of luciferases in living cells and organisms: a review.
2002,
Pubmed
Guindon,
A simple, fast, and accurate algorithm to estimate large phylogenies by maximum likelihood.
2003,
Pubmed
Haddock,
Can coelenterates make coelenterazine? Dietary requirement for luciferin in cnidarian bioluminescence.
2001,
Pubmed
Haddock,
Bioluminescence in the sea.
2010,
Pubmed
Hastings,
Bioluminescence and chemiluminescence.
1976,
Pubmed
Hastings,
Biological diversity, chemical mechanisms, and the evolutionary origins of bioluminescent systems.
1983,
Pubmed
Hennebert,
An integrated transcriptomic and proteomic analysis of sea star epidermal secretions identifies proteins involved in defense and adhesion.
2015,
Pubmed
,
Echinobase
Henry,
Bioluminescence: physiological control and regulation at the molecular level.
1978,
Pubmed
Herring,
Systematic distribution of bioluminescence in living organisms.
1987,
Pubmed
Holmquist,
Alpha/Beta-hydrolase fold enzymes: structures, functions and mechanisms.
2000,
Pubmed
Huelsenbeck,
MRBAYES: Bayesian inference of phylogenetic trees.
2001,
Pubmed
Hynková,
Identification of the catalytic triad in the haloalkane dehalogenase from Sphingomonas paucimobilis UT26.
1999,
Pubmed
Inouye,
Secretional luciferase of the luminous shrimp Oplophorus gracilirostris: cDNA cloning of a novel imidazopyrazinone luciferase(1).
2000,
Pubmed
Inouye,
Overexpression, purification and characterization of the catalytic component of Oplophorus luciferase in the deep-sea shrimp, Oplophorus gracilirostris.
2007,
Pubmed
Janies,
EchinoDB, an application for comparative transcriptomics of deeply-sampled clades of echinoderms.
2016,
Pubmed
,
Echinobase
Liu,
Improved assay sensitivity of an engineered secreted Renilla luciferase.
1999,
Pubmed
Loening,
Crystal structures of the luciferase and green fluorescent protein from Renilla reniformis.
2007,
Pubmed
Loening,
Consensus guided mutagenesis of Renilla luciferase yields enhanced stability and light output.
2006,
Pubmed
Lorenz,
Isolation and expression of a cDNA encoding Renilla reniformis luciferase.
1991,
Pubmed
Markova,
Cloning and expression of cDNA for a luciferase from the marine copepod Metridia longa. A novel secreted bioluminescent reporter enzyme.
2004,
Pubmed
Matthews,
Purification and properties of Renilla reniformis luciferase.
1977,
Pubmed
Mehr,
Transcriptome sequencing and annotation of the polychaete Hermodice carunculata (Annelida, Amphinomidae).
2015,
Pubmed
Müller,
A cryptochrome-based photosensory system in the siliceous sponge Suberites domuncula (Demospongiae).
2010,
Pubmed
Müller,
Luciferase a light source for the silica-based optical waveguides (spicules) in the demosponge Suberites domuncula.
2009,
Pubmed
Oba,
Firefly luciferase is a bifunctional enzyme: ATP-dependent monooxygenase and a long chain fatty acyl-CoA synthetase.
2003,
Pubmed
Rees,
The origins of marine bioluminescence: turning oxygen defence mechanisms into deep-sea communication tools.
1998,
Pubmed
Shimomura,
Bioluminescence in the sea: photoprotein systems.
1985,
Pubmed
Shimomura,
Chemical nature of bioluminescence systems in coelenterates.
1975,
Pubmed
Stöhr,
Global diversity of brittle stars (Echinodermata: Ophiuroidea).
2012,
Pubmed
,
Echinobase
Takenaka,
Two forms of secreted and thermostable luciferases from the marine copepod crustacean, Metridia pacifica.
2008,
Pubmed
Thomson,
The widespread occurrence and tissue distribution of the imidazolopyrazine luciferins.
1997,
Pubmed
Viviani,
A route from darkness to light: emergence and evolution of luciferase activity in AMP-CoA-ligases inferred from a mealworm luciferase-like enzyme.
2013,
Pubmed
Viviani,
The origin, diversity, and structure function relationships of insect luciferases.
2002,
Pubmed
Widder,
Bioluminescence in the ocean: origins of biological, chemical, and ecological diversity.
2010,
Pubmed
Woo,
Structure-function studies on the active site of the coelenterazine-dependent luciferase from Renilla.
2008,
Pubmed
Woo,
Mutational optimization of the coelenterazine-dependent luciferase from Renilla.
2008,
Pubmed
