Sci Rep
2016 Nov 02;6:36516. doi: 10.1038/srep36516.
Show Gene links
Show Anatomy links
Functional insights into the testis transcriptome of the edible sea urchin Loxechinus albus.
Gaitán-Espitia JD
,
Sánchez R
,
Bruning P
,
Cárdenas L
.
???displayArticle.abstract???
The edible sea urchin Loxechinus albus (Molina, 1782) is a keystone species in the littoral benthic systems of the Pacific coast of South America. The international demand for high-quality gonads of this echinoderm has led to an extensive exploitation and decline of its natural populations. Consequently, a more thorough understanding of L. albus gonad development and gametogenesis could provide valuable resources for aquaculture applications, management, conservation and studies about the evolution of functional and structural pathways that underlie the reproductive toolkit of marine invertebrates. Using a high-throughput sequencing technology, we explored the male gonad transcriptome of this highly fecund sea urchin. Through a de novo assembly approach we obtained 42,530 transcripts of which 15,544 (36.6%) had significant alignments to known proteins in public databases. From these transcripts, approximately 73% were functionally annotated allowing the identification of several candidate genes that are likely to play a central role in developmental processes, nutrient reservoir activity, sexual reproduction, gamete generation, meiosis, sex differentiation, sperm motility, male courtship behavior and fertilization. Additionally, comparisons with the male gonad transcriptomes of other echinoderms revealed several conserved orthologous genes, suggesting that similar functional and structural pathways underlie the reproductive development in this group and other marine invertebrates.

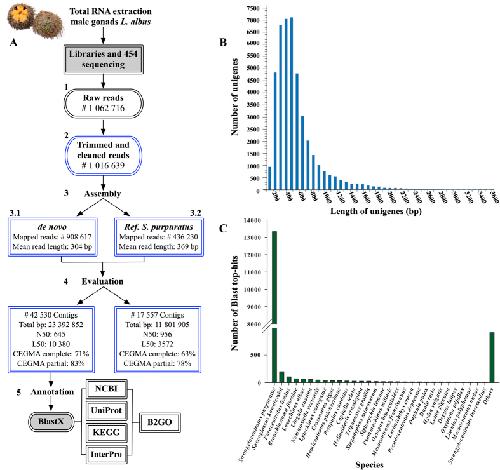

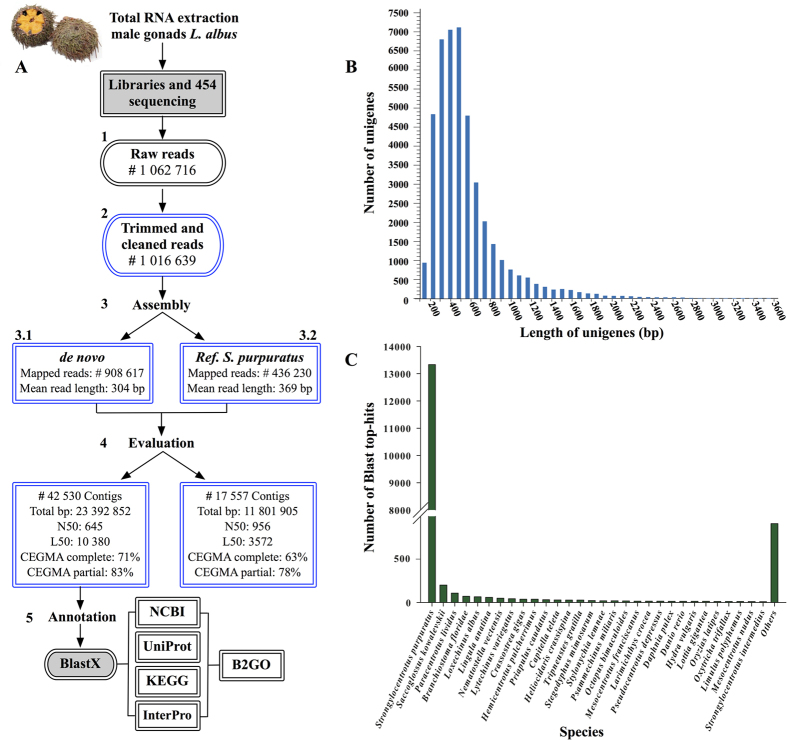

Figure 1. (A) Schematic flowchart shows the molecular biology and bioinformatic methods employed in this study. N50 is defined as the length for which the collection of all contigs of that length or longer covers at least half an assembly. L50 is defined as the number of contigs equal to or longer than N50. (B) Length distribution of unigenes. (C) Top BLASTx hit species distribution obtained against the NCBI non-redundant (nr) protein database.

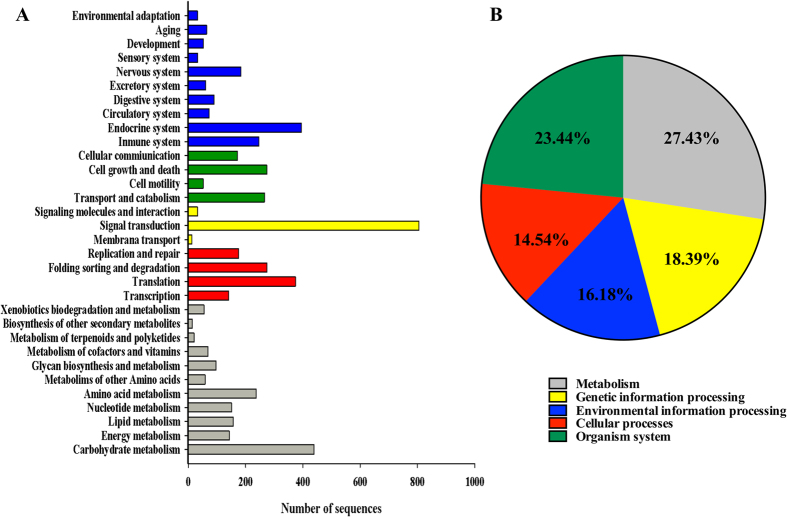

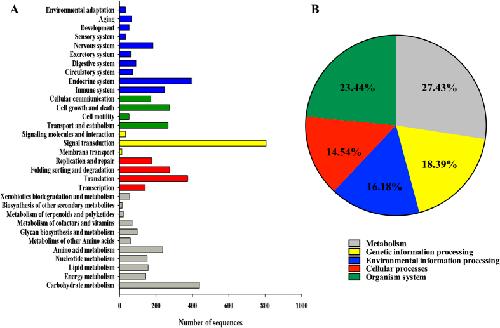

Figure 2. Unigenes homology to KEGG genes obtained from the KAAS server.(A) Number of sequences assigned to each sub-category of the reference hierarchy KOs. (B) Percentage distribution of the five top KEGG orthology categories in the male gonad transcriptome of Loxechinus albus.

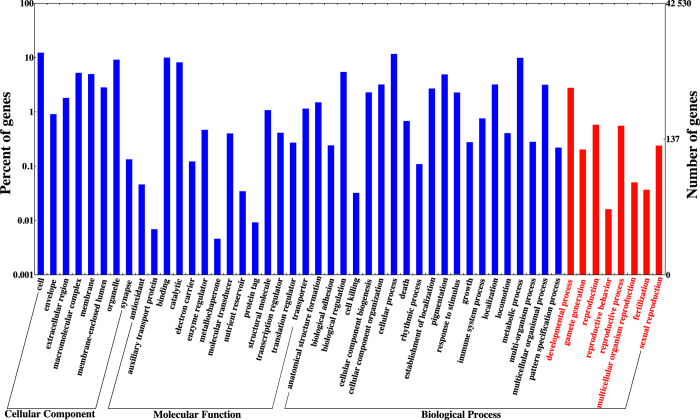

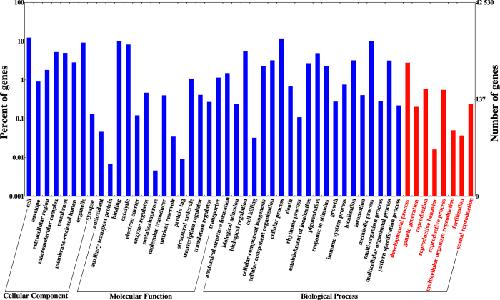

Figure 3. Distribution of Gene Ontology (GO) assignments of assembled unigenes of L. albus.GO categories are shown on the x-axis grouped into three main categories: biological processes, cellular components and molecular functions. The y-axis indicates the percentage of total genes in each category.

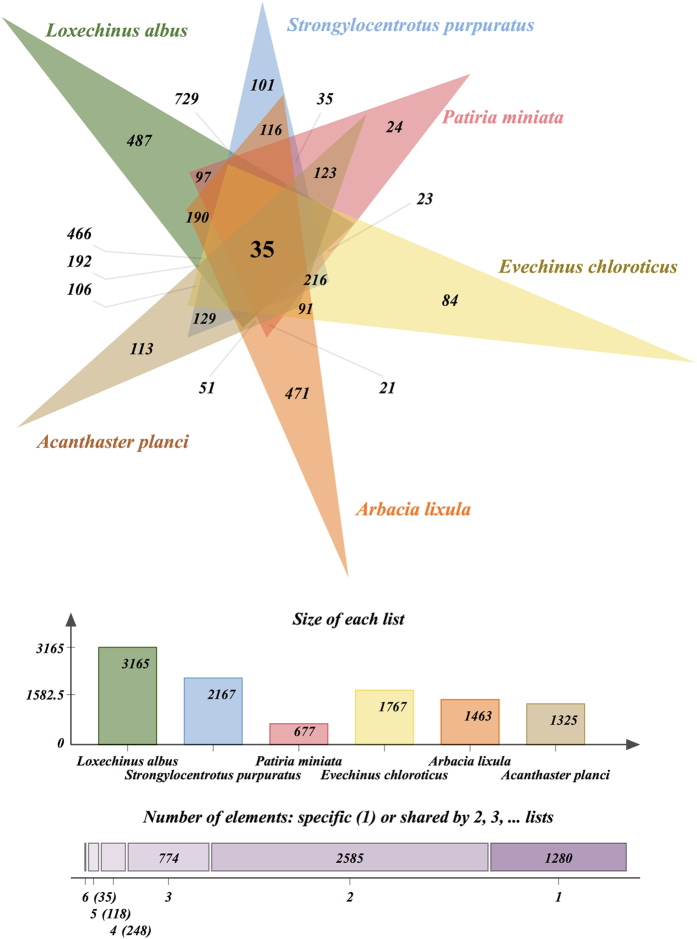

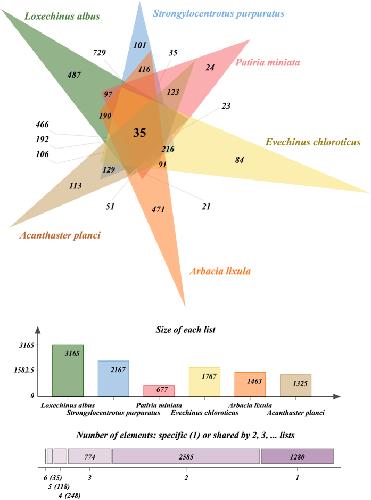

Figure 4. Comparisons of orthologous clusters among male gonad transcriptomes of the sea urchins Loxechinus albus, Arbacia lixula, Evechinus chloroticus, Strongylocentrotus purpuratus, and the sea stars Patiria miniata and Acanthaster planci.
Aivatiadou,
Impaired fertility and spermiogenetic disorders with loss of cell adhesion in male mice expressing an interfering Rap1 mutant.
2007, Pubmed
Aivatiadou,
Impaired fertility and spermiogenetic disorders with loss of cell adhesion in male mice expressing an interfering Rap1 mutant.
2007,
Pubmed
Ashburner,
Gene ontology: tool for the unification of biology. The Gene Ontology Consortium.
2000,
Pubmed
Ashrafi,
De novo assembly of the pepper transcriptome (Capsicum annuum): a benchmark for in silico discovery of SNPs, SSRs and candidate genes.
2012,
Pubmed
Bonilla,
Identification and characterization of novel mammalian spermatogenic genes conserved from fly to human.
2008,
Pubmed
Bräutigam,
Critical assessment of assembly strategies for non-model species mRNA-Seq data and application of next-generation sequencing to the comparison of C(3) and C(4) species.
2011,
Pubmed
Byrne,
The stunting effect of a high CO2 ocean on calcification and development in sea urchin larvae, a synthesis from the tropics to the poles.
2013,
Pubmed
,
Echinobase
Cameron,
SpBase: the sea urchin genome database and web site.
2009,
Pubmed
,
Echinobase
Cárdenas,
Transcriptome analysis in Concholepas concholepas (Gastropoda, Muricidae): mining and characterization of new genomic and molecular markers.
2011,
Pubmed
Cea,
Complete mitogenome of the edible sea urchin Loxechinus albus: genetic structure and comparative genomics within Echinozoa.
2015,
Pubmed
,
Echinobase
Chen,
De novo assembly and analysis of tissue-specific transcriptomes revealed the tissue-specific genes and profile of immunity from Strongylocentrotus intermedius.
2015,
Pubmed
,
Echinobase
Conesa,
Blast2GO: a universal tool for annotation, visualization and analysis in functional genomics research.
2005,
Pubmed
Cuéllar-Mata,
Multiple GTP-binding proteins in sea urchin sperm: Evidence for Gs and small G-proteins.
1995,
Pubmed
,
Echinobase
Das,
The role of mitochondrial respiration in physiological and evolutionary adaptation.
2006,
Pubmed
Delroisse,
De novo transcriptome of the European brittle star Amphiura filiformis pluteus larvae.
2015,
Pubmed
,
Echinobase
Dilly,
Characterization of the Antarctic sea urchin (Sterechinus neumayeri) transcriptome and mitogenome: a molecular resource for phylogenetics, ecophysiology and global change biology.
2015,
Pubmed
,
Echinobase
Doyle,
Potential functions of retinoic acid receptor A in Sertoli cells and germ cells during spermatogenesis.
2007,
Pubmed
Du,
Transcriptome sequencing and characterization for the sea cucumber Apostichopus japonicus (Selenka, 1867).
2012,
Pubmed
,
Echinobase
Georges,
FOXL2: a central transcription factor of the ovary.
2014,
Pubmed
Gillard,
The transcriptome of the NZ endemic sea urchin Kina (Evechinus chloroticus).
2014,
Pubmed
,
Echinobase
Gurevich,
QUAST: quality assessment tool for genome assemblies.
2013,
Pubmed
Hunter,
Signaling--2000 and beyond.
2000,
Pubmed
Israel,
Comparative Developmental Transcriptomics Reveals Rewiring of a Highly Conserved Gene Regulatory Network during a Major Life History Switch in the Sea Urchin Genus Heliocidaris.
2016,
Pubmed
,
Echinobase
Jiang,
Targeted disruption of Nphp1 causes male infertility due to defects in the later steps of sperm morphogenesis in mice.
2008,
Pubmed
Johnson,
Light chains of sea urchin kinesin identified by immunoadsorption.
1990,
Pubmed
,
Echinobase
Jones,
InterProScan 5: genome-scale protein function classification.
2014,
Pubmed
Kober,
Genome-wide patterns of codon bias are shaped by natural selection in the purple sea urchin, Strongylocentrotus purpuratus.
2013,
Pubmed
,
Echinobase
Kumar,
Comparing de novo assemblers for 454 transcriptome data.
2010,
Pubmed
Lapraz,
RTK and TGF-beta signaling pathways genes in the sea urchin genome.
2006,
Pubmed
,
Echinobase
Lutzmann,
MCM8- and MCM9-deficient mice reveal gametogenesis defects and genome instability due to impaired homologous recombination.
2012,
Pubmed
Martin,
Next-generation transcriptome assembly.
2011,
Pubmed
Martin,
Rnnotator: an automated de novo transcriptome assembly pipeline from stranded RNA-Seq reads.
2010,
Pubmed
Meng,
De novo Transcriptome Analysis of Portunus trituberculatus Ovary and Testis by RNA-Seq: Identification of Genes Involved in Gonadal Development.
2015,
Pubmed
Moriya,
KAAS: an automatic genome annotation and pathway reconstruction server.
2007,
Pubmed
Mos,
Biogenic acidification reduces sea urchin gonad growth and increases susceptibility of aquaculture to ocean acidification.
2016,
Pubmed
,
Echinobase
Nakanishi,
Phagocytic removal of apoptotic spermatogenic cells by Sertoli cells: mechanisms and consequences.
2004,
Pubmed
O'Donnell,
Microtubules and spermatogenesis.
2014,
Pubmed
Parra,
CEGMA: a pipeline to accurately annotate core genes in eukaryotic genomes.
2007,
Pubmed
Patel,
A comprehensive transcriptome of early development in yellowtail kingfish (Seriola lalandi).
2016,
Pubmed
Peng,
Gonadal transcriptomic analysis and differentially expressed genes in the testis and ovary of the Pacific white shrimp (Litopenaeus vannamei).
2015,
Pubmed
Pérez-Portela,
Characterization of the transcriptome and gene expression of four different tissues in the ecologically relevant sea urchin Arbacia lixula using RNA-seq.
2016,
Pubmed
,
Echinobase
Raymond,
Dmrt1, a gene related to worm and fly sexual regulators, is required for mammalian testis differentiation.
2000,
Pubmed
Shears,
Marine reserves demonstrate top-down control of community structure on temperate reefs.
2002,
Pubmed
,
Echinobase
Sodergren,
The genome of the sea urchin Strongylocentrotus purpuratus.
2006,
Pubmed
,
Echinobase
Song,
Select microRNAs are essential for early development in the sea urchin.
2012,
Pubmed
,
Echinobase
Song,
Oogenesis: single cell development and differentiation.
2006,
Pubmed
,
Echinobase
Sperry,
The dynamic cytoskeleton of the developing male germ cell.
2012,
Pubmed
Stewart,
De novo assembly of the transcriptome of Acanthaster planci testes.
2015,
Pubmed
,
Echinobase
Suzek,
UniRef: comprehensive and non-redundant UniProt reference clusters.
2007,
Pubmed
Tu,
Gene structure in the sea urchin Strongylocentrotus purpuratus based on transcriptome analysis.
2012,
Pubmed
,
Echinobase
Vacquier,
Soluble adenylyl cyclase of sea urchin spermatozoa.
2014,
Pubmed
,
Echinobase
Vijay,
Challenges and strategies in transcriptome assembly and differential gene expression quantification. A comprehensive in silico assessment of RNA-seq experiments.
2013,
Pubmed
Walker,
Nutritive phagocyte incubation chambers provide a structural and nutritive microenvironment for germ cells of Strongylocentrotus droebachiensis, the green sea urchin.
2005,
Pubmed
,
Echinobase
Wang,
OrthoVenn: a web server for genome wide comparison and annotation of orthologous clusters across multiple species.
2015,
Pubmed
White-Cooper,
Evolution and spermatogenesis.
2010,
Pubmed
Wu,
Loss of YY1 impacts the heterochromatic state and meiotic double-strand breaks during mouse spermatogenesis.
2009,
Pubmed
Ye,
WEGO: a web tool for plotting GO annotations.
2006,
Pubmed
Yi,
Ubiquitin C-terminal hydrolase-activity is involved in sperm acrosomal function and anti-polyspermy defense during porcine fertilization.
2007,
Pubmed
Yokota,
Sperm proteasomes are responsible for the acrosome reaction and sperm penetration of the vitelline envelope during fertilization of the sea urchin Pseudocentrotus depressus.
2007,
Pubmed
,
Echinobase
Zhou,
Transcriptome sequencing of sea cucumber (Apostichopus japonicus) and the identification of gene-associated markers.
2014,
Pubmed
,
Echinobase
Zhuang,
CHD5 is required for spermiogenesis and chromatin condensation.
2014,
Pubmed
