Zookeys
2015 Dec 14;545:1-26. doi: 10.3897/zookeys.545.6415.
Show Gene links
Show Anatomy links
Sea cucumbers of the genus Stichopus Brandt, 1835 (Holothuroidea, Stichopodidae) in Straits of Malacca with description of a new species.
Woo SP
,
Yasin Z
,
Tan SH
,
Kajihara H
,
Fujita T
.
???displayArticle.abstract???
Five sea cucumber species including one new species of the genus Stichopus are reported from the shallow coral reefs of Straits of Malacca. The new species Stichopus fusiformiossa has unusual fusiform spicules in the tentacles, which are not found in the other species of the genus. Pseudo-tables and large perforated plates are newly recorded for Stichopus hermanni Semper, 1868 and Stichopus vastus Sluiter, 1887, respectively.

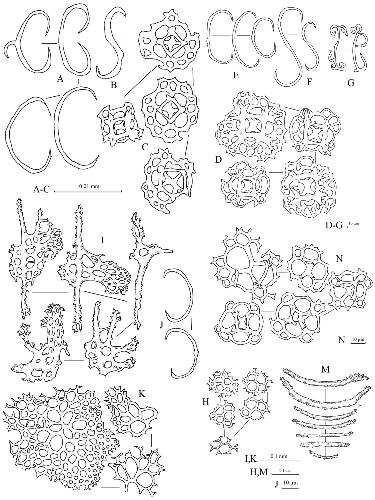

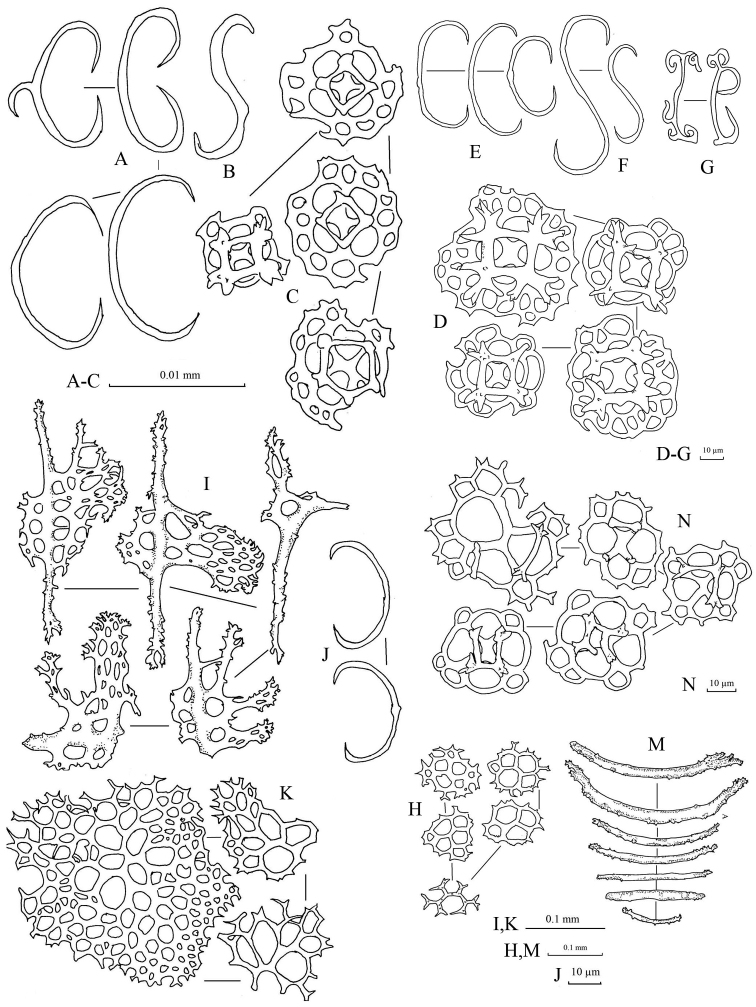

Figure 3. Spicules of Stichopus
chloronotus Brandt, 1835 (USM/MSL/PB004). A C-shaped rods from the dorsal body B S-shaped rods from the dorsal body wall C tables from the dorsal body wall D table with large base from the dorsal papillae E C-shaped rods form the dorsal papillae F S-shaped rods from the dorsal papillae; G rosettes from the dorsal papillae H tables from the tube feet I large rods with central perforations from the tube feet J C-shaped rods from the tube feet K perforated plates from the tube feet L reduced tables from the tube feet M rods from the tentacles N tables from the tentacles.

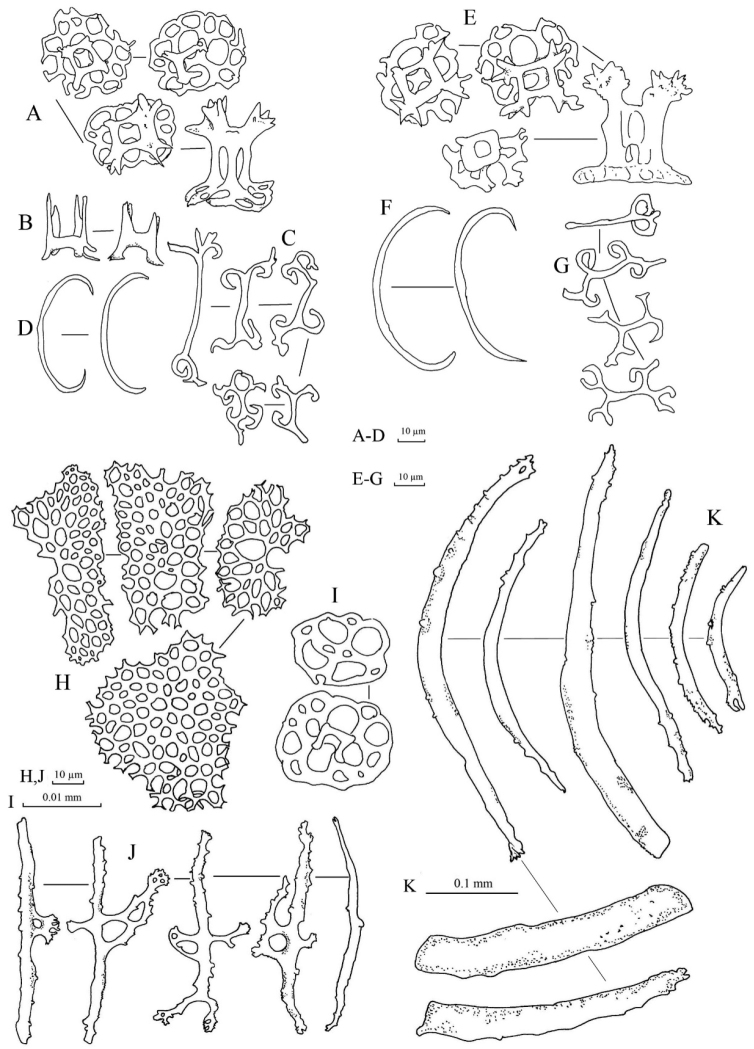

Figure 5. Spicules of Stichopus
herrmanni Semper, 1868 (USM/MSL/PSEM004). A tables from the dorsal body B pseudo tables from the dorsal body wall C rosettes from the dorsal body wall D C-shaped rods from the dorsal body wall E tables from the dorsal papillae F C-shaped rods from the dorsal papillae G rosettes from the dorsal papillae H large multiperforated plates from the tube feet I reduced tables from the tube feet J rods with central perforations from the tube feet K rods of different sizes from the tentacles.

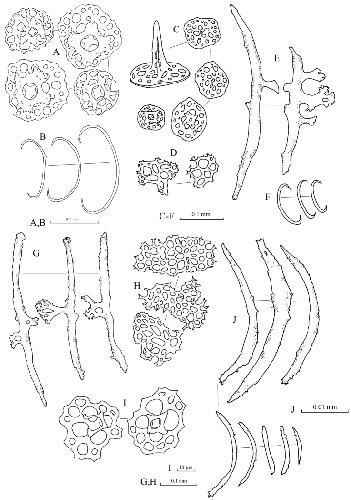

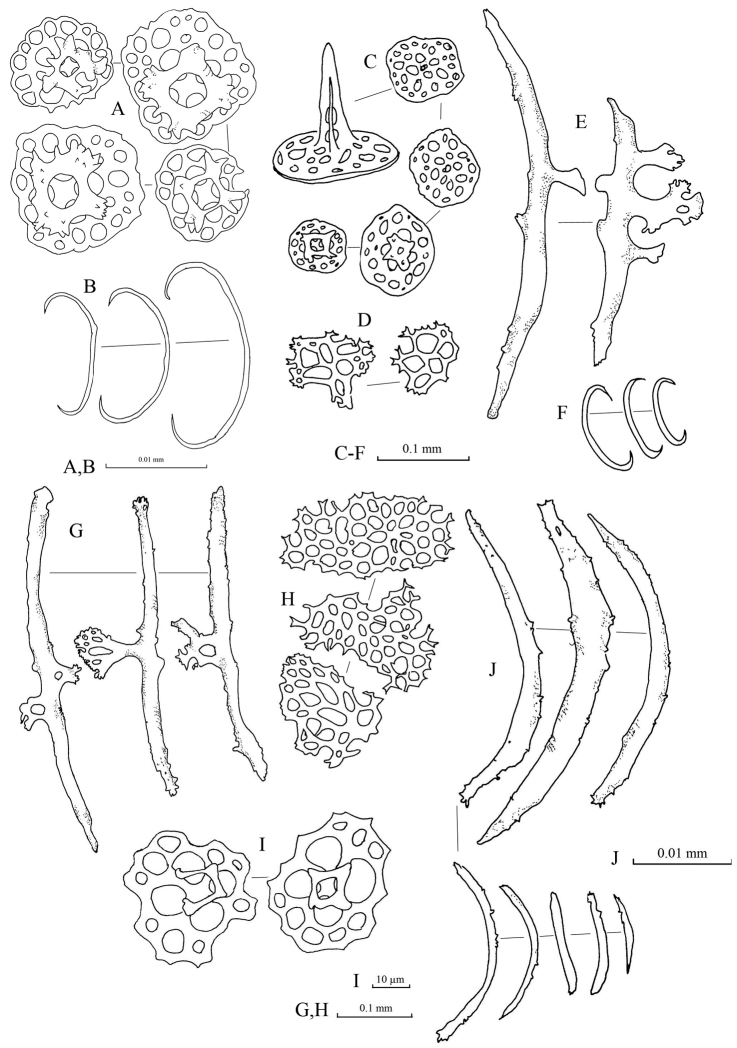

Figure 7. Spicules of Stichopus
horrens Selenka, 1867 (USM/MSL/PP001). A tables from the dorsal body wall B C-shaped rods from the dorsal body wall C tack-liked tables from the dorsal papillae D perforated plates from the dorsal papillae E dorsal papillae rods from the dorsal papillae F C-shaped rods from the dorsal papillae G large rods from the tube feet H multiperforated plates from the tube feet I tables from the tube feet J Rods of different sizes from the tentacles.

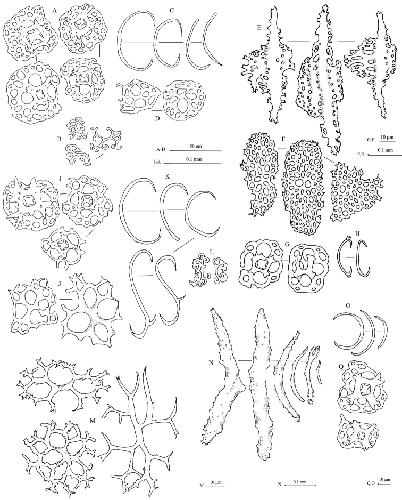

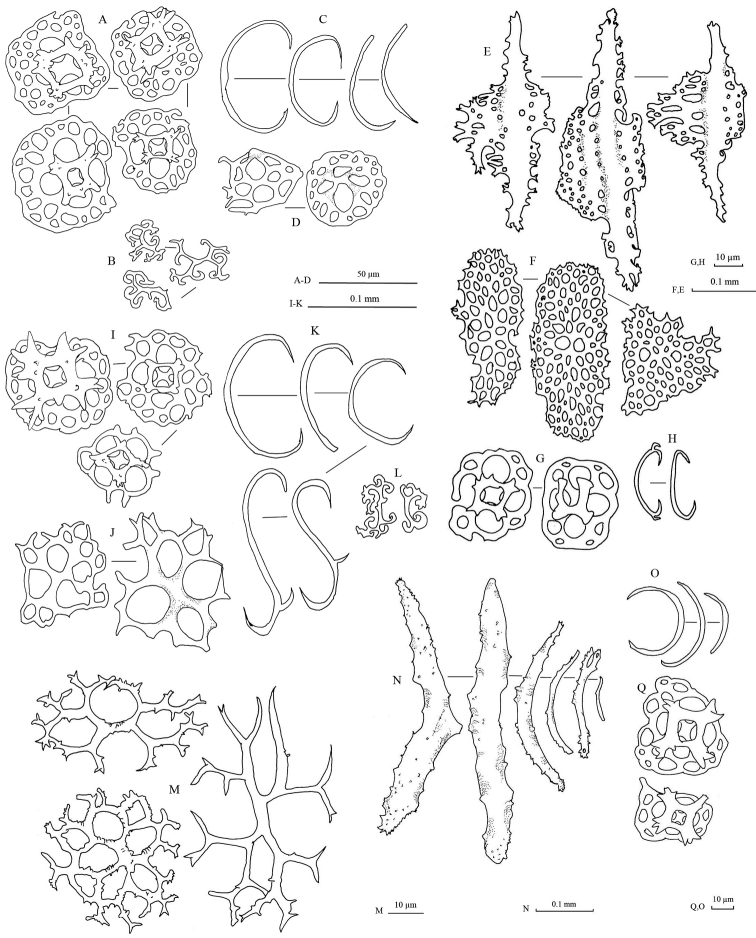

Figure 9. Spicules of Stichopus
vastus Sluiter, 1887 (USM/MSL/PLAN001). A Large tables from the dorsal body wall B rosettes from the dorsal body wall C C-shaped rods from the dorsal body wall D reduced tables from the dorsal body wall E rods with large perforated central plate from the tube feet F multiperforated plates from the tube feet G tables from the tube feet H C-shaped rods from the tube feet I tables from the dorsal papillae J large reduced tables from the dorsal papillae K C-shaped and S-shaped rods from the dorsal papillae L rosettes found from the dorsal papillae M large perforated plates from the dorsal papillae N rods from the tentacles O C-shaped rods from the tentacles Q tables from the tentacles.

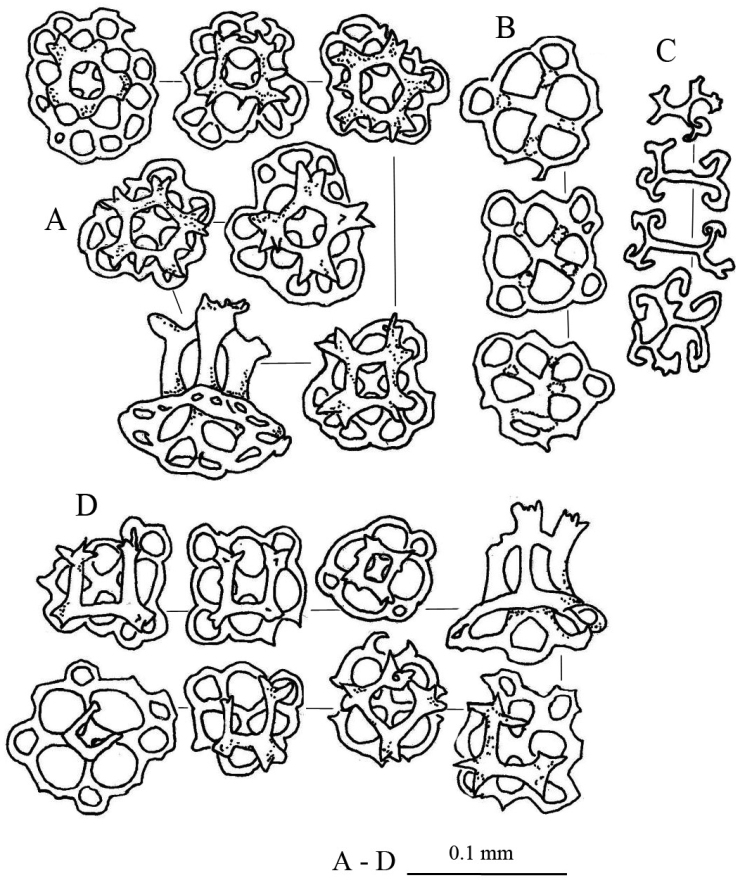

Figure 11. Spicules from the dorsal body wall of Stichopus
fusiformiossa sp. n. (USM/MSL/PSS001). A tables with multiple perforations from the base of the dorsal body wall B reduced tables C rosettes D tables with limited number of perforations from the base of the dorsal body wall.

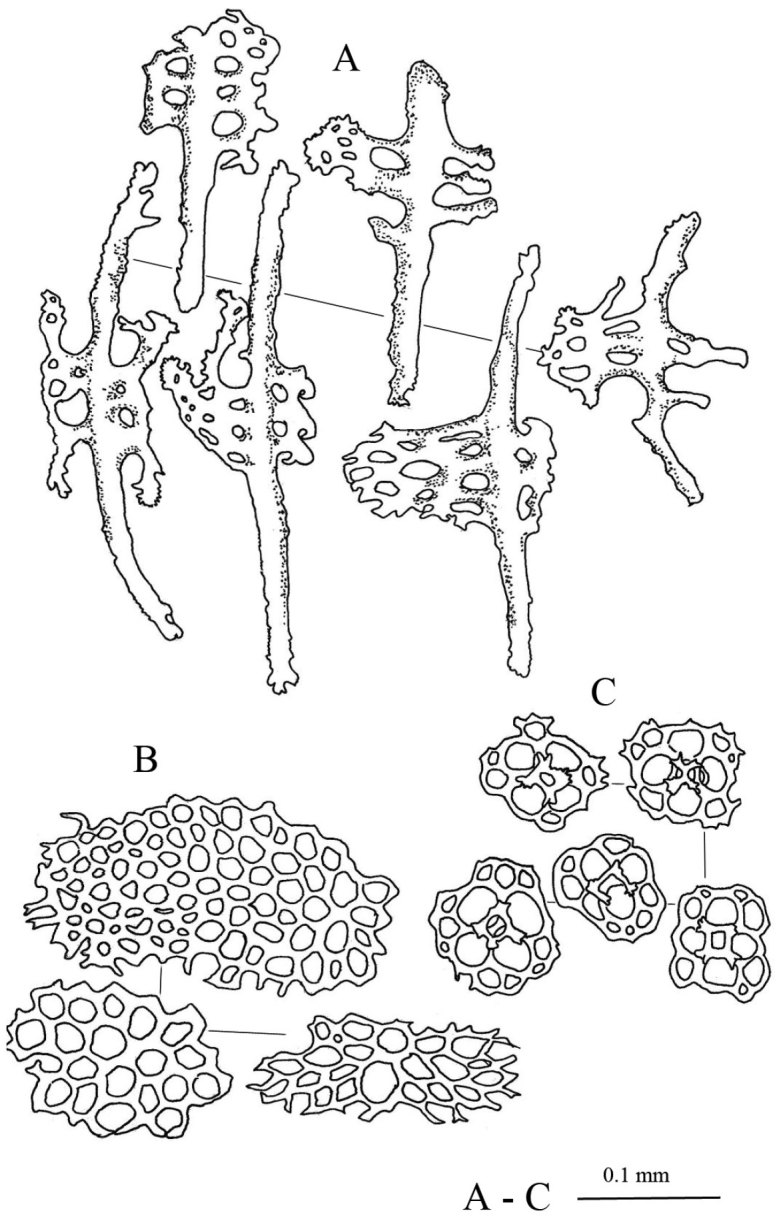

Figure 12. Spicules from the tube feet of Stichopus
fusiformiossa sp. n. (USM/MSL/PSS001). A rods with large central perforated plates B large perforated plates C tables.

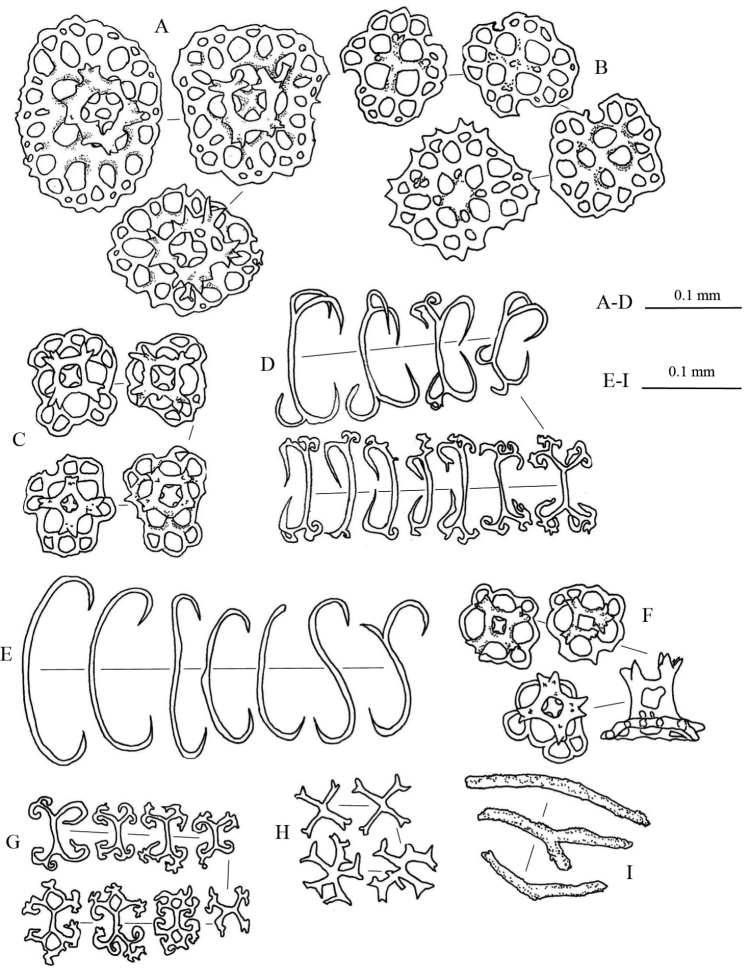

Figure 13. Spicules from papillae of Stichopus
fusiformiossa sp. n. (USM/MSL/PSS001). A table with large base plates B reduced tables C tables D modified C-shaped rods E C-shaped rods F tables with smaller base plates and number of perforations G rosettes H X-shaped rods I rods.

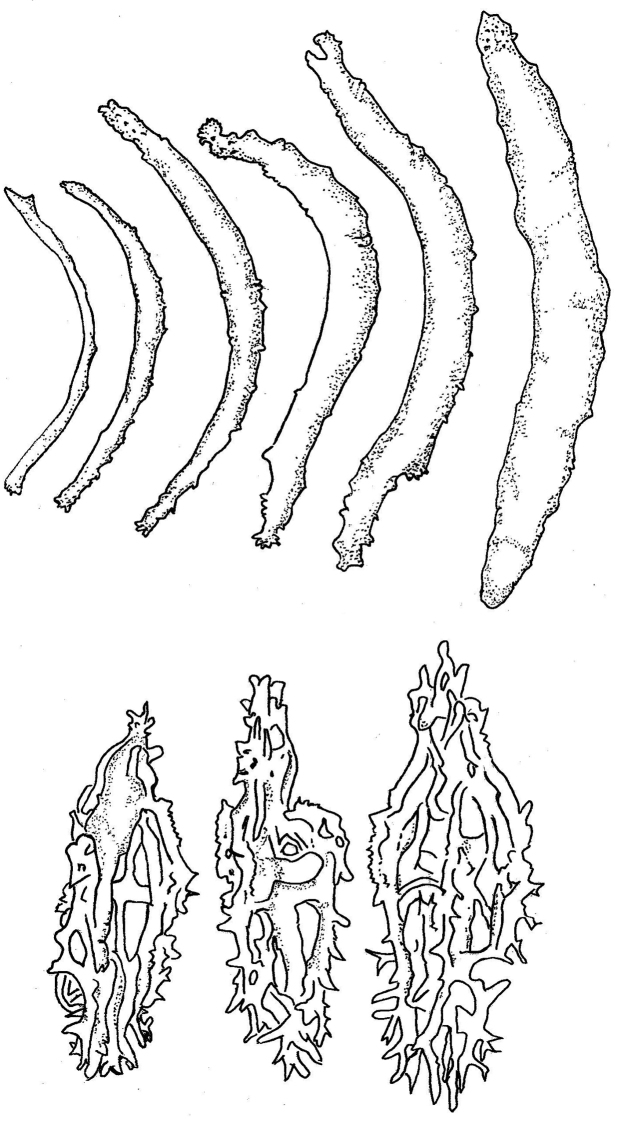

Figure 14. Spicules from the tentacles of Stichopus
fusiformiossa sp. n. (USM/MSL/PSS001). A curved rods B fusiform spicules.
