PLoS One
2015 Jan 01;107:e0134084. doi: 10.1371/journal.pone.0134084.
Show Gene links
Show Anatomy links
Evolutionary Analyses and Natural Selection of Betaine-Homocysteine S-Methyltransferase (BHMT) and BHMT2 Genes.
Ganu RS
,
Ishida Y
,
Koutmos M
,
Kolokotronis SO
,
Roca AL
,
Garrow TA
,
Schook LB
.
???displayArticle.abstract???
Betaine-homocysteine S-methyltransferase (BHMT) and BHMT2 convert homocysteine to methionine using betaine and S-methylmethionine, respectively, as methyl donor substrates. Increased levels of homocysteine in blood are associated with cardiovascular disease. Given their role in human health and nutrition, we identified BHMT and BHMT2 genes and proteins from 38 species of deuterostomes including human and non-human primates. We aligned the genes to look for signatures of selection, to infer evolutionary rates and events across lineages, and to identify the evolutionary timing of a gene duplication event that gave rise to two genes, BHMT and BHMT2. We found that BHMT was present in the genomes of the sea urchin, amphibians, reptiles, birds and mammals; BHMT2 was present only across mammals. BHMT and BHMT2 were present in tandem in the genomes of all monotreme, marsupial and placental species examined. Evolutionary rates were accelerated for BHMT2 relative to BHMT. Selective pressure varied across lineages, with the highest dN/dS ratios for BHMT and BHMT2 occurring immediately following the gene duplication event, as determined using GA Branch analysis. Nine codons were found to display signatures suggestive of positive selection; these contribute to the enzymatic or oligomerization domains, suggesting involvement in enzyme function. Gene duplication likely occurred after the divergence of mammals from other vertebrates but prior to the divergence of extant mammalian subclasses, followed by two deletions in BHMT2 that affect oligomerization and methyl donor specificity. The faster evolutionary rate of BHMT2 overall suggests that selective constraints were reduced relative to BHMT. The dN/dS ratios in both BHMT and BHMT2 was highest following the gene duplication, suggesting that purifying selection played a lesser role as the two paralogs diverged in function.
???displayArticle.pubmedLink???
26213999
???displayArticle.pmcLink???PMC4516251 ???displayArticle.link???PLoS One ???displayArticle.grants???[+]

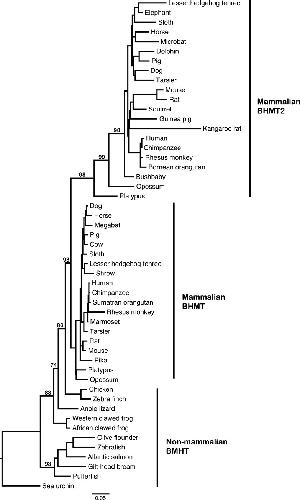

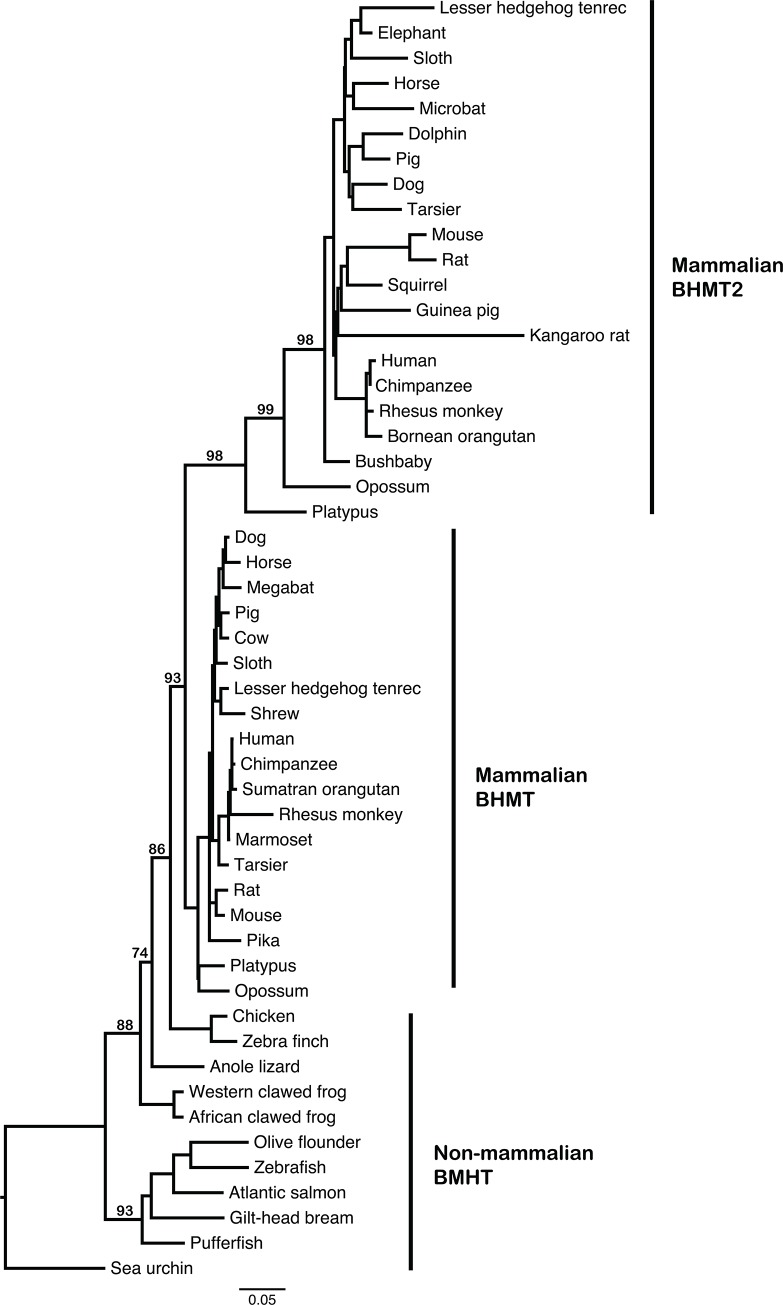

Fig 1. Phylogeny of BHMT and BHMT2 peptide sequences across deuterostome species.The phylogeny was inferred from an amino acid alignment using maximum likelihood implemented in RAxML [31]. Bootstrap supports are indicated at nodes and were based on 500 pseudoreplicates. We have labeled non-mammalian BHMT, mammalian BHMT and mammalian BHMT2. Note that a duplication event resulted in the appearance of BHMT2 at the base of the mammalian lineage, since BHMT and BHMT2 are both present in all extant placental mammals. The relatively long branches in BHMT2 following the duplication event suggest an accelerated evolutionary rate following a change in evolutionary constraints related to the functional divergence between BHMT and BHMT2.

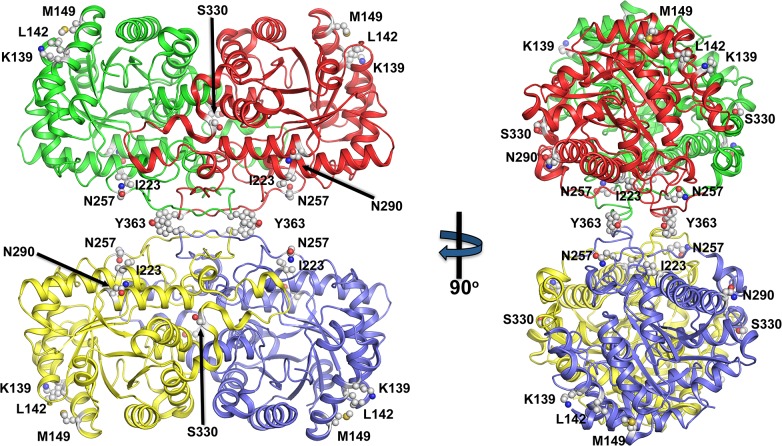

Fig 2. Mapping of amino acids with signatures of positive selection on the structure of BHMT.Cartoon representation of human BHMT with the four monomers in blue, green, yellow and red. The amino acids with signatures of positive selection (K139, L142, M149, I223, N247, N290, S330, Y363) are displayed as balls and sticks.

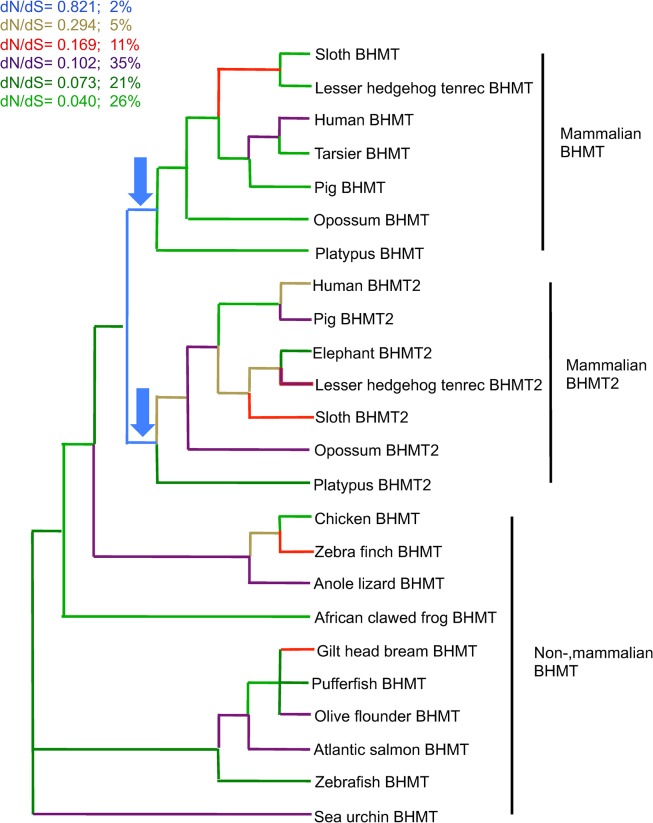

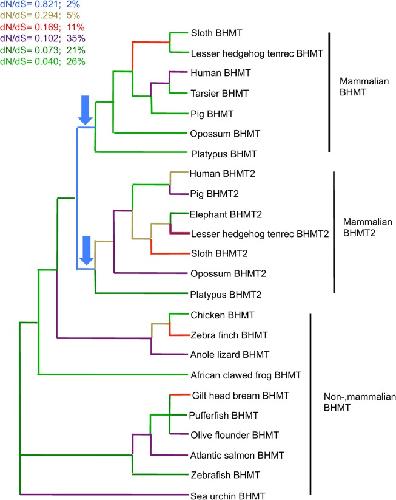

Fig 3. Ratio of substitutions per site across a phylogeny of BHMT and BHMT2 coding sequences.The phylogenetic relationships across taxa were constrained based on known evolutionary relationships (http://tolweb.org) [29]. GA Branch analysis selected a model with six classes of dN/dS; next to the color code is indicated the percent proportion of branches in the tree in each class (as a percentage of total tree length measured in expected substitutions per site per unit time). The arrows point to the branches with the highest values of dN/dS, indicating that selective constraints were most relaxed immediately after gene duplication in the lineage ancestral to all living mammals. Relatively higher positive selection, or relatively lower purifying selection, may have affected both BHMT and BHMT2 in the evolutionary interval that immediately followed gene duplication.

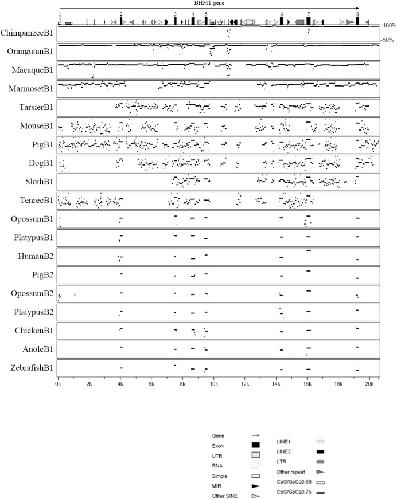

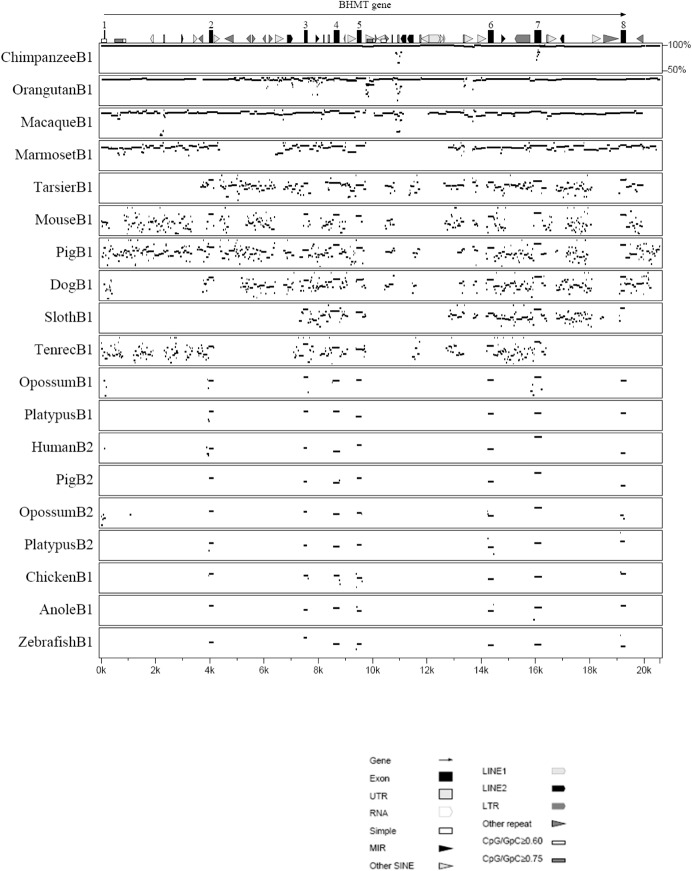

Fig 4. Identity (multipip) plot comparing DNA sequences across species, using human BHMT as a reference.Features present within human BHMT are shown at the top of the figure, with the key shown below the figure Sequences compared [43] are those of BHMT (B1) or BHMT2 (B2) for the species listed; the horizontal lines depict the regions of BHMT or BHMT2 for each species that are similar to human BHMT, with the vertical positioning of the line proportionate to the percentage of similarity. Blank regions indicate that sequence similarity was below 50% or that genome coverage was not available for the non-human species. Note that as the evolutionary distance between species increases, the similarity of their sequences decreases; and that B1 and B2 sequences within the same species are not conserved, reflecting their origins in an ancient duplication at the root of the mammalian divergence. The coding regions (exon 2 through exon 8) are highly conserved.

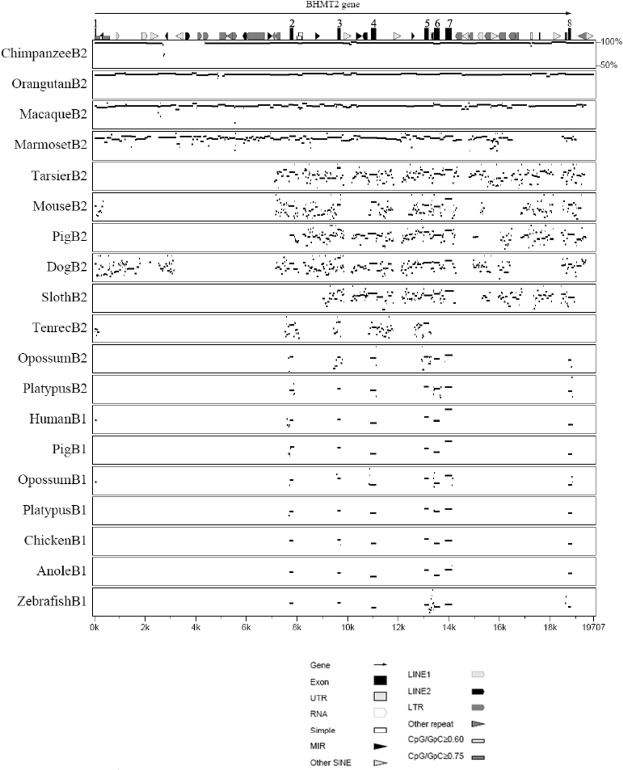

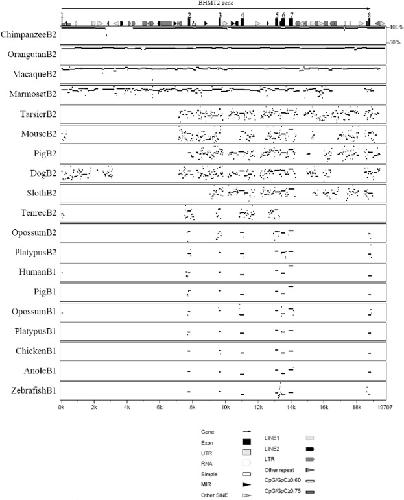

Fig 5. Identity (multipip) plot comparing DNA sequences across species, using human BHMT2 as a reference.Features present within human BHMT2 are shown at the top of the figure, with the key shown below the figure Sequences compared [43] are those of BHMT (B1) or BHMT2 (B2) for the species listed; the horizontal lines depict the regions or BHMT or BHMT2 for each species that are similar to human BHMT2, with the vertical positioning of the line proportionate to the percentage of similarity. Blank regions indicate that sequence similarity was below 50% or that genome coverage was not available for the non-human species. Note that as the evolutionary distance between species increases, the similarity of their sequences decreases; and that B2 and B1 sequences within the same species are not conserved, reflecting their origins in a duplication at the root of the mammalian divergence. The coding regions within the exons shown are highly conserved.
Ananth,
Polymorphisms in methionine synthase reductase and betaine-homocysteine S-methyltransferase genes: risk of placental abruption.
2007, Pubmed
Ananth,
Polymorphisms in methionine synthase reductase and betaine-homocysteine S-methyltransferase genes: risk of placental abruption.
2007,
Pubmed
Berglund,
Amino acid transport across the placenta measured by positron emission tomography and analyzed by compartment modelling.
1990,
Pubmed
Breksa,
Recombinant human liver betaine-homocysteine S-methyltransferase: identification of three cysteine residues critical for zinc binding.
1999,
Pubmed
Chadwick,
Betaine-homocysteine methyltransferase-2: cDNA cloning, gene sequence, physical mapping, and expression of the human and mouse genes.
2000,
Pubmed
Delgado-Reyes,
High sodium chloride intake decreases betaine-homocysteine S-methyltransferase expression in guinea pig liver and kidney.
2005,
Pubmed
Delgado-Reyes,
Immunohistochemical detection of betaine-homocysteine S-methyltransferase in human, pig, and rat liver and kidney.
2001,
Pubmed
Delport,
Datamonkey 2010: a suite of phylogenetic analysis tools for evolutionary biology.
2010,
Pubmed
Dykhuizen,
Selective neutrality of 6PGD allozymes in E. coli and the effects of genetic background.
1980,
Pubmed
Evans,
Betaine-homocysteine methyltransferase: zinc in a distorted barrel.
2002,
Pubmed
Felsenstein,
CONFIDENCE LIMITS ON PHYLOGENIES: AN APPROACH USING THE BOOTSTRAP.
1985,
Pubmed
Flicek,
Ensembl 2011.
2011,
Pubmed
Furness,
Folate, vitamin B12, vitamin B6 and homocysteine: impact on pregnancy outcome.
2013,
Pubmed
Ganu,
Molecular characterization and analysis of the porcine betaine homocysteine methyltransferase and betaine homocysteine methyltransferase-2 genes.
2011,
Pubmed
Garrow,
Purification, kinetic properties, and cDNA cloning of mammalian betaine-homocysteine methyltransferase.
1996,
Pubmed
González,
Crystal structure of rat liver betaine homocysteine s-methyltransferase reveals new oligomerization features and conformational changes upon substrate binding.
2004,
Pubmed
Goujon,
A new bioinformatics analysis tools framework at EMBL-EBI.
2010,
Pubmed
Hague,
Homocysteine and pregnancy.
2003,
Pubmed
Jordan,
Duplicated genes evolve slower than singletons despite the initial rate increase.
2004,
Pubmed
Kearse,
Geneious Basic: an integrated and extendable desktop software platform for the organization and analysis of sequence data.
2012,
Pubmed
Khan,
Phylogenetic analysis of kindlins suggests subfunctionalization of an ancestral unduplicated kindlin into three paralogs in vertebrates.
2011,
Pubmed
Kosakovsky Pond,
Automated phylogenetic detection of recombination using a genetic algorithm.
2006,
Pubmed
Kosakovsky Pond,
Not so different after all: a comparison of methods for detecting amino acid sites under selection.
2005,
Pubmed
Kovatscheva,
[S-Methylmethionine content in plant and animal tissues and stability during storage].
1977,
Pubmed
Larkin,
Clustal W and Clustal X version 2.0.
2007,
Pubmed
Li,
Cloning, mapping and RNA analysis of the human methionine synthase gene.
1996,
Pubmed
Liu,
An integrative genomic analysis identifies Bhmt2 as a diet-dependent genetic factor protecting against acetaminophen-induced liver toxicity.
2010,
Pubmed
Lynch,
The evolutionary fate and consequences of duplicate genes.
2000,
Pubmed
Miller,
Conformation-dependent inactivation of human betaine-homocysteine S-methyltransferase by hydrogen peroxide in vitro.
2005,
Pubmed
Mizrahi,
Plasma homocysteine: a new risk factor for Alzheimer's disease?
2002,
Pubmed
Neece,
Isolation and characterization of a mouse betaine-homocysteine S-methyltransferase gene and pseudogene.
2000,
Pubmed
Ohta,
Further examples of evolution by gene duplication revealed through DNA sequence comparisons.
1994,
Pubmed
Ojha,
Sequestration of toxic oligomers by HspB1 as a cytoprotective mechanism.
2011,
Pubmed
Pajares,
Betaine homocysteine S-methyltransferase: just a regulator of homocysteine metabolism?
2006,
Pubmed
Park,
Interaction between dietary methionine and methyl donor intake on rat liver betaine-homocysteine methyltransferase gene expression and organization of the human gene.
1999,
Pubmed
Perła-Kaján,
Mechanisms of homocysteine toxicity in humans.
2007,
Pubmed
Petrossian,
Uncovering the human methyltransferasome.
2011,
Pubmed
Pond,
Datamonkey: rapid detection of selective pressure on individual sites of codon alignments.
2005,
Pubmed
Pond,
A genetic algorithm approach to detecting lineage-specific variation in selection pressure.
2005,
Pubmed
Pond,
Adaptation to different human populations by HIV-1 revealed by codon-based analyses.
2006,
Pubmed
Poon,
Detecting signatures of selection from DNA sequences using Datamonkey.
2009,
Pubmed
Rao,
Betaine-homocysteine methyltransferase is a developmentally regulated enzyme crystallin in rhesus monkey lens.
1998,
Pubmed
Refsum,
Folate, vitamin B12 and homocysteine in relation to birth defects and pregnancy outcome.
2001,
Pubmed
Sakamoto,
Betaine and homocysteine concentrations in foods.
2002,
Pubmed
Scheffler,
Robust inference of positive selection from recombining coding sequences.
2006,
Pubmed
Schwartz,
PipMaker--a web server for aligning two genomic DNA sequences.
2000,
Pubmed
Schäfer,
Osmotic regulation of betaine homocysteine-S-methyltransferase expression in H4IIE rat hepatoma cells.
2007,
Pubmed
Stover,
Physiology of folate and vitamin B12 in health and disease.
2004,
Pubmed
Sunden,
Betaine-homocysteine methyltransferase expression in porcine and human tissues and chromosomal localization of the human gene.
1997,
Pubmed
Sweiry,
Evidence of saturable uptake mechanisms at maternal and fetal sides of the perfused human placenta by rapid paired-tracer dilution: studies with calcium and choline.
1986,
Pubmed
Szegedi,
Oligomerization is required for betaine-homocysteine S-methyltransferase function.
2004,
Pubmed
Szegedi,
Betaine-homocysteine S-methyltransferase-2 is an S-methylmethionine-homocysteine methyltransferase.
2008,
Pubmed
Teng,
Deletion of betaine-homocysteine S-methyltransferase in mice perturbs choline and 1-carbon metabolism, resulting in fatty liver and hepatocellular carcinomas.
2011,
Pubmed
Ueland,
[Plasma homocysteine, a risk factor for premature vascular disease. Plasma levels in healthy persons; during pathologic conditions and drug therapy].
1989,
Pubmed
Van de Peer,
The ghost of selection past: rates of evolution and functional divergence of anciently duplicated genes.
2001,
Pubmed
Whelan,
A general empirical model of protein evolution derived from multiple protein families using a maximum-likelihood approach.
2001,
Pubmed
Wu,
Evidence for higher rates of nucleotide substitution in rodents than in man.
1985,
Pubmed
Xue,
Comparative studies on the methionine synthesis in sheep and rat tissues.
1985,
Pubmed
Xue,
Developmental changes in the activities of enzymes related to methyl group metabolism in sheep tissues.
1986,
Pubmed
Zanton,
Meta-analysis of lactation performance in dairy cows receiving supplemental dietary methionine sources or postruminal infusion of methionine.
2014,
Pubmed
Zeisel,
Pregnancy and lactation are associated with diminished concentrations of choline and its metabolites in rat liver.
1995,
Pubmed
Zeisel,
Concentrations of choline-containing compounds and betaine in common foods.
2003,
Pubmed
Zhang,
Positive Darwinian selection after gene duplication in primate ribonuclease genes.
1998,
Pubmed
Zhang,
A greedy algorithm for aligning DNA sequences.
2000,
Pubmed
