Maternal Exposure to Cadmium and Manganese Impairs Reproduction and Progeny Fitness in the Sea Urchin Paracentrotus lividus.

Migliaccio O , Castellano I , Cirino P , Romano G , Palumbo A .

???displayArticle.abstract???
Metal contamination represents one of the major sources of pollution in marine environments. In this study we investigated the short-term effects of ecologically relevant cadmium and manganese concentrations (10(-6) and 3.6 x 10(-5) M, respectively) on females of the sea urchin Paracentrotus lividus and their progeny, reared in the absence or presence of the metal. Cadmium is a well-known heavy metal, whereas manganese represents a potential emerging contaminant, resulting from an increased production of manganese-containing compounds. The effects of these agents were examined on both P. lividus adults and their offspring following reproductive state, morphology of embryos, nitric oxide (NO) production and differential gene expression. Here, we demonstrated that both metals differentially impaired the fertilization processes of the treated female sea urchins, causing modifications in the reproductive state and also affecting NO production in the ovaries. A detailed analysis of the progeny showed a high percentage of abnormal embryos, associated to an increase in the endogenous NO levels and variations in the transcriptional expression of several genes involved in stress response, skeletogenesis, detoxification, multi drug efflux processes and NO production. Moreover, we found significant differences in the progeny from females exposed to metals and reared in metal-containing sea water compared to embryos reared in non-contaminated sea water. Overall, these results greatly expanded previous studies on the toxic effects of metals on P. lividus and provided new insights into the molecular events induced in the progeny of sea urchins exposed to metals.

???displayArticle.pubmedLink??? 26125595
???displayArticle.pmcLink??? PMC4488381
???displayArticle.link??? PLoS One

Genes referenced: LOC100887844

???attribute.lit??? ???displayArticles.show???

References [+] :

Agnello, Cadmium induces an apoptotic response in sea urchin embryos. 2007, Pubmed, Echinobase

Agnello, Cadmium induces an apoptotic response in sea urchin embryos. 2007, Pubmed , Echinobase
Ameye, Ultrastructural localization of proteins involved in sea urchin biomineralization. 1999, Pubmed , Echinobase
Amiard, Metallothioneins in aquatic invertebrates: their role in metal detoxification and their use as biomarkers. 2006, Pubmed
Anstrom, Localization and expression of msp130, a primary mesenchyme lineage-specific cell surface protein in the sea urchin embryo. 1987, Pubmed , Echinobase
Au, Reproductive impairment of sea urchins upon chronic exposure to cadmium. Part I: Effects on gamete quality. 2001, Pubmed , Echinobase
Au, Reproductive impairment of sea urchin upon chronic exposure to cadmium. Part II: Effects on sperm development. 2001, Pubmed , Echinobase
Beiras, Integrative assessment of marine pollution in Galician estuaries using sediment chemistry, mussel bioaccumulation, and embryo-larval toxicity bioassays. 2003, Pubmed , Echinobase
Bonaventura, Stress response gene activation protects sea urchin embryos exposed to X-rays. 2011, Pubmed , Echinobase
Bonaventura, UVB radiation prevents skeleton growth and stimulates the expression of stress markers in sea urchin embryos. 2005, Pubmed , Echinobase
Carballeira, Identification of specific malformations of sea urchin larvae for toxicity assessment: application to marine pisciculture effluents. 2012, Pubmed , Echinobase
Chiarelli, Sea urchin embryos exposed to cadmium as an experimental model for studying the relationship between autophagy and apoptosis. 2014, Pubmed , Echinobase
Costa, Phylogenetic analysis and expression patterns of p16 and p19 in Paracentrotus lividus embryos. 2012, Pubmed , Echinobase
Daly, A new perspective on radiation resistance based on Deinococcus radiodurans. 2009, Pubmed
Della Torre, Interaction of ABC transport proteins with toxic metals at the level of gene and transport activity in the PLHC-1 fish cell line. 2012, Pubmed
Filosto, Environmentally relevant cadmium concentrations affect development and induce apoptosis of Paracentrotus lividus larvae cultured in vitro. 2008, Pubmed , Echinobase
Foulkes, Transport of toxic heavy metals across cell membranes. 2000, Pubmed
George, Characterization and expression of a gene encoding a 30.6-kDa Strongylocentrotus purpuratus spicule matrix protein. 1991, Pubmed , Echinobase
Giudice, Studies on heat shock proteins in sea urchin development. 1999, Pubmed , Echinobase
Green, Analysis of nitrate, nitrite, and [15N]nitrate in biological fluids. 1982, Pubmed
Griffith, Nitric oxide synthases: properties and catalytic mechanism. 1995, Pubmed
Hamada, Apoptosis induced by cadmium. 1997, Pubmed
Killian, Characterization of the proteins comprising the integral matrix of Strongylocentrotus purpuratus embryonic spicules. 1996, Pubmed , Echinobase
Kobayashi, Effects of heavy metals on sea urchin embryo development. Part 2. Interactive toxic effects of heavy metals in synthetic mine effluents. 2005, Pubmed , Echinobase
Kobayashi, Effects of heavy metals on sea urchin embryo development. 1. Tracing the cause by the effects. 2004, Pubmed , Echinobase
Kurelec, The multixenobiotic resistance mechanism in aquatic organisms. 1992, Pubmed
Leslie, Toxicological relevance of the multidrug resistance protein 1, MRP1 (ABCC1) and related transporters. 2001, Pubmed
Manzo, Cadmium, lead and their mixtures with copper: Paracentrotus lividus embryotoxicity assessment, prediction, and offspring quality evaluation. 2010, Pubmed , Echinobase
Marrone, Defensome against toxic diatom aldehydes in the sea urchin Paracentrotus lividus. 2012, Pubmed , Echinobase
Martin, Early development and molecular plasticity in the Mediterranean sea urchin Paracentrotus lividus exposed to CO2-driven acidification. 2011, Pubmed , Echinobase
Matranga, Embryonic development and skeletogenic gene expression affected by X-rays in the Mediterranean sea urchin Paracentrotus lividus. 2010, Pubmed , Echinobase
Migliaccio, Stress response to cadmium and manganese in Paracentrotus lividus developing embryos is mediated by nitric oxide. 2014, Pubmed , Echinobase
Pérez-López, Assessment of heavy metal contamination of seawater and marine limpet, Patella vulgata L., from Northwest Spain. 2003, Pubmed
Pfaffl, Relative expression software tool (REST) for group-wise comparison and statistical analysis of relative expression results in real-time PCR. 2002, Pubmed
Pinsino, Sea urchin embryos as an in vivo model for the assessment of manganese toxicity: developmental and stress response effects. 2010, Pubmed , Echinobase
Pinsino, Manganese interferes with calcium, perturbs ERK signaling, and produces embryos with no skeleton. 2011, Pubmed , Echinobase
Pinsino, Manganese overload affects p38 MAPK phosphorylation and metalloproteinase activity during sea urchin embryonic development. 2014, Pubmed , Echinobase
Radenac, Bioaccumulation and toxicity of four dissolved metals in Paracentrotus lividus sea-urchin embryo. 2001, Pubmed , Echinobase
Ragusa, Effects of cadmium exposure on sea urchin development assessed by SSH and RT-qPCR: metallothionein genes and their differential induction. 2013, Pubmed , Echinobase
Roccheri, Cadmium induces the expression of specific stress proteins in sea urchin embryos. 2004, Pubmed , Echinobase
Roccheri, Localization of mitochondrial Hsp56 chaperonin during sea urchin development. 2001, Pubmed , Echinobase
Romano, Nitric oxide mediates the stress response induced by diatom aldehydes in the sea urchin Paracentrotus lividus. 2011, Pubmed , Echinobase
Röttinger, FGF signals guide migration of mesenchymal cells, control skeletal morphogenesis [corrected] and regulate gastrulation during sea urchin development. 2008, Pubmed , Echinobase
Runcie, Genetics of gene expression responses to temperature stress in a sea urchin gene network. 2012, Pubmed , Echinobase
Russo, Stress to cadmium monitored by metallothionein gene induction in Paracentrotus lividus embryos. 2003, Pubmed , Echinobase
Samali, Heat shock proteins increase resistance to apoptosis. 1996, Pubmed
Santamaria, Manganese exposure, essentiality & toxicity. 2008, Pubmed
Todgham, Transcriptomic response of sea urchin larvae Strongylocentrotus purpuratus to CO2-driven seawater acidification. 2009, Pubmed , Echinobase
Wilt, Developmental biology meets materials science: Morphogenesis of biomineralized structures. 2005, Pubmed , Echinobase
Zito, Expression of univin, a TGF-beta growth factor, requires ectoderm-ECM interaction and promotes skeletal growth in the sea urchin embryo. 2003, Pubmed , Echinobase

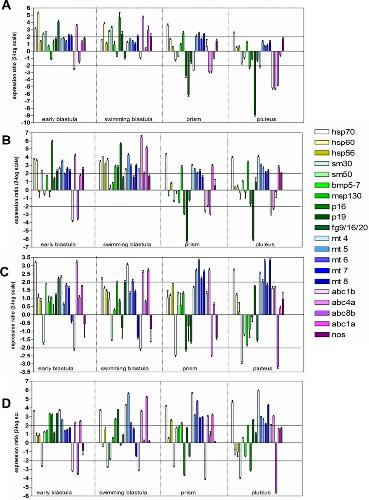

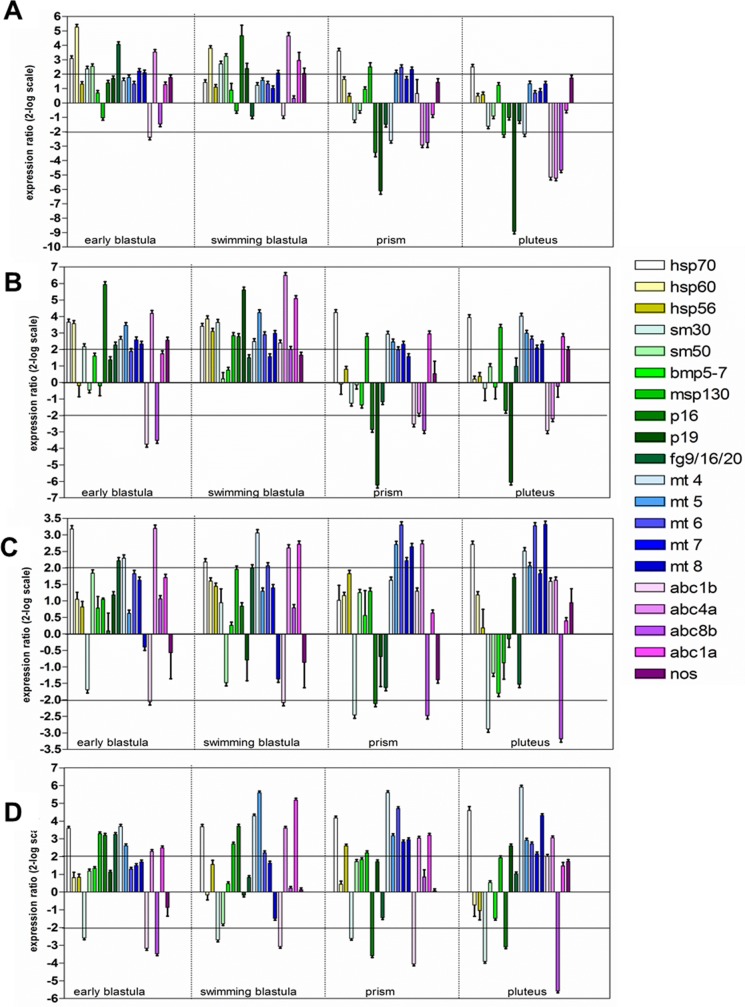

	Fig 4. Gene expression analysis in the progeny of P. lividus females exposed to cadmium 10âˆ’6 M for 2 days (A,B) and 9 days (C,D).The embryos were reared in sea water (A,C) and in cadmium-containing sea water (B,D). Data are reported as a fold difference in the expression levels of the analyzed genes, compared to controls (mean Â± SD), offspring of females kept during the whole experimental period in sea water without addition of metal. Fold differences equal or greater than Â± 2 (see horizontal guidelines at values of 2 andâ€”2) were considered significant. Experiments were repeated at least on 3 biological replicates.

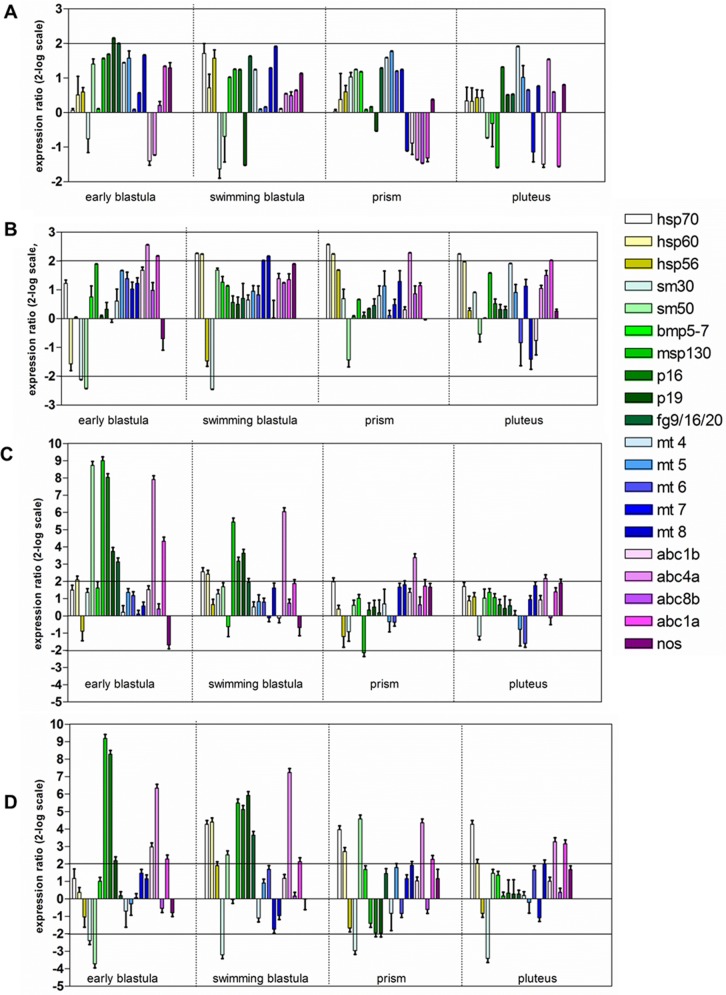

	Fig 5. Gene expression analysis in the progeny of P. lividus females exposed to manganese 3.6 x 10âˆ’5 M for 2 days (A,B) and 9 days (C,D).The embryos were reared in sea water (A,C) and in manganese-containing sea water (B,D). Data are reported as a fold difference in the expression levels of the analyzed genes, compared to controls (mean Â± SD), offspring of females kept during the whole experimental period in sea water without addition of metal. Fold differences equal or greater than Â± 2 (see horizontal guidelines at values of 2 andâ€”2) were considered significant. Experiments were repeated at least on 3 biological replicates.

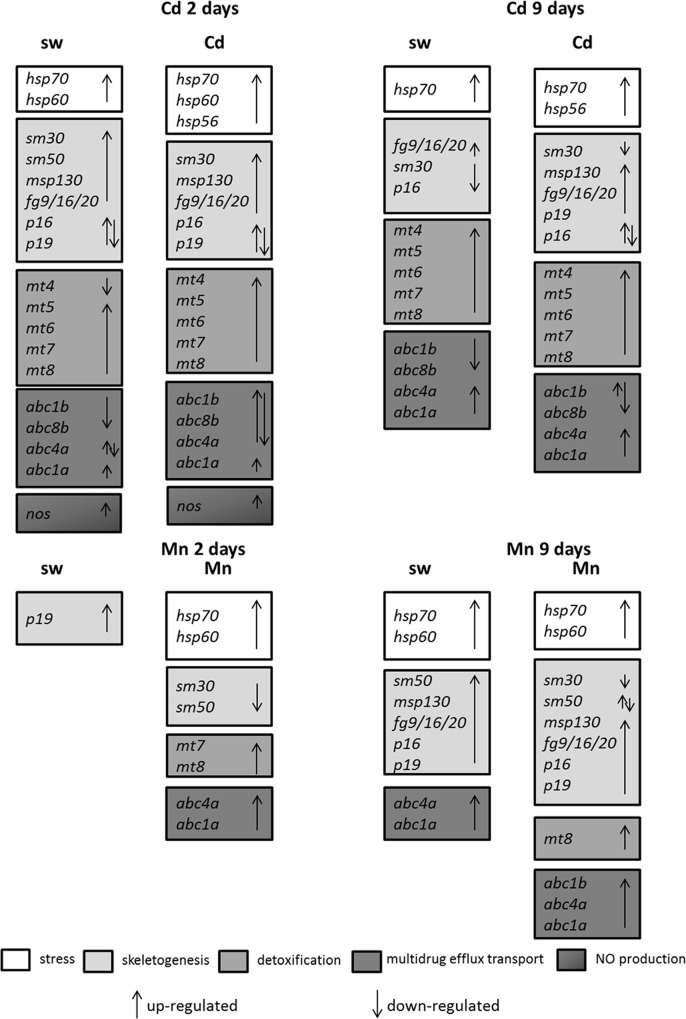

	Fig 6. Synopsis of the patterns of up- and down-regulation of different classes of genes in the offspring of P. lividus females exposed to cadmium (Cd) or manganese (Mn) for 2 and 9 days.The two arrows indicate the up- or down-regulation of genes in different developmental stages.
