Su KC , Bement WM , Petronczki M , von Dassow G .

R01 GM052932 NIGMS NIH HHS , GM52932 NIGMS NIH HHS , Cancer Research UK

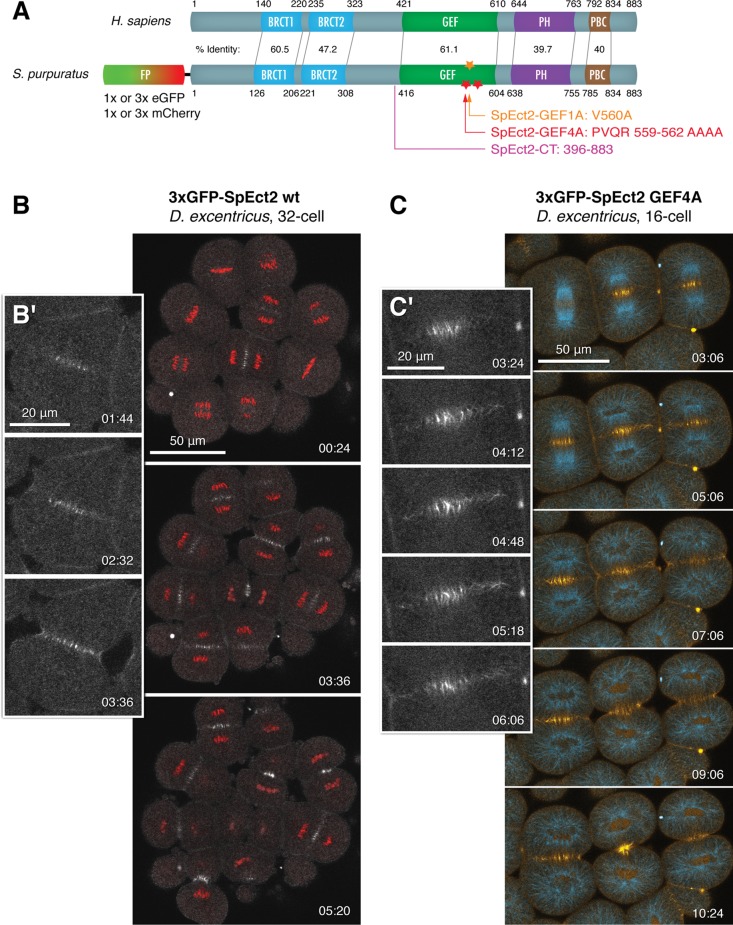

	FIGURE 1:. Urchin Ect2 recruits to the central spindle and the astral microtubule ladder. (A) Schematic of urchin vs. human Ect2, showing positions of tags and derivatives used. (B) Wild-type 3xGFP Ect2 (gray) in 32-cell sand dollar coexpressed with mCh-H2B (red); single optical sections (Supplemental Video S1). (B′) Two-times magnification of the indicated cell immediately before, early in, and mid cleavage. (C) 3xGFP Ect2 GEF4A (gold) in 16-cell sand dollar embryo coexpressed with 2xmCh EMTB (cyan; Supplemental Video S2). (C′) Two-times magnification of the middle cell during the period when the astral ladder develops between central spindle and equatorial cortex.
	FIGURE 2:. Wild-type Ect2 induces hypercontractility during cytokinesis. (A) Sand dollar embryo expressing 3xGFP SpEct2 WT(white) and mCh-H2B (red), single section. Cells 1–4 exhibit various behaviors, likely due to variation in the amount of Ect2 mRNA inherited after injection: cell 1 cleaves normally, and cells 2–4 are hyperactive. Open arrowheads point out instances of cortical Ect2; solid arrowheads follow the midzone in cell 2 as it slips when the cell contracts. See Supplemental Video S4. (B) Eight-cell sand dollar embryo coexpressing eGFP-rGBD and wt SpEct2, projection of 15 1-μm sections; these cells exhibit broad furrow zones and ectopic Rho activation. Times are minutes:seconds after filming began.
	FIGURE 3:. Too much Ect2-G4A inhibits furrowing. (A, B), Projections of 16 1-μm (A) or 13 2-μm (B) sections of sand dollar embryos expressing sufficient 3xGFP Ect2 GEF4A to cause cytokinesis failure. Embryos failed cytokinesis once before imaging began. (A) t = 01:30 and (B) t = 44:40 end-on views through the central spindle, where Ect2 accumulates before moving to astral microtubules, indicated by open arrowheads in A. See Supplemental Video S5. Solid arrowheads point out cortical Ect2 in the ingressing furrow. (C) Sand dollar embryo expressing 3xGFP Ect2 GEF4A (gold) and 2xmCh EMTB (blue), which has undergone multiple cycles of cytokinesis failure (18 1-μm sections). As the cell progresses through anaphase, Ect2 relocates from central spindle to overlapping astral microtubule regions, which remain after nuclear reassembly. Times are minutes:seconds after filming began.

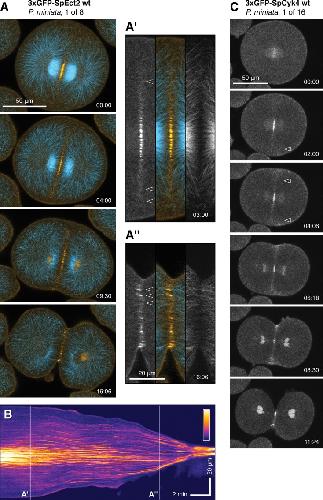

	FIGURE 4:. Ect2 and centralspindlin climb the astral ladder in starfish. (A) One of eight cells in a starfish embryo expressing wt 3xGFP SpEct2 (gold) and 2xmCh EMTB (cyan; Supplemental Video S6). (A′, A″) Two-times magnifications of the region covering central spindle and cell equator before and midway through cleavage, with Ect2 (left), merge (middle), and microtubules (right). Arrowheads in A′ indicate astral microtubules decorated by Ect2. Arrowheads in A″ indicate Ect2-decorated microtubule bundles—the ladder—that cross the equator parallel to the spindle. (B) Kymograph from same sequence as A; times of A′ and A″ shown by vertical lines. Note the diagonal spread of Ect2 from central spindle to cell surface and that the central spindle itself grows dimmer over time as the ladder grows brighter. (C) One of 16 cells in a starfish embryo expressing wt 3xGFP SpCyk4, which appears on the central spindle and faintly on astral rays throughout the cell in anaphase (first frame) and then clears from the spindle poles outward and accumulates on astral microtubules beneath the furrow (Supplemental Video S7).

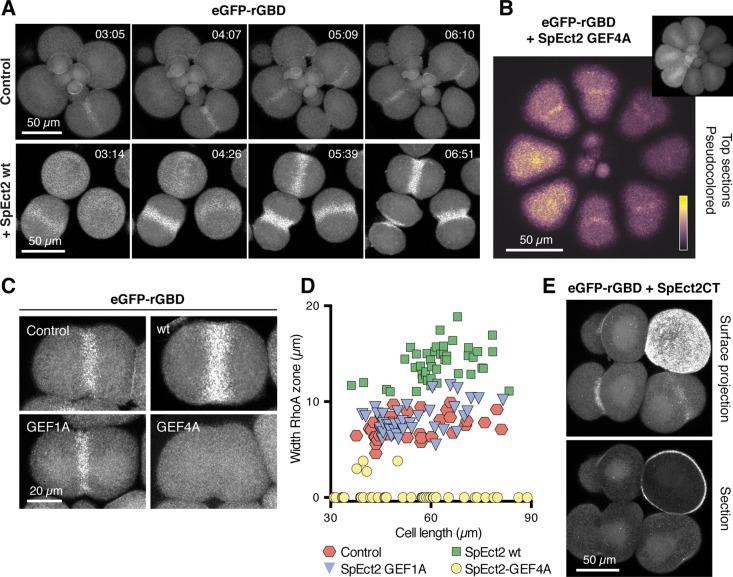

	FIGURE 5:. Ect2 shapes the zone of active Rho. (A) Comparison of sand dollar embryos at the 16- to 32-cell division, expressing GFP-rGBD alone or with wt Ect2; projections of 15 (control) or 20 (Ect2) 1-μm sections (Supplemental Video S8). The dose of Ect2 used here was low enough that no overt defects were evident, but the embryo displays a broadened, brightened Rho zone. (B) Single surface section of 32-cell sand dollar embryo expressing GFP-rGBD and a dose of SpEct2 GEF4A at which no defects were apparent. False coloring was applied to highlight faint active Rho zones, which are not detectable in a projection of 11 1-μm sections displayed in the inset. (C) Representative projections of single sand dollar cells at equivalent cell sizes at onset of furrowing, injected with GFP-rGBD alone, or with low dose of wt Ect2 and GEF1A or GEF4A mutants. (D) Plot of cell size vs. width of Rho zone from images as in C. (E) Projection of all 28 (top) or four medial (lower) 0.8-μm sections of a dividing four-cell sand dollar embryo expressing eGFP-rGBD. Top right cell was also injected with mRNA encoding hyperactive SpEct2-CT and displays strong Rho activity over the entire surface.

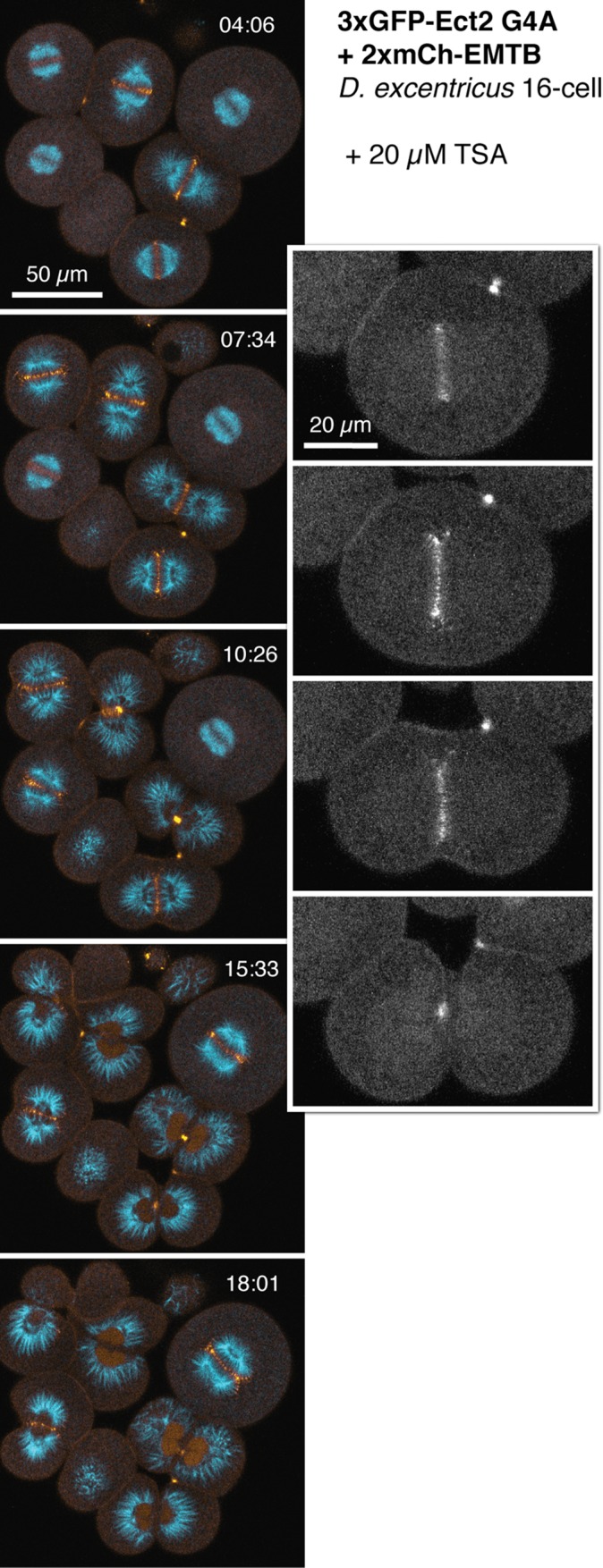

	FIGURE 6:. Sand dollar embryo expressing 3xGFP Ect2 GEF4A (gold) and 2xCh EMTB (blue) and treated with 20 μM trichostatin A at time 00:00 (minutes:seconds); projection of four 1-μm sections. Inset, 2× magnification of region covering the lowermost cell, Ect2 only.

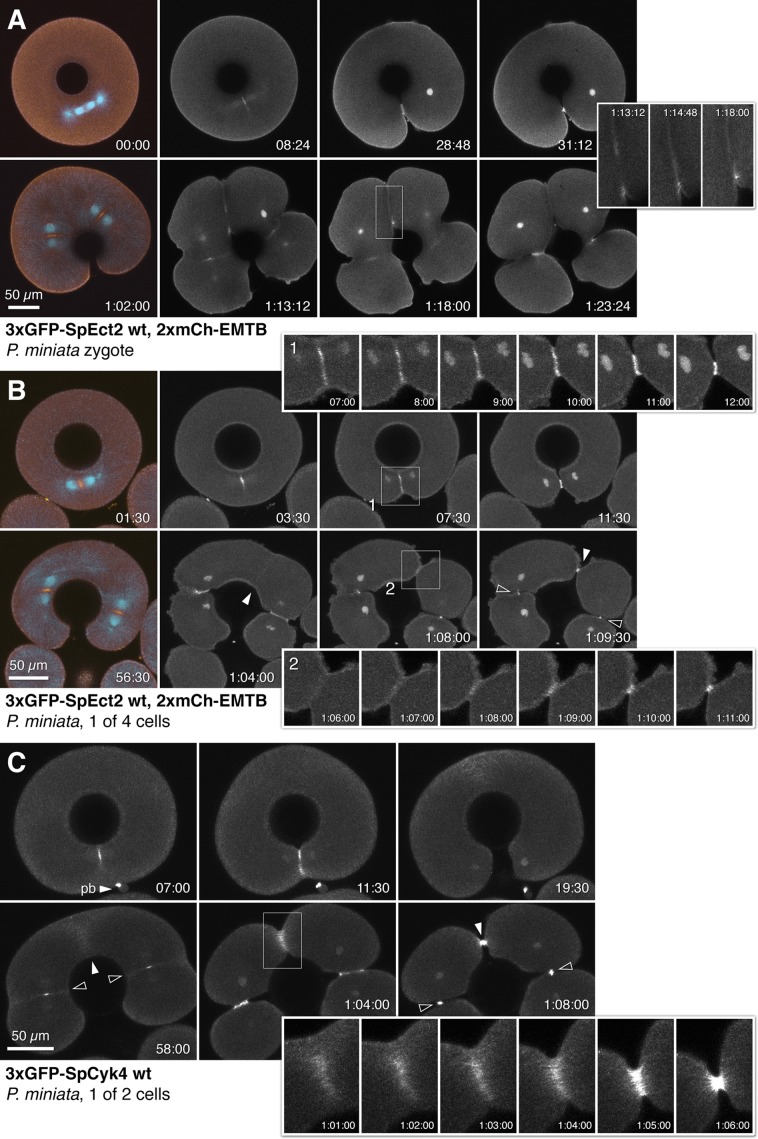

	FIGURE 7:. Ect2 and centralspindlin are associated with secondary furrows in toroidal cells. Starfish zygote (A) and one of four cells (B) expressing wt 3xGFP Ect2 (gold) and 2xmCh EMTB (cyan) and perforated with a 50-μm glass bead (Supplemental Video S9). Top, first division after perforation; bottom, next division of resulting binucleate, U-shaped cell. Inset in A, 2× magnification of the secondary furrow region (boxed); insets 1 and 2 in B, primary and secondary furrows. (C) One of two cells in a starfish embryo expressing wt 3xGFP Cyk4 and perforated as in A and B (Supplemental Video S10); inset, secondary furrow region. Open arrowheads mark primary (spindle-crossing) furrows; solid arrowheads mark secondary furrows that pass between two asters.

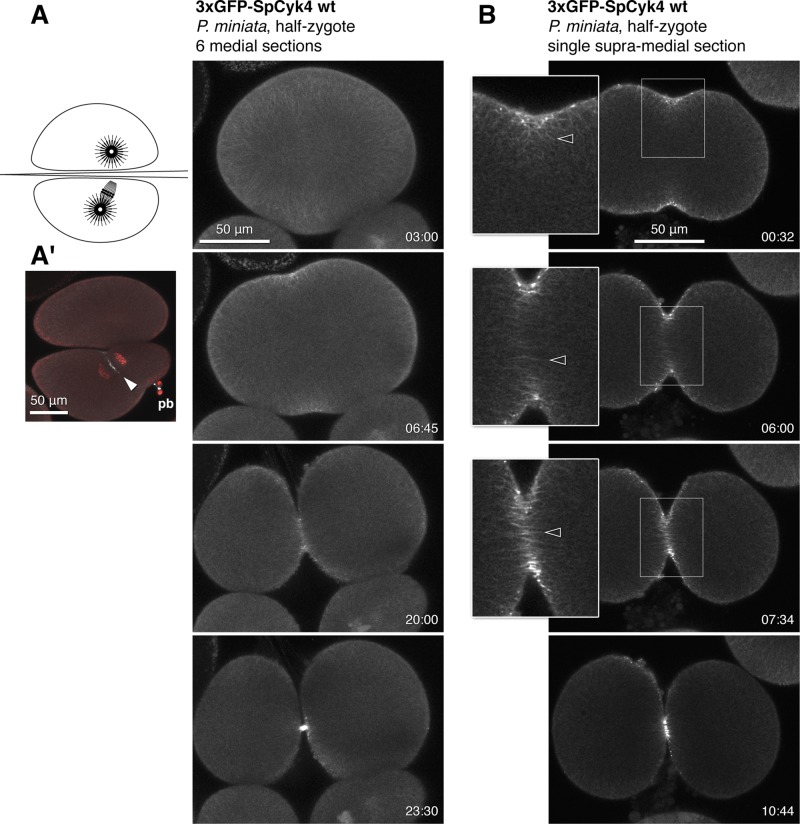

	FIGURE 8:. Centralspindlin recruits between paired asters in anucleate cytoplasts. Both panels show anucleate cytoplasts the first time they try to divide with two asters. (A) Medial view, projection of six sections; diagram depicts the operation. (A′) First cleavage of nucleate half of zygote in A (pb, polar bodies). (B) Single supramedial section; insets, 2× magnifications of boxed region; open arrows indicate astral microtubules decorated with Cyk4. See Supplemental Video S11.

Adams, pavarotti encodes a kinesin-like protein required to organize the central spindle and contractile ring for cytokinesis. 1998, Pubmed

Adams, pavarotti encodes a kinesin-like protein required to organize the central spindle and contractile ring for cytokinesis. 1998, Pubmed
Argiros, Centralspindlin and chromosomal passenger complex behavior during normal and Rappaport furrow specification in echinoderm embryos. 2012, Pubmed , Echinobase
Baruni, Cytokinetic furrowing in toroidal, binucleate and anucleate cells in C. elegans embryos. 2008, Pubmed , Echinobase
Bement, Rho GTPase activity zones and transient contractile arrays. 2006, Pubmed
Bement, A microtubule-dependent zone of active RhoA during cleavage plane specification. 2005, Pubmed , Echinobase
Benink, Concentric zones of active RhoA and Cdc42 around single cell wounds. 2005, Pubmed
Bringmann, A cytokinesis furrow is positioned by two consecutive signals. 2005, Pubmed
Bringmann, LET-99, GOA-1/GPA-16, and GPR-1/2 are required for aster-positioned cytokinesis. 2007, Pubmed
Canman, The role of pre- and post-anaphase microtubules in the cytokinesis phase of the cell cycle. 2000, Pubmed
Canman, Determining the position of the cell division plane. 2003, Pubmed
Cao, Signals from the spindle midzone are required for the stimulation of cytokinesis in cultured epithelial cells. 1996, Pubmed
Chalamalasetty, Influence of human Ect2 depletion and overexpression on cleavage furrow formation and abscission. 2006, Pubmed
Clark, Identification of small molecule inhibitors of cytokinesis and single cell wound repair. 2012, Pubmed , Echinobase
Dechant, Centrosome separation and central spindle assembly act in redundant pathways that regulate microtubule density and trigger cleavage furrow formation. 2003, Pubmed
Douglas, Aurora B and 14-3-3 coordinately regulate clustering of centralspindlin during cytokinesis. 2010, Pubmed
Eckley, Chromosomal proteins and cytokinesis: patterns of cleavage furrow formation and inner centromere protein positioning in mitotic heterokaryons and mid-anaphase cells. 1997, Pubmed
Foe, Stable and dynamic microtubules coordinately shape the myosin activation zone during cytokinetic furrow formation. 2008, Pubmed , Echinobase
Green, Cytokinesis in animal cells. 2012, Pubmed
Hiramoto, Analysis of cleavage stimulus by means of micromanipulation of sea urchin eggs. 1971, Pubmed , Echinobase
Hutterer, Clustering of centralspindlin is essential for its accumulation to the central spindle and the midbody. 2009, Pubmed
Jantsch-Plunger, CYK-4: A Rho family gtpase activating protein (GAP) required for central spindle formation and cytokinesis. 2000, Pubmed
Lekomtsev, Centralspindlin links the mitotic spindle to the plasma membrane during cytokinesis. 2012, Pubmed
Liu, NMR structure and mutagenesis of the N-terminal Dbl homology domain of the nucleotide exchange factor Trio. 1998, Pubmed
Mishima, Central spindle assembly and cytokinesis require a kinesin-like protein/RhoGAP complex with microtubule bundling activity. 2002, Pubmed
Motegi, Two phases of astral microtubule activity during cytokinesis in C. elegans embryos. 2006, Pubmed
Murata-Hori, Both midzone and astral microtubules are involved in the delivery of cytokinesis signals: insights from the mobility of aurora B. 2002, Pubmed
Nishimura, Centralspindlin regulates ECT2 and RhoA accumulation at the equatorial cortex during cytokinesis. 2006, Pubmed
Nislow, A plus-end-directed motor enzyme that moves antiparallel microtubules in vitro localizes to the interzone of mitotic spindles. 1992, Pubmed
Odell, An agent-based model contrasts opposite effects of dynamic and stable microtubules on cleavage furrow positioning. 2008, Pubmed , Echinobase
Prokopenko, A putative exchange factor for Rho1 GTPase is required for initiation of cytokinesis in Drosophila. 1999, Pubmed
RAPPAPORT, Experiments concerning the cleavage stimulus in sand dollar eggs. 1961, Pubmed , Echinobase
Rieder, Mitosis in vertebrate somatic cells with two spindles: implications for the metaphase/anaphase transition checkpoint and cleavage. 1997, Pubmed
Salmon, Role of microtubules in stimulating cytokinesis in animal cells. 1990, Pubmed , Echinobase
Schumacher, The RhoGEF Pebble is required for cell shape changes during cell migration triggered by the Drosophila FGF receptor Heartless. 2004, Pubmed
Shuster, Transitions regulating the timing of cytokinesis in embryonic cells. 2002, Pubmed , Echinobase
Somers, A RhoGEF and Rho family GTPase-activating protein complex links the contractile ring to cortical microtubules at the onset of cytokinesis. 2003, Pubmed
Su, Targeting of the RhoGEF Ect2 to the equatorial membrane controls cleavage furrow formation during cytokinesis. 2011, Pubmed
Tatsumoto, Human ECT2 is an exchange factor for Rho GTPases, phosphorylated in G2/M phases, and involved in cytokinesis. 1999, Pubmed
Tse, RhoA activation during polarization and cytokinesis of the early Caenorhabditis elegans embryo is differentially dependent on NOP-1 and CYK-4. 2012, Pubmed
von Dassow, Action at a distance during cytokinesis. 2009, Pubmed , Echinobase
von Dassow, Concurrent cues for cytokinetic furrow induction in animal cells. 2009, Pubmed
Werner, Astral signals spatially bias cortical myosin recruitment to break symmetry and promote cytokinesis. 2007, Pubmed
Wheatley, Midzone microtubule bundles are continuously required for cytokinesis in cultured epithelial cells. 1996, Pubmed
White, Centralspindlin: at the heart of cytokinesis. 2012, Pubmed
Yüce, An ECT2-centralspindlin complex regulates the localization and function of RhoA. 2005, Pubmed
Zanin, A conserved RhoGAP limits M phase contractility and coordinates with microtubule asters to confine RhoA during cytokinesis. 2013, Pubmed
