Fish Shellfish Immunol
2014 Jan 01;361:181-6. doi: 10.1016/j.fsi.2013.10.029.
Show Gene links
Show Anatomy links
Determination of sialic acids in immune system cells (coelomocytes) of sea urchin, Paracentrotus lividus, using capillary LC-ESI-MS/MS.
İzzetoğlu S
,
Şahar U
,
Şener E
,
Deveci R
.
???displayArticle.abstract???
Coelomocytes are considered to be immune effectors of sea urchins. Coelomocytes are the freely circulating cells in the body fluid contained in echinoderm coelom and mediate the cellular defence responses to immune challenges by phagocytosis, encapsulation, cytotoxicity and the production of antimicrobial agents. Coelomocytes have the ability to recognize self from non-self. Considering that sialic acids play important roles in immunity, we determined the presence of sialic acid types in coelomocytes of Paracentrotus lividus. Homogenized coelomocytes were kept in 2 M aqueous acetic acid at 80 °C for 3 h to liberate sialic acids. Sialic acids were determined by derivatization with 1,2-diamino-4,5-methylenediaoxy-benzene dihydrochloride (DMB) followed by capillary liquid-chromatography-electrospray ionization/tandem mass spectrometry (CapLC-ESI-MS/MS). Standard sialic acids; Neu5Ac, Neu5Gc, KDN and bovine submaxillary mucin showing a variety of sialic acids were used to confirm sialic acids types. We found ten different types of sialic acids (Neu5Gc, Neu5Ac, Neu5Gc9Ac, Neu5Gc8Ac, Neu5,9Ac2, Neu5,7Ac2, Neu5,8Ac2, Neu5,7,9Ac3, Neu5Gc7,9Ac2, Neu5Gc7Ac) isolated in limited amounts from total coelomocyte population. Neu5Gc type of sialic acids in coelomocytes was the most abundant type sialic acid when compared with other types. This is the first report on the presence of sialic acid types in coelomocytes of P. lividus using CapLC-ESI-MS/MS-Ion Trap system (Capillary Liquid Chromatography-Electrospray Ionization/Tandem Mass Spectrometry).

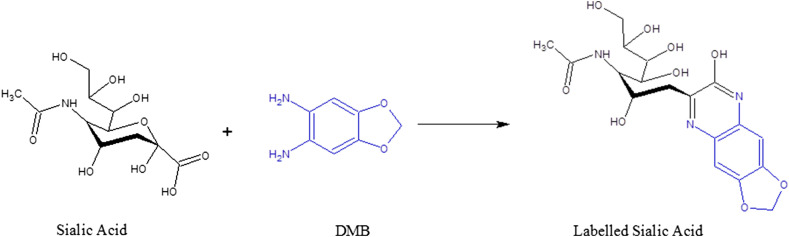

Fig. 1. Schema of the reaction of 1,2-diamino-4,5-methylenediaoxy-benzene (DMB) derivatization of sialic acids.

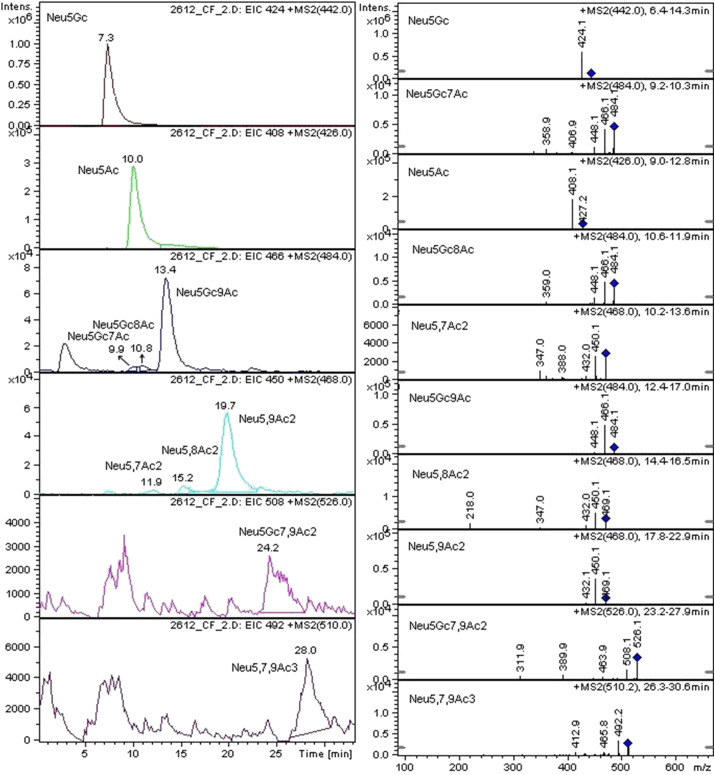

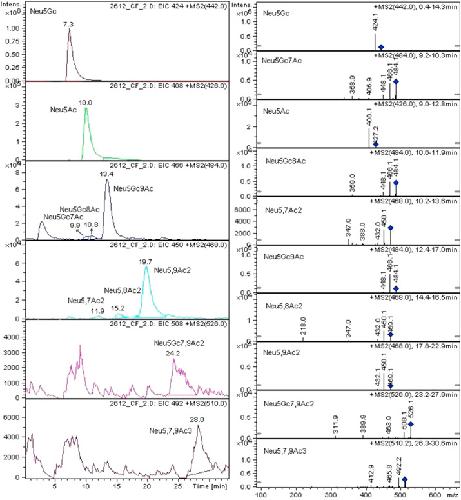

Fig. 2. LC-ESI-MS/MS mass spectrum and chromatogram of DMB-Sialic acid species (ten types) found in total coelomocyte population. Monitored of molecular ions [M + H]+ as labeled (♦) by software, and CID (collision-induced dissociation) fragments [M + H-H2O]+ at m/z; 424 for Neu5Gc, 408 for Neu5Ac, 466 for Neu5Gc7Ac, Neu5Gc8Ac and Neu5Gc9Ac, 450 for Neu5,7Ac2, Neu5,8Ac2 and Neu5,9Ac2, 492 for Neu5,7,9Ac3, 508 for Neu5Gc7,9Ac2.

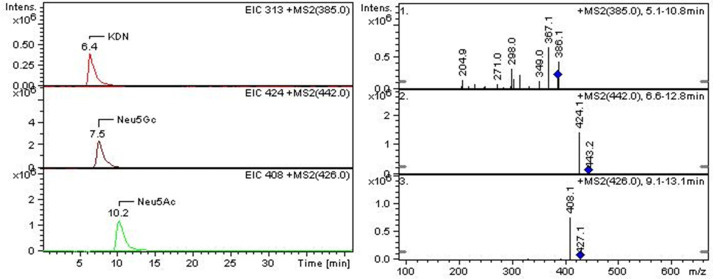

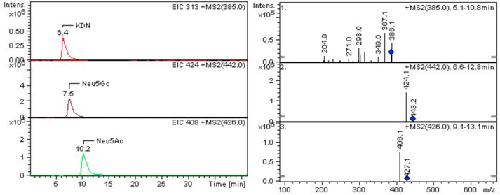

Fig. 3. LC-ESI-MS/MS mass spectrum and chromatogram of DMB-Standard Sialic acid species (KDN, Neu5Gc and Neu5Ac). Monitored of molecular ions [M + H]+ as labeled (♦) by software, and CID (collision-induced dissociation) fragments [M + H-H2O]+ at m/z.

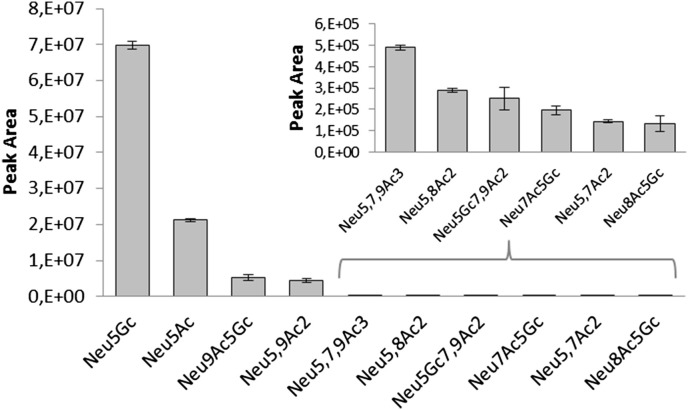

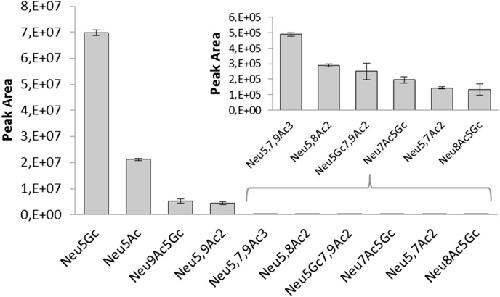

Fig. 4. Distribution of sialic acids amounts measured by LC-ESI-MS/MS. Sialic acid contents of total coelomocyte population were demonstrated by average peak area of MRM chromatograms of their types. Data are presented as mean ± standard deviation (S.D.) of peak area from three replicated experiments.
Angata,
Chemical diversity in the sialic acids and related alpha-keto acids: an evolutionary perspective.
2002, Pubmed
Angata,
Chemical diversity in the sialic acids and related alpha-keto acids: an evolutionary perspective.
2002,
Pubmed
Arizza,
Cell cooperation in coelomocyte cytotoxic activity of Paracentrotus lividus coelomocytes.
2007,
Pubmed
,
Echinobase
Bergfeld,
Metabolism of vertebrate amino sugars with N-glycolyl groups: elucidating the intracellular fate of the non-human sialic acid N-glycolylneuraminic acid.
2012,
Pubmed
Bi,
Sialic acids in T cell development and function.
2009,
Pubmed
Bürgmayr,
Sialic acids in gastropods.
2001,
Pubmed
Clow,
Expression of SpC3, the sea urchin complement component, in response to lipopolysaccharide.
2000,
Pubmed
,
Echinobase
Gliński,
Immune phenomena in echinoderms.
2000,
Pubmed
,
Echinobase
Gollub,
Cytidine monophosphate-N-acetylneuraminate hydroxylase in the starfish Asterias rubens and other echinoderms.
1998,
Pubmed
,
Echinobase
Gollub,
Isolation and characterization of cytidine-5'-monophosphate-N-acetylneuraminate hydroxylase from the starfish Asterias rubens.
2003,
Pubmed
,
Echinobase
Gross,
Echinoderm immunity and the evolution of the complement system.
1999,
Pubmed
,
Echinobase
Gross,
SpC3, the complement homologue from the purple sea urchin, Strongylocentrotus purpuratus, is expressed in two subpopulations of the phagocytic coelomocytes.
2000,
Pubmed
,
Echinobase
Hashii,
Study on the quality control of cell therapy products. Determination of N-glycolylneuraminic acid incorporated into human cells by nano-flow liquid chromatography/Fourier transformation ion cyclotron mass spectrometry.
2007,
Pubmed
Kamerling,
Structural analysis of naturally occurring sialic acids.
2006,
Pubmed
Kawabata,
Determination of mucin in salivary glands using sialic acids as the marker by high-performance liquid chromatography with fluorometric detection.
2000,
Pubmed
Klein,
New sialic acids from biological sources identified by a comprehensive and sensitive approach: liquid chromatography-electrospray ionization-mass spectrometry (LC-ESI-MS) of SIA quinoxalinones.
1997,
Pubmed
,
Echinobase
Krishna,
9-O-Acetylation of sialomucins: a novel marker of murine CD4 T cells that is regulated during maturation and activation.
1997,
Pubmed
Lamari,
Separation methods for sialic acids and critical evaluation of their biologic relevance.
2002,
Pubmed
Lawrence,
Cloning and expression of the human N-acetylneuraminic acid phosphate synthase gene with 2-keto-3-deoxy-D-glycero- D-galacto-nononic acid biosynthetic ability.
2000,
Pubmed
Lin,
Phylogeny of natural cytotoxicity: cytotoxic activity of coelomocytes of the purple sea urchin, Arbacia punctulata.
2001,
Pubmed
,
Echinobase
Loram,
Sea urchin coelomocytes are resistant to a variety of DNA damaging agents.
2012,
Pubmed
,
Echinobase
Malykh,
The presence of N-acetylneuraminic acid in Malpighian tubules of larvae of the cicada Philaenus spumarius.
1999,
Pubmed
Martensen,
Cloning and expression of a membrane-bound CMP-N-acetylneuraminic acid hydroxylase from the starfish Asterias rubens.
2001,
Pubmed
,
Echinobase
Matranga,
Monitoring chemical and physical stress using sea urchin immune cells.
2005,
Pubmed
,
Echinobase
Miyata,
A major flagellum sialoglycoprotein in sea urchin sperm contains a novel polysialic acid, an alpha2,9-linked poly-N-acetylneuraminic acid chain, capped by an 8-O-sulfated sialic acid residue.
2004,
Pubmed
,
Echinobase
Morimoto,
Specific distribution of sialic acids in animal tissues as examined by LC-ESI-MS after derivatization with 1,2-diamino-4,5-methylenedioxybenzene.
2001,
Pubmed
Ren,
Synthesis of alpha-(2-->5)Neu5Gc oligomers.
2003,
Pubmed
Roth,
Occurrence of sialic acids in Drosophila melanogaster.
1992,
Pubmed
Schauer,
Sialic acids as regulators of molecular and cellular interactions.
2009,
Pubmed
Schauer,
Chemistry, metabolism, and biological functions of sialic acids.
1982,
Pubmed
Schauer,
O-Acetylated sialic acids and their role in immune defense.
2011,
Pubmed
Smith,
Sea urchin genes expressed in activated coelomocytes are identified by expressed sequence tags. Complement homologues and other putative immune response genes suggest immune system homology within the deuterostomes.
1996,
Pubmed
,
Echinobase
Smith,
Echinoderm immunity.
2010,
Pubmed
,
Echinobase
Stehling,
Rapid analysis of O-acetylated neuraminic acids by matrix assisted laser desorption/ionization time-of-flight mass spectrometry.
1998,
Pubmed
Sumi,
Purification and identification of N-glycolylneuraminic acid (Neu5Gc) from the holothuroidea Gumi, Cucumaria echinata.
2001,
Pubmed
,
Echinobase
Varki,
Diversity in the sialic acids.
1992,
Pubmed
Varki,
Biological roles of oligosaccharides: all of the theories are correct.
1993,
Pubmed
Varki,
Multifarious roles of sialic acids in immunity.
2012,
Pubmed
Warwas,
Structure and role of sialic acids on the surface of Aspergillus fumigatus conidiospores.
2007,
Pubmed
Yang,
Low mass cutoff evasion with q(z) value optimization in ion trap.
2009,
Pubmed
