Genome Biol Evol
2013 Jan 01;51:217-32. doi: 10.1093/gbe/evs135.
Show Gene links
Show Anatomy links
Beyond BLASTing: tertiary and quaternary structure analysis helps identify major vault proteins.
Daly TK
,
Sutherland-Smith AJ
,
Penny D
.
???displayArticle.abstract???
We examine the advantages of going beyond sequence similarity and use both protein three-dimensional (3D) structure prediction and then quaternary structure (docking) of inferred 3D structures to help evaluate whether comparable sequences can fold into homologous structures with sufficient lateral associations for quaternary structure formation. Our test case is the major vault protein (MVP) that oligomerizes in multiple copies to form barrel-like vault particles and is relatively widespread among eukaryotes. We used the iterative threading assembly refinement server (I-TASSER) to predict whether putative MVP sequences identified by BLASTp and PSI Basic Local Alignment Search Tool are structurally similar to the experimentally determined rodent MVP tertiary structures. Then two identical predicted quaternary structures from I-TASSER are analyzed by RosettaDock to test whether a pair-wise association occurs, and hence whether the oligomeric vault complex is likely to form for a given MVP sequence. Positive controls for the method are the experimentally determined rat (Rattus norvegicus) vault X-ray crystal structure and the purple sea urchin (Strongylocentrotus purpuratus) MVP sequence that forms experimentally observed vaults. These and two kinetoplast MVP structural homologs were predicted with high confidence value, and RosettaDock predicted that these MVP sequences would dock laterally and therefore could form oligomeric vaults. As the negative control, I-TASSER did not predict an MVP-like structure from a randomized rat MVP sequence, even when constrained to the rat MVP crystal structure (PDB:2ZUO), thus further validating the method. The protocol identified six putative homologous MVP sequences in the heterobolosean Naegleria gruberi within the excavate kingdom. Two of these sequences are predicted to be structurally similar to rat MVP, despite being in excess of 300 residues shorter. The method can be used generally to help test predictions of homology via structural analysis.

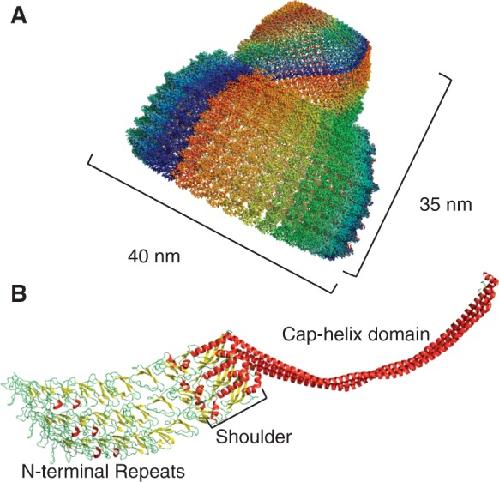

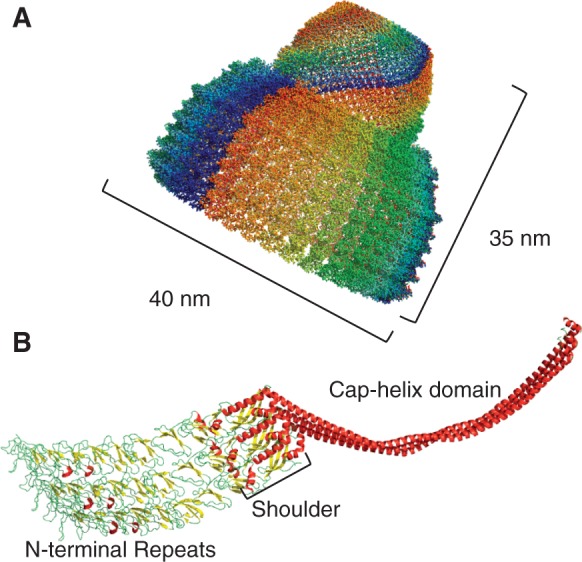

Fig. 1.—. Vault ribonucleoprotein structure. (A) Rat MVP quaternary structure showing half a vault colored by monomer (PDB: 2ZUO, 2ZU4, and 2ZV5). A full vault will have at the lower left a copy of the upper half vault related by a 2-fold rotation axis. (B) Three rat MVP monomers colored by secondary structure (PDB 2ZUO stripped down to three monomers). This figure highlights the extensive lateral association required to dock into the vault quaternary structure.

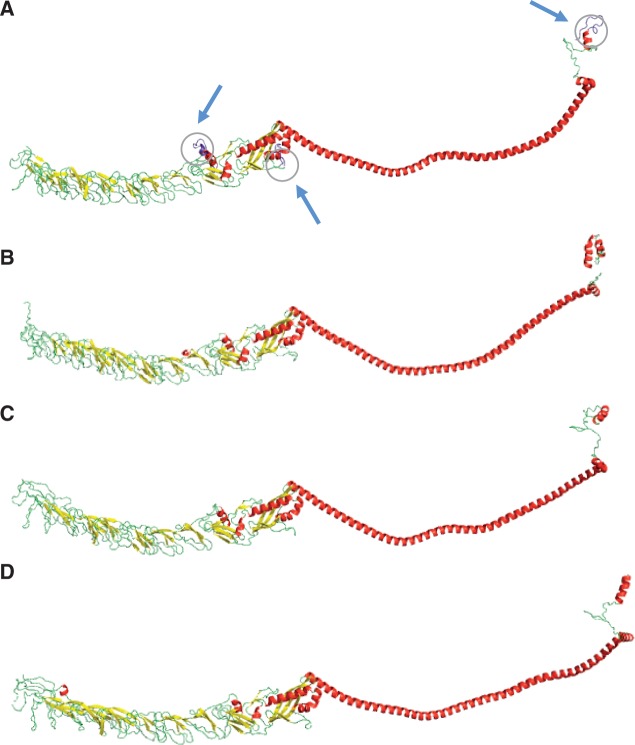

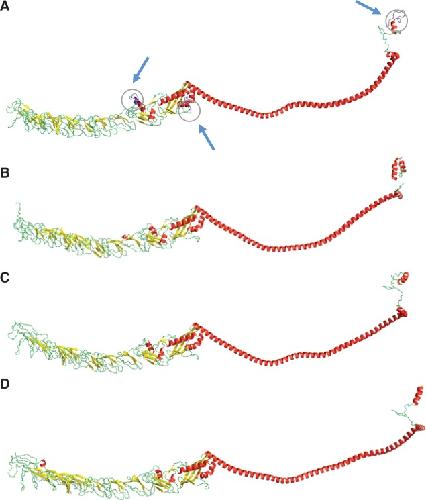

Fig. 2.—. MVP monomer comparison. (A) I-TASSER-modeled structure for the full-length rat MVP sequence (Q62667). Residues not observed in the crystal structure (PDB:2ZUO*b) are circled (shown by arrows). (B) I-TASSER-modeled structure for the sea urchin MVP monomer (Q5EAJ7). (C) I-TASSER-modeled structure for the kinetoplasts Trypanosome cruzi (Q4CUM2) and (D) Leishmania major (Q4QJJ7) MVPs.

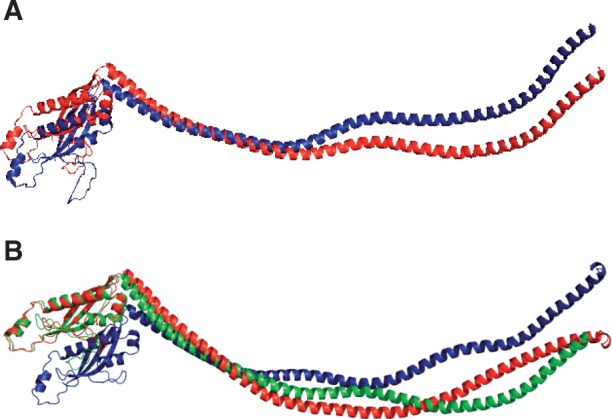

Fig. 3.—. Structural effect of the 2ZUO*b constraint. (A) Structural comparison of the shoulder and cap-helix region of two rat MVP models either constrained by 2ZUO*b (red) or unconstrained (blue). The kink in the unconstrained cap-helix modeled by I-TASSER results in poor docking in RosettaDock. The rat MVP sequence constrained by 2ZUO*b (red) entirely aligns with 2ZUO*b (obscured), and this model docks readily in RosettaDock. (B) Urchin MVP shoulder and cap-helix region structural comparison between models either constrained by 2ZUO*b (red) or unconstrained (blue) relative to 2ZUO*b (green). In this case, the unconstrained urchin MVP model docks more readily than the constrained model.

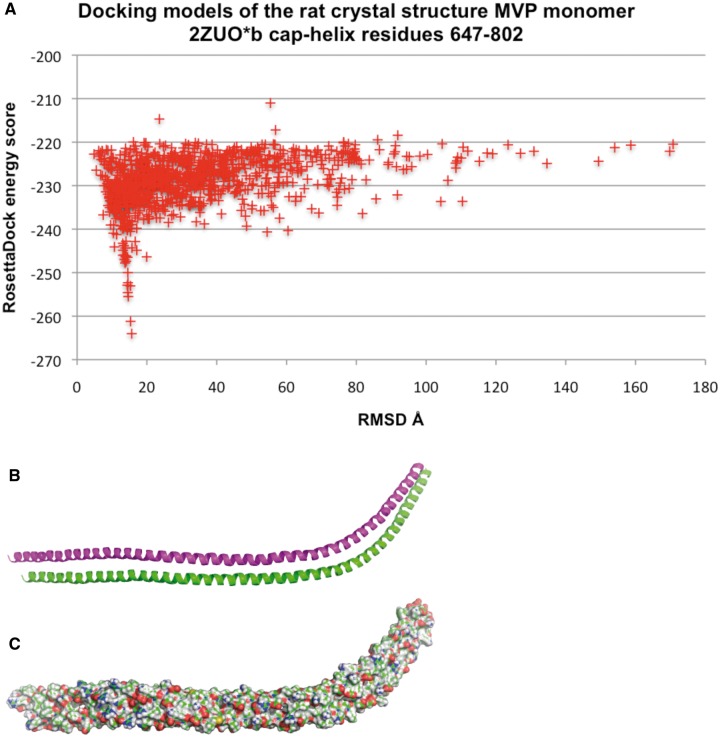

Fig. 4.—. RosettaDock results from the crystal structure cap-helix. (A) Score graph depicting RosettaDock energy score versus RMSD (Å) of the docked monomers compared with their starting positions. The funnel shape of the score graph indicates a high confidence in the structure of the models with lowest energy score. (B) Cartoon of the lowest energy model (energy score −264) shaded by monomer. (C) Surface rendering of the lowest energy model.

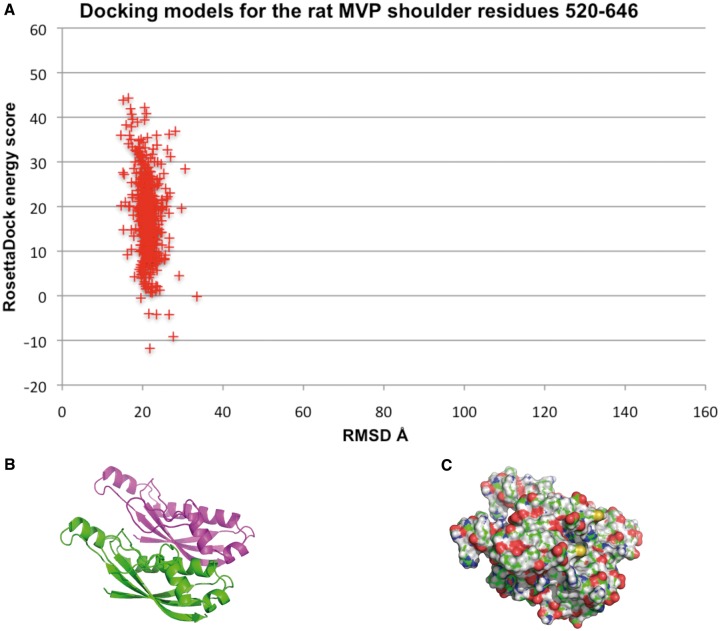

Fig. 5.—. RosettaDock results from the rat MVP shoulder region. (A) Score graph representing the RosettaDock energy scores versus RMSD (Å) for the 1,000 models generated by RosettaDock for the shoulder region of MVP (residues 520–646). The energy score for the shoulder region docking is higher than for the cap-helix (table 1). (B) Cartoon of the shoulder domain from the lowest energy model of the two docked monomers (energy score −12) shaded by chain. (C) Surface rendering of the lowest energy docked monomers.

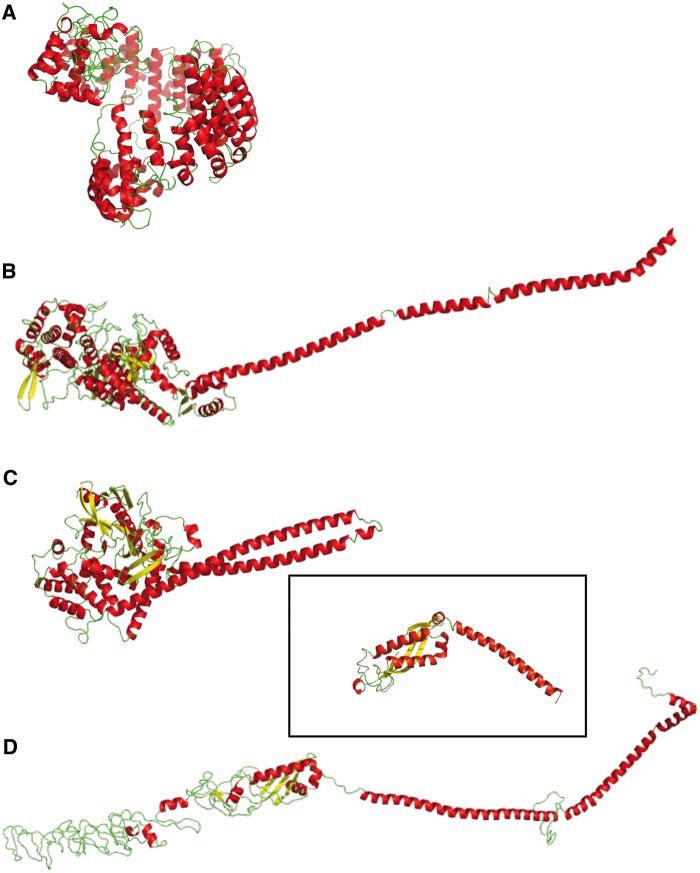

Fig. 6.—. I-TASSER modeling results for the negative control sequences. (A) Randomized rat MVP. (B) Rat myosin 1A. (C) Human merlin unconstrained. (D) Human merlin constrained by 2ZUO*b. Insert is the stomatin core from Pyrococcus horikoshii.

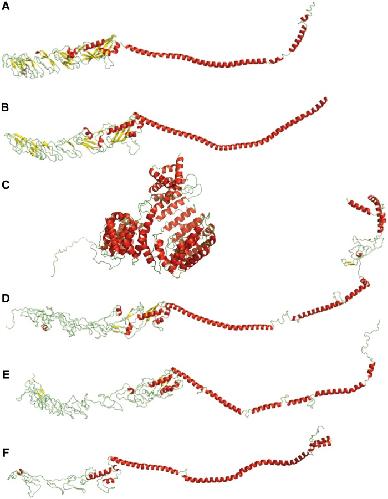

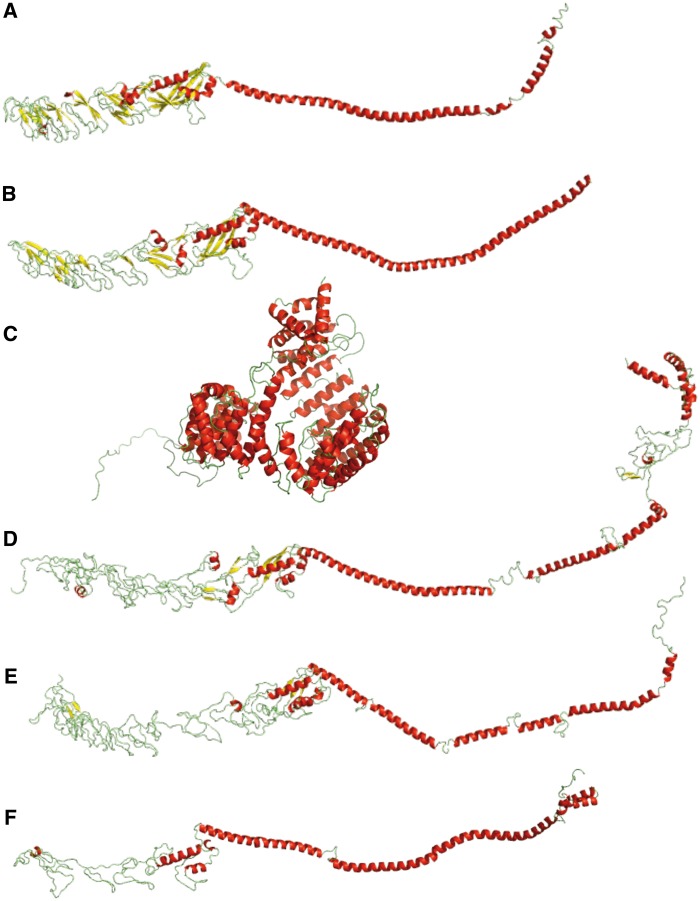

Fig. 7.—. Naegleria gruberi MVP I-TASSER structural modeling. (A) D2V5B9, 559 residues. (B) D2W0Z9, 530 residues both identified from a BLASTp search of the UniProtKB database and submitted to I-TASSER without constraint. (C–F) Models derived from sequences retrieved via a PSI-BLAST of the National Center for Biotechnology Information (NCBI) database and submitted to I-TASSER constrained by the rat crystal structure 2ZUO*b. (C) DZUF7, 845 residues. (D) D2VSY6, 833 residues. (E) D2VC38, 694 residues. (F) D2VH38, 418 residues. UniProt accession numbers are provided for consistency. See also table 2.
Altschul,
Gapped BLAST and PSI-BLAST: a new generation of protein database search programs.
1997, Pubmed
Altschul,
Gapped BLAST and PSI-BLAST: a new generation of protein database search programs.
1997,
Pubmed
Berger,
Vaults and the major vault protein: novel roles in signal pathway regulation and immunity.
2009,
Pubmed
Burkhard,
Coiled coils: a highly versatile protein folding motif.
2001,
Pubmed
Clark,
Skeletal dysplasias due to filamin A mutations result from a gain-of-function mechanism distinct from allelic neurological disorders.
2009,
Pubmed
Collins,
Complex spliceosomal organization ancestral to extant eukaryotes.
2005,
Pubmed
Deschamps,
Phylogenomic analysis of kinetoplastids supports that trypanosomatids arose from within bodonids.
2011,
Pubmed
Finn,
The Pfam protein families database.
2010,
Pubmed
Finnigan,
Evolution of increased complexity in a molecular machine.
2012,
Pubmed
Fritz-Laylin,
The genome of Naegleria gruberi illuminates early eukaryotic versatility.
2010,
Pubmed
Gray,
Protein-protein docking with simultaneous optimization of rigid-body displacement and side-chain conformations.
2003,
Pubmed
Gronenborn,
A novel, highly stable fold of the immunoglobulin binding domain of streptococcal protein G.
1991,
Pubmed
Hamill,
Characterization of the sea urchin major vault protein: a possible role for vault ribonucleoprotein particles in nucleocytoplasmic transport.
1997,
Pubmed
,
Echinobase
Herrmann,
Analysis of a cDNA encoding the major vault protein from the electric ray Discopyge ommata.
1997,
Pubmed
Holm,
An evolutionary treasure: unification of a broad set of amidohydrolases related to urease.
1997,
Pubmed
Kedersha,
Vaults. III. Vault ribonucleoprotein particles open into flower-like structures with octagonal symmetry.
1991,
Pubmed
Kedersha,
Isolation and characterization of a novel ribonucleoprotein particle: large structures contain a single species of small RNA.
1986,
Pubmed
Kelley,
Protein structure prediction on the Web: a case study using the Phyre server.
2009,
Pubmed
Kickhoefer,
Targeting vault nanoparticles to specific cell surface receptors.
2009,
Pubmed
Kickhoefer,
The sequence of a cDNA encoding the major vault protein from Rattus norvegicus.
1994,
Pubmed
Koonin,
Preview. The incredible expanding ancestor of eukaryotes.
2010,
Pubmed
Kozakov,
PIPER: an FFT-based protein docking program with pairwise potentials.
2006,
Pubmed
Kozlov,
Solution structure of a two-repeat fragment of major vault protein.
2006,
Pubmed
Kurland,
Genomics and the irreducible nature of eukaryote cells.
2006,
Pubmed
Kuwahara,
Unusual thermal disassembly of the SPFH domain oligomer from Pyrococcus horikoshii.
2009,
Pubmed
Lara,
MVP and vaults: a role in the radiation response.
2011,
Pubmed
Liu,
Up-regulation of major vault protein in the frontal cortex of patients with intractable frontal lobe epilepsy.
2011,
Pubmed
Lyskov,
The RosettaDock server for local protein-protein docking.
2008,
Pubmed
Matsumoto,
Comprehensive sequence analysis of 24,783 barley full-length cDNAs derived from 12 clone libraries.
2011,
Pubmed
Mossel,
A phase transition for a random cluster model on phylogenetic trees.
2004,
Pubmed
Moult,
A large-scale experiment to assess protein structure prediction methods.
1995,
Pubmed
Murzin,
SCOP: a structural classification of proteins database for the investigation of sequences and structures.
1995,
Pubmed
Neumann,
Comparative genomic evidence for a complete nuclear pore complex in the last eukaryotic common ancestor.
2010,
Pubmed
Orengo,
CATH--a hierarchic classification of protein domain structures.
1997,
Pubmed
Pan,
Conversion of alpha-helices into beta-sheets features in the formation of the scrapie prion proteins.
1993,
Pubmed
Paspalas,
Major vault protein is expressed along the nucleus-neurite axis and associates with mRNAs in cortical neurons.
2009,
Pubmed
Qian,
Measuring the evolutionary rate of protein-protein interaction.
2011,
Pubmed
Querol-Audí,
The mechanism of vault opening from the high resolution structure of the N-terminal repeats of MVP.
2009,
Pubmed
Roy,
I-TASSER: a unified platform for automated protein structure and function prediction.
2010,
Pubmed
Roy,
A protocol for computer-based protein structure and function prediction.
2011,
Pubmed
Sali,
Comparative protein modelling by satisfaction of spatial restraints.
1993,
Pubmed
Sawyer,
Disease-associated substitutions in the filamin B actin binding domain confer enhanced actin binding affinity in the absence of major structural disturbance: Insights from the crystal structures of filamin B actin binding domains.
2009,
Pubmed
Schäffer,
Improving the accuracy of PSI-BLAST protein database searches with composition-based statistics and other refinements.
2001,
Pubmed
Stadler,
Evolution of vault RNAs.
2009,
Pubmed
Steitz,
RNA, the first macromolecular catalyst: the ribosome is a ribozyme.
2003,
Pubmed
Stephen,
Assembly of vault-like particles in insect cells expressing only the major vault protein.
2001,
Pubmed
Stewart,
Sea urchin vault structure, composition, and differential localization during development.
2005,
Pubmed
,
Echinobase
Tanaka,
The structure of rat liver vault at 3.5 angstrom resolution.
2009,
Pubmed
Tovchigrechko,
GRAMM-X public web server for protein-protein docking.
2006,
Pubmed
Vasu,
cDNA cloning and disruption of the major vault protein alpha gene (mvpA) in Dictyostelium discoideum.
1993,
Pubmed
Vasu,
Dictyostelium vaults: disruption of the major proteins reveals growth and morphological defects and uncovers a new associated protein.
1995,
Pubmed
Vollmar,
Assembly of nuclear pore complexes mediated by major vault protein.
2009,
Pubmed
Watson,
Predicting protein function from sequence and structural data.
2005,
Pubmed
Wu,
MUSTER: Improving protein sequence profile-profile alignments by using multiple sources of structure information.
2008,
Pubmed
Xu,
Automated protein structure modeling in CASP9 by I-TASSER pipeline combined with QUARK-based ab initio folding and FG-MD-based structure refinement.
2011,
Pubmed
Yang,
Vaults are dynamically unconstrained cytoplasmic nanoparticles capable of half vault exchange.
2010,
Pubmed
Ye,
Flexible structure alignment by chaining aligned fragment pairs allowing twists.
2003,
Pubmed
Zhang,
I-TASSER server for protein 3D structure prediction.
2008,
Pubmed
van Zon,
Structural domains of vault proteins: a role for the coiled coil domain in vault assembly.
2002,
Pubmed
