Front Pharmacol
2012 Sep 25;3:170. doi: 10.3389/fphar.2012.00170.
Show Gene links
Show Anatomy links
Dual Regulation of Voltage-Sensitive Ion Channels by PIP(2).
Rodríguez-Menchaca AA
,
Adney SK
,
Zhou L
,
Logothetis DE
.
???displayArticle.abstract???
Over the past 16 years, there has been an impressive number of ion channels shown to be sensitive to the major phosphoinositide in the plasma membrane, phosphatidylinositol 4,5-bisphosphate (PIP(2)). Among them are voltage-gated channels, which are crucial for both neuronal and cardiac excitability. Voltage-gated calcium (Cav) channels were shown to be regulated bidirectionally by PIP(2). On one hand, PIP(2) stabilized their activity by reducing current rundown but on the other hand it produced a voltage-dependent inhibition by shifting the activation curve to more positive voltages. For voltage-gated potassium (Kv) channels PIP(2) was first shown to prevent N-type inactivation regardless of whether the fast inactivation gate was part of the pore-forming α subunit or of an accessory β subunit. Careful examination of the effects of PIP(2) on the activation mechanism of Kv1.2 has shown a similar bidirectional regulation as in the Cav channels. The two effects could be distinguished kinetically, in terms of their sensitivities to PIP(2) and by distinct molecular determinants. The rightward shift of the Kv1.2 voltage dependence implicated basic residues in the S4-S5 linker and was consistent with stabilization of the inactive state of the voltage sensor. A third type of a voltage-gated ion channel modulated by PIP(2) is the hyperpolarization-activated cyclic nucleotide-gated (HCN) channel. PIP(2) has been shown to enhance the opening of HCN channels by shifting their voltage-dependent activation toward depolarized potentials. The sea urchin HCN channel, SpIH, showed again a PIP(2)-mediated bidirectional effect but in reverse order than the depolarization-activated Cav and Kv channels: a voltage-dependent potentiation, like the mammalian HCN channels, but also an inhibition of the cGMP-induced current activation. Just like the Kv1.2 channels, distinct molecular determinants underlied the PIP(2) dual effects on SpIH, with the proximal C-terminus implicated in the inhibitory effect. The dual regulation of these very different ion channels, all of which are voltage-dependent, points to conserved mechanisms of regulation of these channels by PIP(2).

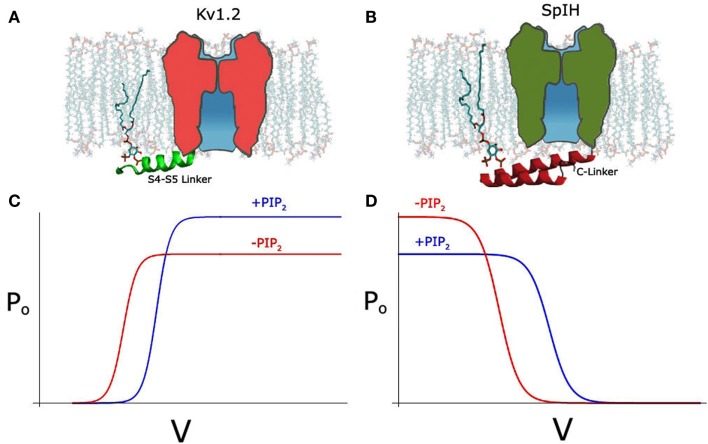

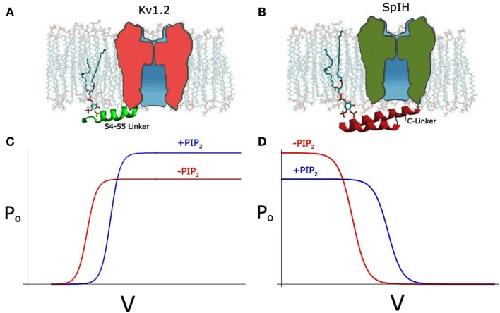

Figure 1. (A) Schematic depicting PIP2 interacting with S4–S5 linker (green) in the Kv1.2 channel, with linker shown in cartoon representation. (B) Schematic depicting PIP2 interacting with A′ helix of C-linker (red) in the SpIH channel, adapted from Flynn and Zagotta (2011). (C) Hypothetical Po-V curve of Kv1.2 showing depolarizing shift and increase in Po after PIP2 (blue line). (D) Hypothetical Po-V curve of SpIH showing depolarizing shift and decrease in Po after PIP2.
