Comp Funct Genomics
2012 Jan 01;2012:310402. doi: 10.1155/2012/310402.
Show Gene links
Show Anatomy links
Comparative Analysis of SWIRM Domain-Containing Proteins in Plants.
Gao Y
,
Yang S
,
Yuan L
,
Cui Y
,
Wu K
.
???displayArticle.abstract???
Chromatin-remodeling complexes affect gene expression by using the energy of ATP hydrolysis to locally disrupt or alter the association of histones with DNA. SWIRM (Swi3p, Rsc8p, and Moira) domain is an alpha-helical domain of about 85 residues in chromosomal proteins. SWIRM domain-containing proteins make up large multisubunit complexes by interacting with other chromatin modification factors and may have an important function in plants. However, little is known about SWIRM domain-containing proteins in plants. In this study, 67 SWIRM domain-containing proteins from 6 plant species were identified and analyzed. Plant SWIRM domain proteins can be divided into three distinct types: Swi-type, LSD1-type, and Ada2-type. Generally, the SWIRM domain forms a helix-turn-helix motif commonly found in DNA-binding proteins. The genes encoding SWIRM domain proteins in Oryza sativa are widely expressed, especially in pistils. In addition, OsCHB701 and OsHDMA701 were downregulated by cold stress, whereas OsHDMA701 and OsHDMA702 were significantly induced by heat stress. These observations indicate that SWIRM domain proteins may play an essential role in plant development and plant responses to environmental stress.

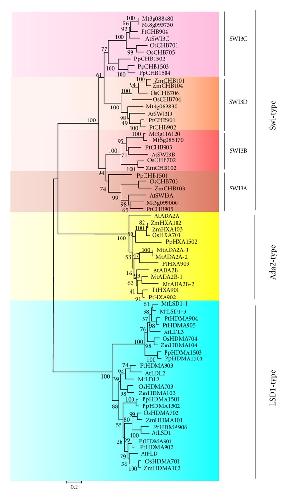

Figure 1. Phylogenetic analysis of SWIRM domain-containing proteins in plants. The neighbor joining phylogenetic tree constructed by MEGA4 summarizes the evolutionary relationships among the 67 members of the SWIRM domain-containing proteins from Arabidopsis thaliana (At), Medicago truncatula (Mt), Oryza sativa L. ssp. Japonica (Os), Physcomitrella patens (Pp), Populus trichocarpa (Pt), and Zea mays (Zm).

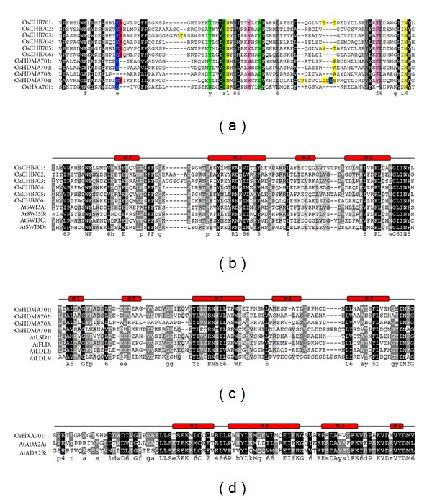

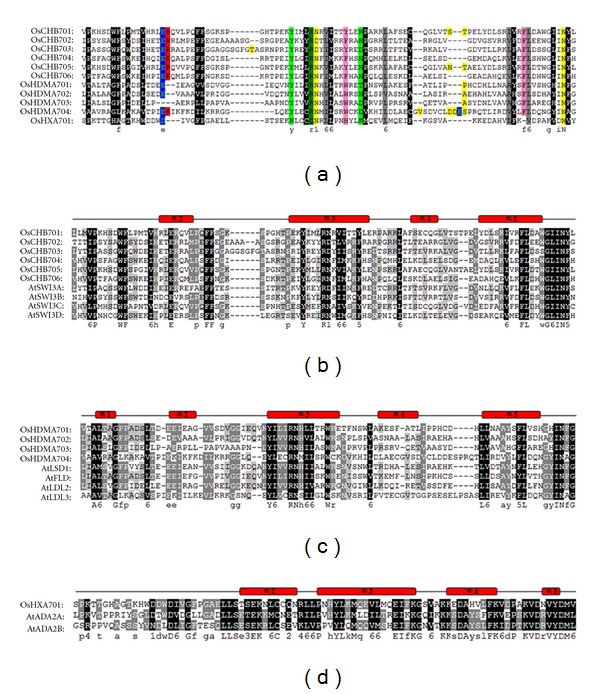

Figure 2. Structure-base sequence alignment of SWIRM domain subtypes. The sequence alignment was produced using Cluatal X. Resulting sequences were then adjusted manually using the GeneDoc software. The secondary structure was predicted by Jpred and PSIPRED. (a) Alignment of the SWIRM domain sequences in Oryza sativa. The coloring represents the conservation profile of amino acid residues distinguished by the following amino acid classes: hydrophobic residues are indicated by shaded black, charged residues (ED) by shaded blue, positive residues (RK) by shaded red, polar residues (YNRDTK) by shaded light green, amphoteric residues (RQ) by shaded green, small residues (NDSTPASV) by shaded yellow, aliphatic residues (LIAV) by shaded gray, and aromatic residues (YHWH) by shaded pink. (b) Alignment of the Swi3-type SWIRM domain sequences. The shaded blocks indicate several highly conserved residues by the alignment of SWIRM domain in Oryza sativa and Arabidopsis thaliana. (c) Alignment of the LSD1-type SWIRM domain sequences. The shaded blocks indicate several highly conserved residues by the alignment of SWIRM domains in Oryza sativa and Arabidopsis thaliana. (d) Alignment of the Ada2-type SWIRM domain sequences.

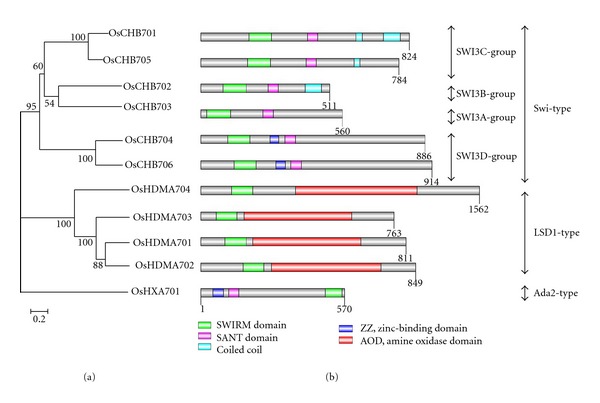

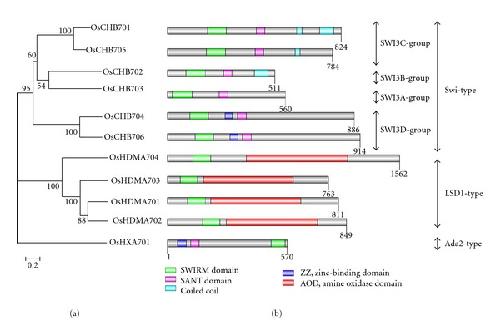

Figure 3. Conserved domains of SWIRM domain-containing proteins in Oryza sativa. (a) The neighbor joining phylogenetic tree constructed by MEGA4 summarizes the evolutionary relationships among the 11 members of the SWIRM domain-containing proteins from Oryza sativa. (b) The conserved domains of SWIRMs in Oryza sativa were drawn by DOG 2.0 with their corresponding amino acid lengths.

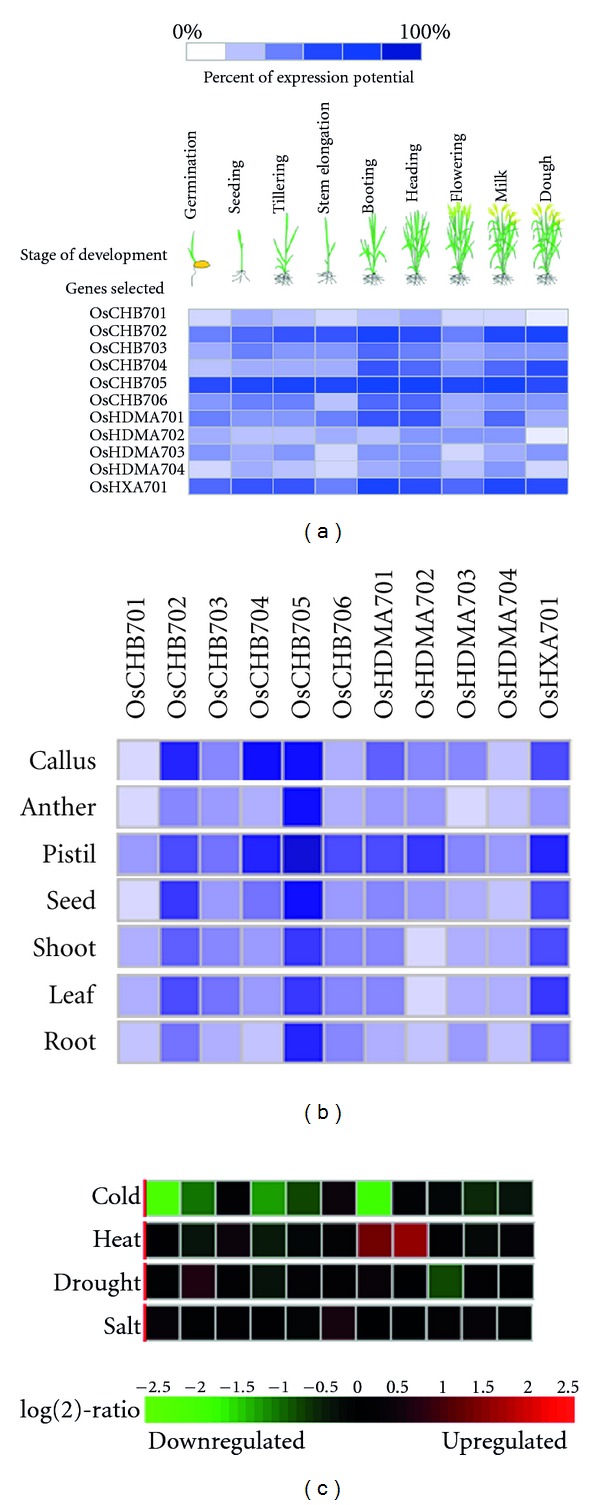

Figure 4. Expression patterns of genes encoding SWIRM family proteins in Oryza sativa based on Genevestigator. (a)-(b) Expression patterns of SWIRM genes in different developmental stages and different anatomical parts. The darkest blue color represents the maximum level of expression for a given gene across all measurements available in the database for this gene. This means that color intensities can only be compared between elements from the same gene but not with those from other genes. The expression potential of a gene is a robust measure for the maximum of the expression level for this gene. The expression potential is defined as the average of the top 1% signal values across all samples for a given probe set in a given platform. (c) Expression patterns of SWIRM genes induced by abiotic stress. Green-red color coding bar represents ratios of treatment versus control values. Gray is used to indicate that both treatment and control are in the background range and that therefore the ratio is not robust. The background threshold B(x) is a probe set specific expression level. It is defined as B(x) ≤ 50% quantile of all signals measured of probe set x having “absent” calls (P value > 0.05) according to MAS5.
Aasland,
The SANT domain: a putative DNA-binding domain in the SWI-SNF and ADA complexes, the transcriptional co-repressor N-CoR and TFIIIB.
1996, Pubmed
Aasland,
The SANT domain: a putative DNA-binding domain in the SWI-SNF and ADA complexes, the transcriptional co-repressor N-CoR and TFIIIB.
1996,
Pubmed
Akhtar,
Chromodomains are protein-RNA interaction modules.
2000,
Pubmed
Altschul,
Basic local alignment search tool.
1990,
Pubmed
Aravind,
The SWIRM domain: a conserved module found in chromosomal proteins points to novel chromatin-modifying activities.
2002,
Pubmed
,
Echinobase
Archacki,
Genetic analysis of functional redundancy of BRM ATPase and ATSWI3C subunits of Arabidopsis SWI/SNF chromatin remodelling complexes.
2009,
Pubmed
Boyer,
Essential role for the SANT domain in the functioning of multiple chromatin remodeling enzymes.
2002,
Pubmed
Chou,
FLD interacts with genes that affect different developmental phase transitions to regulate Arabidopsis shoot development.
1998,
Pubmed
Da,
Structure and function of the SWIRM domain, a conserved protein module found in chromatin regulatory complexes.
2006,
Pubmed
Ehrenhofer-Murray,
Chromatin dynamics at DNA replication, transcription and repair.
2004,
Pubmed
Gamper,
The STAGA subunit ADA2b is an important regulator of human GCN5 catalysis.
2009,
Pubmed
He,
Regulation of flowering time by histone acetylation in Arabidopsis.
2003,
Pubmed
Hershey,
Conservation and diversity in the structure of translation initiation factor EIF3 from humans and yeast.
1996,
Pubmed
Holdermann,
Chromodomains read the arginine code of post-translational targeting.
2012,
Pubmed
Jerzmanowski,
SWI/SNF chromatin remodeling and linker histones in plants.
2007,
Pubmed
Lamond,
Structure and function in the nucleus.
1998,
Pubmed
Legge,
ZZ domain of CBP: an unusual zinc finger fold in a protein interaction module.
2004,
Pubmed
Luger,
Structure and dynamic behavior of nucleosomes.
2003,
Pubmed
Muchardt,
ATP-dependent chromatin remodelling: SWI/SNF and Co. are on the job.
1999,
Pubmed
Mujtaba,
Structure and acetyl-lysine recognition of the bromodomain.
2007,
Pubmed
Ren,
DOG 1.0: illustrator of protein domain structures.
2009,
Pubmed
Saez,
HAB1-SWI3B interaction reveals a link between abscisic acid signaling and putative SWI/SNF chromatin-remodeling complexes in Arabidopsis.
2008,
Pubmed
Sarnowski,
AtSWI3B, an Arabidopsis homolog of SWI3, a core subunit of yeast Swi/Snf chromatin remodeling complex, interacts with FCA, a regulator of flowering time.
2002,
Pubmed
Sarnowski,
SWI3 subunits of putative SWI/SNF chromatin-remodeling complexes play distinct roles during Arabidopsis development.
2005,
Pubmed
Shi,
Histone demethylation mediated by the nuclear amine oxidase homolog LSD1.
2004,
Pubmed
Sterner,
The SANT domain of Ada2 is required for normal acetylation of histones by the yeast SAGA complex.
2002,
Pubmed
Tamura,
MEGA4: Molecular Evolutionary Genetics Analysis (MEGA) software version 4.0.
2007,
Pubmed
Thompson,
The CLUSTAL_X windows interface: flexible strategies for multiple sequence alignment aided by quality analysis tools.
1997,
Pubmed
Tochio,
Solution structure of the SWIRM domain of human histone demethylase LSD1.
2006,
Pubmed
Wu,
Chromatin remodeling and the control of gene expression.
1997,
Pubmed
Yoneyama,
Structural and functional differences of SWIRM domain subtypes.
2007,
Pubmed
Zeng,
Bromodomain: an acetyl-lysine binding domain.
2002,
Pubmed
