Front Immunol
2012 Jan 01;3:34. doi: 10.3389/fimmu.2012.00034.
Show Gene links
Show Anatomy links
Toll-like receptors of deuterostome invertebrates.
Satake H
,
Sekiguchi T
.
???displayArticle.abstract???
Defensive systems against pathogens are responsible not only for survival or lifetime of an individual but also for the evolution of a species. Innate immunity is expected to be more important for invertebrates than mammals, given that adaptive immunity has not been acquired in the former. Toll-like receptors (TLRs) have been shown to play a crucial role in host defense of pathogenic microbes in innate immunity of mammals. Recent genome-wide analyses have suggested that TLR or their related genes are conserved in invertebrates. In particular, numerous TLR-related gene candidates were detected in deuterostome invertebrates, including a sea urchin (222 TLR-related gene candidates) and amphioxus (72 TLR-related gene candidates). Molecular phylogenetic analysis verified that most of sea urchin or amphioxus TLR candidates are paralogous, suggesting that these organisms expanded TLR-related genes in a species-specific manner. In contrast, another deuterostome invertebrate, the ascidian Ciona intestinalis, was found to possess only two TLR genes. Moreover, Ciona TLRs, Ci-TLR1 and Ci-TLR2, were shown to possess "hybrid" functionality of mammalian TLRs. Such functionality of Ci-TLRs could not be predicted by sequence comparison with vertebrate TLRs, indicating confounding evolutionary lineages of deuterostome invertebrate TLRs or their candidates. In this review article, we present recent advances in studies of TLRs or their candidates among deuterostome invertebrates, and provide insight into an evolutionary process of TLRs.

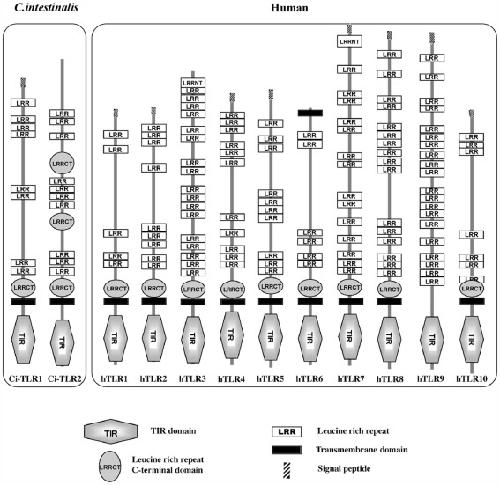

Figure 1. Structural organization of Ciona TLRs (Ci-TLR) and human TLRs (hTLR).

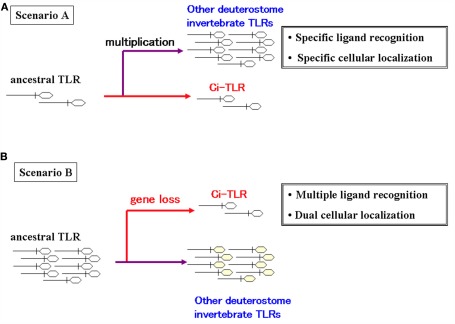

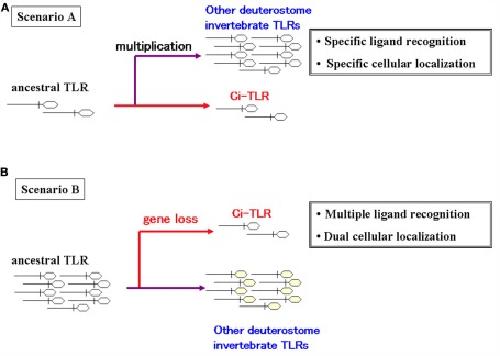

Figure 2. Possible evolutionary scenarios of deuterostome invertebrate TLRs. (A) only a few TLRs or their related genes might have existed in a common deuterostome ancestor or (B) a common deuterostome ancestor might have numerous TLR family genes.
Akashi,
Cutting edge: cell surface expression and lipopolysaccharide signaling via the toll-like receptor 4-MD-2 complex on mouse peritoneal macrophages.
2000, Pubmed
Akashi,
Cutting edge: cell surface expression and lipopolysaccharide signaling via the toll-like receptor 4-MD-2 complex on mouse peritoneal macrophages.
2000,
Pubmed
Akira,
Toll-like receptor signalling.
2004,
Pubmed
Azumi,
Genomic analysis of immunity in a Urochordate and the emergence of the vertebrate immune system: "waiting for Godot".
2003,
Pubmed
Bonura,
Isolation and expression of a novel MBL-like collectin cDNA enhanced by LPS injection in the body wall of the ascidian Ciona intestinalis.
2009,
Pubmed
Bosch,
Uncovering the evolutionary history of innate immunity: the simple metazoan Hydra uses epithelial cells for host defence.
2009,
Pubmed
Cuvillier-Hot,
Characterization and immune function of two intracellular sensors, HmTLR1 and HmNLR, in the injured CNS of an invertebrate.
2011,
Pubmed
Davidson,
Toll-like receptor genes (TLRs) from Capitella capitata and Helobdella robusta (Annelida).
2008,
Pubmed
Dishaw,
A role for variable region-containing chitin-binding proteins (VCBPs) in host gut-bacteria interactions.
2011,
Pubmed
Dunne,
Adaptor usage and Toll-like receptor signaling specificity.
2005,
Pubmed
Fedders,
An exceptional salt-tolerant antimicrobial peptide derived from a novel gene family of haemocytes of the marine invertebrate Ciona intestinalis.
2008,
Pubmed
Figueiredo,
Characterization of heme as activator of Toll-like receptor 4.
2007,
Pubmed
Fujita,
Evolution of the lectin-complement pathway and its role in innate immunity.
2002,
Pubmed
Hibino,
The immune gene repertoire encoded in the purple sea urchin genome.
2006,
Pubmed
,
Echinobase
Hoffmann,
The immune response of Drosophila.
2003,
Pubmed
Huang,
Genomic analysis of the immune gene repertoire of amphioxus reveals extraordinary innate complexity and diversity.
2008,
Pubmed
,
Echinobase
Iliev,
Endotoxin recognition: in fish or not in fish?
2005,
Pubmed
Ishii,
Lamprey TLRs with properties distinct from those of the variable lymphocyte receptors.
2007,
Pubmed
Iwanaga,
Recent advances in the innate immunity of invertebrate animals.
2005,
Pubmed
Jin,
Structures of the toll-like receptor family and its ligand complexes.
2008,
Pubmed
Khalturin,
Recognition strategies in the innate immune system of ancestral chordates.
2004,
Pubmed
Lemaitre,
The dorsoventral regulatory gene cassette spätzle/Toll/cactus controls the potent antifungal response in Drosophila adults.
1996,
Pubmed
Liu,
Structural basis of toll-like receptor 3 signaling with double-stranded RNA.
2008,
Pubmed
Macagno,
Construction of a medicinal leech transcriptome database and its application to the identification of leech homologs of neural and innate immune genes.
2010,
Pubmed
Matsuo,
Teleost TLR22 recognizes RNA duplex to induce IFN and protect cells from birnaviruses.
2008,
Pubmed
Miller,
The innate immune repertoire in cnidaria--ancestral complexity and stochastic gene loss.
2007,
Pubmed
Nonaka,
Evolution of the complement system.
2001,
Pubmed
Nonaka,
Urochordate immunity.
2010,
Pubmed
Oshiumi,
Pan-vertebrate toll-like receptors during evolution.
2008,
Pubmed
Park,
Association between toll-like receptor 10 (TLR10) gene polymorphisms and childhood IgA nephropathy.
2011,
Pubmed
Park,
The structural basis of lipopolysaccharide recognition by the TLR4-MD-2 complex.
2009,
Pubmed
Parrinello,
Enhanced expression of a cloned and sequenced Ciona intestinalis TNFalpha-like (CiTNF alpha) gene during the LPS-induced inflammatory response.
2008,
Pubmed
Poltorak,
Defective LPS signaling in C3H/HeJ and C57BL/10ScCr mice: mutations in Tlr4 gene.
1998,
Pubmed
Rast,
Marine invertebrate genome sequences and our evolving understanding of animal immunity.
2008,
Pubmed
,
Echinobase
Rast,
Genomic insights into the immune system of the sea urchin.
2006,
Pubmed
,
Echinobase
Roach,
The evolution of vertebrate Toll-like receptors.
2005,
Pubmed
,
Echinobase
Sasaki,
Toll-like receptors of the ascidian Ciona intestinalis: prototypes with hybrid functionalities of vertebrate Toll-like receptors.
2009,
Pubmed
Satake,
Comparative overview of toll-like receptors in lower animals.
2010,
Pubmed
,
Echinobase
Schikorski,
Deciphering the immune function and regulation by a TLR of the cytokine EMAPII in the lesioned central nervous system using a leech model.
2009,
Pubmed
Shimazu,
MD-2, a molecule that confers lipopolysaccharide responsiveness on Toll-like receptor 4.
1999,
Pubmed
Takano,
Molecular cloning and characterization of Toll-like receptor 9 in Japanese flounder, Paralichthys olivaceus.
2007,
Pubmed
Takeda,
Toll-like receptors in innate immunity.
2005,
Pubmed
Wu,
Expression patterns and functions of toll-like receptors in mouse sertoli cells.
2008,
Pubmed
Wu,
Comparative and phylogenetic analyses of three TIR domain-containing adaptors in metazoans: implications for evolution of TLR signaling pathways.
2011,
Pubmed
Yu,
Isolation and characterization of Toll-like receptor 9 in half-smooth tongue sole Cynoglossus semilaevis.
2009,
Pubmed
Yuan,
An amphioxus TLR with dynamic embryonic expression pattern responses to pathogens and activates NF-kappaB pathway via MyD88.
2009,
Pubmed
