???displayArticle.abstract???
Previous studies have shown fertilization and development of marine species can be significantly inhibited when the pH of sea water is artificially lowered. Little mechanistic understanding of these effects exists to date, but previous work has linked developmental inhibition to reduced cleavage rates in embryos. To explore this further, we tested whether common cell cycle checkpoints were involved using three cellular biomarkers of cell cycle progression: (1) the onset of DNA synthesis, (2) production of a mitotic regulator, cyclin B, and (3) formation of the mitotic spindle. We grew embryos of the purple sea urchin, Strongylocentrotus purpuratus, in seawater artifically buffered to a pH of ∼7.0, 7.5, and 8.0 by CO(2) infusion. Our results suggest the reduced rates of mitotic cleavage are likely unrelated to common cell cycle checkpoints. We found no significant differences in the three biomarkers assessed between pH treatments, indicating the embryos progress through the G(1)/S, G(2)/M and metaphase/anaphase transitions at relatively similar rates. These data suggest low pH environments may not impact developmental programs directly, but may act through secondary mechanisms such as cellular energetics.
???displayArticle.pubmedLink???
22479526
???displayArticle.pmcLink???PMC3313954 ???displayArticle.link???PLoS One

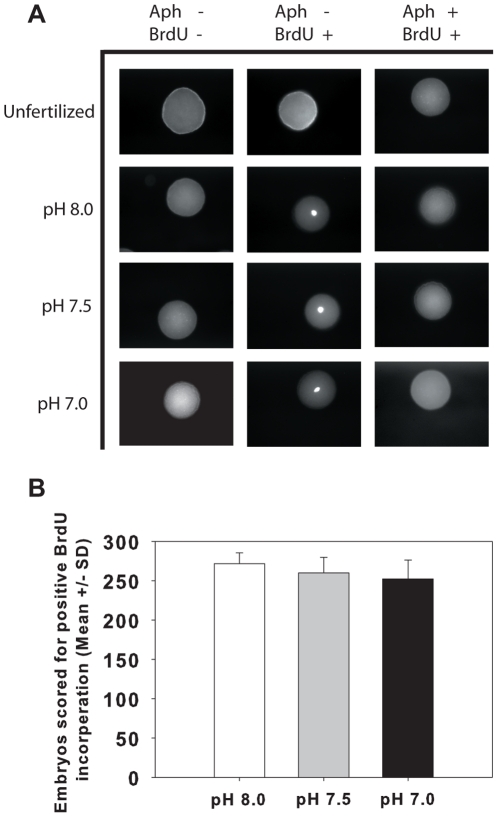

Figure 2. Impact of low pH on DNA synthesis.The onset of DNA synthesis in embryos developing in different pH seawater was monitored by incorporation of a modified uridine molecule, BrdU, during DNA replication. (A) No BrdU incorporation was detected in embryos developing in the absence of Brdu (BrdU−). Embryos developing in the presence of BrdU alone show strong incorporation into newly synthesized DNA within 30 minutes of fertilization, suggesting DNA synthesis is unaffected. When embryos were allowed to develop in the presence of both BrdU and the DNA synthesis inhibitor, Aphidocholin (BrdU+/Aph+), no BrdU incorporation was observed, suggesting the positive BrdU incorporation was due to synthesis of new DNA and not the activity of DNA repair enzymes. (B) Scoring of embryos (n = 300 per experimental culture) show no statistical difference in the number of BrdU positive embryos across treatments: pH 8.0 (white bars) pH 7.5 (grey bars) pH 7.0 (black bars).

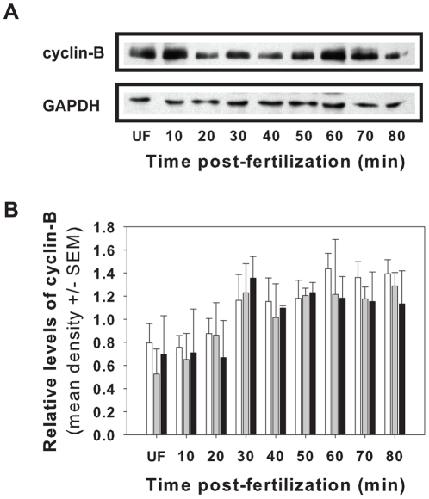

Figure 3. Relative level of cyclin-B protein expression.The temporal changes of the mitotic regulator cyclin-B was determined during the first cellular cleavage of urchin embryos developing in seawater maintained at various pH levels. (A) No difference in the expression of cyclin-B protein relative to GADPH was observed between embryos developing at a pH of 8.0 (white bars), 7.5 (grey bars) or 7.0 (black bars). (B) A representative Western blot showing the specificity of the primary antibodies.

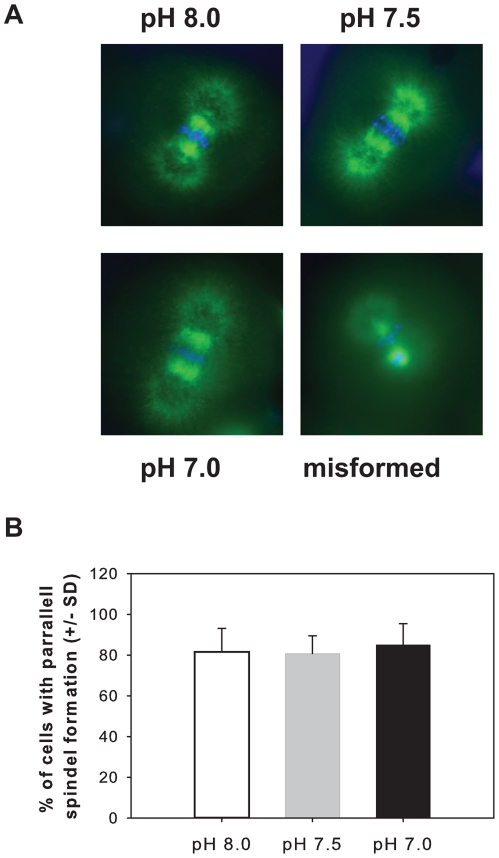

Figure 4. Impact of low pH on mitotic spindle formation.(A) Mitotic spindle formation was observed by staining the microtubules of sea urchin embryos during the first mitotic division. (B) Triplicate blind counts of a minimum 300 embryos from each culture found no significant difference in the number of malformed mitotic spindles observed in embryos reared in seawater held at a pH of 8.0 (white bar) 7.5 (grey bar) or 7.0 (black bar) for 90 min post-fertilization.
Amon,
Closing the cell cycle circle in yeast: G2 cyclin proteolysis initiated at mitosis persists until the activation of G1 cyclins in the next cycle.
1994, Pubmed
Amon,
Closing the cell cycle circle in yeast: G2 cyclin proteolysis initiated at mitosis persists until the activation of G1 cyclins in the next cycle.
1994,
Pubmed
Burnett,
Respiratory and acid-base physiology of the purple sea urchin, Strongylocentrotus purpuratus, during air exposure: presence and function of a facultative lung.
2002,
Pubmed
,
Echinobase
Byrne,
Temperature, but not pH, compromises sea urchin fertilization and early development under near-future climate change scenarios.
2009,
Pubmed
,
Echinobase
Byrne,
Unshelled abalone and corrupted urchins: development of marine calcifiers in a changing ocean.
2011,
Pubmed
,
Echinobase
Cohen-Fix,
Anaphase initiation in Saccharomyces cerevisiae is controlled by the APC-dependent degradation of the anaphase inhibitor Pds1p.
1996,
Pubmed
Cohen-Fix,
The metaphase-to-anaphase transition: avoiding a mid-life crisis.
1997,
Pubmed
Compton,
Spindle assembly in animal cells.
2000,
Pubmed
Doney,
Ocean acidification: the other CO2 problem.
2009,
Pubmed
,
Echinobase
Ducibella,
Role of calcium signals in early development.
2006,
Pubmed
Dupont,
Impact of near-future ocean acidification on echinoderms.
2010,
Pubmed
,
Echinobase
Epel,
An analysis of the partial metabolic derepression of sea urchin eggs by ammonia: the existence of independent pathways.
1974,
Pubmed
,
Echinobase
Evans,
Cyclin: a protein specified by maternal mRNA in sea urchin eggs that is destroyed at each cleavage division.
1983,
Pubmed
,
Echinobase
Fang,
Evidence that the G1-S and G2-M transitions are controlled by different cdc2 proteins in higher eukaryotes.
1991,
Pubmed
Foltz,
Echinoderm eggs and embryos: procurement and culture.
2004,
Pubmed
,
Echinobase
Grainger,
Intracellular pH controls protein synthesis rate in the sea urchine egg and early embryo.
1979,
Pubmed
,
Echinobase
Hamdoun,
Embryo stability and vulnerability in an always changing world.
2007,
Pubmed
Hardwick,
Activation of the budding yeast spindle assembly checkpoint without mitotic spindle disruption.
1996,
Pubmed
Hardwick,
The spindle checkpoint.
1998,
Pubmed
Humphreys,
Measurements of messenger RNA entering polysomes upon fertilization of sea urchin eggs.
1971,
Pubmed
,
Echinobase
Ishikawa,
DNA damage-dependent cell cycle checkpoints and genomic stability.
2006,
Pubmed
Jacobs,
Drosophila Cyclin B3 is required for female fertility and is dispensable for mitosis like Cyclin B.
1998,
Pubmed
Johnson,
A volatile inhibitor immobilizes sea urchin sperm in semen by depressing the intracellular pH.
1983,
Pubmed
,
Echinobase
Johnson,
Intracellular pH and activation of sea urchin eggs after fertilisation.
1976,
Pubmed
,
Echinobase
King,
A 20S complex containing CDC27 and CDC16 catalyzes the mitosis-specific conjugation of ubiquitin to cyclin B.
1995,
Pubmed
King,
How proteolysis drives the cell cycle.
1996,
Pubmed
Knoblich,
Synergistic action of Drosophila cyclins A and B during the G2-M transition.
1993,
Pubmed
Kurihara,
Effects of raised CO2 concentration on the egg production rate and early development of two marine copepods (Acartia steueri and Acartia erythraea).
2004,
Pubmed
Lange,
Integration of the centrosome in cell cycle control, stress response and signal transduction pathways.
2002,
Pubmed
Martin,
Early development and molecular plasticity in the Mediterranean sea urchin Paracentrotus lividus exposed to CO2-driven acidification.
2011,
Pubmed
,
Echinobase
Mikhailov,
Cell cycle: stressed out of mitosis.
2002,
Pubmed
Miles,
Effects of anthropogenic seawater acidification on acid-base balance in the sea urchin Psammechinus miliaris.
2007,
Pubmed
,
Echinobase
Moulin,
Effects of seawater acidification on early development of the intertidal sea urchin Paracentrotus lividus (Lamarck 1816).
2011,
Pubmed
,
Echinobase
Murray,
The genetics of cell cycle checkpoints.
1995,
Pubmed
Pace,
Fixed metabolic costs for highly variable rates of protein synthesis in sea urchin embryos and larvae.
2006,
Pubmed
,
Echinobase
Pagano,
pH-induced changes in mitotic and developmental patterns in sea urchin embryogenesis. I. Exposure of embryos.
1985,
Pubmed
,
Echinobase
Pearce,
Integrating stress-response and cell-cycle checkpoint pathways.
2001,
Pubmed
Pines,
Four-dimensional control of the cell cycle.
1999,
Pubmed
Pines,
Human cyclin A is adenovirus E1A-associated protein p60 and behaves differently from cyclin B.
1990,
Pubmed
Pörtner,
Modulation of the cost of pHi regulation during metabolic depression: a (31)P-NMR study in invertebrate (Sipunculus nudus) isolated muscle.
2000,
Pubmed
Rieder,
Microtubule disassembly delays the G2-M transition in vertebrates.
2000,
Pubmed
Rosenblatt,
Human cyclin-dependent kinase 2 is activated during the S and G2 phases of the cell cycle and associates with cyclin A.
1992,
Pubmed
Rudner,
The spindle assembly checkpoint.
1996,
Pubmed
Runft,
Egg activation at fertilization: where it all begins.
2002,
Pubmed
Shackelford,
Cell cycle control, checkpoint mechanisms, and genotoxic stress.
1999,
Pubmed
Shen,
Intracellular pH and the sodium requirement at fertilisation.
1979,
Pubmed
,
Echinobase
Steinhardt,
Intracellular calcium release at fertilization in the sea urchin egg.
1977,
Pubmed
,
Echinobase
Stricker,
Comparative biology of calcium signaling during fertilization and egg activation in animals.
1999,
Pubmed
Stumpp,
CO2 induced seawater acidification impacts sea urchin larval development II: gene expression patterns in pluteus larvae.
2011,
Pubmed
,
Echinobase
Sudakin,
The cyclosome, a large complex containing cyclin-selective ubiquitin ligase activity, targets cyclins for destruction at the end of mitosis.
1995,
Pubmed
,
Echinobase
Sunday,
Quantifying rates of evolutionary adaptation in response to ocean acidification.
2011,
Pubmed
,
Echinobase
Th'ng,
The FT210 cell line is a mouse G2 phase mutant with a temperature-sensitive CDC2 gene product.
1990,
Pubmed
Todgham,
Transcriptomic response of sea urchin larvae Strongylocentrotus purpuratus to CO2-driven seawater acidification.
2009,
Pubmed
,
Echinobase
Voronina,
Cyclin B synthesis is required for sea urchin oocyte maturation.
2003,
Pubmed
,
Echinobase
Whitaker,
Ionic regulation of egg activation.
1982,
Pubmed
,
Echinobase
Whitaker,
Calcium at fertilization and in early development.
2006,
Pubmed
Whiteley,
Effects of water salinity on acid-base balance in decapod crustaceans.
2001,
Pubmed
Winkler,
Dual ionic controls for the activation of protein synthesis at fertilization.
1980,
Pubmed
,
Echinobase
Zhang,
Inactivation of MAPK in mature oocytes triggers progression into mitosis via a Ca2+ -dependent pathway but without completion of S phase.
2006,
Pubmed
,
Echinobase
