Asterias: a parallelized web-based suite for the analysis of expression and aCGH data.
Alibés A
,
Morrissey ER
,
Cañada A
,
Rueda OM
,
Casado D
,
Yankilevich P
,
Díaz-Uriarte R
.
???displayArticle.abstract???
The analysis of expression and CGH arrays plays a central role in the study of complex diseases, especially cancer, including finding markers for early diagnosis and prognosis, choosing an optimal therapy, or increasing our understanding of cancer development and metastasis. Asterias (http://www.asterias.info) is an integrated collection of freely-accessible web tools for the analysis of gene expression and aCGH data. Most of the tools use parallel computing (via MPI) and run on a server with 60 CPUs for computation; compared to a desktop or server-based but not parallelized application, parallelization provides speed ups of factors up to 50. Most of our applications allow the user to obtain additional information for user-selected genes (chromosomal location, PubMed ids, Gene Ontology terms, etc.) by using clickable links in tables and/or figures. Our tools include: normalization of expression and aCGH data (DNMAD); converting between different types of gene/clone and protein identifiers (IDconverter/IDClight); filtering and imputation (preP); finding differentially expressed genes related to patient class and survival data (Pomelo II); searching for models of class prediction (Tnasas); using random forests to search for minimal models for class prediction or for large subsets of genes with predictive capacity (GeneSrF); searching for molecular signatures and predictive genes with survival data (SignS); detecting regions of genomic DNA gain or loss (ADaCGH). The capability to send results between different applications, access to additional functional information, and parallelized computation make our suite unique and exploit features only available to web-based applications.

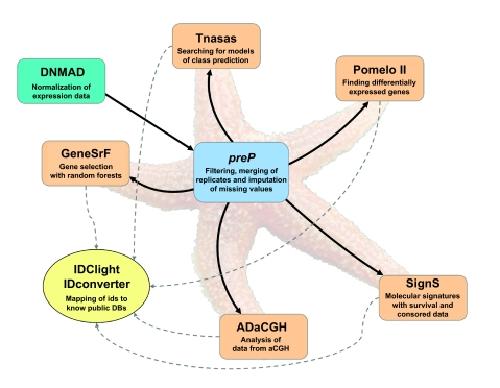

Figure 1. Asterias suite. Relationships between the applications currently available in Asterias. An arrow indicates the possibility of automatically transferring the output from one application (origin of the arrow) as input for another application (end of row). All applications can also be accessed independently. Photo credit: the starfish is a modified image taken from the Wikipedia entry for Asterias (http://en.wikipedia.org/wiki/Image:Asterias_rubens.jpg), and belongs to Hans Hillewaert.

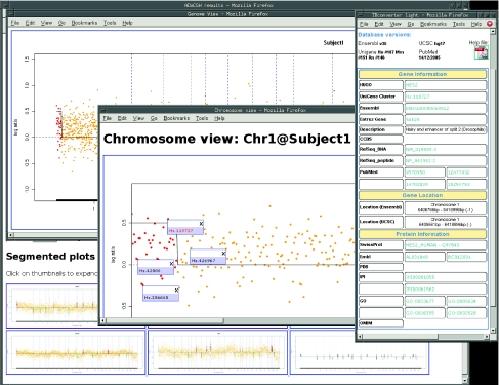

Figure 2. Output from ADaCGH. Partial output from ADaCGH showing: (Top) the bottom of the main output screen with the thumbnails for the segmented plots; (Bottom) Genome View for one of the arrays, obtained by clicking on the uppermost thumbnail in (Top); (Center) Chromosome View for the first chromosome (obtained by clicking on the region for the first chromosome in (Bottom)), with some data-points showing their ID; (Right) the results from IDClight obtained by clicking on the ID for one of the highlighted points in (Center).

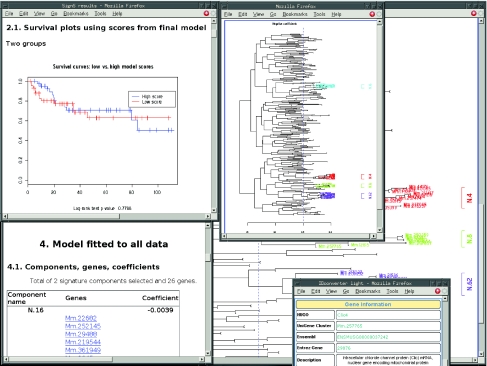

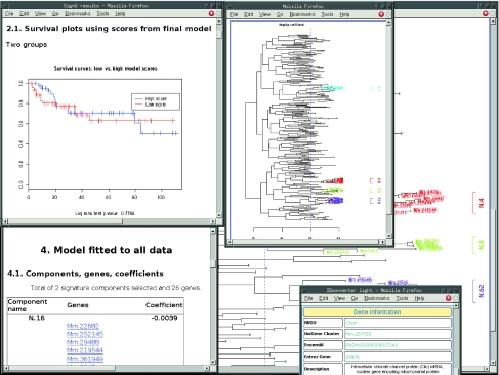

Figure 3. Output from SignS. Partial output from SignS showing: (Top left) Some model quality plots (survival plots from cross-validated prediction scores); (Bottom left) part of the output of the model fitted to the complete data set; note the clickable gene names; (Top center) the half-size dendrogram for the genes with negative coefficients, showing only clusters that fulfill the minimum requirements of correlation and size; (Right) same as (Top center), but using the double-size plot; (Bottom right) the results from clicking, on either (Top center) or (Right), on the cluster leave for Mm.257765.
Baxter,
Scientific software development is not an oxymoron.
2006, Pubmed
Baxter,
Scientific software development is not an oxymoron.
2006,
Pubmed
Dave,
Prediction of survival in follicular lymphoma based on molecular features of tumor-infiltrating immune cells.
2004,
Pubmed
Díaz-Uriarte,
Gene selection and classification of microarray data using random forest.
2006,
Pubmed
Ein-Dor,
Outcome signature genes in breast cancer: is there a unique set?
2005,
Pubmed
Herrero,
New challenges in gene expression data analysis and the extended GEPAS.
2004,
Pubmed
Herrero,
GEPAS: A web-based resource for microarray gene expression data analysis.
2003,
Pubmed
Hsiao,
VAMPIRE microarray suite: a web-based platform for the interpretation of gene expression data.
2005,
Pubmed
Hsu,
Denoising array-based comparative genomic hybridization data using wavelets.
2005,
Pubmed
Lai,
Comparative analysis of algorithms for identifying amplifications and deletions in array CGH data.
2005,
Pubmed
Lingjaerde,
CGH-Explorer: a program for analysis of array-CGH data.
2005,
Pubmed
Liva,
CAPweb: a bioinformatics CGH array Analysis Platform.
2006,
Pubmed
Michiels,
Prediction of cancer outcome with microarrays: a multiple random validation strategy.
2005,
Pubmed
Montaner,
Next station in microarray data analysis: GEPAS.
2006,
Pubmed
Olshen,
Circular binary segmentation for the analysis of array-based DNA copy number data.
2004,
Pubmed
Pan,
Effects of threshold choice on biological conclusions reached during analysis of gene expression by DNA microarrays.
2005,
Pubmed
Price,
SW-ARRAY: a dynamic programming solution for the identification of copy-number changes in genomic DNA using array comparative genome hybridization data.
2005,
Pubmed
Psarros,
RACE: Remote Analysis Computation for gene Expression data.
2005,
Pubmed
Rainer,
CARMAweb: comprehensive R- and bioconductor-based web service for microarray data analysis.
2006,
Pubmed
Ransohoff,
Bias as a threat to the validity of cancer molecular-marker research.
2005,
Pubmed
Rhodes,
Integrative analysis of the cancer transcriptome.
2005,
Pubmed
Romualdi,
MIDAW: a web tool for statistical analysis of microarray data.
2005,
Pubmed
Somorjai,
Class prediction and discovery using gene microarray and proteomics mass spectroscopy data: curses, caveats, cautions.
2003,
Pubmed
Troyanskaya,
Missing value estimation methods for DNA microarrays.
2001,
Pubmed
Vaquerizas,
GEPAS, an experiment-oriented pipeline for the analysis of microarray gene expression data.
2005,
Pubmed
Willenbrock,
A comparison study: applying segmentation to array CGH data for downstream analyses.
2005,
Pubmed
Wu,
GEMS: a web server for biclustering analysis of expression data.
2005,
Pubmed
Yeung,
Multiclass classification of microarray data with repeated measurements: application to cancer.
2003,
Pubmed
