Genome Biol
2007 Jan 01;810:R226. doi: 10.1186/gb-2007-8-10-r226.
Show Gene links
Show Anatomy links
Surprising complexity of the ancestral apoptosis network.
Zmasek CM, Zhang Q, Ye Y, Godzik A.
???displayArticle.abstract???
BACKGROUND: Apoptosis, one of the main types of programmed cell death, is regulated and performed by a complex protein network. Studies in model organisms, mostly in the nematode Caenorhabditis elegans, identified a relatively simple apoptotic network consisting of only a few proteins. However, analysis of several recently sequenced invertebrate genomes, ranging from the cnidarian sea anemone Nematostella vectensis, representing one of the morphologically simplest metazoans, to the deuterostomes sea urchin and amphioxus, contradicts the current paradigm of a simple ancestral network that expanded in vertebrates.
RESULTS: Here we show that the apoptosome-forming CED-4/Apaf-1 protein, present in single copy in vertebrate, nematode, and insect genomes, had multiple paralogs in the cnidarian-bilaterian ancestor. Different members of this ancestral Apaf-1 family led to the extant proteins in nematodes/insects and in deuterostomes, explaining significant functional differences between proteins that until now were believed to be orthologous. Similarly, the evolution of the Bcl-2 and caspase protein families appears surprisingly complex and apparently included significant gene loss in nematodes and insects and expansions in deuterostomes.
CONCLUSION: The emerging picture of the evolution of the apoptosis network is one of a succession of lineage-specific expansions and losses, which combined with the limited number of ''apoptotic'' protein families, resulted in apparent similarities between networks in different organisms that mask an underlying complex evolutionary history. Similar results are beginning to surface for other regulatory networks, contradicting the intuitive notion that regulatory networks evolved in a linear way, from simple to complex.

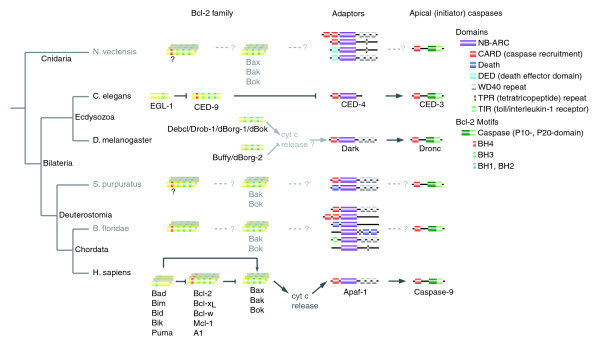

Figure 1. Overview of the initiation of the intrinsic apoptosis pathway. Annotations and domain compositions for N. vectensis (sea anemone), S. purpuratus (sea urchin), and B. floridae (amphioxus) are based on analyses performed in this work, whereas data for C. elegans, D. melanogaster, and Homo sapiens are based on literature [1,2,11]. (Protein and domain lengths are not to scale. In our analysis we noticed a few additional, spurious domains in some CED4/Apaf-1 family members; these are not shown in this diagram.) On the left side, a current view of metazoan phylogeny is shown [13].

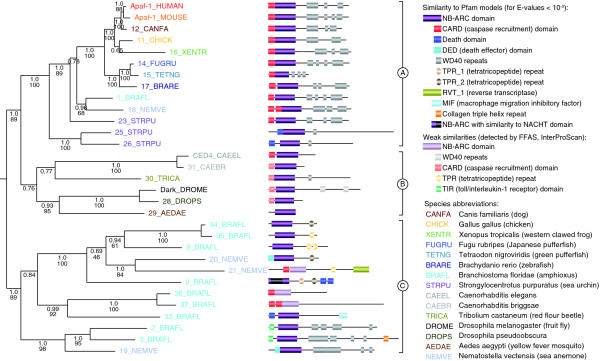

Figure 2. Phylogeny and domain organization of CED-4/Apaf-1 homologs. This phylogeny was calculated using a Bayesian approach (MrBayes) based on a MAFFT alignment of the NB-ARC domains. Posterior probability values are shown for each branch (top numbers). Bootstrap support values for branches that are supported by a minimal evolution method (FastME) based on a PROBCONS alignment are also shown (bottom numbers; for detailed information, see Materials and methods). Furthermore, phylogenies based on full-length alignments of the subset of all Apaf-1 homologs exhibiting a CARD-NB-ARC-WD40 domain composition (all vertebrate sequences, 1_BRAFL, 18_NEMVE, and Dark_DROME) as well as 28_DROPS, CED4_CAAEL, and 31_CAEBR showed precisely the same picture: a clade of vertebrate, amphioxus, and Nematostella sequences under exclusion of insect and nematode sequences. For a detailed list of protein sequences see Additional data file 2. For clarity, sequences from S. purpuratus (2), and B. floridae (6), which appear to be redundant and/or results of erroneous assemblies, are not included in this figure; however, their inclusion/exclusion does not change the quality/interpretation of this phylogeny. All sequences are from complete genomes, except the individual sequences from Aedes aegypti, Caenorhabditis briggsae, Drosophila pseudoobscura, and Tribolium castaneum.

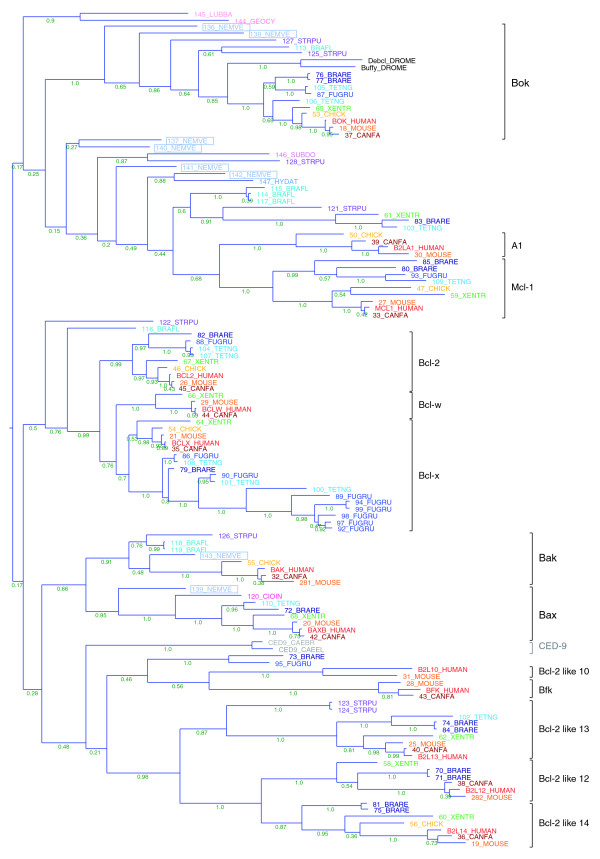

Figure 3. Phylogeny of the multi-motif Bcl-2 family. This phylogeny was calculated using a Bayesian approach (MrBayes) based on a MAFFT alignment of Bcl-2 domains. Posterior probability values are shown for each branch (for detailed information, see Materials and methods). Species abbreviations: BRAFL, Branchiostoma floridae (amphioxus); BRARE, Brachydanio rerio (zebrafish); CAEBR, Caenorhabditis briggsae; CAEEL, Caenorhabditis elegans; CANFA, Canis familiaris (dog); CHICK, Gallus gallus (chicken); CIOIN, Ciona intestinalis (sea squirt); DROME, Drosophila melanogaster (fruit fly); FUGRU, Fugu rubripes (Japanese pufferfish); GEOCY, Geodia cydonium (sponge); HYDAT, Hydra attenuata; LUBBA, Lubomirskia baicalensis (freshwater sponge); NEMVE, Nematostella vectensis (starlet sea anemone); STRPU, Strongylocentrotus purpuratus (purple sea urchin); SUBDO, Suberites domuncula (sponge); TETNG, Tetraodon nigroviridis (green pufferfish); and XENTR, Xenopus tropicalis (western clawed frog). For a detailed list of protein sequences see Additional data file 3. All sequences are from complete genomes except the individual sequences from C. briggsae, G. cydonium, H. attenuata, L. baicalensis, and S. domuncula.
Abraham,
Death without caspases, caspases without death.
2004, Pubmed
Abraham,
Death without caspases, caspases without death.
2004,
Pubmed Adrain,
Apoptosomes: protease activation platforms to die from.
2006,
Pubmed Altschul,
Gapped BLAST and PSI-BLAST: a new generation of protein database search programs.
1997,
Pubmed Aravind,
Apoptotic molecular machinery: vastly increased complexity in vertebrates revealed by genome comparisons.
2001,
Pubmed Bateman,
The Pfam protein families database.
2004,
Pubmed Burge,
Finding the genes in genomic DNA.
1998,
Pubmed Cikala,
Identification of caspases and apoptosis in the simple metazoan Hydra.
1999,
Pubmed D'Andrea,
TPR proteins: the versatile helix.
2003,
Pubmed Dangl,
Plant pathogens and integrated defence responses to infection.
2001,
Pubmed Darling,
Rising starlet: the starlet sea anemone, Nematostella vectensis.
2005,
Pubmed Desper,
Fast and accurate phylogeny reconstruction algorithms based on the minimum-evolution principle.
2002,
Pubmed Do,
ProbCons: Probabilistic consistency-based multiple sequence alignment.
2005,
Pubmed Dunn,
Highly conserved caspase and Bcl-2 homologues from the sea anemone Aiptasia pallida: lower metazoans as models for the study of apoptosis evolution.
2006,
Pubmed Eddy,
Profile hidden Markov models.
1998,
Pubmed Eisen,
Phylogenomics: improving functional predictions for uncharacterized genes by evolutionary analysis.
1998,
Pubmed Fitch,
Construction of phylogenetic trees.
1967,
Pubmed Fuentes-Prior,
The protein structures that shape caspase activity, specificity, activation and inhibition.
2004,
Pubmed Guindon,
A simple, fast, and accurate algorithm to estimate large phylogenies by maximum likelihood.
2003,
Pubmed Inohara,
NOD-LRR proteins: role in host-microbial interactions and inflammatory disease.
2005,
Pubmed Jaroszewski,
FFAS03: a server for profile--profile sequence alignments.
2005,
Pubmed Katoh,
MAFFT version 5: improvement in accuracy of multiple sequence alignment.
2005,
Pubmed Koonin,
Origin and evolution of eukaryotic apoptosis: the bacterial connection.
2002,
Pubmed Kornbluth,
Apoptosis in Drosophila: neither fish nor fowl (nor man, nor worm).
2005,
Pubmed Kortschak,
EST analysis of the cnidarian Acropora millepora reveals extensive gene loss and rapid sequence divergence in the model invertebrates.
2003,
Pubmed Krylov,
Gene loss, protein sequence divergence, gene dispensability, expression level, and interactivity are correlated in eukaryotic evolution.
2003,
Pubmed Kufer,
NACHT-LRR proteins (NLRs) in bacterial infection and immunity.
2005,
Pubmed Kusserow,
Unexpected complexity of the Wnt gene family in a sea anemone.
2005,
Pubmed Lacomme,
Bax-induced cell death in tobacco is similar to the hypersensitive response.
1999,
Pubmed Manoharan,
Identification of a 'genuine' mammalian homolog of nematodal CED-4: is the hunt over or do we need better guns?
2006,
Pubmed Marchler-Bauer,
CD-Search: protein domain annotations on the fly.
2004,
Pubmed Meier,
Apoptosis in development.
2000,
Pubmed Miller,
The innate immune repertoire in cnidaria--ancestral complexity and stochastic gene loss.
2007,
Pubmed Müller,
Modeling amino acid replacement.
2000,
Pubmed Neuwald,
AAA+: A class of chaperone-like ATPases associated with the assembly, operation, and disassembly of protein complexes.
1999,
Pubmed Notredame,
T-Coffee: A novel method for fast and accurate multiple sequence alignment.
2000,
Pubmed Nuin,
The accuracy of several multiple sequence alignment programs for proteins.
2006,
Pubmed Opferman,
Apoptosis in the development and maintenance of the immune system.
2003,
Pubmed Park,
The death domain superfamily in intracellular signaling of apoptosis and inflammation.
2007,
Pubmed Putnam,
Sea anemone genome reveals ancestral eumetazoan gene repertoire and genomic organization.
2007,
Pubmed Reed,
Mechanisms of apoptosis.
2000,
Pubmed Robertson,
The genomic underpinnings of apoptosis in Strongylocentrotus purpuratus.
2006,
Pubmed
,
Echinobase Ronquist,
MrBayes 3: Bayesian phylogenetic inference under mixed models.
2003,
Pubmed Saitou,
The neighbor-joining method: a new method for reconstructing phylogenetic trees.
1987,
Pubmed Schmidt,
TREE-PUZZLE: maximum likelihood phylogenetic analysis using quartets and parallel computing.
2002,
Pubmed Shaham,
Identification of multiple Caenorhabditis elegans caspases and their potential roles in proteolytic cascades.
1998,
Pubmed Smith,
The WD repeat: a common architecture for diverse functions.
1999,
Pubmed Sodergren,
The genome of the sea urchin Strongylocentrotus purpuratus.
2006,
Pubmed
,
Echinobase Technau,
Maintenance of ancestral complexity and non-metazoan genes in two basal cnidarians.
2005,
Pubmed van der Biezen,
The NB-ARC domain: a novel signalling motif shared by plant resistance gene products and regulators of cell death in animals.
1998,
Pubmed Vogel,
The relationship between domain duplication and recombination.
2005,
Pubmed Wiens,
Molecular evolution of apoptotic pathways: cloning of key domains from sponges (Bcl-2 homology domains and death domains) and their phylogenetic relationships.
2000,
Pubmed Yuan,
A first insight into the molecular mechanisms of apoptosis.
2004,
Pubmed Zdobnov,
InterProScan--an integration platform for the signature-recognition methods in InterPro.
2001,
Pubmed Zmasek,
ATV: display and manipulation of annotated phylogenetic trees.
2001,
Pubmed
