Shallow- and Deep-Water Ophiura Species Produce a Panel of Chlorin Compounds with Potent Photodynamic Anticancer Activities.
Klimenko A
,
Huber R
,
Marcourt L
,
Tabakaev D
,
Koval A
,
Dautov SS
,
Dautova TN
,
Wolfender JL
,
Thew R
,
Khotimchenko Y
,
Queiroz EF
,
Katanaev VL
.
???displayArticle.abstract???
A Pacific brittle star Ophiura sarsii has previously been shown to produce a chlorin (3S,4S)-14-Ethyl-9-(hydroxymethyl)-4,8,13,18-tetramethyl-20-oxo-3-phorbinepropanoic acid (ETPA) (1) with potent phototoxic activities, making it applicable to photodynamic therapy. Using extensive LC-MS metabolite profiling, molecular network analysis, and targeted isolation with de novo NMR structure elucidation, we herein identify five additional chlorin compounds from O. sarsii and its deep-sea relative O. ooplax: 10S-Hydroxypheophorbide a (2), Pheophorbide a (3), Pyropheophorbide a (4), (3S,4S,21R)-14-Ethyl-9-(hydroxymethyl)-21-(methoxycarbonyl)-4,8,13,18-tetramethyl-20-oxo-3-phorbinepropanoic acid (5), and (3S,4S,21R)-14-Ethyl-21-hydroxy-9-(hydroxymethyl)-4,8,13,18-tetramethyl-20-oxo-3-phorbinepropanoic acid (6). Chlorins 5 and 6 have not been previously reported in natural sources. Interestingly, low amounts of chlorins 1-4 and 6 could also be identified in a distant species, the basket star Gorgonocephalus cf. eucnemis, demonstrating that chlorins are produced by a wide spectrum of marine invertebrates of the class Ophiuroidea. Following the purification of these major Ophiura chlorin metabolites, we discovered the significant singlet oxygen quantum yield upon their photoinduction and the resulting phototoxicity against triple-negative breast cancer BT-20 cells. These studies identify an arsenal of brittle star chlorins as natural photosensitizers with potential photodynamic therapy applications.
Figure 1. (A,B) Brittle stars Ophiura sarsii (A) and Ophiura ooplax (B). Scale bars: 1 cm. (C) Basket star Gorgonocephalus cf. eucnemis. (D) Map depicting the sample collection locations: Russky Island in the Japan sea for O. sarsii, Guyot Koko in the Pacific Ocean for O. ooplax, and G. cf. eucnemis.

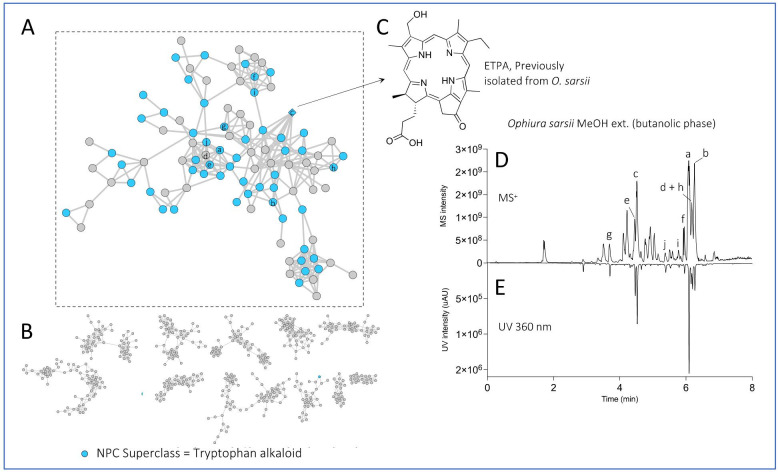

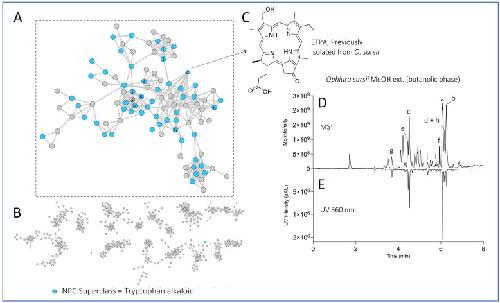

Figure 2. Feature-based Molecular Network of the EtOAc and MeOH (butanolic fraction) extracts of Ophiura sarsii. Nodes colored in blue belong to the “tryptophan alkaloid” predicted natural product superclass (NPClassifier). The previously isolated ETPA is displayed as a diamond. (A) The cluster containing chlorin ETPA and several related compounds. (B) Other major clusters of the Feature-Based Molecular Network. (C) Structure of the previously isolated ETPA. (D) UHPLC-MS profile of the MeOH extract (butanolic fraction) of O. sarsii with the 10 most intense ions of the chlorin cluster indicated with letters. (E) UHPLC-UV profile at 360 nm of the same extract. The same network mapped with the predicted natural product pathways is displayed in Supplementary Figure S33.

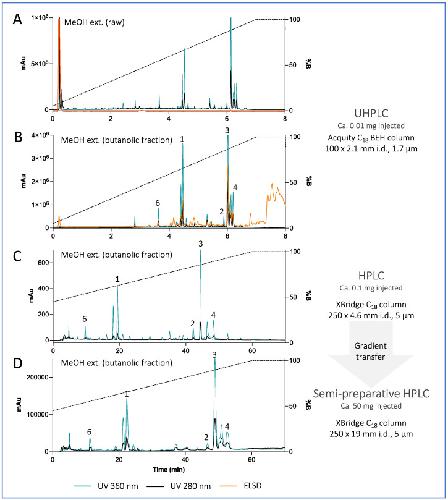

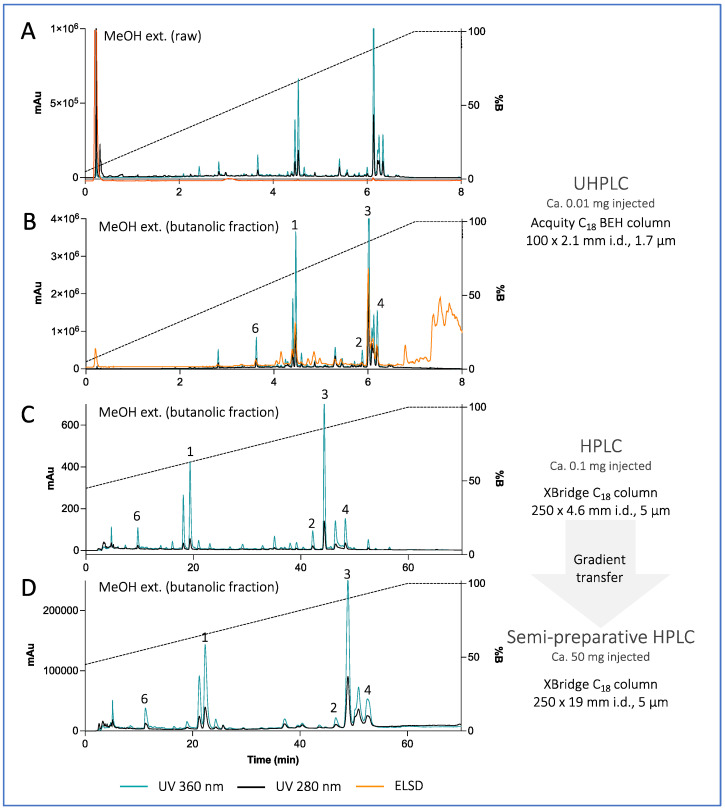

Figure 3. (A,B) UHPLC-PDA-ELSD analysis of the raw MeOH extract of Ophiura sarsii and its butanolic fraction. (C) Optimized HPLC-PDA-ELSD analysis of the MeOH extract (butanolic fraction) of O. sarsii. (D) semi-preparative HPLC-UV analysis after gradient transfer using a dry load injection. See Supplementary Figure S34 for the chromatograms of the EtOAc extract.

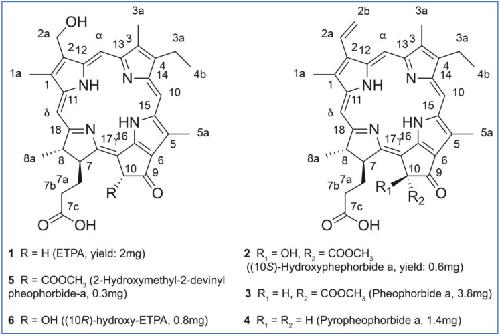

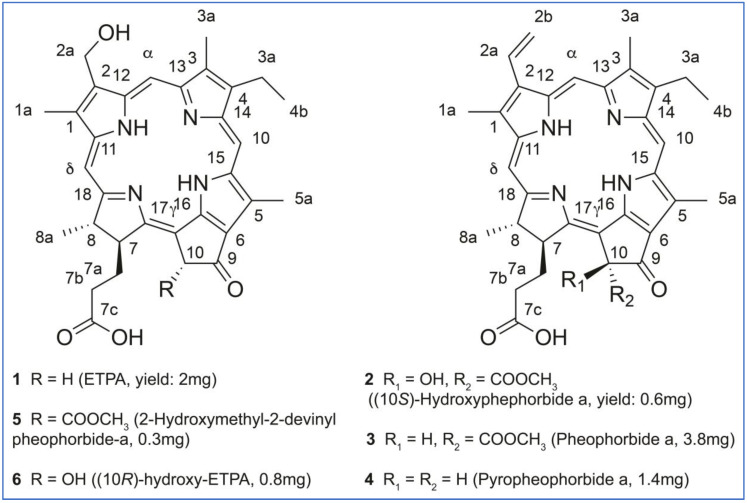

Figure 4. Structures and the yields of the chlorin compounds isolated from O. sarsii.

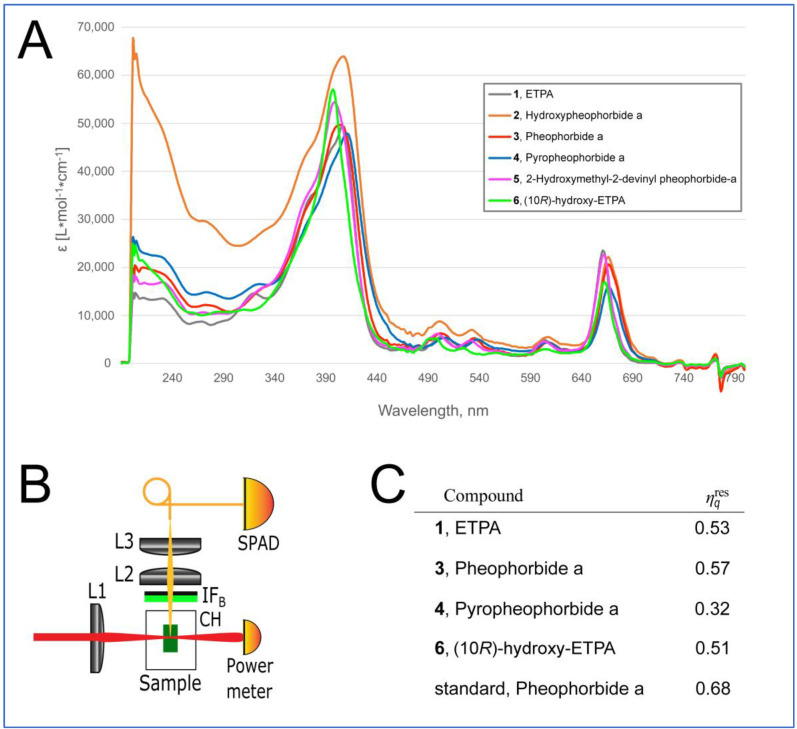

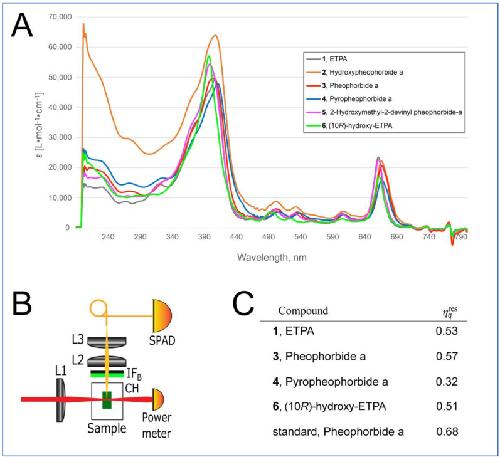

Figure 5. Physical properties of chlorin compounds from O. sarsii. (A) UV-Vis absorbance spectra of the chlorins. (B) Scheme of the device for measurement of the singlet oxygen generation. IFB—bandpass interference filter; L1—laser beam focusing lens; Sample—cell with chlorin solution; CH—cuvette holder; L2—singlet oxygen phosphorescence collecting lens; L3—phosphorescence focusing lens; SPAD—single-photon avalanche diode. (C) Quantification of the relative singlet oxygen quantum yield.

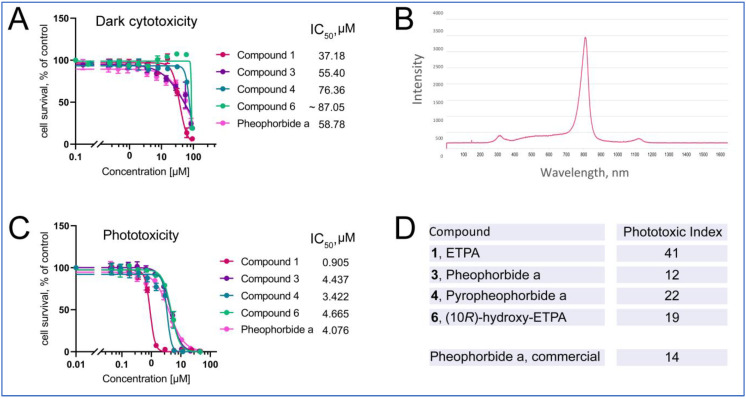

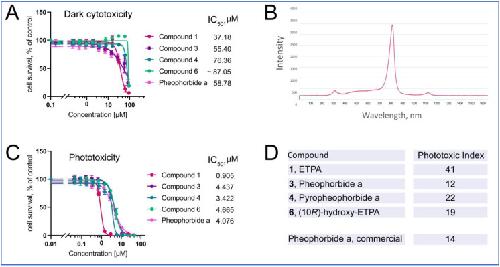

Figure 6. Phototoxicity of chlorins from O. sarsii against triple-negative breast cancer BT-20 cells. (A) Dark cytotoxicity of the compounds. (B) Emission spectrum of the LED lamp used in the phototoxicity experiment. (C) Phototoxicity of the compounds. (D) Phototoxic Index (PI) of the compounds. Commercial Pheophorbide a was used as a control in the experiments. The data are representatives of four independent experiments.

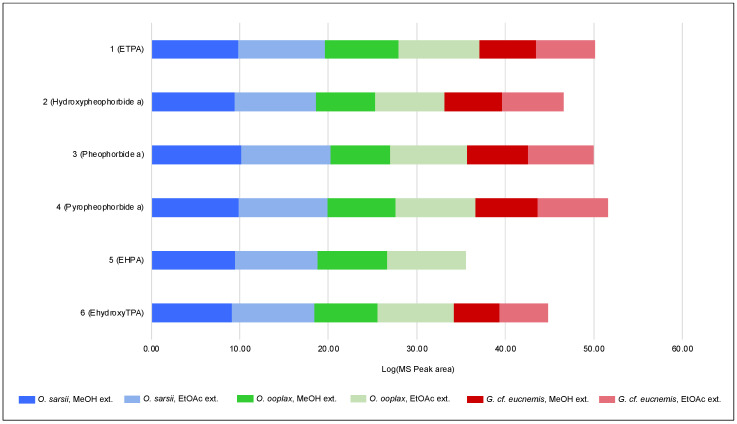

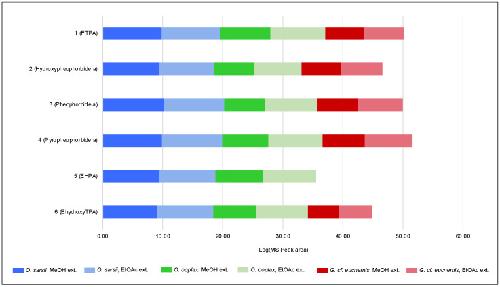

Figure 7. Log10 of the MS peak area (from UHPLC-HRMS/MS analysis) of the 6 isolated chlorins in the EtOAc and MeOH extracts of Ophiura sarsii, Ophiura ooplax, and Gorgonocephalus cf. eucnemis.
