PeerJ
2017 Jan 01;5:e3489. doi: 10.7717/peerj.3489.
Show Gene links
Show Anatomy links
Sea star Henricia spiculifera (Clark, 1901) in the northwestern Pacific: one species or three?
Chichvarkhin A
.
Abstract

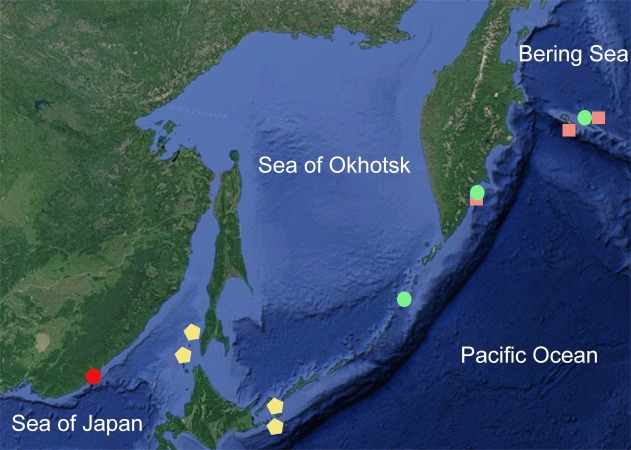

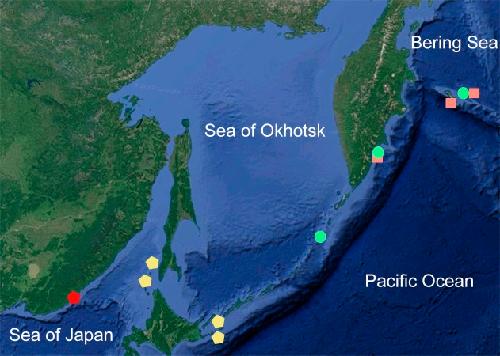

Three species of the sea stars are reported from the waters of the northwestern Pacific. These species were referred by earlier authors as Henricia spiculifera or H. leviuscula spiculifera. Two of them, H. lineata and H. uluudax, were recently described from the Aleutian Islands. These species are reported for the first time from the western Pacific (southeastern Kamchatka shore, Commander Islands, and the northern Kurile Islands). The third species, H. olga sp. n. is herein described from the northern Sea of Japan. It is very likely that similar sea stars recorded in Yellow Sea and the southern Kurile Islands belong to H. olga sp. n. These three species are a part of a phylogenetic clade within the subgenus Setihenricia, which also includes H. sanguinolenta, H. multispina, and several undescribed species occurring in the northeastern Pacific.

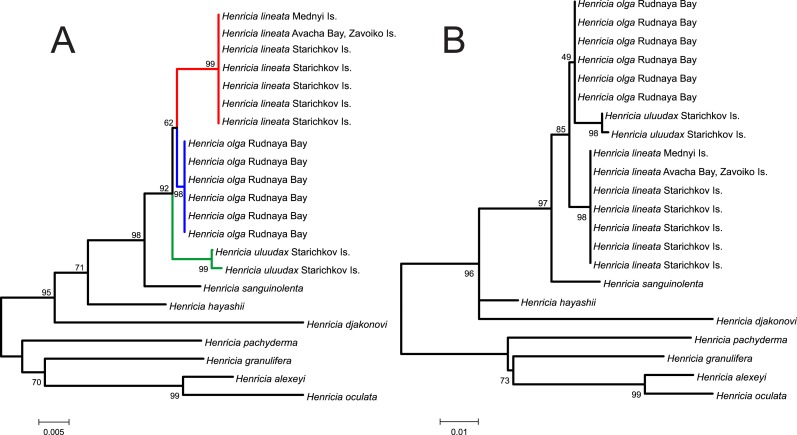

Figure 2. Species delimitation and phylogenetic reconstruction using the 16S rRNA marker.(A) Unrooted 16S NJ tree based on p-distances; (B) 16S ML tree of the subgenus Setihenricia rooted with four species of non-Setihenricia clades. Bootstrap indices at the internodes (1,000 replicates).

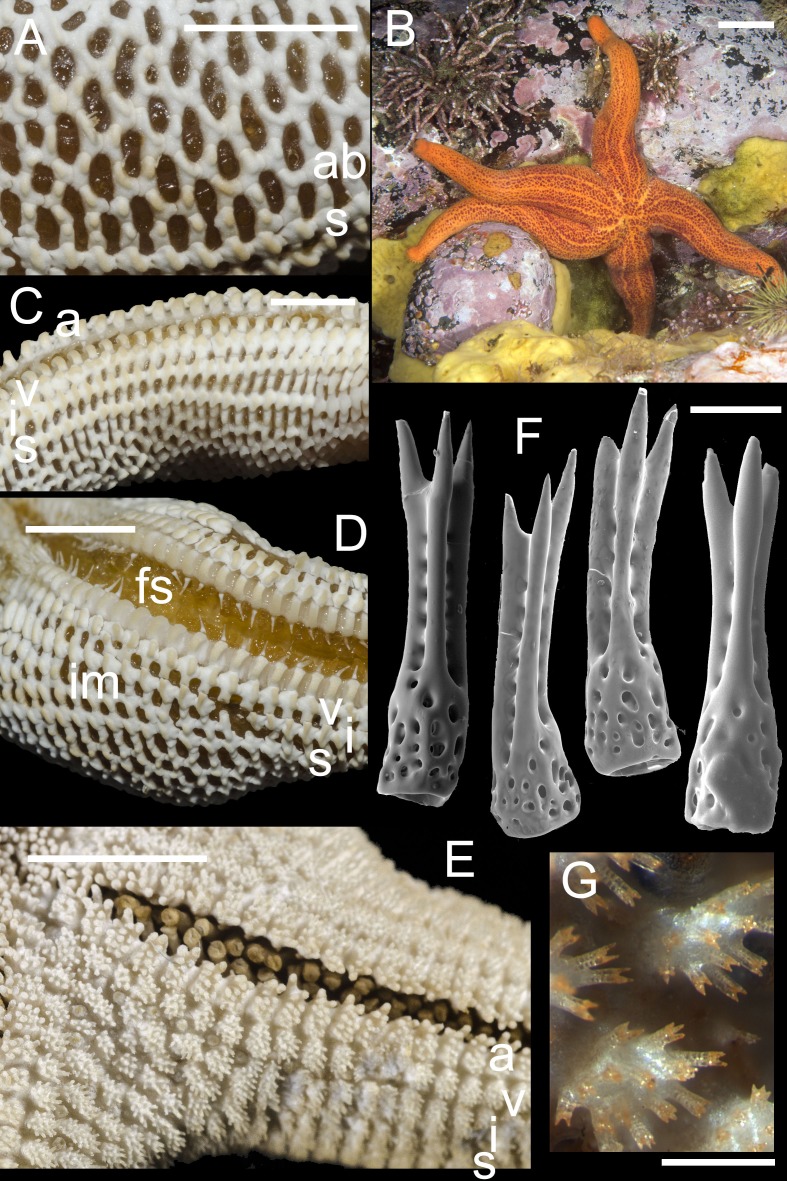

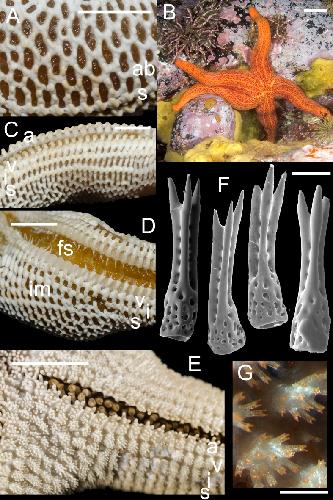

Figure 3. Henricia lineata.(A) abactinal plates; (B) living specimen, Starichkov Island, Avacha Bay; (C) marginal plates; (D) denuded actinal side; (E) actinal side of preserved specimen; (F) abactinal spines; (G) abactinal pseudopaxillae. a, adambulacrals; v, ventrolaterals; i, inferomarginals; im, intermarginals; s, superomarginals; ab, abactinal plates; fs, furrow spines. Scale bars: A–F-10 mm, F-50 µm, G-1 mm.

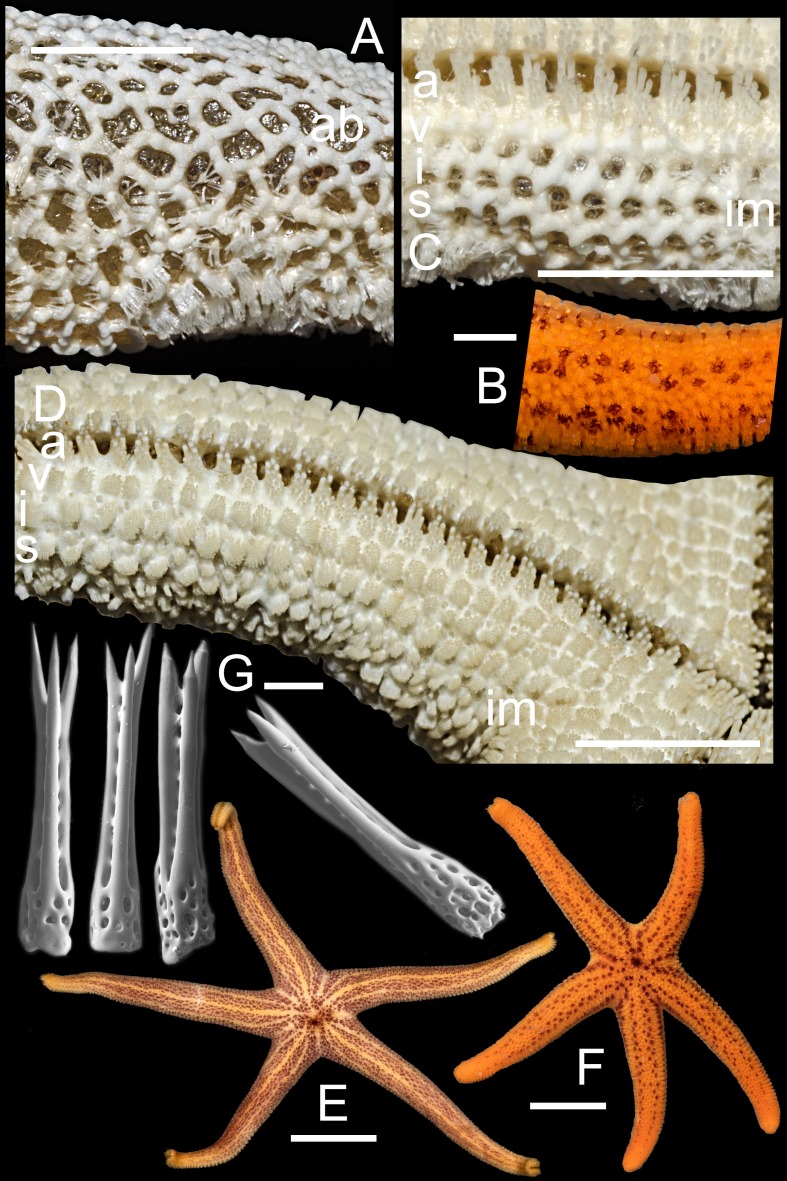

Figure 4. Henricia uluudax.(A) abactinal plates; (B) life coloration, Avacha Bay; (C) abactinal side of disk, live specimen; (D) actinal side of preserved specimen; (E) denuded actinal side; (F) living specimen, Avacha Bay; (G) abactinal spines. a, adambulacrals; v, ventrolaterals; i, inferomarginals; im, intermarginals; s, superomarginals; fs, furrow spines. Scale bars: A–F-10 mm, G-50 µm.

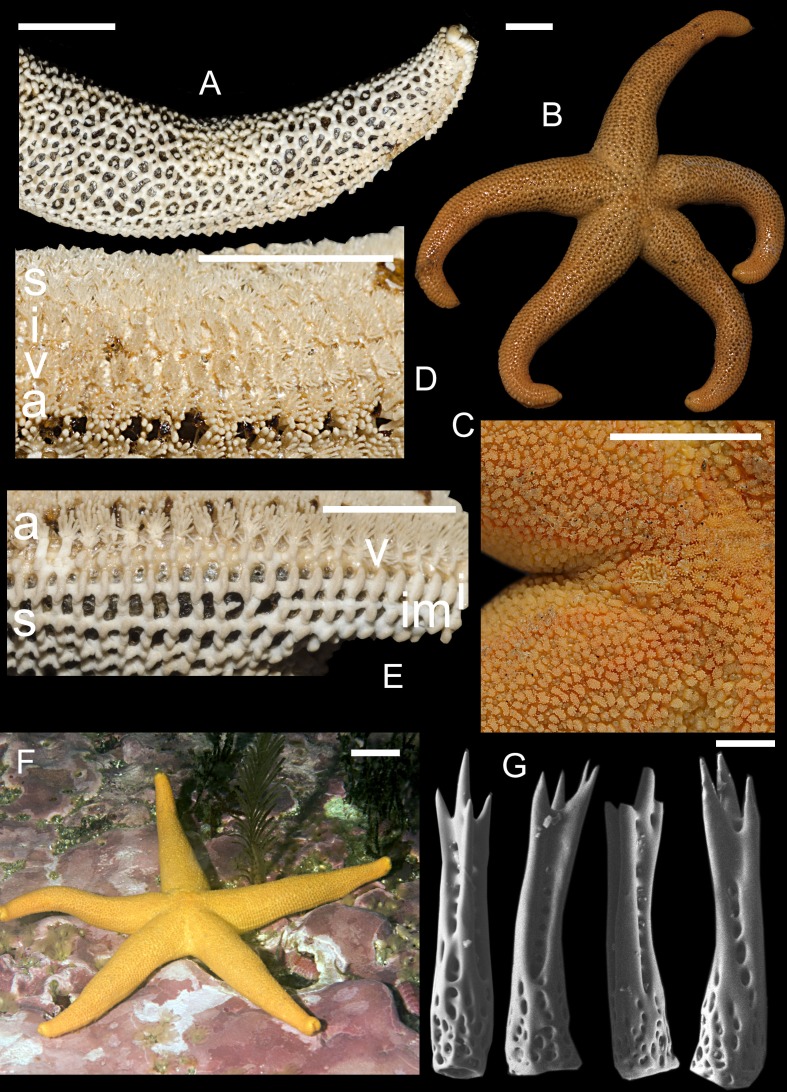

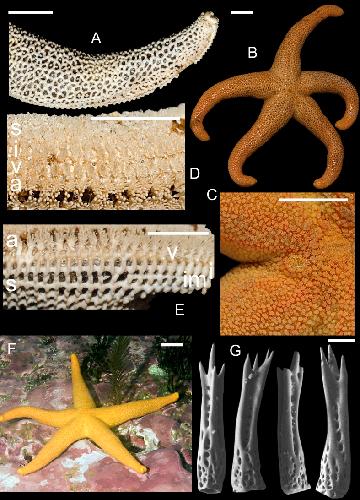

Figure 5. Henricia olga. sp. n.Holotype: (A) denuded abactinal plates, holotype; (B) abactinal side, living specimen, paratype; (C) denuded marginal plates, holotype; (D) actinal side of preserved specimen, holotype; (E) life coloration, holotype; (F) life coloration, paratype; (G) abactinal spines (scale bar 50 mkm). a, adambulacrals; v, ventrolaterals; i, inferomarginals; im, intermarginals; s, superomarginals; ab, abactinal plates. Scale bars: A, C, D, F-5 mm, B-1 mm, E-10 mm, G-50 µm.
Bergmann,
Character-based DNA barcoding: a superior tool for species classification.
2009, Pubmed
Bergmann,
Character-based DNA barcoding: a superior tool for species classification.
2009,
Pubmed
Chichvarkhin,
Henricia djakonovi sp. nov. (Echinodermata, Echinasteridae): a new sea star species from the Sea of Japan.
2017,
Pubmed
,
Echinobase
Hasegawa,
Dating of the human-ape splitting by a molecular clock of mitochondrial DNA.
1985,
Pubmed
Hebert,
Biological identifications through DNA barcodes.
2003,
Pubmed
Kimura,
A simple method for estimating evolutionary rates of base substitutions through comparative studies of nucleotide sequences.
1980,
Pubmed
Kumar,
MEGA7: Molecular Evolutionary Genetics Analysis Version 7.0 for Bigger Datasets.
2016,
Pubmed
Puillandre,
ABGD, Automatic Barcode Gap Discovery for primary species delimitation.
2012,
Pubmed
Saitou,
The neighbor-joining method: a new method for reconstructing phylogenetic trees.
1987,
Pubmed
Sarkar,
caos software for use in character-based DNA barcoding.
2008,
Pubmed
Sarkar,
An automated phylogenetic key for classifying homeoboxes.
2002,
Pubmed
