Polonik S et al. (2020), Synthesis, Cytotoxic Activity Evaluation and Qu...

ECB-ART-49459

Mar Drugs 2020 Nov 29;1812:. doi: 10.3390/md18120602.

Show Gene links Show Anatomy links

Synthesis, Cytotoxic Activity Evaluation and Quantitative Structure-Activity Analysis of Substituted 5,8-Dihydroxy-1,4-Naphthoquinones and their O- and S-Glycoside Derivatives Tested Against Neuro-2a Cancer Cells.

Polonik S , Likhatskaya G , Sabutski Y , Pelageev D , Denisenko V , Pislyagin E , Chingizova E , Menchinskaya E , Aminin D .

Abstract
Based on 6,7-substituted 2,5,8-trihydroxy-1,4-naphtoquinones (1,4-NQs) derived from sea urchins, five new acetyl-O-glucosides of NQs were prepared. A new method of conjugation of per-O-acetylated 1-mercaptosaccharides with 2-hydroxy-1,4-NQs through a methylene spacer was developed. Methylation of 2-hydroxy group of quinone core of acetylthiomethylglycosides by diazomethane and deacetylation of sugar moiety led to 28 new thiomethylglycosidesof 2-hydroxy- and 2-methoxy-1,4-NQs. The cytotoxic activity of starting 1,4-NQs (13 compounds) and their O- and S-glycoside derivatives (37 compounds) was determined by the MTT method against Neuro-2a mouse neuroblastoma cells. Cytotoxic compounds with EC50 = 2.7-87.0 μM and nontoxic compounds with EC50 > 100 μM were found. Acetylated O- and S-glycosides 1,4-NQs were the most potent, with EC50 = 2.7-16.4 μM. Methylation of the 2-OH group innaphthoquinone core led to a sharp increase in the cytotoxic activity of acetylated thioglycosidesof NQs, which was partially retained for their deacetylated derivatives. Thiomethylglycosides of 2-hydroxy-1,4-NQs with OH and MeO groups in quinone core at positions 6 and 7, resprectively formed a nontoxic set of compounds with EC50 > 100 μM. A quantitative structure-activity relationship (QSAR) model of cytotoxic activity of 22 1,4-NQ derivatives was constructed and tested. Descriptors related to the cytotoxic activity of new 1,4-NQ derivatives were determined. The QSAR model is good at predicting the activity of 1,4-NQ derivatives which are unused for QSAR models and nontoxic derivatives.

PubMed ID: 33260299
PMC ID: PMC7761386
Article link: Mar Drugs
Grant support: [+]

Article Images: [+] show captions

References [+] :

Acharya, The microtubule depolymerizing agent naphthazarin induces both apoptosis and autophagy in A549 lung cancer cells. 2011, Pubmed

Acharya, The microtubule depolymerizing agent naphthazarin induces both apoptosis and autophagy in A549 lung cancer cells. 2011, Pubmed
Acuña, Synthesis, Anti-Proliferative Activity Evaluation and 3D-QSAR Study of Naphthoquinone Derivatives as Potential Anti-Colorectal Cancer Agents. 2018, Pubmed
Aly, Synthesis of novel 1,2-bis-quinolinyl-1,4-naphthoquinones: ERK2 inhibition, cytotoxicity and molecular docking studies. 2018, Pubmed
Aminin, 1,4-Naphthoquinones: Some Biological Properties and Application. 2020, Pubmed
Anufriev VPh, Synthesis of some hydroxynaphthazarins and their cardioprotective effects under ischemia-reperfusion in vivo. 1998, Pubmed
Badolato, Discovery of 1,4-Naphthoquinones as a New Class of Antiproliferative Agents Targeting GPR55. 2019, Pubmed
Costa, Two-dimensional quantitative structure-activity relationship study of 1,4-naphthoquinone derivatives tested against HL-60 human promyelocytic leukaemia cells. 2017, Pubmed
Driguez, Thiooligosaccharides as tools for structural biology. 2001, Pubmed
Dyshlovoy, Inspired by Sea Urchins: Warburg Effect Mediated Selectivity of Novel Synthetic Non-Glycoside 1,4-Naphthoquinone-6S-Glucose Conjugates in Prostate Cancer. 2020, Pubmed , Echinobase
Dyshlovoy, Successful Targeting of the Warburg Effect in Prostate Cancer by Glucose-Conjugated 1,4-Naphthoquinones. 2019, Pubmed
Ekimova, New HSF1 inducer as a therapeutic agent in a rodent model of Parkinson's disease. 2018, Pubmed
El-Habashy, Novel treatment strategies for brain tumors and metastases. 2014, Pubmed
Gould, Breaking down the epidemiology of brain cancer. 2018, Pubmed
Hou, Naphthoquinones of the spinochrome class: occurrence, isolation, biosynthesis and biomedical applications. 2018, Pubmed , Echinobase
Jeong, Echinochrome a increases mitochondrial mass and function by modulating mitochondrial biogenesis regulatory genes. 2014, Pubmed , Echinobase
Kobayashi, "Optical communication with brain cells by means of an implanted duplex micro-device with optogenetics and Ca(2+) fluoroimaging". 2016, Pubmed
Lebedev, Echinochrome, a naturally occurring iron chelator and free radical scavenger in artificial and natural membrane systems. 2005, Pubmed
Lebedev, Iron chelators and free radical scavengers in naturally occurring polyhydroxylated 1,4-naphthoquinones. 2008, Pubmed
Lennikov, Amelioration of endotoxin-induced uveitis treated with the sea urchin pigment echinochrome in rats. 2014, Pubmed , Echinobase
Liu, 1,4-Naphthoquinones as inhibitors of Itch, a HECT domain-E3 ligase, and tumor growth suppressors in multiple myeloma. 2017, Pubmed
Maris, Neuroblastoma. 2007, Pubmed
Masuda, Constituents of Tritonia crocosmaeflora, II. Tricrozarin B, an antitumor naphthazarin derivative. 1987, Pubmed
McClendon, DNA topoisomerase II, genotoxicity, and cancer. 2007, Pubmed
Pelageev, Quinone-carbohydrate nonglucoside conjugates as a new type of cytotoxic agents: synthesis and determination of in vitro activity. 2014, Pubmed
Prachayasittikul, Synthesis, anticancer activity and QSAR study of 1,4-naphthoquinone derivatives. 2014, Pubmed
Prachayasittikul, Aromatase inhibitory activity of 1,4-naphthoquinone derivatives and QSAR study. 2017, Pubmed
Pérez-Sacau, Synthesis and pharmacophore modeling of naphthoquinone derivatives with cytotoxic activity in human promyelocytic leukemia HL-60 cell line. 2007, Pubmed
Ravichandiran, Synthesis and Antimicrobial Evaluation of 1,4-Naphthoquinone Derivatives as Potential Antibacterial Agents. 2019, Pubmed
Rozanov, Targeting mitochondria in cancer therapy could provide a basis for the selective anti-cancer activity. 2019, Pubmed
Sabutski, Synthesis and Evaluation of Antimicrobial and Cytotoxic Activity of Oxathiine-Fused Quinone-Thioglucoside Conjugates of Substituted 1,4-Naphthoquinones. 2020, Pubmed
Seo, Echinochrome A Improves Exercise Capacity during Short-Term Endurance Training in Rats. 2015, Pubmed , Echinobase
Shah, Brain Cancer: Implication to Disease, Therapeutic Strategies and Tumor Targeted Drug Delivery Approaches. 2018, Pubmed
Silchenko, Structure and biological action of cladolosides B1, B2, C, C1, C2 and D, six new triterpene glycosides from the sea cucumber Cladolabes schmeltzii. 2013, Pubmed , Echinobase
Takano, Tumor-specific cytotoxicity and type of cell death induced by naphtho[2,3-b]furan-4,9-diones and related compounds in human tumor cell lines: relationship to electronic structure. 2009, Pubmed
Vargo, Brain Tumors and Metastases. 2017, Pubmed
Verma, Anti-cancer activities of 1,4-naphthoquinones: a QSAR study. 2006, Pubmed
Wang, The compound 2-(naphthalene-2-thio)-5,8-dimethoxy-1,4-naphthoquinone induces apoptosis via reactive oxygen species-regulated mitogen-activated protein kinase, protein kinase B, and signal transducer and activator of transcription 3 signaling in human gastric cancer cells. 2018, Pubmed
Wellington, Anticancer activity, apoptosis and a structure-activity analysis of a series of 1,4-naphthoquinone-2,3-bis-sulfides. 2020, Pubmed

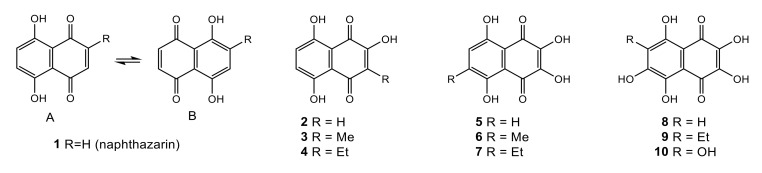

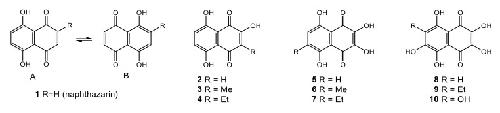

	Figure 1. Natural hydroxynaphthazarins: 1,3,4: naphthazarins from terrestrial plants; 2,5–10: from sea urchins.

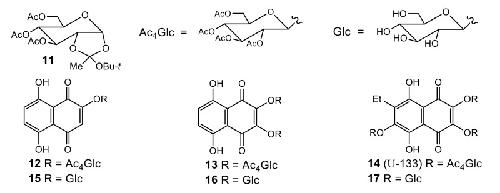

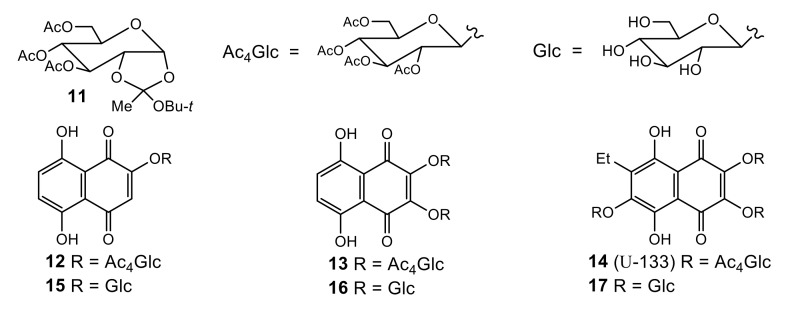

	Figure 2. 3,4,6-Tri-O-acetyl-α-d-glucopyranose 1,2-(tert-butoxy orthoacetate) 11 and related hydroxynaphthazarin O-glucosides 12–17.

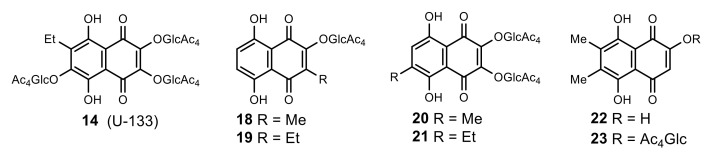

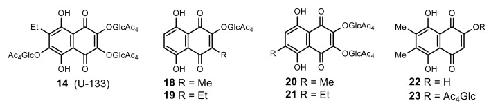

	Figure 3. Acetylated tris-O-glucoside echinochrome 14 (U-133) and its simplified analogues 18–21 and 23.

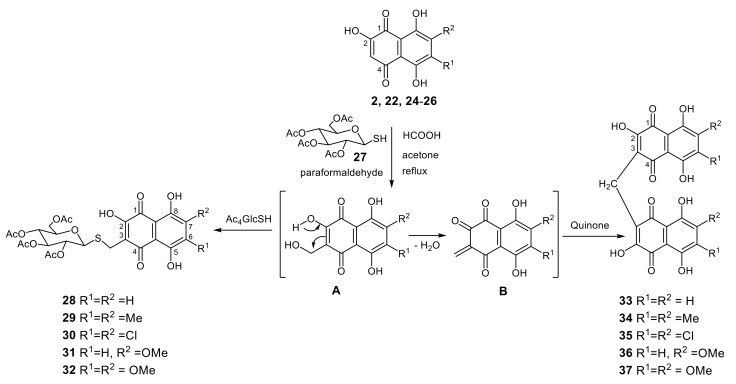

	Scheme 1. Acid-catalyzed condensation of tetra-O-acetyl-1-mercapto-d-glucose 27 with 6,7-substituted 2-hydroxynaphthazarines 2, 22, 24–26 and paraformaldehyde.

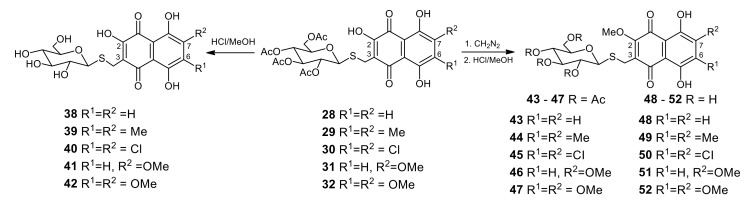

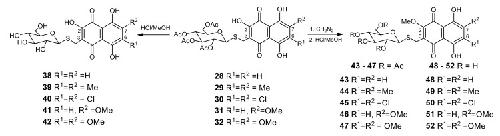

	Scheme 2. Synthesis of thiomethylglucosides 38–52.

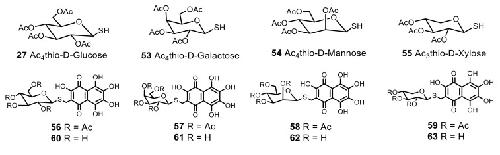

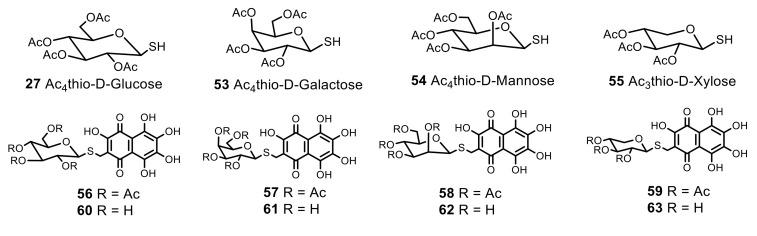

	Figure 4. Per-O-acetyl-1-mercaptoderivatives of d-glucose 27, d-galactose 53, d-mannose 54, d-xylose 55 and thiomethyl glycosides 56–63 derived from spinochrome D 8.

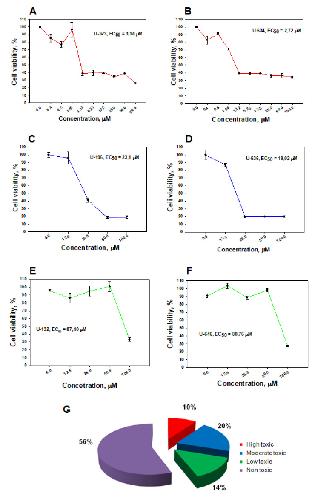

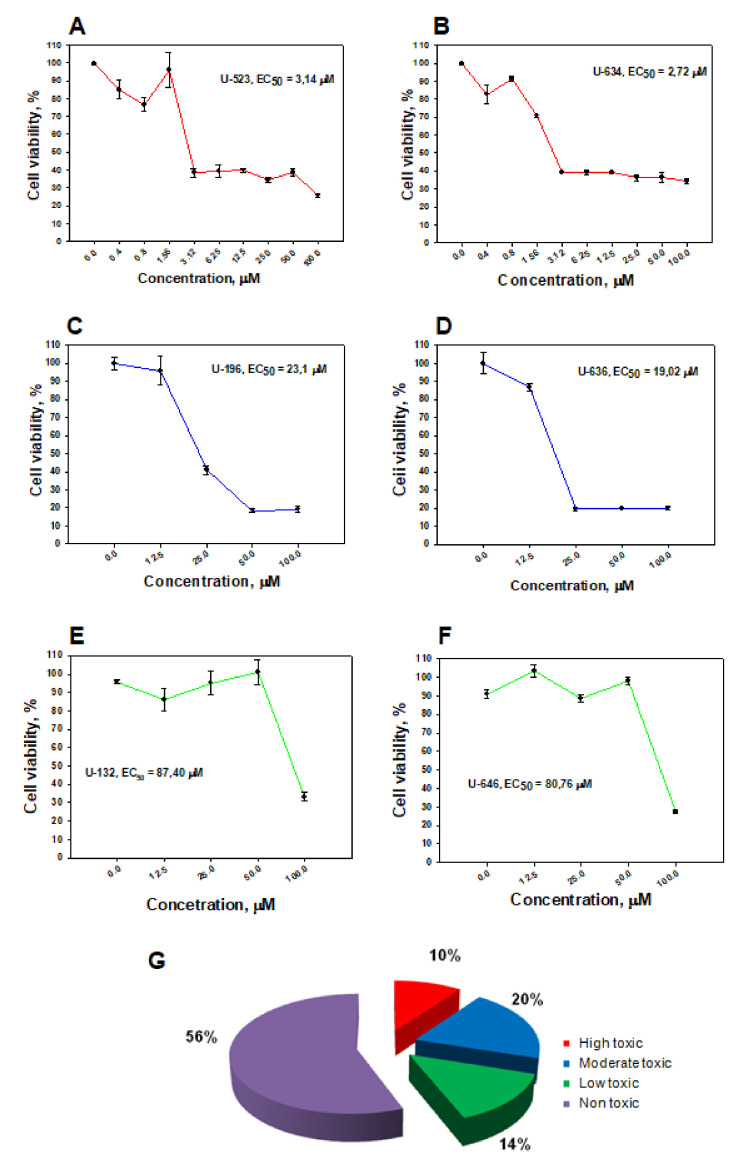

	Figure 5. Cytotoxic activity of 5,8-dihydroxy-1,4-naphthoquinone derivatives on mouse Neuro-2a cells. Dose-dependent representative curves of cytotoxic action of some studied 5,8-dihydroxy-1,4-naphthoquinone derivatives on Neuro-2a mouse neuroblastoma cells: high toxic compounds (A,B); moderate toxic compounds (C,D); low toxic compounds (E,F). Ratio of tested cytotoxic and nontoxic 1,4-NQs (G).

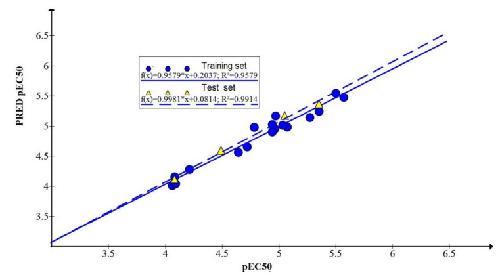

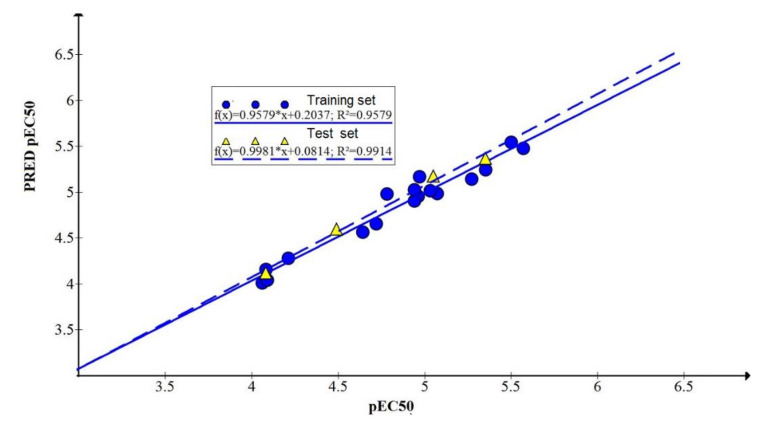

	Figure 6. Predicted cytotoxic activity of 5,8-dihydroxy-1,4-naphthoquinone derivatives as a function of experimental values for Neuro-2a cell line.

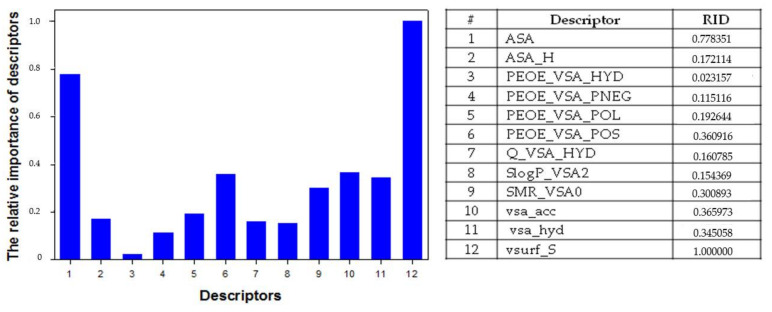

	Figure 7. The relative importance of descriptors (RID) used for QSAR model of cytotoxic activity of 5,8-dihydroxy-1,4-NQ derivatives.

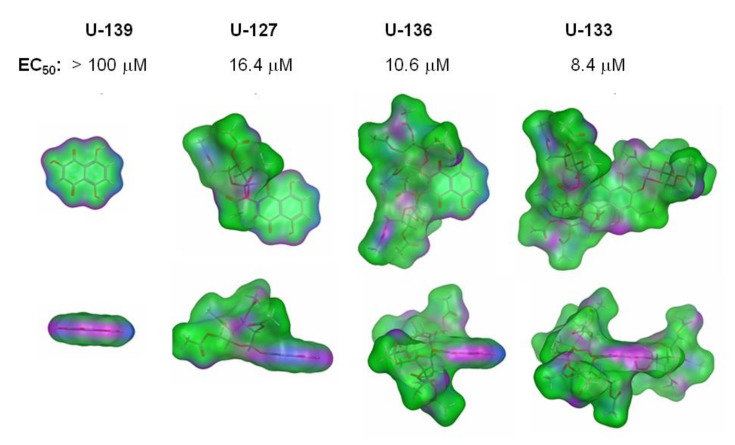

	Figure 8. Molecular surface of 1,4-NQs of nontoxic 2 (U-139) and its derivatives of mono-, di- and tris-O-acetylglycosides: compounds 12 (U-127), 13 (U-136) and 14 (U-133), respectively. Molecular surface colors are pink (H-bonding), green (hydrophobic) and blue (mild polar).

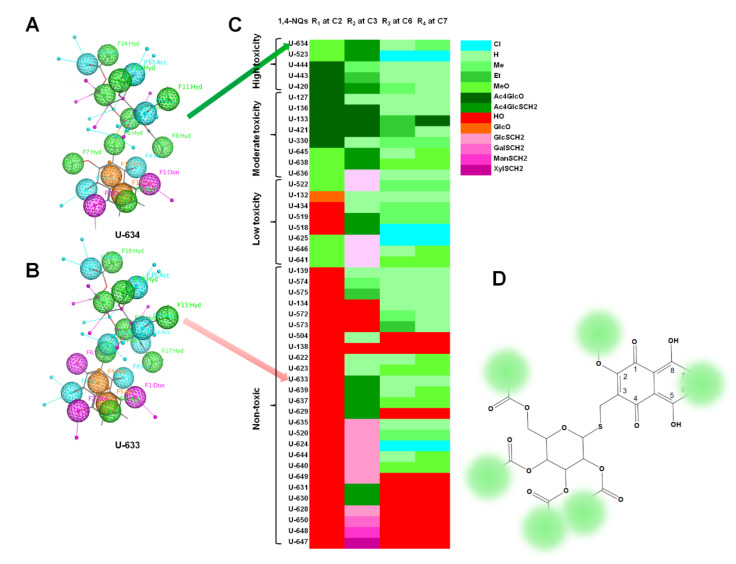

	Figure 9. The structure of the pharmacophores of high toxic 43 (U-634) and nontoxic 28 (U-633) compounds. A pharmacophore annotation scheme: Hyd—hydrophobe (green), Acc—H-bond acceptor (turquoise), Don—H-bond donor (pink), Aro—aromatic (orange) (A,B); a heat map of high, moderate, low toxic and nontoxic compounds describing the contribution of substituent compositions of 1,4-NQ main core to the cytotoxic activity (C); structure of S-glycoside of 1,4-NQ pharmacophore where the green spots indicate hydrophobic substituent positions required for high cytotoxicity (D).
