BMC Evol Biol
2008 May 09;8:136. doi: 10.1186/1471-2148-8-136.
Show Gene links
Show Anatomy links
Unexpected diversity of cnidarian integrins: expression during coral gastrulation.
Knack BA
,
Iguchi A
,
Shinzato C
,
Hayward DC
,
Ball EE
,
Miller DJ
.
Abstract
BACKGROUND: Adhesion mediated through the integrin family of cell surface receptors is central to early development throughout the Metazoa, playing key roles in cell-extra cellular matrix adhesion and modulation of cadherin activity during the convergence and extension movements of gastrulation. It has been suggested that Caenorhabditis elegans, which has a single beta and two alpha integrins, might reflect the ancestral integrin complement. Investigation of the integrin repertoire of anthozoan cnidarians such as the coral Acropora millepora is required to test this hypothesis and may provide insights into the original roles of these molecules.
RESULTS: Two novel integrins were identified in Acropora. AmItgalpha1 shows features characteristic of alpha integrins lacking an I-domain, but phylogenetic analysis gives no clear indication of its likely binding specificity. AmItgbeta2 lacks consensus cysteine residues at positions 8 and 9, but is otherwise a typical beta integrin. In situ hybridization revealed that AmItgalpha1, AmItgbeta1, and AmItgbeta2 are expressed in the presumptive endoderm during gastrulation. A second anthozoan, the sea anemone Nematostella vectensis, has at least four beta integrins, two resembling AmItgbeta1 and two like AmItgbeta2, and at least three alpha integrins, based on its genomic sequence.
CONCLUSION: In two respects, the cnidarian data do not fit expectations. First, the cnidarian integrin repertoire is more complex than predicted: at least two betas in Acropora, and at least three alphas and four betas in Nematostella. Second, whereas the bilaterian alphas resolve into well-supported groups corresponding to those specific for RGD-containing or laminin-type ligands, the known cnidarian alphas are distinct from these. During early development in Acropora, the expression patterns of the three known integrins parallel those of amphibian and echinoderm integrins.

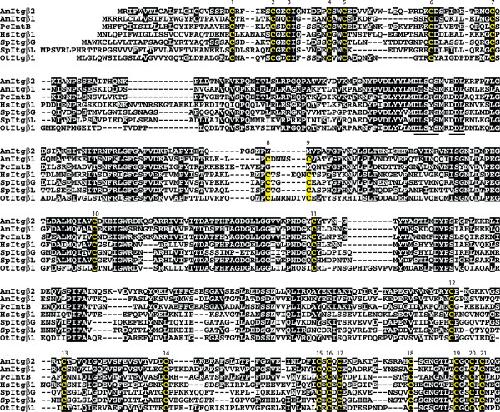

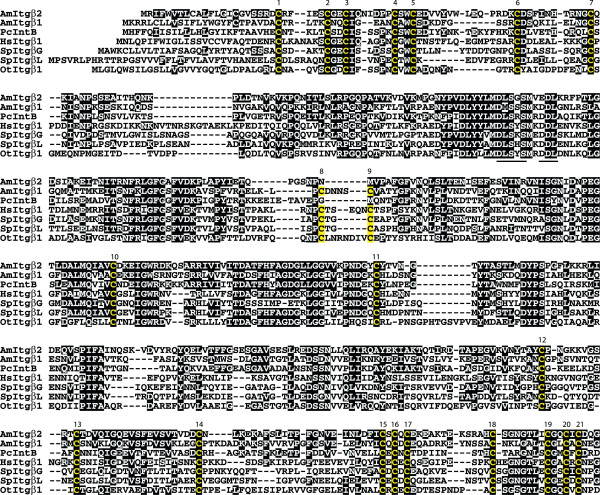

Figure 1. β integrin alignments (amino terminal end of the molecules). Amino acid sequence of AmItgβ2 aligned with representative β integrin sequences. Atypical absence of cysteines (yellow, numbered) from positions 8 and 9 suggests orthology between AmItgβ2 and Podocoryne IntB (PcIntB). Structural features including the MIDAS motif (DLSXS, underlined), transmembrane region (long wavy line), membrane proximal motif (short wavy line), and two NPxY/F motifs (double underline) are conserved. The ADMIDAS motif (DDL, underlined) is changed to EDL in AmItgβ2. An arrow indicates the position where a deletion was made in the sponge sequence (OtItgβ1) to facilitate alignment. Abbreviations and database accession numbers for sequences used in the alignment are: Acropora AmItgβ2 (AmItgβ2; EU239372); Podocoryne IntB (PcIntB; AAG25994); Acropora AmItgβ1 (AmItgβ1; AAB66910); Human β1 (HsItgβ1; P05556); Strongylocentrotus βG (Urchin SpItgβG; AAB39739); Strongylocentrotus βL (SpItgβL; AAC28382); Ophlitaspongia βPo1 (Sponge OtItgβ1; AAB66911).

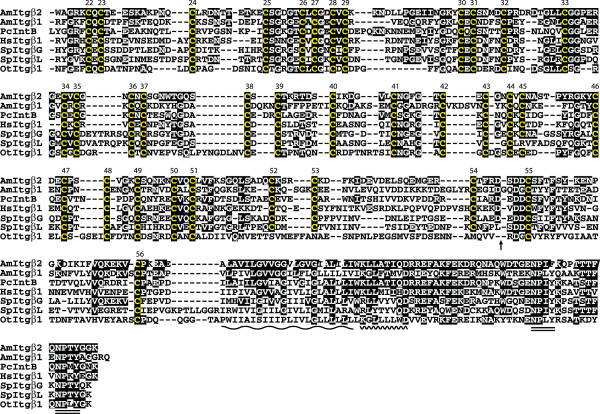

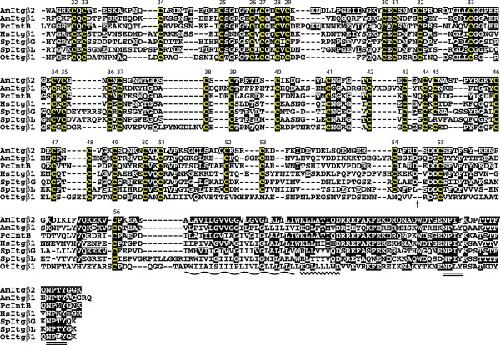

Figure 2. β integrin alignments (carboxy terminal end of the molecules). See legend for Fig. 1.

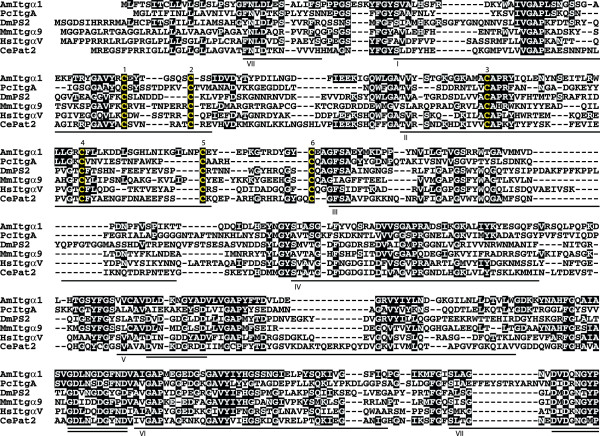

Figure 3. α integrin alignments (amino terminal end of the molecules). The major structural features of alpha integrins lacking an alpha-A domain are conserved in AmItgα1 including seven FG-GAP repeats (underlined, roman numerals), three DxD/NxD/NxxxD cation binding sites (double underline), the transmembrane region (long wavy line) and the cytosolic membrane proximal domain (short wavy line). The position of a putative fourth cation binding site in the Podocoryne sequence is indicated in red. Arrows mark the positions where regions that could not be unambiguously aligned were removed from the Drosophila (DmPS2; 219 residues), Caenorhabditis (CePat2; 132 residues) and human (HsItgαV; 6 residues) sequences. Abbreviations and database accession numbers for sequences used in the alignment are: Acropora AmItgα1 (AmItgα1; EU239371); Podocoryne IntA (PcIntA; AAG25993); Drosophila αPS2 (DmPS2; P12080); Mouse α9 (MmItgα9; NP_598482); Human αV (HsItgαV; P06756); Caenorhabditis αPat2 (CePat2; P34446).
Figure 4. α integrin alignments (carboxy terminal end of the molecules). See legend for Fig. 3.

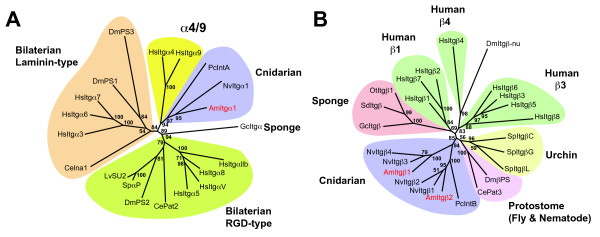

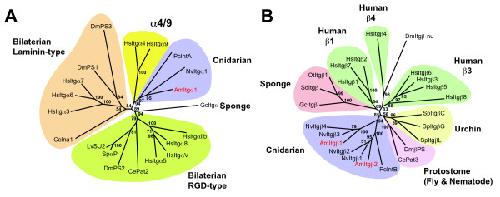

Figure 5. Maximum likelihood phylogenetic analysis of representative α and β integrin proteins. Numbers at branch points indicate the percentage of 1000 bootstrap replicates supporting the topology shown (using MolPhy version 2.3; see [14]). (A) α integrins. Whereas integrins from Bilateria group in a ligand specific manner, consistent with previous phylogenies, the cnidarian sequences form an independent clade, reflecting their early divergence. These groupings suggest that functional divergence of α integrins had already occurred in the Urbilateria. Sequences aligned, abbreviations, and accession numbers are: Lytechinus SU2 (LvSU2; AAC23572); Strongylocentrotus αP (SpαP; AAD55724); Drosophila αPS2 (DmPS2; P12080); Human α5 (HsItgα5; P08648); Human αV (HsItgαV; P06756); Human α8 (HsItgα8; P53708); Human αIIb (HsItgαllb; P08514); Human α6 (HsItgα6; P23229); Human α7 (HsItgα7; Q13683); Human α3 (HsItgα3; P26006); Drosophila αPS3 (DmPS3; O44386); Acropora AmItgα1 (AmItgα1; EU239371); Human α4 (HsItgα4; P13612); Human α9 (HsItgα9; Q13797); Nematostella NvItgα1 (NvItgα1; XP_001641435); Caenorhabditis αPat2 (CePat2; P34446); Drosophila αPS1 (DmPS1; Q24247); Podocoryne IntA (PcIntA; AAG25993); Caenorhabditis αIna1 (CeIna1; Q03600); Geodia α (GcItgα; CAA65943). (B) β integrins. Major clades resolved here are consistent with previous phylogenies. The position of sequences within the cnidarian clade is consistent with orthology between Podocoryne IntB (PcIntB) and AmItgβ2, and groups two Nematostella βs with each Acropora β. Unlike the α integrins, the β integrins appear to have diverged independently in several bilaterian lineages. Sequences aligned, abbreviations, and accession numbers are: Human β3 (HsItgβ3; P05106); Human β5 (HsItgβ5; P18084); Human β6 (HsItgβ6; P18564); Human β2 (HsItgβ2; P05107); Human β7 (HsItgβ7; P26010); Human β1 (HsItgβ1; P05556); Strongylocentrotus βG (Urchin SpItgβG; AAB39739); Strongylocentrotus βL (SpItgβL; AAC28382); Strongylocentrotus βC (SpItgβC; AAB39740); Drosophila βPS (DmβPS P11584); Caenorhabditis βPat3 (CePat3; Q27874); Acropora AmItgβ2 (AmItgβ2; EU239372); Nematostella β1 (NvItgβ1; XP_001641468); Nematostella β2 (NvItgβ2; XP_001627336); Podocoryne IntB (PcIntB; AAG25994); Acropora AmItgβ1(AmItgβ1; AAB66910); Nematostella β3 (NvItgβ3; XP_001637894); Nematostella β4 (NvItgβ4; XP_001621822); Ophlitaspongia βPo1 (Sponge OtItgβ1; AAB66911); Suberites β (Sponge SdItgβ; CAB38100); Geodia β (Sponge GcItgβ; CAA77071); Human β4 (HsItgβ4; P16144); Drosophila β-nu (Dmβ-nu; Q27591); Human β8 (HsItgβ8; P26012).

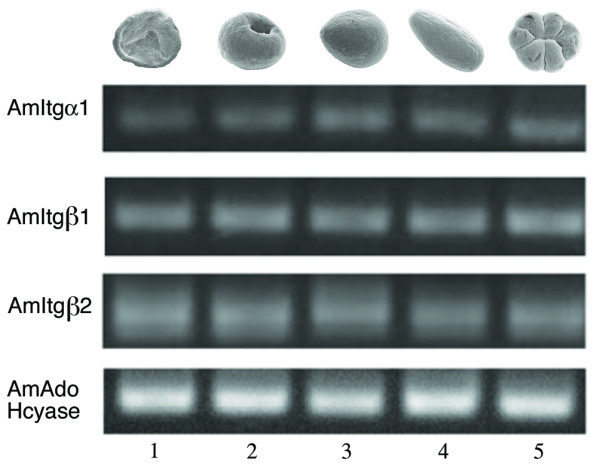

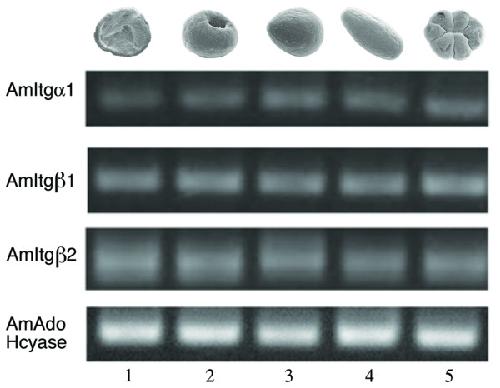

Figure 6. Reverse transcriptase PCR analysis of integrin expression during Acropora development. Time points: 1-Prawn Chip, 2-Gastrula, 3-Pear, 4-Planula, 5-Settlement. All three Acropora integrin subunits show constant levels of expression throughout development.
Figure 7. Comparison of AmItgα1, AmItgβ1 and AmItgβ2 mRNA distribution patterns during gastrulation in Acropora. At the prawn chip stage, the AmItgα1 and AmItgβ1 mRNAs are clearly restricted to one side of the flattened cell bilayer (A, A', D). During gastrulation, these mRNAs are tightly restricted to the area of the blastopore (asterisks) lip (B, B', C, C', E, F), and throughout development remain endodermal. The distribution of AmItgβ2 mRNA (G, H, I) is broadly similar to that of AmItgα1, but is less tightly restricted, as indicated by weak general staining. Arrow heads in A, B, and C indicate the plane of the sections shown as A', B' and C'.
